Kismile KS-FBMZ5825NB-BLACK

Kismile Nugget Ice Maker Instruction Manual

Model: KS-FBMZ5825NB-BLACK

Inleiding

Thank you for choosing the Kismile Nugget Ice Maker. This portable countertop ice machine is designed to provide chewable nugget ice quickly and efficiently. With a 1.1L water tank, it produces up to 35 pounds of ice within 24 hours, with the first batch ready in just 7 minutes. It features a self-cleaning function and intuitive LED indicators for water levels, ice production, and cleaning status. Its compact design makes it a convenient addition to any home.

Belangrike veiligheidsinligting

  • Lees alle instruksies voordat u die toestel gebruik.
  • Ensure the appliance is placed on a stable, level surface with adequate ventilation around the intake and exhaust vents. Do not block these vents.
  • Moenie die toestel, kragkabel of prop in water of ander vloeistowwe dompel nie.
  • Unplug the appliance from the power outlet before cleaning, servicing, or when not in use.
  • Hou die toestel weg van hittebronne en direkte sonlig.
  • Gebruik slegs drinkbare water in die ysmaker.
  • Hou kinders weg van die toestel tydens gebruik.

Produk verbyview

The Kismile Nugget Ice Maker consists of the main unit, a removable ice basket, and an ice scoop. The control panel features LED indicators for 'Ice Full', 'Add Water', and an 'Ice/Clean' button.

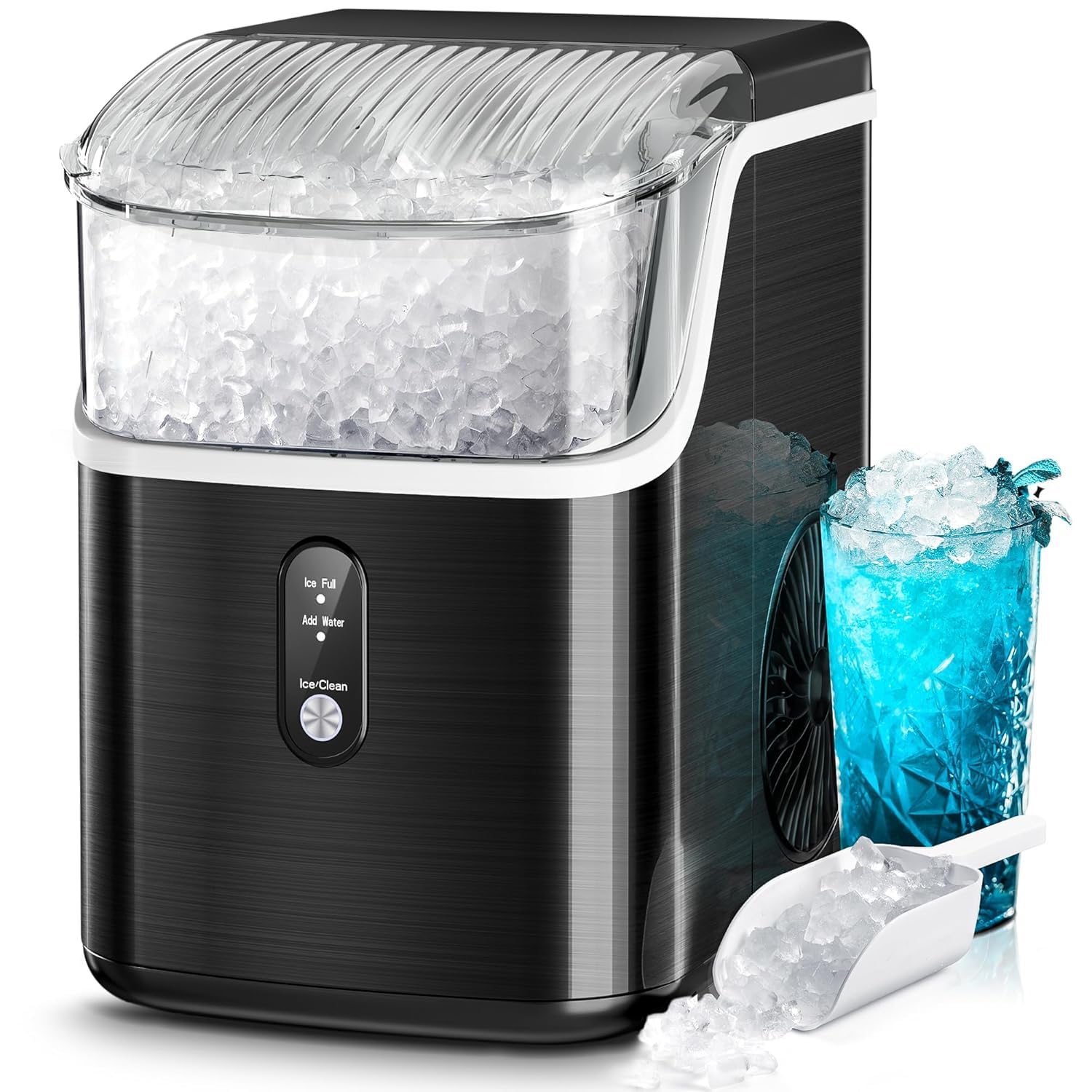

Kismile Nugget Ice Maker main unit
The Kismile Nugget Ice Maker main unit, featuring a sleek design and transparent lid.
Detachable ice basket being removed from the ice maker
The detachable ice basket allows for easy removal and serving of ice. It is designed to hold a significant amount of nugget ice.
Close-up of the Kismile ice maker control panel with LED indicators
The control panel features an 'Ice/Clean' button and indicator lights for 'Ice Full' and 'Add Water', providing clear operational status.

Opstelling

  1. Pak uit: Carefully remove the ice maker from its packaging. Remove all protective film and packaging materials.
  2. Plasing: Place the ice maker on a flat, stable surface away from direct sunlight and heat sources. Ensure there is at least 5 inches of space around the unit for proper ventilation.
  3. Aanvanklike skoonmaak: Before first use, it is recommended to run a self-cleaning cycle. Fill the water reservoir with potable water up to the MAX line. Press and hold the 'Ice/Clean' button for 5 seconds to activate the self-cleaning mode. Once complete, drain the water using the drain plug at the bottom of the unit.
  4. Voeg water by: Open the lid and pour potable water into the reservoir up to the MAX fill line. Do not overfill.

Bedryfsinstruksies

  1. Begin Ysproduksie: After adding water, press the 'Ice/Clean' button briefly. The indicator light will turn white, signifying that ice production has started. The first batch of nugget ice will be ready in approximately 7 minutes.
  2. Haal ys terug: Once the 'Ice Full' indicator light illuminates, the ice basket is full. Open the lid and use the provided scoop to retrieve the ice. The ice basket is detachable for easy serving.
  3. Continuous Ice Making: The ice maker will continue to produce ice as long as there is water in the reservoir and the ice basket is not full. If ice melts, the water will drain back into the reservoir for reuse.
  4. Selfreinigende funksie: To activate the self-cleaning mode, press and hold the 'Ice/Clean' button for 5 seconds. The unit will run a cleaning cycle for about 15 minutes.
Kismile ice maker performing self-cleaning cycle
The self-cleaning function circulates water to clean the internal components, ensuring fresh ice production.
This video demonstrates the process of making nugget ice with the Kismile ice maker, highlighting its ease of use and the quality of the ice produced.

Onderhoud

  1. Gereelde skoonmaak: Perform the self-cleaning cycle regularly (e.g., once a week or as needed) to prevent mineral buildup. For a deeper clean, use a solution of white vinegar and water (50/50 ratio) in the self-cleaning cycle, then run a cycle with fresh water to rinse.
  2. Dreineer water: After cleaning or when storing the unit, ensure all water is drained from the reservoir using the drain plug located at the bottom.
  3. Clean Ice Basket and Scoop: Wash the ice basket and scoop with mild soap and water. Rinse thoroughly and dry before placing back into the unit.
  4. Buitenste skoonmaak: Vee die buitekant van die ysmasjien af ​​met 'n sagte, damp lap. Moenie skuur skoonmaakmiddels gebruik nie.

Probleemoplossing

ProbleemMoontlike oorsaakOplossing
'Add Water' Indicator OnWaterreservoir is leeg of laag.Voeg drinkbare water by die reservoir tot by die MAX-lyn.
'Ice Full' Indicator OnYsmandjie is vol.Remove ice from the basket. The unit will resume ice production.
Ice production is slow or ice is not forming.Insufficient water, high ambient temperature, or blocked vents.Ensure water is at MAX level. Place unit in a cooler environment. Check and clear any obstructions from air vents.
Ice blocks the dispenser.Accumulation of ice in the dispenser area.Manually remove the ice to prevent the machine from stopping.

Spesifikasies

  • Handelsmerk: Kismile
  • Model Naam: KS-FBMZ5825NB-BLACK
  • Produk afmetings: 12.6" D x 8.66" B x 11.02" H
  • Kapasiteit: 35 Pounds/Day
  • koelmiddel: R600a
  • Materiaal tipe: Metaal, plastiek

Waarborg en Ondersteuning

For warranty information or technical support, please refer to the product packaging or contact Kismile customer service directly. Keep your purchase receipt for any warranty claims.
