RebotAi A9 Android Tablet User Manual

1. Inleiding

This manual provides essential information for setting up, operating, and maintaining your RebotAi A9 Android Tablet. Please read it thoroughly before using the device to ensure proper functionality and safety.

Beeld 1.1: Voor en agter view of the RebotAi A9 Android Tablet.

Beeld 1.2: verbyview of the RebotAi A9 Android Tablet highlighting its 8.68-inch 90Hz IPS display, MediaTek Helio G100 processor, 7.8mm thickness, 360g weight, 18GB RAM, 128GB ROM, 5000mAh battery, 2.4GHz+5GHz WiFi, GPS, and BT5.2.

2. Sleutel kenmerke

• Verwerker: Latest MediaTek Helio G100 (MT8781) octa-core CPU (up to 2.2GHz) for enhanced performance and energy efficiency.
• Geheue en berging: 18GB RAM (6GB physical + 12GB virtual) and 128GB internal storage, expandable up to 1TB via microSD.
• Vertoon: 8.68-inch high-definition IPS LCD display with 1340x800 resolution, 90Hz refresh rate, and 450 nits brightness.
• Verbinding: Dual nano SIM 4G LTE support (B1 / B3 / B7 / B8 / B19 / B20), high-speed 5G Wi-Fi, Bluetooth 5.2, and integrated high-precision GPS.
• Kameras: 13-megapixel autofocus rear camera and 5-megapixel front camera.
• Battery: 5000mAh large-capacity battery with 20W PD fast charging support.
• Ontwerp: Ultra-thin 7.8mm and lightweight 360g nano-coated metal body.
• Sagteware: Runs on Android 15 with GMS certification, supporting various AI applications and features like face recognition (for unlocking).

3. Opstelling

3.1 Pakketinhoud

Verifieer dat alle items in die pakket teenwoordig is:

• RebotAi A9 Tablet x1
• Laaier x1
• USB-C kabel x1
• Stylus Pen x1
• Screen Protector (pre-applied) x1
• Instruction Manual (Japanese) x1
• SIM Card Pin x1

Image 3.1: Illustration of the RebotAi A9 tablet and its included accessories.

3.2 Aanvanklike laai

Before first use, fully charge the tablet using the provided USB-C cable and charger. Connect the USB-C cable to the tablet's charging port and the charger to a power outlet.

3.3 SIM-kaart en MicroSD-kaartinstallasie

Locate the card slot on the side of the tablet. Use the provided SIM card pin to open the tray. Insert up to two nano SIM cards and/or one microSD card (up to 1TB) into the tray, ensuring correct orientation. Gently push the tray back into the slot until it clicks into place.

4. Bedryfsinstruksies

4.1 Krag aan/af

• Om aan te skakel: Press and hold the power button until the RebotAi logo appears.
• Om af te skakel: Press and hold the power button, then select 'Power Off' from the options on the screen.
• Om weer te begin: Press and hold the power button, then select 'Restart' from the options on the screen.

4.2 Basiese navigasie

The tablet uses a touch-sensitive screen for navigation:

• Tik: Touch the screen once to select an item or open an app.
• Lang pers: Touch and hold an item for more options.
• Swiep: Sleep jou vinger oor die skerm om te blaai of tussen bladsye te navigeer.
• Knyp: Gebruik twee vingers om in of uit te zoem op beelde en web bladsye.

4.3 Gesplete skermfunksionaliteit

The tablet supports split-screen mode, allowing you to use two applications simultaneously. This feature is useful for multitasking, such as watching a video while chatting or browsing information.

Image 4.1: The tablet demonstrating split-screen mode, allowing two applications to be viewed gelyktydig.

5. Konnektiwiteit

5.1 Wi-Fi-verbinding

The RebotAi A9 supports dual-band 2.4GHz and 5GHz Wi-Fi (802.11ac) for fast and stable internet access.

1. Gaan na Instellings > Netwerk en internet > Wi-Fi.
2. Skakel Wi-Fi aan.
3. Kies die verlangde netwerk uit die lys en voer die wagwoord in indien nodig.

5.2 4G LTE Mobile Data and Calls

With dual nano SIM support, you can use 4G LTE for mobile data and voice calls. The tablet supports bands B1 / B3 / B7 / B8 / B19 / B20.

1. Ensure SIM cards are correctly installed.
2. Gaan na Instellings > Netwerk en internet > Mobiele netwerk.
3. Configure your mobile data settings as per your carrier's instructions.

5.3 Bluetooth-verbinding

The tablet features Bluetooth 5.2 for connecting wireless accessories.

1. Gaan na Instellings > Gekoppelde toestelle > Bluetooth.
2. Skakel Bluetooth aan.
3. Select the device you wish to pair from the list and follow the on-screen prompts.

5.4 GPS-navigasie

The integrated high-precision GPS supports navigation and location-based services, compatible with Beidou, Galileo, and GLONASS.

Image 5.1: The tablet displaying GPS navigation, indicating its capability for accurate positioning.

Image 5.2: The RebotAi A9 tablet being used for in-car navigation, demonstrating its GPS functionality.

6. Display and Multimedia

6.1 Hoëdefinisie-skerm

The 8.68-inch IPS LCD display offers a 1340x800 resolution, 90Hz refresh rate, and 450 nits brightness. Its full lamination structure ensures vibrant colors and clear visuals for videos, games, photos, and documents.

Image 6.1: The tablet screen displaying a visual representation of its 90Hz refresh rate.

Image 6.2: The RebotAi A9 tablet showcasing a colorful image on its IPS display, emphasizing visual quality.

6.2 Widevine L1 Support

With Widevine L1 certification, the tablet allows high-quality, full HD content streaming from services like Amazon Prime Video, Netflix, Disney+, and Hulu.

Image 6.3: The tablet highlighting its Widevine L1 support for high-definition streaming from various platforms.

6.3 Klankuitset

The tablet features dual BOX speakers for clear audio and a 3.5mm headphone jack for private listening.

Image 6.4: The tablet showcasing its dual BOX speakers for enhanced audio experience.

6.4 Draadlose projeksie

The tablet supports wireless projection, allowing you to easily connect to a large-screen TV for sharing content.

7. Kamera

The RebotAi A9 is equipped with a 13-megapixel autofocus rear camera and a 5-megapixel front camera, suitable for photography, video calls, and QR code scanning.

Beeld 7.1: Nabyskoot view of the RebotAi A9 tablet's rear camera module.

Image 7.2: Visual representation of the tablet's 5MP front and 13MP rear cameras.

8. Berging en Werkverrigting

8.1 Verwerker

The tablet is powered by the MediaTek Helio G100 (MT8781) octa-core processor, featuring two Cortex-A76 and six Cortex-A55 cores, clocked up to 2.2GHz. This configuration provides an AnTuTu score exceeding 400,000, ensuring smooth performance for various applications, including gaming.

Image 8.1: Details of the MTK Helio G100 processor, highlighting its performance and efficiency.

8.2 Geheue en berging

The RebotAi A9 comes with 18GB RAM (6GB physical + 12GB virtual) and 128GB of internal storage. Storage can be expanded up to 1TB using a microSD card, providing ample space for applications, media, and documents.

Image 8.2: Visual representation of the tablet's 18GB RAM and 128GB ROM, with 1TB expansion capability.

Image 8.3: Illustration of the tablet's large storage capacity, including 6GB+12GB virtual memory, 128GB storage, and 1TB expansion.

8.3 Speletjies en Vermaak

The combination of the Helio G100 processor, Mali-G76 GPU, 90Hz display, and 6-axis gyroscope provides a responsive and immersive experience for gaming and multimedia consumption.

Image 8.4: The tablet displaying a racing game, demonstrating its smooth performance for gaming.

Image 8.5: A user playing a game on the RebotAi A9 tablet, highlighting its suitability for gaming.

Image 8.6: A user reading comics on the RebotAi A9 tablet, showcasing its display quality for reading.

9. Battery en Laai

The tablet is equipped with a 5000mAh battery and supports 20W PD fast charging, providing extended usage times for various activities such as reading, online classes, video viewing, and work.

Image 9.1: The RebotAi A9 tablet connected to its charger, indicating its charging capability.

Image 9.2: Details of the tablet's 5000mAh battery and 20W fast charging, with estimated usage times for different activities.

10. Physical Design and Durability

The RebotAi A9 features a nano-coated metal body, offering a smooth and premium feel. Its ultra-thin 7.8mm profile and lightweight 360g design make it highly portable. The nano-molding technology provides enhanced protection against water and impacts.

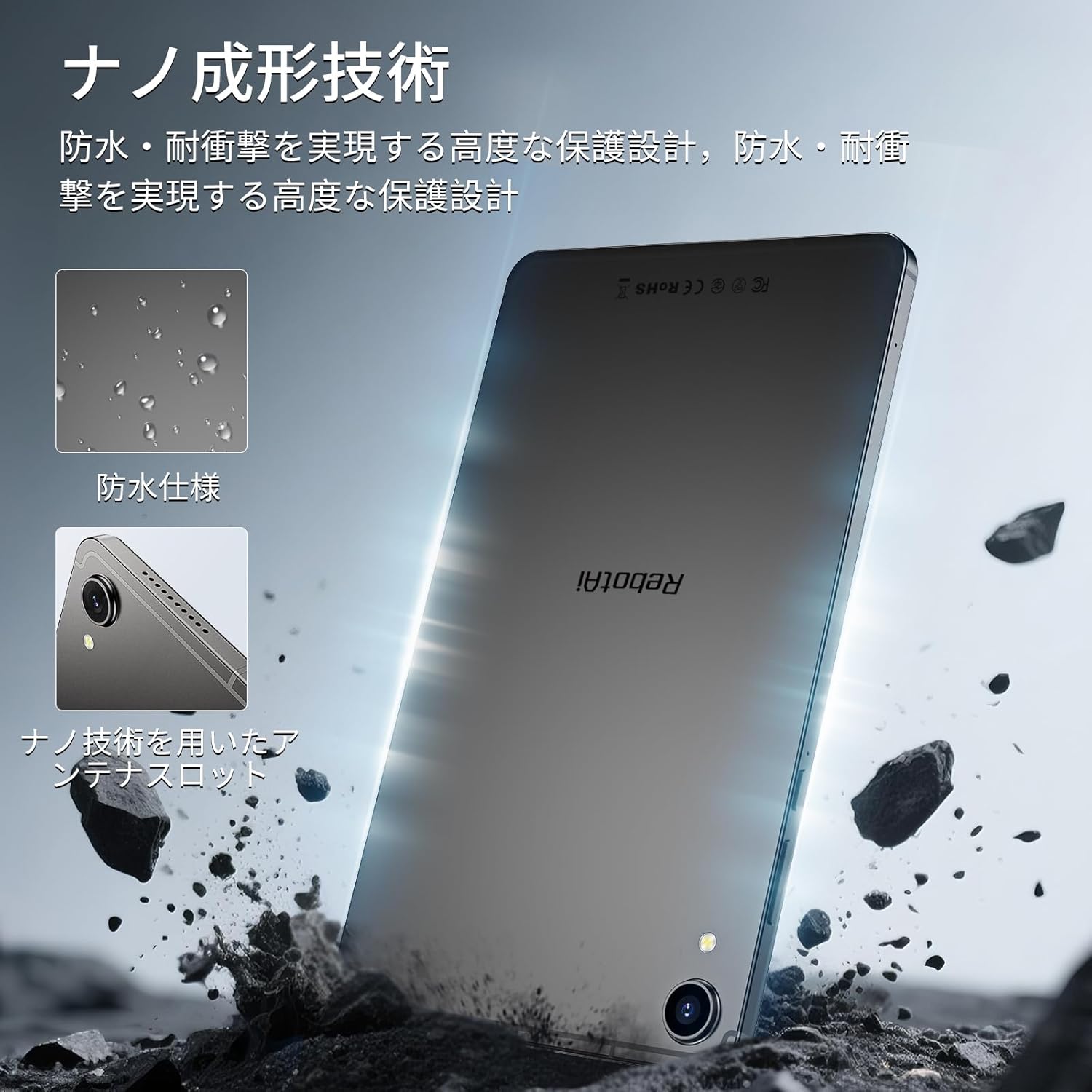

Image 10.1: The tablet highlighting its water-resistant features and nano-molding technology for durability.

Image 10.2: The RebotAi A9 tablet emphasizing its thinness (7.8mm) and light weight (360g).

Beeld 10.3: Gedetailleerd view of the tablet's nano-molding technology, contributing to its robust design.

11. Spesifikasies

12. Onderhoud

12.1 Skoonmaak

Gebruik 'n sagte, pluisvrye lap om die tabletskerm en -behuizing skoon te maak. Vermy die gebruik van harde chemikalieë of skuurmiddels wat die toestel kan beskadig.

12.2 Sagteware-opdaterings

Kontroleer gereeld vir stelselopdaterings en installeer dit om optimale werkverrigting en sekuriteit te verseker. Gaan na Instellings > Stelsel > Stelselopdatering.

12.3 Bergingbestuur

Om prestasie te handhaaf, verwyder gereeld onnodige files and applications. You can check storage usage in Instellings > Berging.

13. Probleemoplossing

13.1 Tablet skakel nie aan nie

• Maak seker dat die battery gelaai is. Koppel die laaier aan en wag 'n paar minute voordat jy weer probeer aanskakel.
• Press and hold the power button for at least 10-15 seconds to force a restart.

13.2 Stadige Werkverrigting

• Maak ongebruikte toepassings wat in die agtergrond loop toe.
• Vee kasdata uit vir programme wat gereeld gebruik word.
• Kyk vir beskikbare stelselopdaterings.
• Consider performing a factory reset if issues persist (back up your data first).

13.3 Wi-Fi-verbindingsprobleme

• Ensure Wi-Fi is enabled on the tablet.
• Herbegin jou Wi-Fi-router.
• Vergeet die netwerk in tabletinstellings en koppel weer aan.

14. Waarborg en Ondersteuning

The RebotAi A9 tablet comes with a 2-year product warranty. This product has obtained all official certifications based on Japanese regulations, including PSE (Electrical Appliance and Material Safety Act), TELEC (Radio Act), and GMS (Google official certification).

14.1 Kontak ondersteuning

For any inquiries or issues, please contact the seller through your Amazon purchase history. Alternatively, on the product page, click the store name below the 'Add to Cart' button, then click 'Ask a question' in the upper right corner.

Image 14.1: Warranty and support information for the RebotAi A9 tablet.
