SISIGAD Electric Bike X6 User Manual

1. Inleiding

Thank you for choosing the SISIGAD Electric Bike X6. This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your new electric bike. Please read it thoroughly before your first ride and keep it for future reference. The SISIGAD X6 is designed for adults, featuring a powerful 1500W peak motor, dual removable 48V 15Ah batteries, 20-inch fat tires, full suspension, and 7-speed gearing, ensuring a versatile and comfortable riding experience across various terrains.

2. Veiligheidsinligting

Your safety is paramount. Always wear a helmet and appropriate safety gear while riding. Ensure all components are correctly assembled and tightened before each use. This electric bike is UL 2849 certified, indicating compliance with safety standards for electrical systems. Familiarize yourself with local regulations regarding electric bike usage.

• Always perform a pre-ride inspection of brakes, tires, and battery.
• Moenie onder die invloed van alkohol of dwelms ry nie.
• Hou by plaaslike verkeerswette en -regulasies.
• Vermy ry in uiterste weerstoestande.
• Maak seker dat die battery stewig vas is voordat jy ry.

3. Wat is in die boks

Maak seker dat al die volgende items ingesluit is tydens uitpak:

• SISIGAD Electric Bike X6 (partially assembled)
• Lader
• Gebruikershandleiding
• Mudguard (Front and Rear)
• Vinnige Begingids
• Gereedskapstel (vir montering)
• Pedale
• Skopstand

4. Opstelling en samestelling

Your SISIGAD Electric Bike X6 comes 85% pre-assembled. Follow these steps to complete the assembly. For a visual guide, please refer to the assembly video below.

Monteringsvideogids

Videobeskrywing: This video provides a detailed step-by-step guide for unboxing and assembling the SISIGAD Electric Bike X6. It covers all necessary procedures from unpacking to final checks, ensuring a smooth setup process.

Stap-vir-stap samestelling

1. Uitpak: Carefully remove all components from the packaging. Lay them out to ensure all parts are present.
2. Install Front Mudguard: Attach the front mudguard to the front fork using the provided screws and tools. Ensure it is securely fastened.
3. Installeer voorwiel: Remove the fork protector bar and brake pads. Thread the fork protector bar through the front wheel, ensuring the brake disc engages with the brake caliper. Reinstall the remaining parts and tighten the nuts.
4. Installeer handvatsels: Remove the retaining hardware from the handlebar slots. Place the handlebars in the slots and adjust to your preferred angle. Tighten the screws in a criss-cross pattern.
5. Install Headlight: Mount the headlight onto the headlight bracket on the front fork. Connect the headlight cable to the dashboard, aligning the arrows on the connectors.
6. Install Rear Mudguard: Attach the rear mudguard to the rear frame using the provided screws.
7. Install Seat and Taillight: Place the seat in position, aligning it with the holes. Connect the taillight cable, ensuring arrows align. Secure the seat and taillight with the appropriate screws and washers.
8. Installeer pedale: Note the 'L' and 'R' markings on the pedals for left and right. Screw the pedals into the crank arms and tighten securely.
9. Installeer die battery: Slide the battery into its compartment on the bike frame. Secure it with the key. Turn on the power and check the battery level.
10. Funksionele toets: Test the instrument panel, headlights, brake lights, turn signals, gear shifting, and accelerator pedal to ensure all functions are working correctly.

5. Komponente verbyview

The SISIGAD X6 Electric Bike is equipped with advanced features for performance and comfort:

• 1500W Piekmotor: Delivers a top speed of 28 MPH and assists in climbing inclines over 30%.
• Dual Removable 48V 15Ah Batteries: UL2849 certified, offering a range of 60-100 miles on a single charge. Easily removable for convenient charging.
• 20" x 4.0" Fat Tires: Provides maximum traction and shock absorption for all-terrain dominance (sand, mud, gravel, pavement).
• Full Hydraulic Suspension System: Ensures a stable and smooth ride by absorbing shocks from varied terrains.
• Verskeie rymodusse: Choose between pure electric, pedal assist, and classic pedal modes for versatile riding.
• LCD Central Display: Provides real-time data on speed, battery level, distance traveled, and pedal-assist mode.
• Precision 7-Speed Drivetrain: Allows for easy adjustment to different terrains and smooth pedaling performance.
• LED Headlight & Automatic Taillights with Turn Signals: Enhances visibility and safety during day and night riding.
• Cloudlike Comfort Seat: Ergonomically designed with super soft, high-density sponge and waterproof PU surface for long-distance comfort.

6. Bedryfsinstruksies

Familiarize yourself with the controls and riding modes for an optimal experience.

Rymodusse

• Suiwer Elektriese Modus: Use the throttle for effortless riding without pedaling.
• Pedaalbystandmodus: Provides a smooth, speed-sensitive power boost to reduce fatigue and assist with hills. Adjust assist levels via the display.
• Classic Pedal Mode: Functions like a traditional bicycle for full control and exercise, with the motor disengaged.

Vertoon en kontroles

The LCD central display shows vital information. Use the handlebar controls to power on/off, switch riding modes, adjust pedal assist levels, and activate lights/turn signals.

Videobeskrywing: This video demonstrates the riding capabilities and key features of the SISIGAD Electric Bike X6, including its various riding modes and display functionalities.

7. Battery-inligting

The SISIGAD X6 is equipped with dual 48V 15Ah removable batteries, providing extended range and flexibility.

Laai die battery

• Die battery kan gelaai word terwyl dit op die fiets geïnstalleer is of verwyder word.
• Connect the charger to a standard wall outlet, then connect the charging cable to the battery's charging port.
• Die aanwyserliggie op die laaier sal die laaistatus wys (gewoonlik rooi vir laai, groen vir volledig gelaai).
• Laaityd is ongeveer 6 uur vir 'n volle laai.

Battery verwydering en installering

To remove the battery, unlock it with the provided key and slide it out. To install, slide the battery back into the frame until it clicks into place, then lock it with the key.

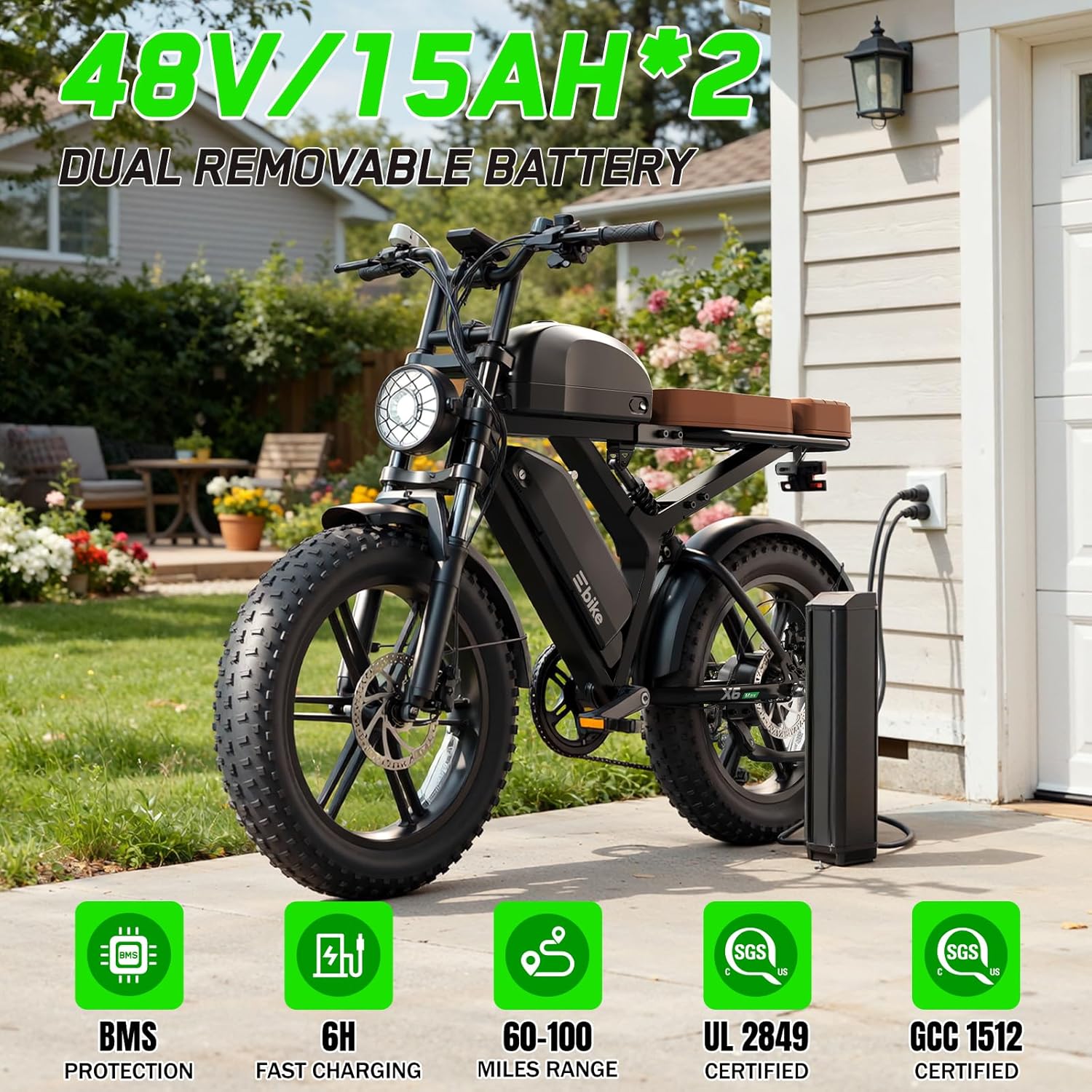

Prentbeskrywing: A SISIGAD Electric Bike X6 is shown parked outside a house, with one of its dual removable batteries detached and connected to a charger. This illustrates the convenience of charging the battery both on and off the bike.

8. Onderhoud

Gereelde onderhoud verseker die lang lewensduur en veilige werking van jou elektriese fiets.

• Bande: Check tire pressure regularly (recommended 20-30 PSI for fat tires). Inspect for wear and punctures.
• Remme: Regularly check brake pads and rotors for wear. Ensure brake levers are responsive and cables are not frayed.
• Ketting: Keep the chain clean and lubricated to prevent rust and ensure smooth gear changes.
• Battery: Store the battery in a cool, dry place. Charge it regularly, even if not in use, to maintain battery health.
• Bevestigingsmiddels: Periodically check all nuts, bolts, and quick-release levers for tightness.
• Skoonmaak: Clean your bike with a damp lap. Vermy die gebruik van hoëdrukwaterstrale direk op elektriese komponente.

9. Probleemoplossing

Hier is 'n paar algemene probleme en hul potensiële oplossings:

10. Spesifikasies

11. Waarborg en Kliëntediens

Your SISIGAD Electric Bike X6 is backed by a 180-dae vervaardiger se waarborg that covers parts and labor. For any inquiries, setup assistance, troubleshooting, or warranty claims, our dedicated customer support team is available 24 hours a day, 7 days a week.

Kontakinligting:

• E-pos: S1@SISIGAD.COM
• Aanlyn ondersteuning: Visit the official SISIGAD webwebwerf vir algemene vrae en verdere hulp.
