Uthfy 27-inch Evaporative Air Cooler (Model JH-309Y-1) User Manual

1. Inleiding

Thank you for choosing the Uthfy 27-inch Evaporative Air Cooler (Model JH-309Y-1). This evaporative cooler is designed to provide efficient and refreshing cooling for your residential spaces. Utilizing a natural evaporation process, it offers an energy-efficient alternative to traditional air conditioning, especially in dry climates. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and retain it for future reference.

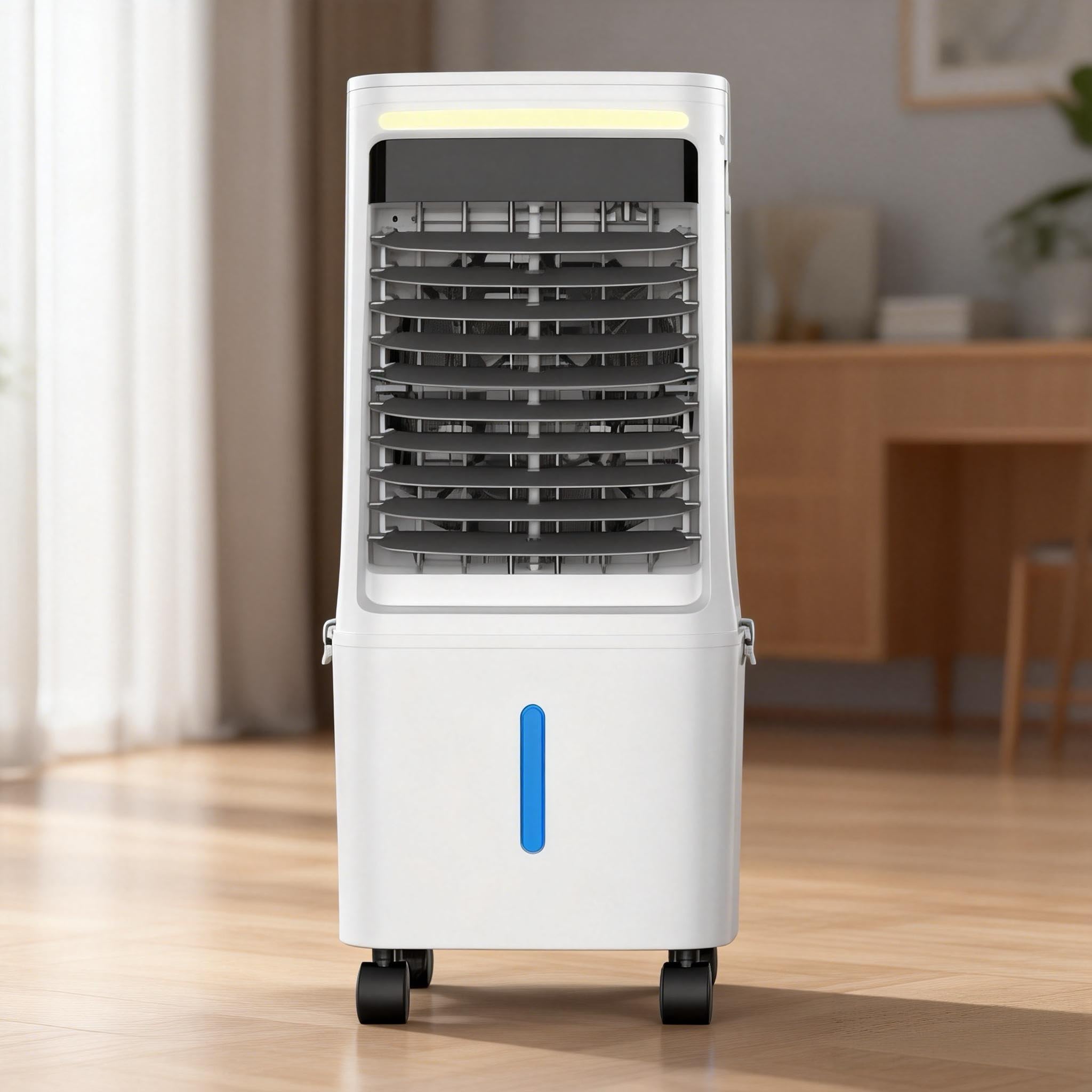

Figuur 1.1: Voorkant view of the Uthfy 27-inch Evaporative Air Cooler.

2. Veiligheidsinligting

Om die risiko van brand, elektriese skok of besering te verminder, volg altyd hierdie basiese veiligheidsmaatreëls:

• Lees alle instruksies voordat u hierdie toestel gebruik.
• Maak seker dat die kragtoevoer ooreenstem met die voltage specified on the rating label (120V, 60Hz).
• Moenie die eenheid met 'n beskadigde koord of prop gebruik nie.
• Always unplug the unit before filling, cleaning, or performing maintenance.
• Moenie die eenheid, prop of koord in water of ander vloeistowwe dompel nie.
• Hou die eenheid op 'n stabiele, gelyk oppervlak om te verhoed dat dit kantel.
• Moenie luginlate of -uitlate blokkeer nie.
• Hou buite bereik van kinders en troeteldiere.
• Use only clean water in the water tanks.

3. Pakketinhoud

Verifieer dat alle items teenwoordig is tydens uitpak:

• Uthfy 27-inch Evaporative Air Cooler Unit
• Afstandbeheer
• Ice Packs (quantity may vary)
• Gebruikershandleiding (hierdie dokument)

4. Produk verbyview

The Uthfy Evaporative Air Cooler is a versatile unit designed for personal and residential cooling. Key features include:

• Dubbele watertenks: Features a 4-gallon detachable bottom water tank and a top-fill reservoir for extended cooling up to 20 hours.
• 120° Ossillasie: Wide-angle oscillation ensures even air distribution across your room.
• Omgewingsligbalk: An integrated light bar provides soft illumination, ideal for nighttime use.
• 12-uur timer: Program the unit to shut off automatically after a set period.
• Drie waaiersnelhede: Choose from low, medium, or high fan speeds for customized airflow.
• Verkoelingsmodus: Enhance cooling performance by adding ice packs to the top reservoir.
• Natuurlike modus: Simulates natural breeze by varying fan speeds randomly.
• Afstandbeheer: Conveniently operate all functions from a distance.
• Skerm af-funksie: Turn off the display lights for undisturbed sleep.
• Caster wiele: Easily move the unit between rooms and lock it in place.

Figuur 4.1: Top reservoir for water and ice packs.

5. Opstelling

1. Pak die eenheid uit: Verwyder die lugverkoeler en alle toebehore versigtig uit die verpakking. Bewaar die verpakking vir toekomstige berging of vervoer.
2. Posisioneer die eenheid: Place the air cooler on a firm, level surface in a well-ventilated area. Ensure there is at least 8 inches of space from walls or furniture to allow for proper airflow.
3. Vul watertenks:
   • Open the top lid of the unit.
   • Pour clean, cool water into the top reservoir. Do not exceed the 'MAX' fill line.
   • Alternatively, the bottom water tank (4-gallon capacity) can be detached and filled. Ensure it is securely re-inserted before operation.

   Let wel: For enhanced cooling, place the included ice packs in the freezer until frozen, then add them to the top water reservoir along with water.

4. Koppel krag: Plug the power cord into a standard 120V, 60Hz electrical outlet.
5. Lock Caster Wheels: If moving the unit, unlock the caster wheels. Once in position, lock the wheels to prevent accidental movement.

6. Bedryfsinstruksies

The Uthfy Evaporative Air Cooler can be operated using the control panel on the unit or the included remote control.

Beheerpaneel en afstandbeheerfunksies:

• Krag aan/af: Druk die AAN/AF knoppie om die eenheid aan of af te skakel.
• Spoedverstelling: Druk die SPOED button to cycle through three fan speeds: Low (F1), Medium (F2), High (F3).
• Verkoelingsmodus: Druk die KOEL button to activate the evaporative cooling function. This circulates water from the tank to cool the air. Ensure water is present in the tank.
• Moduskeuse: Druk die MODUS button to select between Normal, Natural, and Sleep modes. In Natural mode, the fan speed varies to simulate a natural breeze.
• Timer funksie: Druk die TIMER button to set an automatic shut-off time from 1 to 12 hours. Each press increases the timer by one hour.
• Ossillasie (Swaai): Druk die SWING button to activate the 120° oscillation feature, directing airflow across a wider area. Press again to stop oscillation.
• Omringende lig: Druk die LIG button to turn the ambient light bar on or off.
• Skerm af: Druk die SKERM AF button to turn off the display lights on the control panel, useful for nighttime operation.

Figuur 6.1: Afstandbeheer vir gerieflike werking.

7. Onderhoud

Gereelde onderhoud verseker optimale werkverrigting en lang lewensduur van u lugverkoeler.

Cleaning the Water Tanks:

1. Ontkoppel die eenheid: Ontkoppel altyd van krag voor skoonmaak.
2. Dreineer water: Locate the drain plug at the back of the unit. Place a bucket or container underneath and remove the plug to drain all water.
3. Remove Bottom Tank: Carefully slide out the detachable bottom water tank.
4. Maak tenks skoon: Wash both the top reservoir and the bottom tank with mild soap and water. Rinse thoroughly to remove any residue.
5. Hermonteer: Ensure tanks are dry before re-inserting and securing the drain plug.

Algemene skoonmaak:

• Vee die buitekant van die eenheid af met 'n sagte, damp lap. Moenie skuur skoonmaakmiddels gebruik nie.
• Periodically clean the air filter (located at the back) by rinsing it under running water. Allow it to dry completely before re-installing.

Berging:

When not in use for extended periods, ensure the unit is clean and dry. The unit can be folded for compact storage. Store in a cool, dry place.

8. Probleemoplossing

If you encounter issues with your Uthfy Evaporative Air Cooler, refer to the following common problems and solutions:

Indien die probleem voortduur nadat u hierdie oplossings probeer het, kontak asseblief kliëntediens.

9. Spesifikasies

10. Waarborg en Ondersteuning

Your Uthfy Evaporative Air Cooler (Model JH-309Y-1) is covered by a 1-jaar vervaardiger se waarborg vanaf die aankoopdatum. Hierdie waarborg dek defekte in materiaal en vakmanskap onder normale gebruik.

For warranty claims, technical support, or any questions regarding your product, please contact Uthfy Customer Service:

• E-pos: support@uthfy.com
• Telefoon: 1-800-XXX-XXXX (Toll-Free)
• Webwebwerf: www.uthfy.com/support

Please have your model number (JH-309Y-1) and proof of purchase ready when contacting support.
