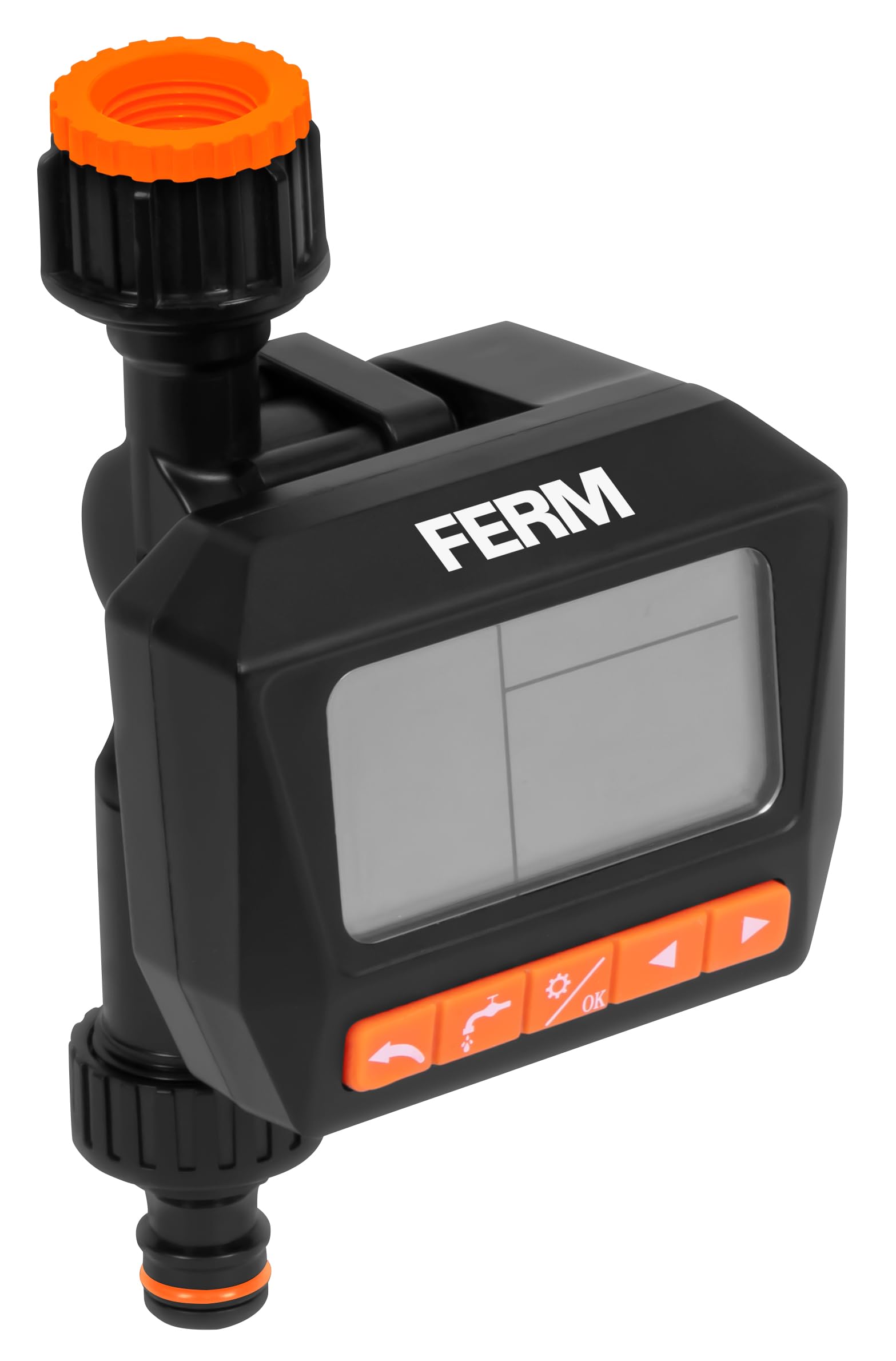

FERM WTA1003 Digital Water Timer Instruction Manual

1. Inleiding

Thank you for choosing the FERM WTA1003 Digital Water Timer. This device is designed to automate your garden watering tasks, ensuring your plants receive consistent hydration. Please read this manual thoroughly before installation and operation to ensure proper use and longevity of the product.

2. Veiligheidsinstruksies

• This device is intended for outdoor use with cold water only. Do not use with hot water or other liquids.
• Protect the device from freezing temperatures. Remove the timer from the faucet and store it indoors during winter to prevent damage.
• Do not immerse the timer in water. While it is IPX5 rated for water resistance, it is not designed for submersion.
• Maak seker dat batterye korrek volgens die polariteitsmerkies geplaas is. Verwyder batterye as die toestel nie vir 'n lang tydperk gebruik gaan word nie.
• Hou buite bereik van kinders.

3. Pakketinhoud

Kontroleer asseblief die pakket vir die volgende items:

• FERM WTA1003 Digital Water Timer
• G3/4" (26.5 mm) faucet adapter
• G1/2" (21 mm) faucet adapter
• Metaal filter
• Quick-connect hose fitting
• Instruksie Handleiding

Note: 2x AA batteries are not included and must be purchased separately.

4. Opstelling

4.1 Battery installasie

1. Vind die batterykompartement aan die agterkant van die timer.
2. Skuif die batterydeksel oop.
3. Insert two (2) AA alkaline batteries, ensuring correct polarity (+/-).
4. Maak die batterydeksel stewig toe.

4.2 Connecting to Faucet

The timer is compatible with most outdoor threaded faucets. It includes adapters for G3/4" (26.5 mm) and G1/2" (21 mm) threads.

1. Ensure the metallic filter is placed inside the timer's inlet connection. This prevents debris from entering the timer.
2. Screw the appropriate faucet adapter (G3/4" or G1/2") onto your outdoor faucet.
3. Attach the water timer to the faucet adapter by screwing it on firmly by hand. Do not overtighten.

Prent 1: Assembly diagram of the water timer, showing the metallic filter, faucet connection, and hose quick-connect.

4.3 Connecting to Hose

1. Attach your garden hose to the quick-connect fitting at the bottom of the water timer.
2. Maak seker dat die verbinding stewig is om lekkasies te voorkom.

Prent 2: The FERM WTA1003 water timer installed on a brick wall faucet, actively watering a garden area.

5. Bedryfsinstruksies

The FERM WTA1003 features a large, readable LCD screen for easy programming.

5.1 Programmering van Besproeiingskedules

The timer allows for up to three watering programs per day or a weekly cycle. Watering duration can be set from 1 second to 99 minutes, and intervals from 1 hour to 15 days.

1. Stel huidige tyd: Use the 'TIME' button to set the current time and day.
2. Program 1 (P1): Press 'PROG' to enter program mode. Select P1. Set the start time, watering duration, and frequency (e.g., daily, specific days of the week, or interval).
3. Program 2 (P2) & Program 3 (P3): Repeat the steps for P1 to set up additional watering schedules if needed.
4. Review Programme: Use the 'PROG' button to cycle through and review your set programs.
5. Aktiveer: Ensure the timer is in 'AUTO' mode for the programs to run automatically.

5.2 Manual Watering (OPEN Function)

The 'OPEN' function allows you to manually turn on the water without affecting your programmed schedules. This is useful for temporary watering or using the faucet for other purposes.

• Press the 'OPEN' button to start manual watering.
• Press 'OPEN' again to stop manual watering.

5.3 OFF Function

To temporarily disable all watering programs and manual operation, use the 'OFF' function.

• Press the 'OFF' button to stop all watering. The display will show 'OFF'.
• Press 'OFF' again to return to 'AUTO' mode and resume programmed watering.

Prent 3: Funksie verbyview with icons, highlighting watering intervals, multiple schedules, faucet compatibility, pressure range, and frost warning.

6. Onderhoud

6.1 Skoonmaak van die filter

Periodically check and clean the metallic filter located at the inlet of the timer to prevent blockages and ensure optimal water flow.

• Unscrew the timer from the faucet.
• Remove the metallic filter.
• Spoel die filter onder lopende water af om enige opgehoopte puin te verwyder.
• Reinsert the clean filter and reattach the timer to the faucet.

6.2 Winterization / Frost Protection

WARNING: Protect the timer from frost.

• Before the first frost, disconnect the water timer from the faucet and hose.
• Verwyder die batterye.
• Store the timer in a dry, frost-free location indoors.

7. Probleemoplossing

• Geen watervloei nie: Check if the faucet is fully open. Ensure the metallic filter is not clogged. Verify battery charge.
• Timer skakel nie aan nie: Kontroleer batteryinstallasie en maak seker dat batterye vars is.
• Lekkasies van verbindings: Ensure all connections are tightened securely. Check rubber washers for proper seating and damage.
• Programs not running: Ensure the timer is in 'AUTO' mode. Verify that the current time and program start times are set correctly.
• Skerm is leeg of dof: Vervang batterye.

8. Spesifikasies

• Model: WTA1003
• Handelsmerk: FERM
• Waterdrukreeks: 0.5 - 8 bar
• Watervloeitempo: 15.8 - 21 liters per minute (depending on pressure)
• Gietertyd: 1 sekonde tot 99 minute
• Watering Interval: 1 hour to 15 days
• Programme: Up to 3 per day or weekly cycles
• Kraanversoenbaarheid: G3/4" (26.5 mm) and G1/2" (21 mm)
• Waterweerstand: IPX5
• Kragbron: 2x AA-batterye (nie ingesluit nie)
• Materiaal: ABS plastiek
• Oorsprong: China

9. Waarborg en Ondersteuning

FERM products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
