SIRUI Heavy Duty Video Tripod (Model SQ75A+S5X) Instruction Manual

Inleiding

This manual provides detailed instructions for the proper setup, operation, and maintenance of your SIRUI Heavy Duty Video Tripod, Model SQ75A+S5X. Please read this manual thoroughly before using the product to ensure optimal performance and longevity. Keep this manual for future reference.

Pakketinhoud

• SIRUI Heavy Duty Video Tripod
• S5X Fluid Head
• Vinnige loslaatplaat
• Teleskopiese handvatsel
• Ground Spreader
• Horseshoe Feet (pre-installed)
• Steel Spikes (for alternative use)
• Allen Sleutel

Opstel instruksies

1. Uitpak en Aanvanklike Montering

Carefully remove all components from the packaging. The fluid head is typically pre-attached to the tripod legs. Ensure all parts listed in the package contents are present.

2. Adjusting Tripod Height (One-Step Adjustment)

1. Locate the flip-lock latches on each leg section.
2. Undo the latches to release the leg sections.
3. Hold the side handle of the tripod.
4. Move the tripod legs up or down to achieve your desired height. The tripod can be adjusted from a minimum height of 26.2 inches (66.5 cm) to a maximum height of 70.9 inches (180 cm).
5. Once the desired height is reached, secure the flip-lock latches firmly on each leg section.

Image: Demonstrates the one-step height adjustment process, highlighting the flip-lock mechanism and the use of the side handle to quickly raise or lower the tripod legs.

3. Attaching the Camera to the Quick Release Plate

1. Ensure the quick release plate is detached from the fluid head. If attached, press the QR plate release button and slide it out.
2. Attach the quick release plate to the bottom of your camera or camera rig using the appropriate screw (1/4" or 3/8"). Tighten securely.
3. With the quick release plate attached to your camera, slide the plate into the fluid head from the side until it clicks into place.
4. Use the twist lock mechanism on the fluid head to further secure the plate and prevent accidental release.
5. Adjust the camera's position on the plate by sliding it back and forth to achieve optimal balance.

Beeld: 'n Gedetailleerde view of the side-loading quick release plate, showing how it slides into the fluid head and the twist lock for securing the camera.

4. Using the Ground Spreader and Feet

The tripod features a built-in ground spreader for enhanced stability on smooth surfaces like studio floors. For outdoor use on uneven terrain, the pre-installed horseshoe feet can be swapped for steel spikes. To change feet, use the raising ring to lift the leg and replace the foot type.

Bedryfsinstruksies

1. Fluid Head Operation (Pan and Tilt)

The S5X fluid head offers stepless hydraulic pan and tilt damping for smooth camera movements.

• Pan Beweging: The fluid head allows for 360° panoramic rotation. Adjust the panning resistance using the dedicated control knob to achieve your desired smoothness for tracking shots or slow pans.
• Kantelbeweging: The head supports tilting from -70° to +90°. Adjust the tilt damping knob for precise control over vertical camera movements.
• Teenbalans: The stepless counterbalance system helps balance different camera weights, preventing the camera from tipping forward or backward when tilted. Adjust the counterbalance knob until the camera remains stable at various tilt angles.

Image: Illustrates the various control knobs on the fluid head for adjusting pan damping, kantel damping, and counterbalance, along with the range of motion.

2. Quick Release Plate Compatibility

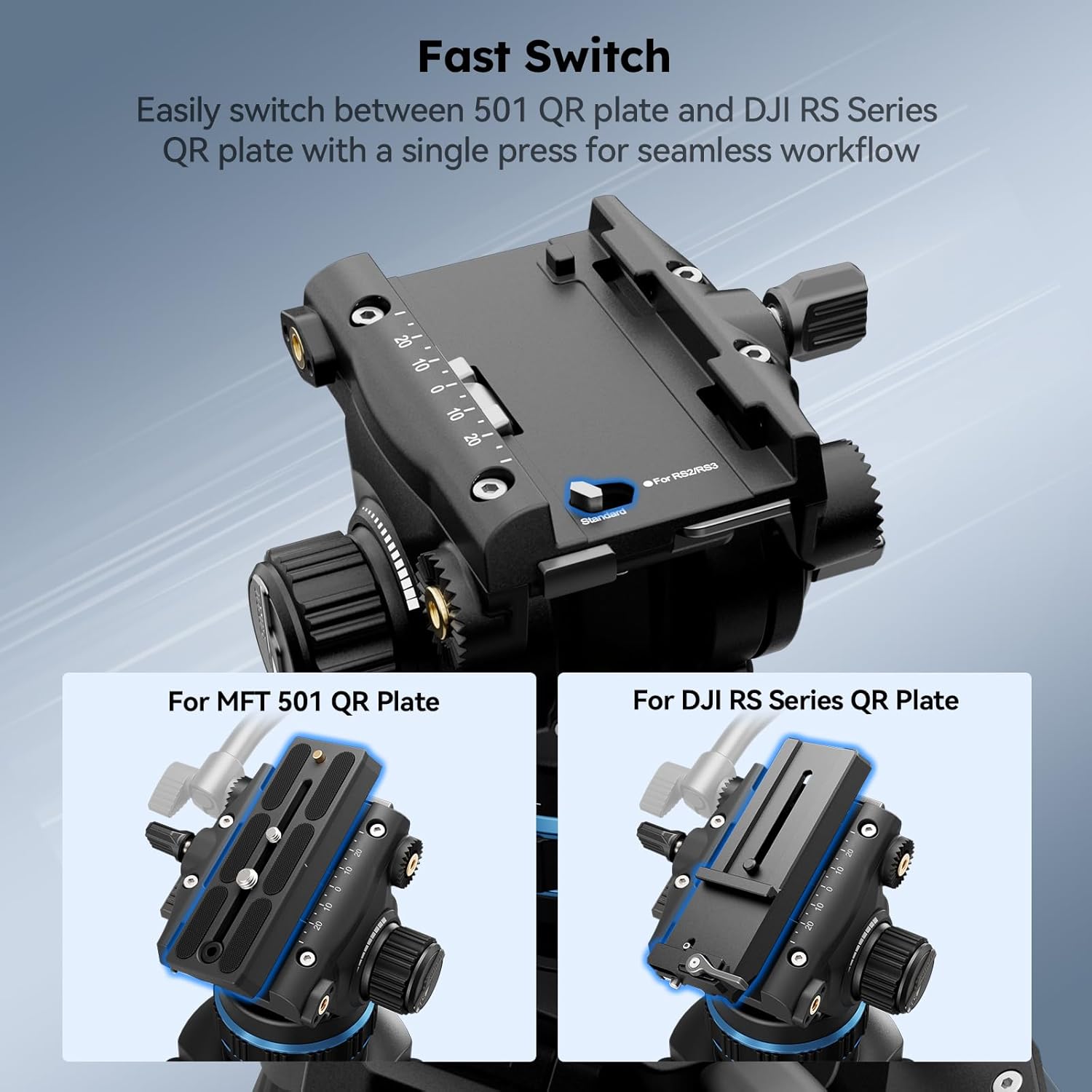

The quick release plate is compatible with both MFT cameras and DJI RS series gimbals. This allows for rapid transitions between tripod and gimbal setups without needing to remove the plate from your camera rig.

Image: Displays the versatility of the quick release plate, demonstrating its compatibility with both MFT camera systems and DJI RS series gimbals for quick transitions.

3. Accessory Port and Handle

A 1/4" accessory port is available on the fluid head for attaching external monitors, articulating arms, or other rigging. The telescopic handle can be detached or adjusted for comfortable operation.

Onderhoud

• Skoonmaak: Wipe the tripod and fluid head with a soft, dry cloth after each use. For stubborn dirt, use a slightly damp lap en sagte seep, en droog dan deeglik af. Vermy harde chemikalieë of skuurmiddels.
• Smering: The fluid head is designed for maintenance-free operation regarding internal lubrication. Do not attempt to disassemble the fluid head for lubrication.
• Berging: Store the tripod in a dry, dust-free environment. When storing for extended periods, retract the legs fully and ensure all locks are engaged.
• Inspeksie: Periodically check all screws, knobs, and latches for tightness. Do not overtighten.

Probleemoplossing

1. Tripod Legs Not Extending/Retracting Smoothly

• Ensure all flip-lock latches are fully disengaged before attempting to adjust height.
• Check for any debris or obstructions within the leg sections. Clean if necessary.

2. Fluid Head Movements Are Stiff or Uneven

• Verify that the pan and tilt damping knobs are not overtightened. Adjust them to a lighter setting.
• Ensure the camera rig is properly balanced on the quick release plate. Re-adjust the plate position if needed.

3. Camera Not Secure on Quick Release Plate

• Confirm that the quick release plate is fully inserted into the fluid head and the twist lock is engaged.
• Check that the screw attaching the camera to the quick release plate is tightened securely.

Spesifikasies

Waarborg inligting

This SIRUI product is covered by a 2 jaar waarborg from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, please refer to the official SIRUI webwebwerf of kontak kliëntediens.

Kliënte ondersteuning

If you encounter any issues not covered in this manual, require technical assistance, or have questions regarding your SIRUI Heavy Duty Video Tripod, please contact SIRUI customer support through their official website or the retailer where the product was purchased. Have your model number (SQ75A+S5X) and purchase information ready when contacting support.
