Rolanstar Full Size Bed Frame Instruction Manual

Produk verbyview

This manual provides detailed instructions for the assembly, operation, and maintenance of your Rolanstar Full Size Bed Frame. This bed frame features an adjustable headboard, integrated LED lighting, a charging station, and under-bed storage space.

Sleutel kenmerke:

• Verstelbare hoofbord: Height can be adjusted between 38.9 inches and 40.8 inches to accommodate various mattress thicknesses.
• Geïntegreerde LED-beligting: Offers 12 RGB scene modes, 3 brightness levels, and adjustable speeds. Control via a smartphone app or the built-in headboard controller.
• Ingeboude laaistasie: Includes 2 USB-A ports and 1 USB-C port for convenient device charging.
• Berging onder die bed: Provides approximately 10 inches of clearance for storage bins or other items.
• Stewige konstruksie: Features a solid steel frame and reinforced FSC-certified wooden slats for stability and noise-free support.
• Maklike montering: Designed with an innovative bolt-free quick-lock system for simplified setup.

Veiligheidsinligting

Please read all safety warnings before assembly and use to ensure safe operation and prevent injury or damage.

• Do not load more than 700 pounds on the bed frame. Exceeding this limit may compromise structural integrity.
• Wees versigtig rondom skerp kante tydens montering en hantering.
• Ensure all connections and fasteners are securely tightened before placing a mattress on the frame and before use.
• Hou elektriese komponente (LED-ligte, laaistasie) weg van vloeistowwe.

Pakketinhoud

Before beginning assembly, verify that all the following components are present and undamaged:

• Hoofbord (Gestoffeerd)
• Bed Frame Side Rails and Support Beams (Metal)
• Houtlatte
• Assembly Hardware Bag (contains bolts, tools, etc.)
• LED Light Strip with Controller
• USB Charging Station Module

Monteer-instruksies

The Rolanstar bed frame is designed for straightforward assembly using a bolt-free quick-lock system. For optimal ease and safety, assembly by two individuals is recommended.

Stap 1: Pak komponente uit

Carefully remove all parts from the packaging. Lay them out on a clean, soft surface (e.g., a rug or blanket) to prevent scratches or damage during assembly. Identify each part by comparing it to the parts list in your included assembly guide.

Stap 2: Monteer die bedraambasis

Connect the main metal frame sections. The quick-lock system allows for tool-free assembly of the frame. Ensure each connection clicks securely into place, indicating a proper lock. Verify the frame is stable and square before proceeding.

Image: The assembled bed frame base, showcasing the metal frame and wooden slats.

Stap 3: Installeer Houtlatte

Place the wooden slats across the assembled frame. Ensure they are evenly spaced and secured according to the specific instructions provided in your assembly guide. The slats provide essential support for your mattress.

Step 4: Attach and Adjust Headboard

Secure the upholstered headboard to the bed frame using the provided hardware. The headboard features adjustable height settings to accommodate mattresses with thicknesses ranging from 6 to 12 inches. Choose the appropriate height setting for your mattress by aligning the headboard with the desired bolt holes on the frame supports.

Image: A close-up of the headboard, illustrating its adjustable height mechanism.

Image: A diagram illustrating how the headboard can be adjusted to accommodate mattresses of varying heights (e.g., 8, 10, or 12 inches).

Bedryfsinstruksies

LED-beligtingstelsel

The integrated LED lights offer customizable ambiance with 12 distinct scene modes, 3 brightness levels, and adjustable speeds. Connect the LED light strip to the designated USB-A port on the headboard.

Beheermetodes:

• Built-in Headboard Controller: Use the physical buttons located on the headboard to cycle through colors, adjust brightness, and change modes.
• Slimfoon-toepassing: Download the dedicated control app to unlock advanced features, including access to over 60,000 colors, music synchronization, a built-in microphone mode for sound-reactive lighting, and timing functions for scheduled operation.

Image: The bed frame's headboard with LED lights illuminated, demonstrating control via a smartphone app interface.

Image: A visual representation of the smartphone app interface for controlling the RGB LED lights, including color selection, music sync, microphone mode, and timing functions.

Herlaai-stasie

The headboard is equipped with a convenient charging station, featuring two standard USB-A ports and one Type-C port. To use, simply connect your devices (e.g., smartphones, tablets, e-readers) to the appropriate port using their respective charging cables. Ensure the bed frame's power supply is connected to a wall outlet for the charging station to function.

Beeld: 'n Nabyskoot view of the headboard's integrated charging station, featuring two USB-A ports and one USB-C port.

Image: The bed frame's headboard with devices connected to the charging station, demonstrating its functionality.

Berging onder die bed

This bed frame provides approximately 10 inches of clearance beneath the bed. This space is ideal for storing various items such as storage bins, seasonal clothing, or other personal belongings, helping to keep your bedroom organized.

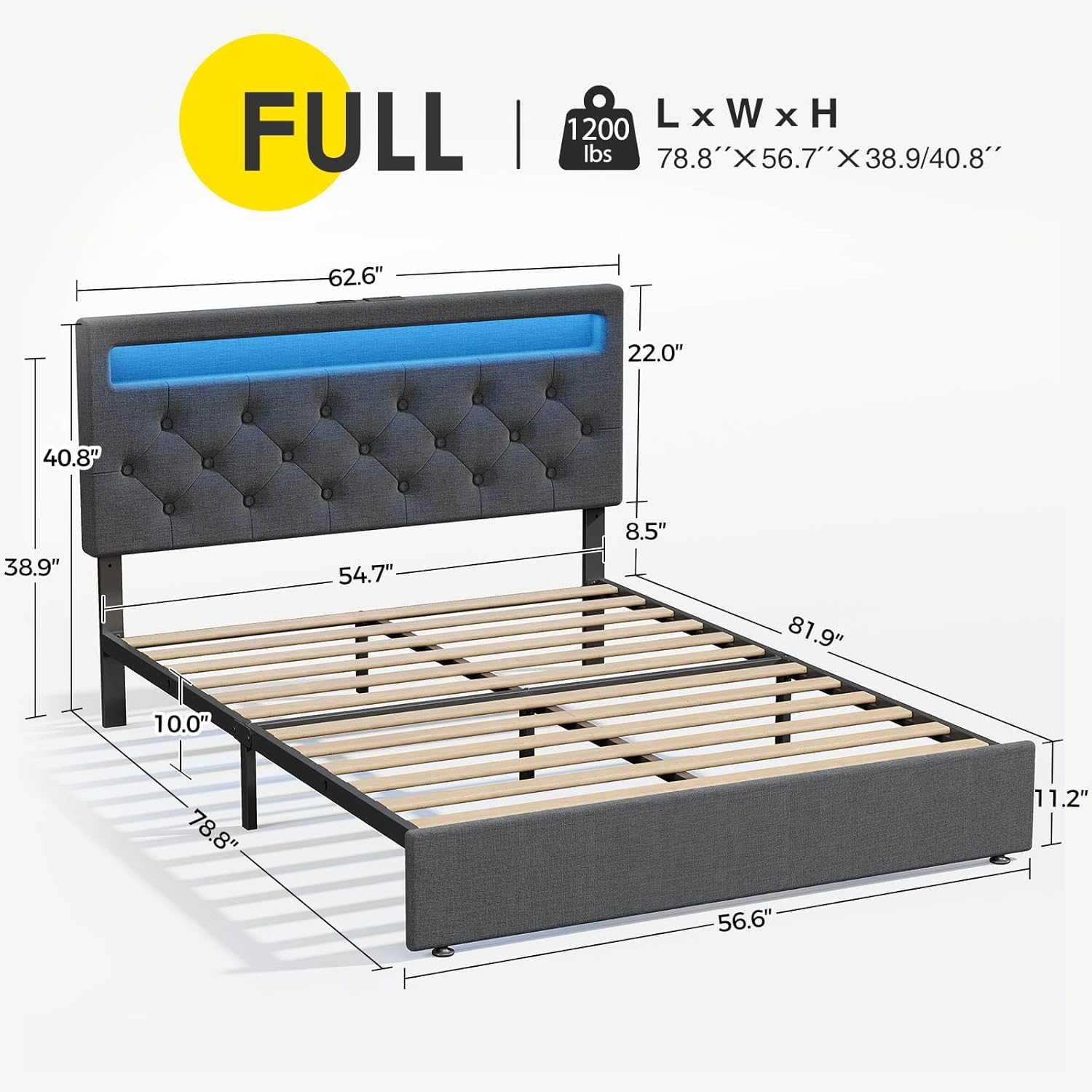

Image: A visual representation of the under-bed storage area, highlighting the 10-inch clearance for items like suitcases or storage boxes.

Image: The bed frame with items stored neatly underneath, showcasing the practical use of the under-bed space.

Onderhoud

Gereelde onderhoud sal help om die lewensduur en voorkoms van jou bedraam te verleng.

• Maak die raam skoon: Wipe the metal frame components with a damp lap en sagte skoonmaakmiddel indien nodig. Droog deeglik af.
• Cleaning the Headboard: For the upholstered headboard, spot clean with a mild fabric cleaner as needed. Test the cleaner on an inconspicuous area first. Avoid excessive moisture.
• Periodieke inspeksie: Periodically check all bolts, screws, and connections to ensure they remain tight and secure. Retighten if any looseness is detected.
• Gewigsbeperking nakoming: Always adhere to the recommended maximum weight of 700 pounds to ensure the longevity and safety of the bed frame.

Probleemoplossing

If you encounter any issues with your bed frame, refer to the following common troubleshooting steps:

LED-ligte werk nie:

• Ensure the power cable for the LED lights is securely connected to the designated USB-A port on the headboard and to a functional power source.
• Check if the power source (wall outlet or power strip) is active.
• If using the smartphone app, verify that the app is correctly paired with the LED lights and that your device's Bluetooth is enabled.

Laaipoorte werk nie:

• Confirm that the bed frame's main power supply is connected to a live wall outlet.
• Try using a different USB cable or device to rule out issues with your charging accessories.
• Ensure the charging module is properly seated in the headboard.

Piepende geluide:

• Tighten all frame connections, including bolts and quick-lock mechanisms.
• Ensure all wooden slats are properly seated within their supports and are not loose.
• Verify that the mattress is correctly positioned on the slats and not causing friction against the frame.

Spesifikasies

Waarborg en Ondersteuning

For detailed warranty information, technical support, or to inquire about replacement parts, please refer to the contact details provided with your original purchase documentation or visit the official Rolanstar webwebwerf.

Bykomende beskermingsplanne is beskikbaar vir aankoop om dekking verder as die standaardwaarborg uit te brei:

• 2-jaar beskermingsplan: $27.99
• 3-jaar beskermingsplan: $34.99
• Volledige beskerming: $16.99 (monthly subscription)
