Inleiding
This manual provides detailed instructions for the assembly, operation, and maintenance of your Outsunny 6' x 4' x 6' Crop Cage. Designed to protect your plants from pests and harsh weather, this crop cage offers a secure environment for vegetables, fruits, and flowers. Please read this manual thoroughly before assembly and use to ensure proper setup and safe operation.

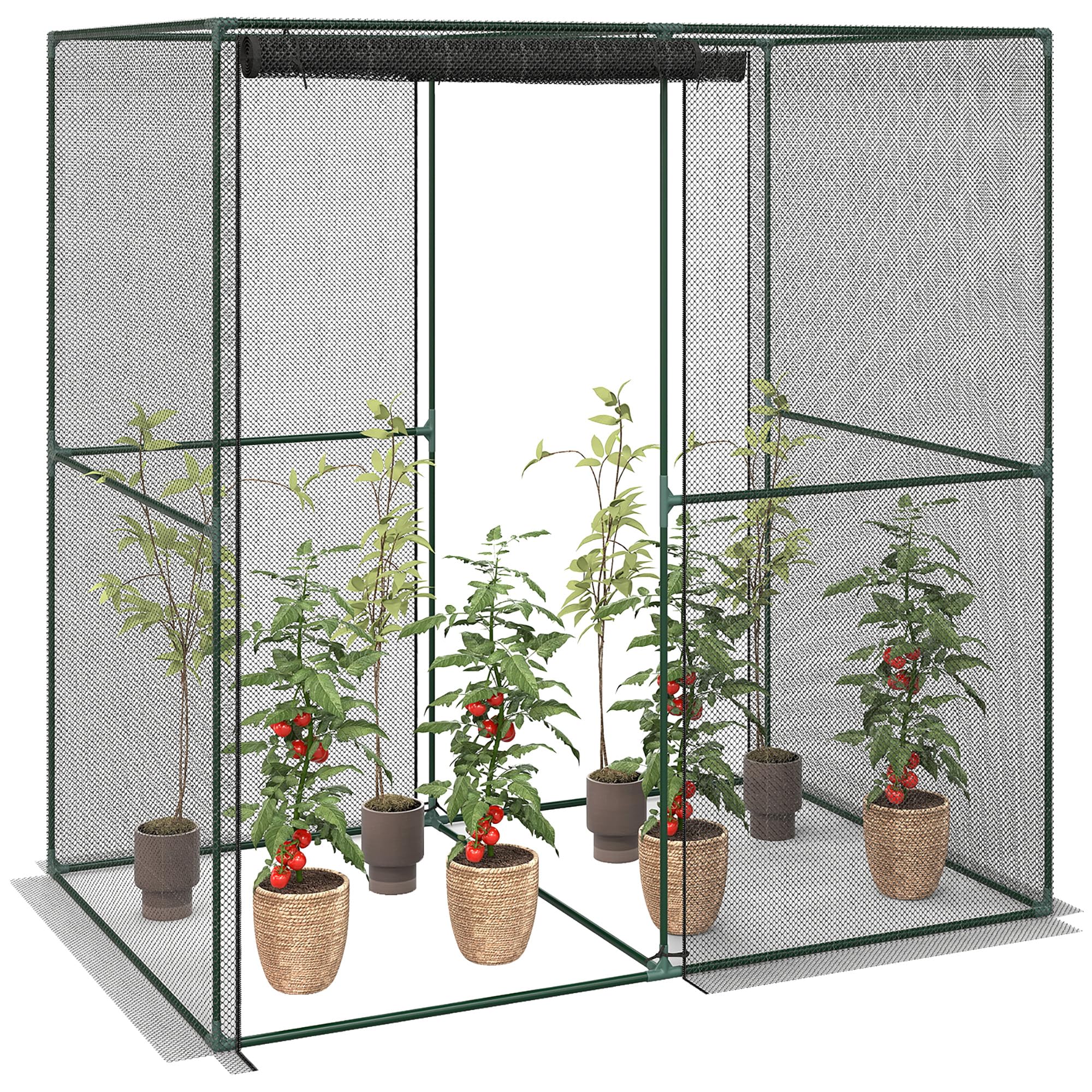

Image: The Outsunny 6' x 4' x 6' Crop Cage, fully assembled and protecting plants in a garden setting.
Veiligheidsinligting
- Always assemble the crop cage on a flat, stable surface.
- Maak seker dat alle verbindings veilig is voor gebruik.
- Bury the frame deep into the soil or use additional anchoring methods (not included) to secure the cage, especially in windy conditions.
- Hou kinders en troeteldiere weg tydens montering.
- Moenie swaar voorwerpe aan die raam hang nie.
- Regularly inspect the frame and netting for damage. Replace damaged parts immediately.
Pakketinhoud
Verifieer dat alle komponente teenwoordig is voordat u met die montering begin.
- Steel Frame Tubes (various lengths)
- Plastiek verbindings
- Tear-resistant Mesh Netting with Zippered Doors
- Ground Stakes (if included, check packaging)
Image: An illustration showing the typical components included in the package, such as frame tubes and connectors.
Opstelling en samestelling
Assembly is recommended for two people. Follow these steps carefully:
- Berei die basis voor: Lay out the bottom frame tubes and connect them using the plastic connectors to form the base rectangle (approximately 70.9" L x 47.2" W). Ensure all poles are firmly seated into the connectors.
- Installeer Vertikale Pale: Insert the vertical poles into the connectors at each corner and along the sides of the base frame.
- Add Mid-Level Cross Members: Connect the mid-level horizontal cross members between the vertical poles.
- Assemble Top Frame: On the ground, assemble the top frame section (70.9" L x 47.2" W) using the remaining tubes and connectors.
- Heg boonste raam aan: Carefully lift the assembled top frame and connect it to the top of the vertical poles. Ensure all connections are secure.
- Drape Netting: Drape the mesh netting over the assembled frame. Align the zippered doors with the desired access points.
- Secure Netting: Secure the netting to the frame using any integrated ties or clips. Ensure the netting is taut and fully covers the frame.
- Anchor the Cage: For stability, bury the bottom frame deep into the soil. If ground stakes are provided, use them to further secure the base. Additional anchoring (e.g., weights, ropes) may be necessary in high-wind areas.
Beeld: 'n Nabyskoot view illustrating the strong push-fit power-coated steel pipe frame and tear-resistant mesh construction.
Bedryfsinstruksies
The Outsunny Crop Cage is designed for ease of use and effective plant protection.
- Accessing Plants: Use the zippered doors to enter and exit the crop cage. The zippers are heavy-duty for durability.
- Beveilig deure: The doors can be rolled up and fixed at the top to keep them open for extended access or ventilation.
- Plantbeskerming: The fine mesh prevents birds, small animals, and many insects from reaching your plants while allowing sunlight and rain to pass through.
- Ventilasie: The mesh design ensures adequate airflow, reducing the risk of overheating or fungal issues.

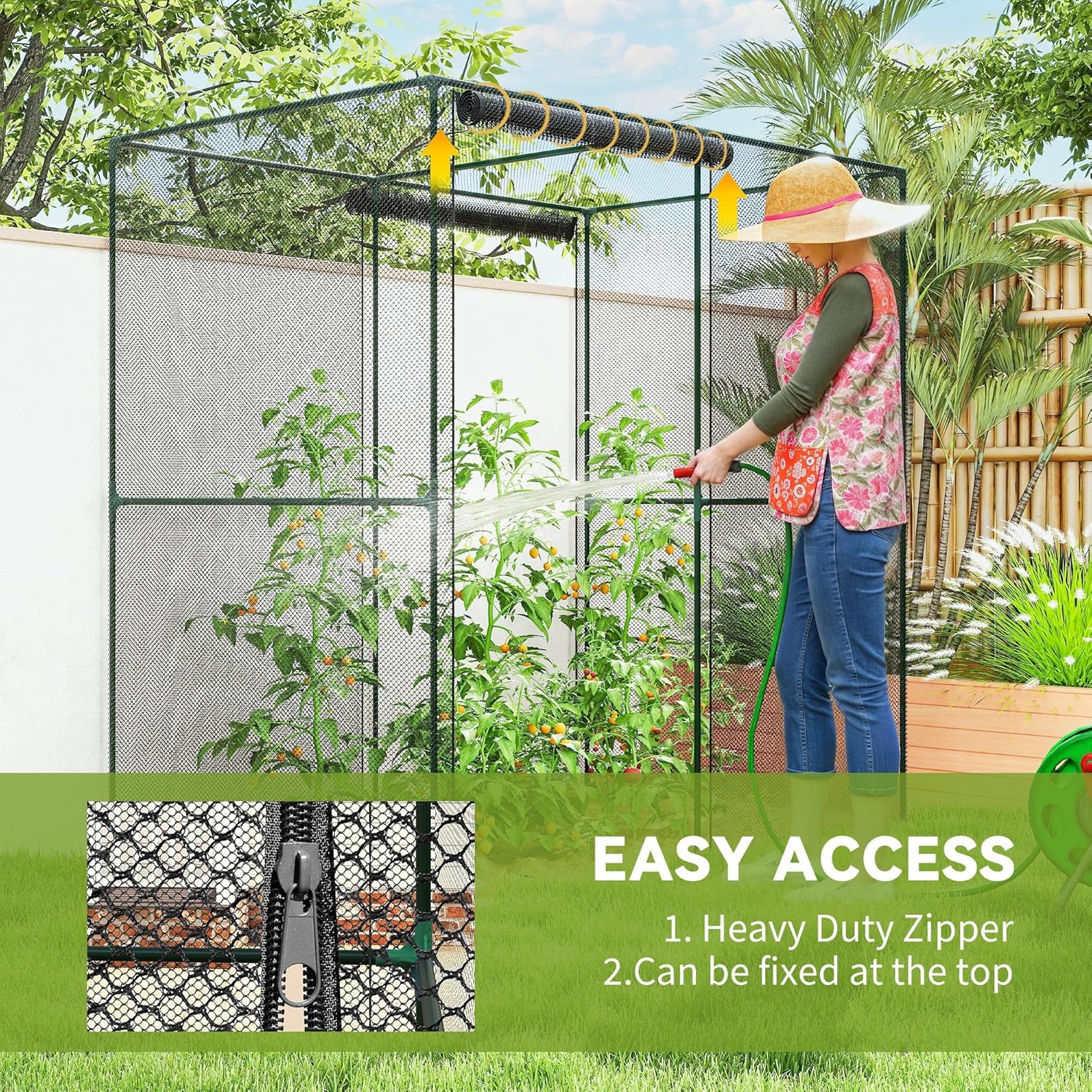

Image: A user watering plants inside the crop cage, demonstrating the easy access provided by the heavy-duty zippered door, which can be fixed open at the top.
Image: A visual comparison illustrating how the crop cage effectively protects plants from birds and insects, showing healthy plants inside the cage versus damaged plants outside.
Onderhoud
- Skoonmaak: Periodically clean the mesh netting with a soft brush and mild soap solution. Rinse thoroughly with water.
- Inspeksie: Regularly check the steel frame for any signs of rust or damage. Inspect the netting for tears or holes.
- Herstel: Small tears in the netting can be repaired with mesh repair tape. Damaged frame components should be replaced to maintain structural integrity.
- Winterberging: In areas with heavy snow or extreme cold, it is recommended to disassemble and store the crop cage indoors to prolong its lifespan.
Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Cage is unstable or sways in wind. | Insufficient anchoring. | Ensure the bottom frame is buried deep into the soil. Use additional ground stakes or weights (e.g., bricks) on the base poles. |
| Die ritssluiter sit vas of is moeilik om te gebruik. | Dirt or debris in zipper teeth; zipper misalignment. | Clean zipper teeth with a small brush. Apply a silicone-based lubricant. Ensure the netting is not pulling too tightly on the zipper. |
| Netting has small holes or tears. | Wear and tear; animal damage. | Patch small holes with mesh repair tape. For larger damage, consider replacing the netting if available. |
| Plants inside are not pollinated. | Mesh is too fine for pollinators. | The mesh is designed to keep out small insects. For plants requiring pollination, manual pollination may be necessary, or consider temporarily opening the doors during peak pollination times. |
Spesifikasies
- Model: 845-402V01BK
- Algehele afmetings: 70.9" L x 47.2" B x 70.9" H (6' L x 4' B x 6' H)
- Deur grootte: 35.4" B x 68.5" H
- Raammateriaal: 16mm Alloy Steel (Powder-coated)
- Netting Material: Tear-resistant Mesh
- Kleur: Swart
- Item gewig: 8 pond
- Handelsmerk: Buitensinnig
- Vervaardiger: Aosom LLC
Image: A diagram illustrating the key dimensions of the crop cage, including length, width, height, and door size.
Waarborg en Ondersteuning
Vir waarborginligting of tegniese ondersteuning, verwys asseblief na die kontakbesonderhede wat saam met u aankoopdokumentasie verskaf is of besoek die amptelike Outsunny-webwerf. webwerf. Hou jou aankoopkwitansie vir waarborgeise.
