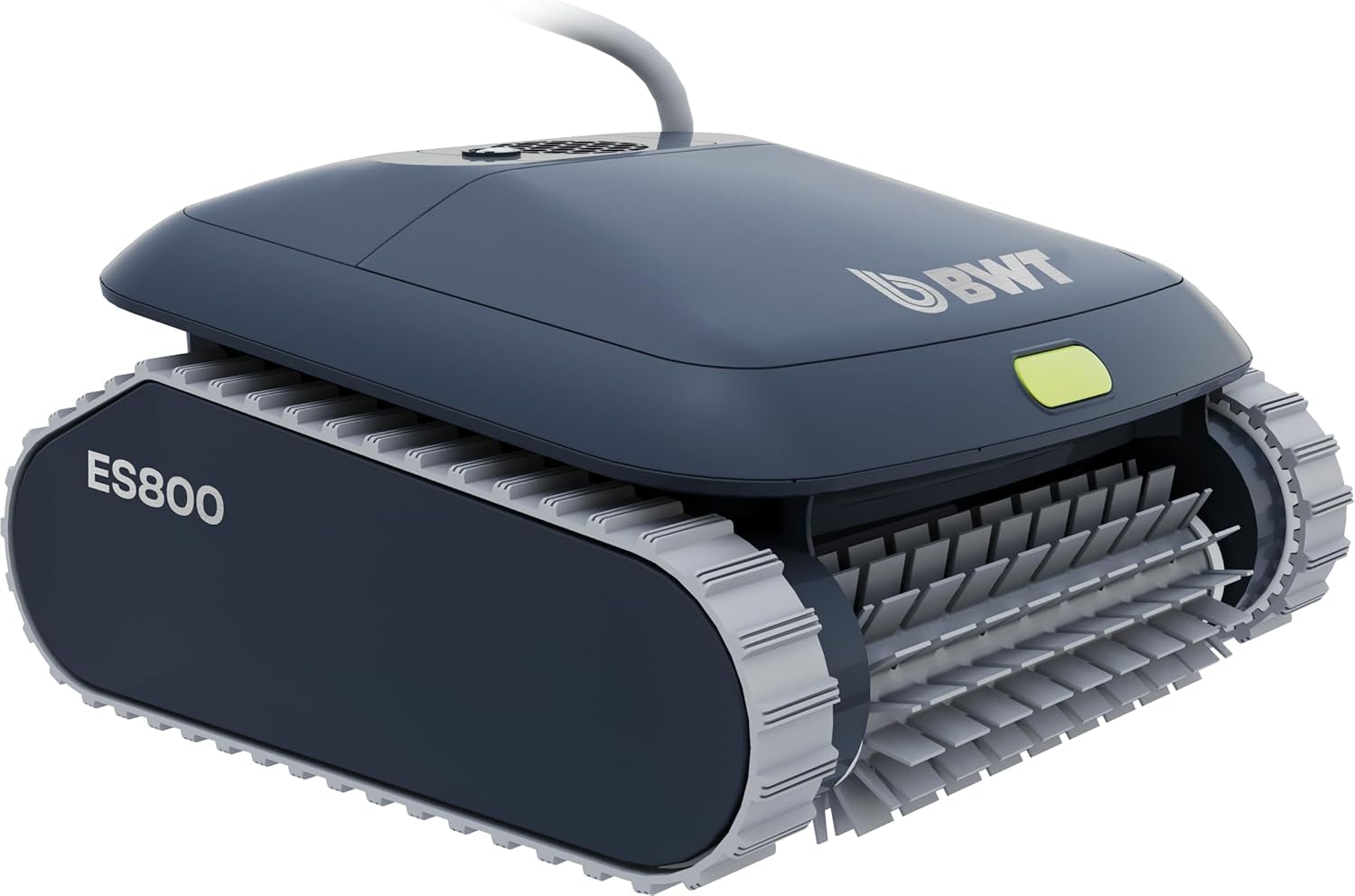

BWT ES800 Robotic Pool Cleaner Instruction Manual

Inleiding

This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your BWT ES800 Robotic Pool Cleaner. Please read this manual thoroughly before using the appliance and retain it for future reference.

Veiligheidsinligting

Neem altyd die volgende veiligheidsmaatreëls in ag:

• Maak seker dat die kragtoevoer afgeskakel is voordat enige onderhoud of skoonmaak uitgevoer word.
• Do not operate the cleaner if the power cable is damaged. Contact qualified service personnel for repairs.
• Hou kinders en troeteldiere weg van die swembadarea terwyl die skoonmaker in werking is.
• Only use the cleaner in pools with appropriate water chemistry levels.
• Do not use the cleaner to remove large debris such as leaves, twigs, or rocks, as this may damage the unit.
• Always remove the cleaner from the pool after each cleaning cycle.

Pakketinhoud

Verifieer dat alle komponente in die pakket teenwoordig is:

• BWT ES800 Robotic Pool Cleaner Unit
• Kragtoevoer Eenheid
• Floating Cable (59ft)
• Filter mandjie
• Instructiehandleiding (hierdie dokument)

Opstelling

1. Uitpak en aanvanklike inspeksie

Carefully remove all components from the packaging. Inspect the cleaner and its accessories for any signs of damage. If any damage is found, do not operate the unit and contact customer support.

2. Koppel die kragtoevoer

1. Place the power supply unit at least 3.5 meters (11.5 feet) from the edge of the pool. Ensure it is in a shaded area and protected from direct sunlight and splashing water.
2. Connect the floating cable from the cleaner to the power supply unit. Ensure a secure connection.
3. Plug the power supply unit into a grounded electrical outlet.

3. Placing the Cleaner in the Pool

Gently lower the BWT ES800 into the pool. Allow it to sink to the bottom. Ensure that all air trapped inside the cleaner is released by gently rocking it from side to side until no more bubbles emerge. Spread the floating cable evenly across the pool surface to prevent tangling.

Image: The BWT ES800 Robotic Pool Cleaner submerged in a pool, ready for operation.

4. App Control Setup (BWT Best Water App)

The BWT ES800 features Bluetooth connectivity for app control. Download the "BWT Best Water App" from the Apple App Store or Google Play Store. Follow the in-app instructions to pair your device with the cleaner. This allows for remote control, cycle selection, and software updates.

Image: The BWT ES800 cleaner next to a smartphone displaying the BWT Best Water App interface for remote control.

Operasie

1. Begin van 'n skoonmaaksiklus

Once the cleaner is submerged and powered on, you can initiate a cleaning cycle using the button on the unit or through the BWT Best Water App.

2. Cleaning Modes and Cycles

The BWT ES800 offers multiple cleaning modes and cycles to suit your pool's needs:

• Skoonmaakmodusse:
  • Floor: Focuses cleaning on the pool floor.
  • Wall & Waterline: Cleans the pool walls and waterline.
  • Overall: Provides comprehensive cleaning of the entire pool (floor, walls, and waterline).
• Cleaning Cycles: Selectable durations of 1.5 hours, 2 hours, or 2.5 hours.

The cleaner utilizes a smart navigation system with an integrated gyroscope to adapt its driving pattern to your pool's shape, ensuring complete coverage and avoiding cable tangles.

Image: The BWT ES800 cleaner ascending a pool wall, demonstrating its smart cable control and anti-entanglement system.

Image: The BWT ES800 efficiently cleaning the bottom, walls, and waterline of a pool.

Onderhoud

1. Cleaning the Filter Basket

After each cleaning cycle, it is essential to clean the filter basket to maintain optimal performance. The ES800 features an easy-to-access filter basket.

1. Haal die skoonmaker uit die swembad met die handvatsel.
2. Open the top cover of the cleaner.
3. Lift out the filter basket.
4. Rinse the filter basket thoroughly with a garden hose to remove all debris.
5. Reinsert the clean filter basket and close the cover securely.

Image: A hand lifting the filter basket from the BWT ES800, illustrating the "Lift & Rinse" ease of use.

2. Borselonderhoud

Periodically inspect the PVC brushes for wear or damage. If the brushes are worn, they may need replacement to ensure effective cleaning. Contact customer support for replacement parts.

Beeld: 'n Gedetailleerde view of the BWT ES800's PVC brush, designed for effective scrubbing.

3. Kabelbestuur

After each use, coil the floating cable neatly to prevent kinks and tangles, which can affect the cleaner's movement and longevity.

4. Berging

When not in use, store the BWT ES800 in a cool, dry, and shaded area, away from direct sunlight and extreme temperatures. Ensure the cleaner and its power supply are completely dry before storage.

Probleemoplossing

Spesifikasies

Image: The BWT ES800 Robotic Pool Cleaner highlighting its key features and specifications.

Image: Internal components of the BWT ES800, showing the propeller motor, left motor, and right motor, emphasizing their efficiency and durability.

Waarborg

The BWT ES800 Robotic Pool Cleaner is backed by a 3 jaar waarborg. This warranty covers manufacturing defects and ensures high-quality build and long-lasting performance. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official BWT webwebwerf of kontak kliëntediens.

Kliënte ondersteuning

For further assistance, technical support, or to inquire about replacement parts, please contact BWT customer service. You can find contact information on the official BWT website or through the BWT Best Water App.

Aanlyn hulpbronne: Besoek die BWT Store on Amazon vir produkinligting en ondersteuning.
