1. Inleiding
Thank you for choosing the Tangkula 45" x 28" LED Bathroom Mirror. This mirror is designed to enhance your bathroom experience with its advanced features, including 3-color dimmable LED lights, an anti-fog function, and a convenient time/temperature display. This manual provides essential information for safe installation, operation, and maintenance of your new mirror.

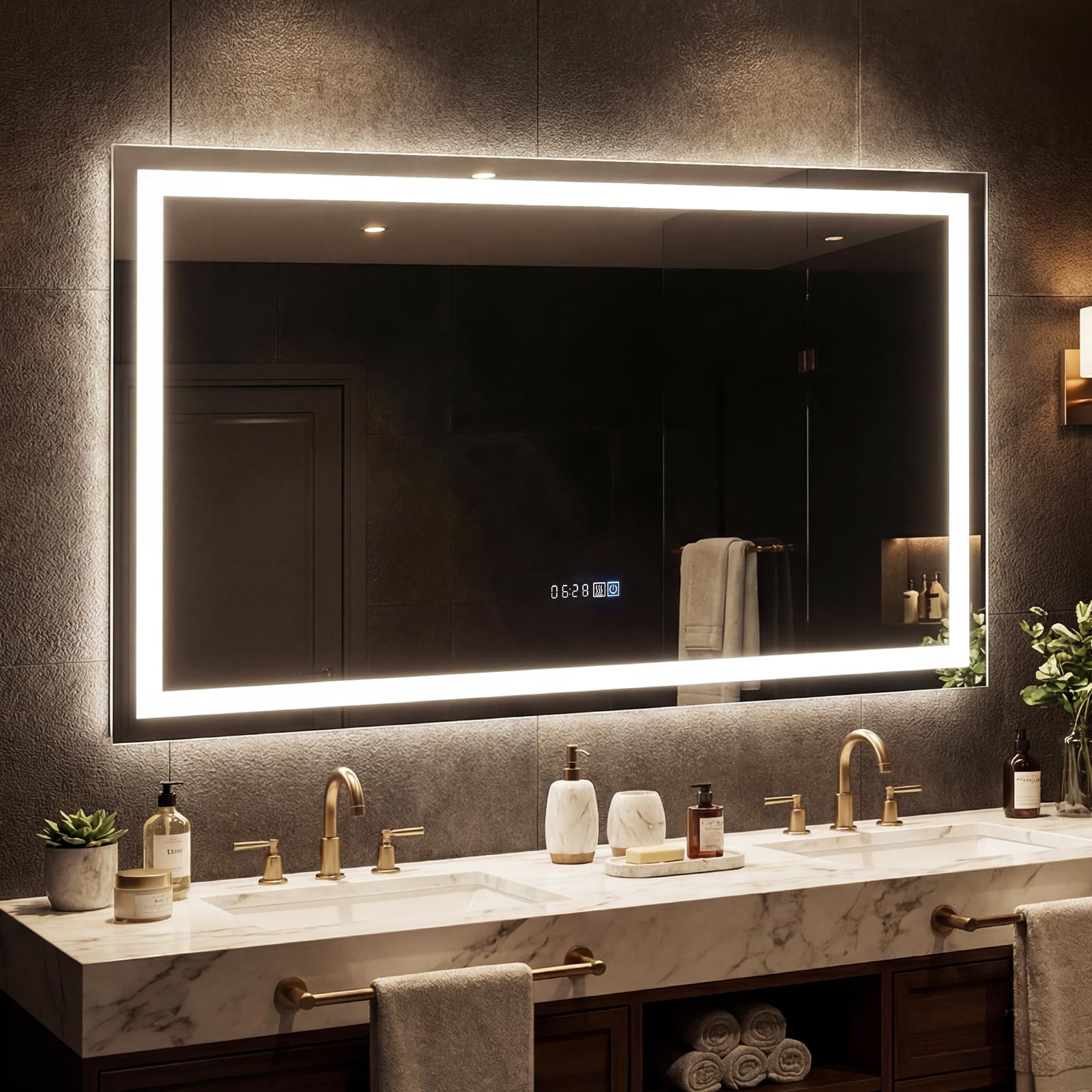

Image: The Tangkula 45" x 28" LED Bathroom Mirror with its integrated lighting and display features.
2. Veiligheidsinligting
- Elektriese veiligheid: Installation must be performed by a qualified electrician if hardwiring. Ensure power is disconnected at the circuit breaker before any installation or maintenance.
- Hantering: The mirror is made of glass and can be fragile. Handle with care to prevent breakage and injury.
- Montering: Ensure the wall structure can support the weight of the mirror. Use appropriate mounting hardware for your wall type.
- Waterblootstelling: While designed for bathroom use, avoid direct water spray on electrical components.
- Skoonmaak: Use only mild, non-abrasive cleaners. Do not spray cleaner directly onto the mirror's edges or electrical parts.
3. Pakketinhoud
Maak asseblief seker dat alle komponente teenwoordig is voordat u met die installasie begin:
- 1 x Tangkula 45" x 28" LED Bathroom Mirror
- 1 x Wall-Mounting Kit (includes screws, anchors, and hanging rod)
- 1 x Gebruikersgids (hierdie dokument)
4. Opstelling en installering
The mirror offers two connection options: plug-in or hardwired installation.
4.1 Muurmontering
- Meet en merk: Determine the desired height and position for your mirror. Mark the locations for the hanging rod on the wall. Ensure the marks are level.
- Boorgate: Use an appropriate drill bit to drill holes at the marked locations. Insert wall anchors if necessary.
- Heg hangstang aan: Securely fasten the hanging rod to the wall using the provided screws.
- Hang Spieël: Carefully lift the mirror and align its integrated hooks with the hanging rod. Gently lower the mirror until it is securely seated on the rod.
Image: Visual guide for easy installation, showing the hanging rod and mounting accessories.
4.2 Elektriese aansluiting
Kies een van die volgende verbindingsmetodes:
- Inprop: If you have a conveniently located power outlet, simply plug the mirror's power cord (length 31.5") into the outlet.
- Gehard: For a seamless look, the mirror can be hardwired directly into your electrical system. This requires professional installation by a qualified electrician. Ensure the power supply is turned off at the main circuit breaker before commencing. The mirror can then be controlled by a wall switch.

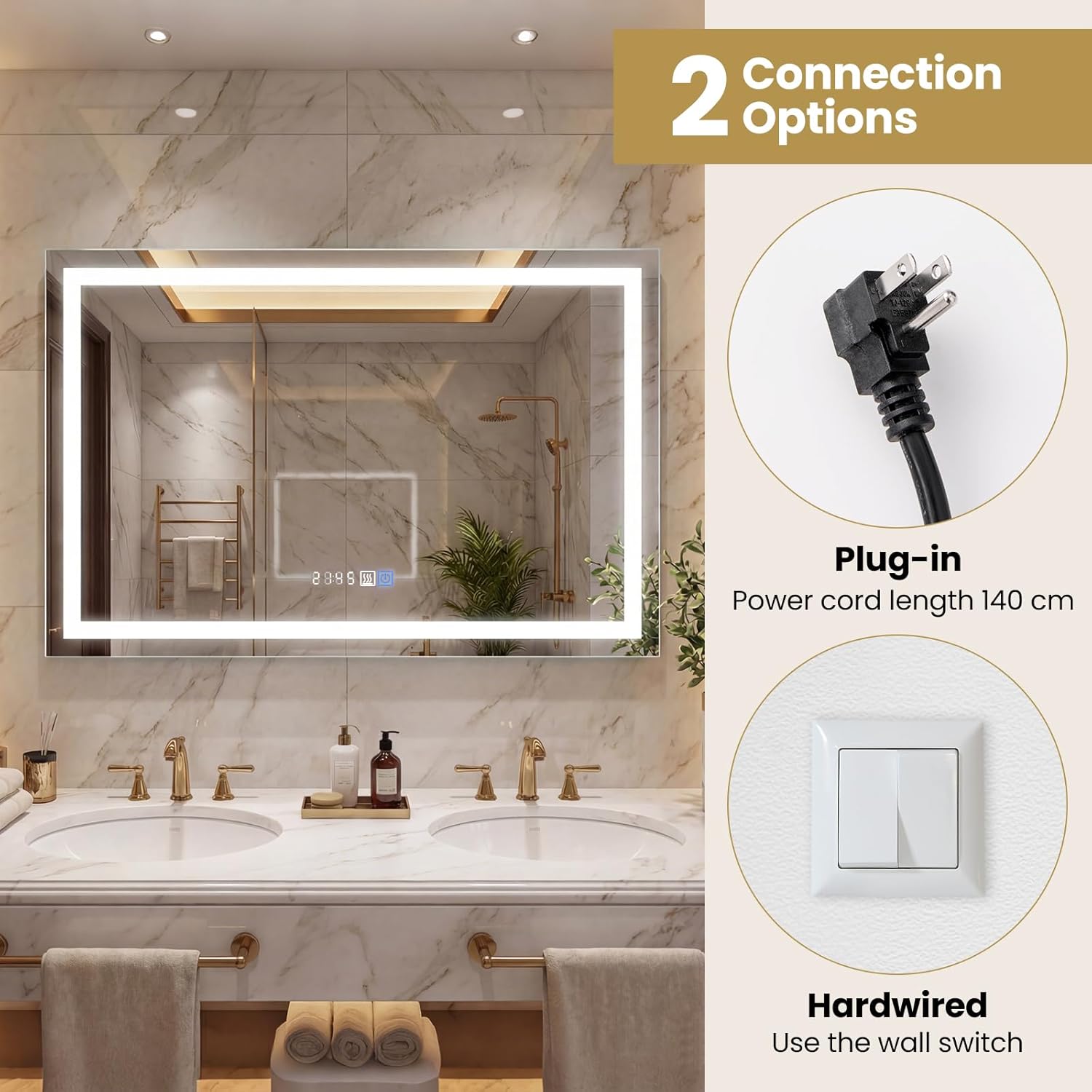

Image: Two connection options for the mirror: plug-in and hardwired.
5. Bedryfsinstruksies
Your Tangkula LED Bathroom Mirror features intuitive touch controls for various functions.
5.1 LED-beligtingsbeheer
The mirror features both frontlit and backlit LED lighting for optimal illumination.
- Krag aan/af: Tap the light icon touch switch to turn the LED lights on or off.
- Verander kleurtemperatuur: With the lights on, short press the light icon touch switch to cycle through the 3 color modes: 3000K (Warm), 4500K (Warm White), and 6000K (White).
- Pas Helderheid aan: Long press the light icon touch switch to adjust the brightness from 5% to 100%. Release when the desired brightness is reached.
- Geheue funksie: The mirror will remember your last-used lighting settings (color temperature and brightness) when turned off and on again.
Image: Demonstration of the 3-color dimmable LED lights and brightness adjustment.
Image: Illustration of the double lighting sources (frontlit + backlit) for improved clarity.
5.2 Anti-Fog Function
The anti-fog function ensures a clear reflection even in steamy conditions.
- Aktiveer/Deaktiveer: Tap the anti-fog icon touch switch (often depicted as steam or wavy lines) to turn the defogger on or off.
- The anti-fog function provides fast defogging for clear visibility.

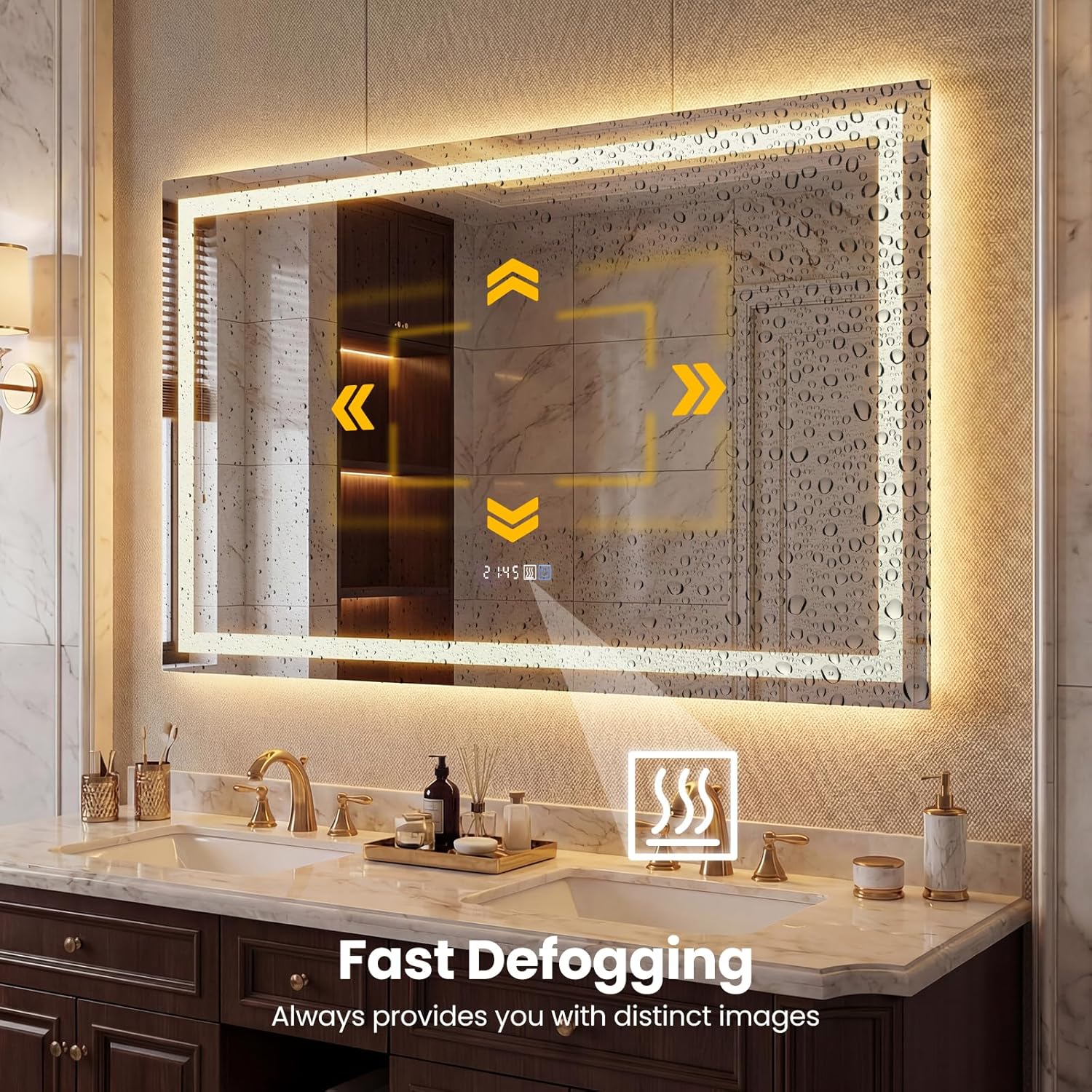

Image: The anti-fog function in action, ensuring a clear mirror surface.
5.3 Time and Temperature Display
The mirror features an integrated display for time and ambient temperature.
- The time and temperature display automatically activates when the mirror is powered on.
- There are no user-adjustable settings for the time or temperature display directly on the mirror. It typically synchronizes automatically or is pre-set.
Image: Detail of the time/temperature display and touch controls.
6. Onderhoud
Proper maintenance ensures the longevity and optimal performance of your mirror.
- Maak die spieëloppervlak skoon: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into the electrical components. Wipe gently.
- Maak die raam skoon: If applicable, wipe the frame with a soft, damp lap. Vermy harde chemikalieë.
- Elektriese komponente: Do not attempt to clean or tamper with the internal electrical wiring or LED strips.
- Gereelde inspeksie: Kontroleer die monteerhardeware gereeld om te verseker dat die spieël stewig aan die muur vas bly.
7. Probleemoplossing
If you encounter any issues with your Tangkula LED Bathroom Mirror, please refer to the following common problems and solutions:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| LED-ligte skakel nie aan nie. | No power supply; loose connection; faulty touch switch. | Check if the mirror is plugged in or if the circuit breaker is on. Ensure all connections are secure. Contact customer support if the touch switch is unresponsive. |
| Anti-fog function is not working. | Anti-fog function not activated; power issue. | Tap the anti-fog touch switch to activate. Verify the mirror has power. |
| Ligte flikker of is dof. | Loose connection; power fluctuation; brightness setting too low. | Check power connections. Adjust brightness using the touch switch (long press). |
| Time/Temperature display is incorrect or not showing. | Power interruption; internal sensor issue. | Ensure continuous power supply. The display is typically automatic; if persistent, contact support. |
If these solutions do not resolve the issue, please contact Tangkula customer support.
8. Spesifikasies
- Handelsmerk: Tangkula
- Model: 45L x 28W duim
- Produk afmetings: 114.3L x 71.1W Centimetres (45L x 28W inches)
- Materiaal: Glass, Metal (Copper-free 5 mm silver glass)
- Montage tipe: Muurmontering
- Ligte kenmerke: 3 Color Temperature (3000K Warm, 4500K Warm White, 6000K White), Dimmable (5%-100%), Frontlit + Backlit, Memory Function
- Spesiale kenmerke: Touch Sensor Controls, Anti-Fog Function, Time/Temperature Display
- Kragverbinding: Plug-in (31.5" power cord) or Hardwired
- Ingesluit komponente: Mirror, Wall-Mounting Kit, User Guide
Image: Detailed dimensions of the Tangkula LED Bathroom Mirror.
9. Waarborg en Ondersteuning
For warranty information or technical support, please contact Tangkula customer service. Keep your purchase receipt as proof of purchase.
Vervaardiger kontakinligting:
Tangkula
75 Quarterman Road
Guelph, Ontario N1C 1C3
Kanada
You may also visit the official Tangkula store for more information: Tangkula Store on Amazon.ca
