Lifelong BRIK 2-in-1 Air Fryer & Barbeque Instruction Manual

1. Inleiding

Dankie vir die aankoopasing the Lifelong BRIK 2-in-1 Air Fryer & Barbeque. This appliance is designed to provide versatile cooking options, combining the benefits of air frying and grilling in one compact unit. Please read this manual thoroughly before use to ensure safe and efficient operation. Keep this manual for future reference.

Image 1.1: The Lifelong BRIK 2-in-1 Air Fryer & Barbeque, showcasing its sleek silver and black design with a glass window displaying food inside.

2. Belangrike veiligheidsinstruksies

Wanneer elektriese toestelle gebruik word, moet basiese veiligheidsmaatreëls altyd gevolg word, insluitend die volgende:

1. Lees alle instruksies voordat u die toestel gebruik.
2. Moenie aan warm oppervlaktes raak nie. Gebruik handvatsels of knoppe.
3. Om teen elektriese skok te beskerm, moenie die koord, proppe of die hoofeenheid in water of ander vloeistof dompel nie.
4. Noukeurige toesig is nodig wanneer enige toestel deur of naby kinders gebruik word.
5. Trek uit die stopcontact wanneer dit nie gebruik word nie en voor skoonmaak. Laat afkoel voor jy dele aan- of afhaal.
6. Moenie enige toestel gebruik met 'n beskadigde koord of prop, of nadat die toestel wanfunksioneer of op enige manier beskadig is nie. Kontak kliëntediens vir bystand.
7. Die gebruik van bykomstighede wat nie deur die toestelvervaardiger aanbeveel word nie, kan beserings veroorsaak.
8. Moenie buite gebruik nie.
9. Moenie dat koord oor die rand van tafel of toonbank hang, of aan warm oppervlaktes raak nie.
10. Moenie op of naby 'n warm gas- of elektriese brander, of in 'n verhitte oond plaas nie.
11. Uiterste versigtigheid moet gebruik word wanneer 'n toestel wat warm olie of ander warm vloeistowwe bevat, verskuif word.
12. Heg altyd eers die prop aan die toestel, en dan die koord in die muurprop. Om te ontkoppel, draai enige beheer na "af" en verwyder dan die prop uit die muurprop.
13. Moenie die toestel vir ander as die bedoeling gebruik nie.
14. Maak seker dat die toestel op 'n stabiele, hittebestande oppervlak geplaas word.
15. Moenie enige ventilasie-openinge blokkeer nie.

3. Produk verbyview

The Lifelong BRIK 2-in-1 Air Fryer & Barbeque features a unique flip design, allowing it to function as both an air fryer and a grill. It includes a 4.2L capacity basket with a glass window for monitoring food, an LED touch panel for easy control, and 8 preset cooking modes.

Sleutel kenmerke:

• Dubbele funksionaliteit: Easily switch between air frying and grilling modes by flipping the unit.
• Kragtige prestasie: 1350W heating element for quick and efficient cooking.
• Vrygewige kapasiteit: 4.2-liter basket, suitable for small families.
• Sigbare Kookkuns: Integrated glass window allows monitoring of food without opening.
• Intuïtiewe kontroles: LED touch panel with 8 preset cooking modes.
• Gesonde kookkuns: 360° Rapid Air Technology for crispy results with minimal oil.
• Veiligheidskenmerke: Built-in light and auto shut-off function.

Image 3.1: Illustration of the smart features including 1350W Power, Built-in Light, and Auto Shut-off.

4. Opstelling

4.1 Uitpak

1. Verwyder die toestel en alle bykomstighede versigtig uit die verpakking.
2. Verwyder enige plakkers of etikette.
3. Bewaar die verpakking vir berging of toekomstige vervoer.

4.2 Aanvanklike skoonmaak

Maak alle dele wat met voedsel in aanraking sal kom, skoon voor die eerste gebruik:

• Wash the air fryer basket, grill plate, and any removable accessories with warm, soapy water. Rinse thoroughly and dry completely.
• Vee die buitekant van die hoofeenheid af met advertensiemateriaal.amp lap. Moenie die hoofeenheid in water dompel nie.

4.3 Plasing

• Plaas die toestel op 'n stabiele, plat, hittebestande oppervlak.
• Ensure there is adequate space (at least 10 cm) around the appliance for proper air circulation.
• Moenie die toestel naby vlambare materiale of hittebronne plaas nie.

5. Bedryfsinstruksies

5.1 Aan- en afskakel

• Plug the power cord into a grounded electrical outlet. The appliance will beep, and the LED display will illuminate briefly.
• Press the power icon on the LED touch panel to turn the appliance on.
• Om af te skakel, druk en hou die aan/af-ikoon totdat die skerm afskakel.

5.2 Switching Between Air Fryer and Barbeque Modes

The Lifelong BRIK features a unique flip design to switch between modes:

1. Maak seker dat die eenheid ontkoppel en afgekoel is.
2. To switch from Air Fryer to Barbeque mode: Lift and detach the top display unit from the base. Flip the top unit over to reveal the grilling element. Place the grill plate onto the base.
3. To switch from Barbeque to Air Fryer mode: Remove the grill plate. Flip the top unit back to its original position and reattach it to the base. Insert the air fryer basket.

Image 5.1: A four-panel image demonstrating how to switch to grilling mode: 1. Lift & detach the display unit. 2. Flip to reveal barbeque. 3. Fix the grill plate. 4. Set the time/temperature.

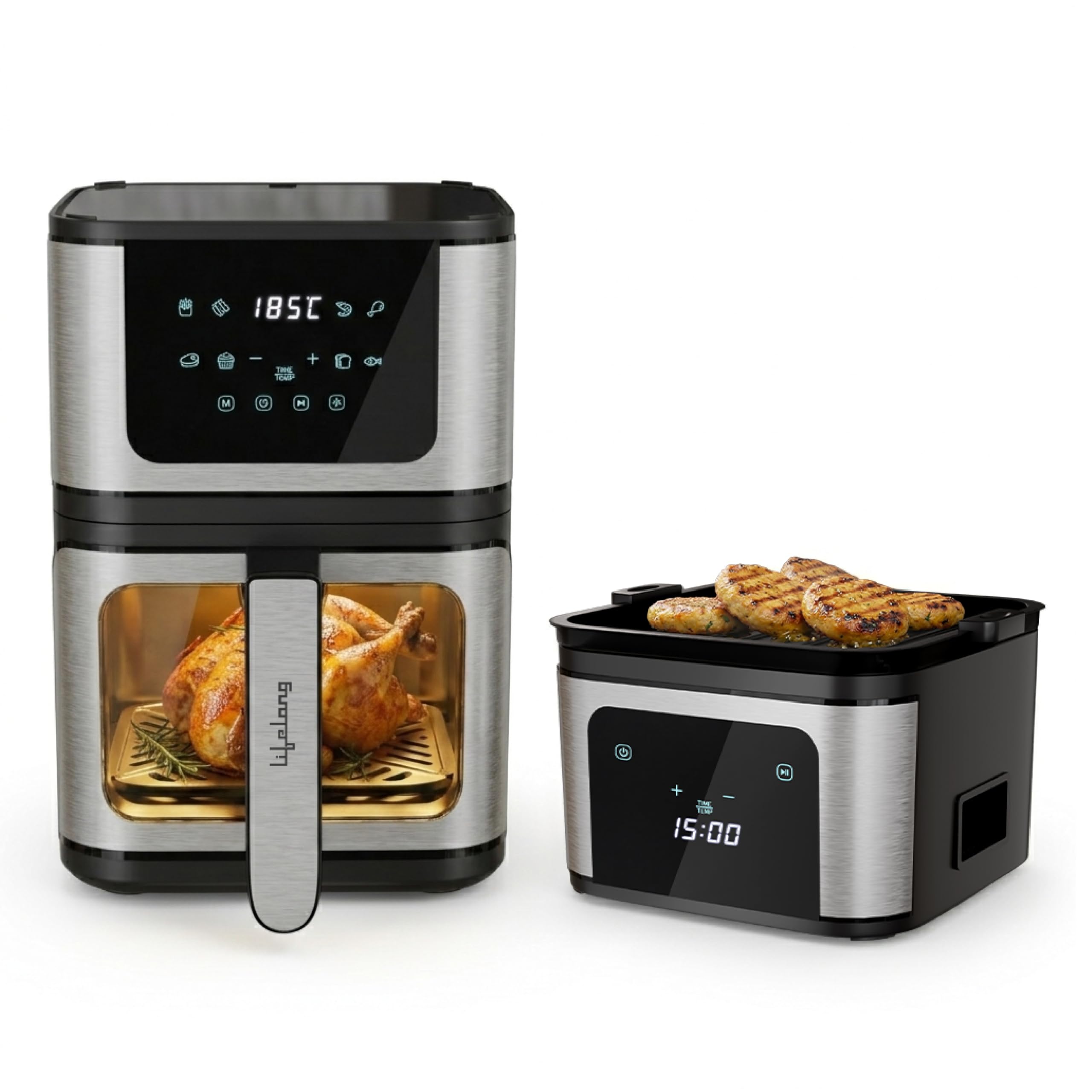

Image 5.2: The appliance shown in both air frying mode (top) and grilling mode (bottom), highlighting its dual functionality.

5.3 Using the LED Touch Panel

The LED touch panel allows you to select cooking modes, adjust temperature, and set cooking time.

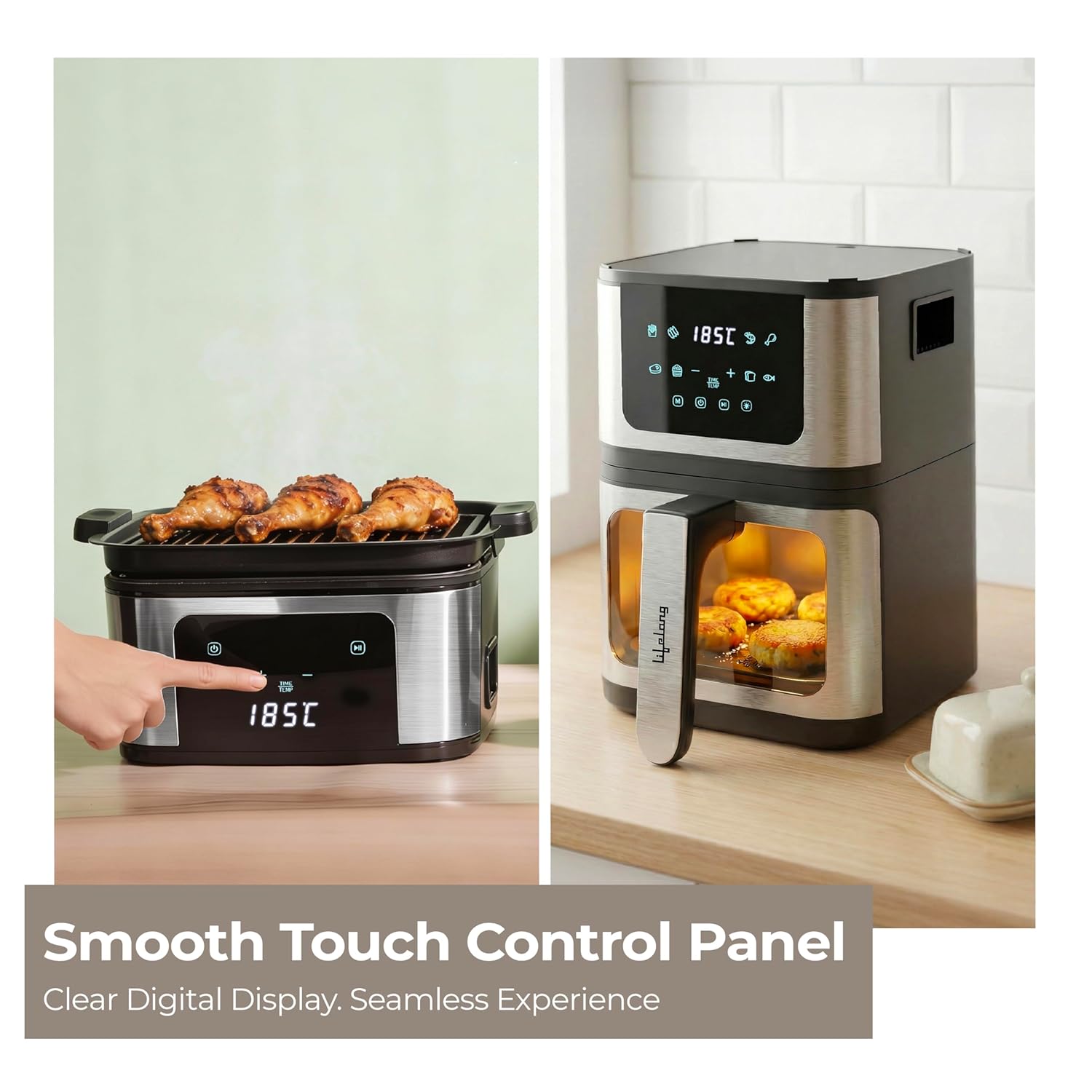

Image 5.3: A close-up of the LED touch control panel, showing various icons for presets, temperature, and time adjustments.

5.4 Vooraf ingestelde modusse

The appliance comes with 8 preset modes for common dishes. To use a preset:

1. Skakel die toestel aan.
2. Select the desired preset icon on the touch panel. The default time and temperature for that preset will display.
3. You can adjust the time and temperature manually using the +/- buttons if needed.
4. Druk die beginknoppie om te begin kook.

Available presets include:

• Frans Fries
• Wors
• Garnale
• Hoender
• Steak
• Koek
• Brood
• Vis

Image 5.4: The appliance displaying the 8 preset icons for various dishes like French Fries, Chicken, Steak, and Fish.

5.5 Manual Operation (Air Frying)

1. Ensure the appliance is in Air Fryer mode with the basket inserted.
2. Plaas kos in die lugbraaiermandjie. Moenie dit oorvul nie.
3. Skakel die toestel aan.
4. Use the temperature and time buttons to set your desired cooking parameters.
5. Press the start button. The appliance will begin heating and circulating hot air.
6. Shake the basket halfway through cooking for even results, if necessary.
7. The appliance will beep when cooking is complete and automatically shut off.

5.6 Manual Operation (Grilling)

1. Ensure the appliance is in Barbeque mode with the grill plate in place.
2. Preheat the grill plate for 3-5 minutes.
3. Carefully place food onto the hot grill plate.
4. Use the temperature and time buttons to set your desired cooking parameters.
5. Druk die beginknoppie.
6. Flip food as needed for even grilling.
7. The appliance will beep when cooking is complete and automatically shut off.

6. Onderhoud en Skoonmaak

Gereelde skoonmaak verseker optimale werkverrigting en verleng die lewensduur van jou toestel.

6.1 Algemene Skoonmaak

1. Ontkoppel altyd die toestel en laat dit heeltemal afkoel voordat dit skoongemaak word.
2. Vee die buitekant van die hoofeenheid af met advertensiemateriaal.amp lap. Moenie skuur skoonmaakmiddels gebruik nie.
3. The air fryer basket and grill plate are non-stick. Wash them with warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry.
4. For stubborn food residue, soak the basket or grill plate in warm, soapy water for 10-15 minutes before cleaning.

6.2 Berging

Wanneer dit nie gebruik word nie, maak seker dat die toestel skoon en droog is. Bêre dit op 'n koel, droë plek.

7. Probleemoplossing

If you encounter any issues, please refer to the following table before contacting customer support.

8. Spesifikasies

Image 8.1: The appliance with its 4.2L capacity highlighted, along with its dimensions: 24.1 cm (depth), 12.7 cm (width), and 12.2 cm (height).

9. Waarborg en Ondersteuning

9.1 Waarborginligting

This product comes with a warranty. Please refer to the included Warranty Card for detailed terms, conditions, and registration information. Keep your purchase receipt as proof of purchase for warranty claims.

9.2 Kliëntediens

For any product-related queries, technical assistance, or service requests, please contact Lifelong customer support:

• Telefoon: +91 9711558877
• E-pos: customercare@lifelongonline.com
• Vervaardiger adres: 5th Floor, Unit No. 508, DLF South Court, Saket District Center, Saket New Delhi, India – 110017
