1. Inleiding
Thank you for choosing the SEESII SE209-26Q1 Portable Battery Spot Welder. This device is designed for efficient and precise spot welding of nickel-plated sheets and pure nickel sheets, primarily for assembling and repairing battery packs. Its compact, wireless design and advanced features make it suitable for both DIY enthusiasts and professionals. Please read this manual thoroughly before operation to ensure safe and optimal use.
Image 1.1: The SEESII SE209-26Q1 Portable Spot Welder, a compact, handheld device with a digital display.
2. Veiligheidsinligting
Volg altyd die volgende veiligheidsriglyne om beserings of skade aan die toestel te voorkom:
- Oogbeskerming: Always wear appropriate eye protection (e.g., welding goggles or safety glasses) to shield against sparks and bright flashes during welding.
- Ventilasie: Ensure adequate ventilation in your workspace to disperse any fumes produced during welding.
- Battery hantering: Handle batteries with care. Avoid short-circuiting batteries, puncturing them, or exposing them to extreme temperatures.
- Vlambare materiale: Keep the welding area clear of flammable materials, liquids, and gases.
- Toestel toestand: Do not operate the device if it is damaged or malfunctioning. Contact support for assistance.
- Oorverhittingbeskerming: The device features overheat protection, automatically stopping welding if the temperature exceeds 65°C. Allow the device to cool down before resuming operation.
- Kinders en Troeteldiere: Hou die toestel buite bereik van kinders en troeteldiere.
3. Produk verbyview
3.1 Ingesluite komponente
Die pakket sluit die volgende items in:
- SEESII Portable Spot Welder (x1)
- USB-C-kabel (x1)
- Replacement Welding Tips (x2)
- Skuurmiddel File (x1)
- Nickel Sheet (0.15 × 5m) (x2 rolls)
- Gebruikershandleiding (x1)
Image 3.1: All items included in the SEESII SE209-26Q1 spot welder package.
3.2 Sleutelkenmerke
- Wireless and Portable Design: Integrated 3000mAh rechargeable battery for wireless operation and easy portability, allowing flexible use anytime, anywhere without cable constraints.
- Vertoon skerm: Intydse voltage, speed settings, and welding mode are clearly displayed, simplifying operation steps and ensuring precise adjustments for stable welding results.
- 80 verstelbare snelhede: Ensures precise regulation of welding power, perfectly adapting to nickel sheets of different thicknesses. Maximum welding thickness: 0.2mm for nickel-plated sheets and 0.15mm for pure nickel sheets.
- Reusable Abrasive File: Equipped with a reusable file to remove carbon deposits from the welding tip, maintaining stable welding performance and extending tip lifespan.
- Durable Aluminum Casing: Features a robust aluminum casing that enhances texture and durability, resisting wear for reliable long-term use.
- Twee bedryfsmodusse: Freely switch between automatic and manual modes, allowing flexible operation adapted to different welding needs.
- Overheat Protection Function: Automatically stops welding when the device temperature exceeds 65°C, ensuring safe and reliable use.
Image 3.2: Close-up of the spot welder's color display showing real-time voltage, welding mode, pre-pulse delay, and gear settings.
Image 3.3: Comparison illustrating the compact, integrated design of the SEESII spot welder versus a traditional spot welder with external probes.
4. Opstelling
- Laai die toestel: Before first use, fully charge the spot welder using the provided USB-C cable and a compatible power adapter (not included). The display will indicate charging status.
- Attach Welding Tips: Ensure the welding tips are securely inserted into the device. The tips should be clean and free of oxidation.
- Prepare Nickel Sheet: Cut the nickel sheet to the required size. Ensure the surface of the nickel sheet and the battery terminals are clean and free of dirt, oil, or rust for optimal conductivity.
- Krag aan: Long press the power button to turn on the spot welder. The display will illuminate, showing current settings.
Image 4.1: Visual guide for basic setup and operation steps.
5. Bedryfsinstruksies
5.1 Selecting Welding Mode and Power
- Moduskeuse: The device supports both automatic and manual welding modes. Use the designated button (refer to the display interface) to switch between modes.
- Adjusting Power (Gear): The spot welder offers 80 adjustable power levels (gears). Adjust the gear setting based on the thickness of the nickel sheet and the desired weld strength. Start with lower settings and gradually increase if needed.
- Recommended Thicknesses:
- Nickel-plated sheets: Up to 0.2 mm
- Pure nickel sheets: Up to 0.15 mm

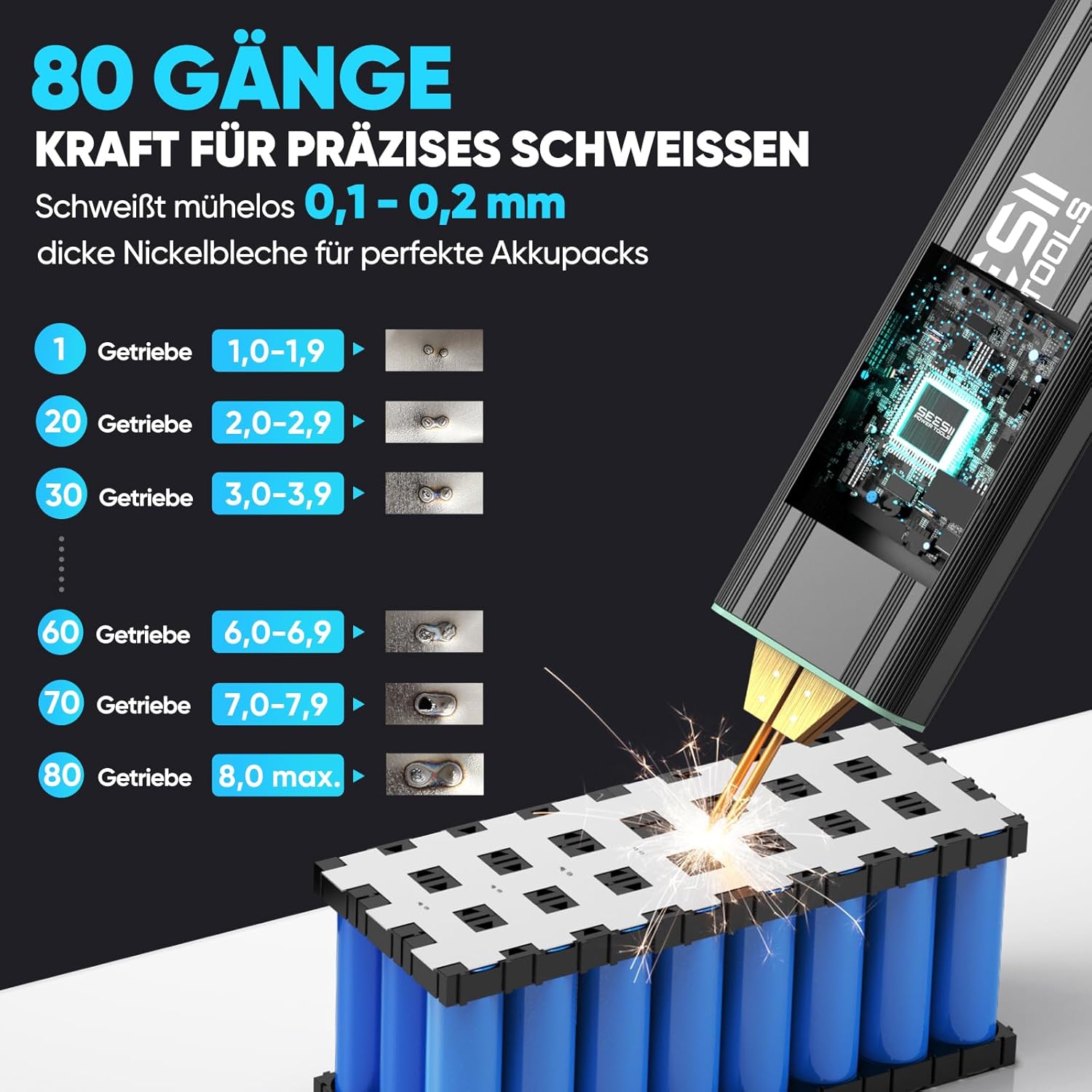

Image 5.1: Illustration of weld spot appearances across different power levels (gears) for 0.1-0.2mm nickel sheets.
5.2 Welding Technique
- Place the nickel sheet flat on the battery terminal.
- Position the two welding tips firmly and evenly on the nickel sheet, ensuring good contact. Maintain an angle of approximately 45-60 degrees for optimal contact and weld quality.
- In automatic mode, the device will detect contact and initiate the weld automatically. In manual mode, press the trigger button to initiate the weld.
- Observe the weld spot. A good weld should be clean, strong, and not easily detached. Adjust power settings if the weld is too weak or too strong.
- Repeat the process for all desired weld points.
Beeld 5.2: 'n Nabyskoot view of the spot welder in operation, creating a weld on a battery pack.
Image 5.3: A technician using the SEESII spot welder to assemble a battery pack.
Image 5.4: The spot welder is compatible with various battery types, including 18650, 32650 cylindrical batteries, and smartphone batteries.
6. Onderhoud
- Skoonmaaksweiswenke: Regularly inspect the welding tips for carbon buildup or oxidation. Use the provided abrasive file to gently clean the tips, ensuring good electrical contact and consistent weld quality. Replace tips when they become excessively worn.
- Batterysorg: To prolong battery life, avoid fully discharging the device frequently. Charge the battery regularly, even if not in use for extended periods. Store the device in a cool, dry place.
- Toestel skoonmaak: Wipe the device exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Berging: Store the spot welder in a dry environment, away from direct sunlight and extreme temperatures.
7. Probleemoplossing
If you encounter issues with your SEESII spot welder, refer to the following common problems and solutions:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Poor or inconsistent welds | Dirty or worn welding tips, incorrect power setting, poor contact, dirty nickel sheet/battery terminals. | Clean or replace welding tips. Adjust power (gear) setting. Ensure firm and even contact. Clean surfaces to be welded. |
| Toestel skakel nie aan nie | Low battery, faulty power button. | Charge the device fully. If the problem persists, contact customer support. |
| Device stops welding unexpectedly | Oorverhitbeskerming geaktiveer. | Allow the device to cool down. Reduce welding frequency or use lower power settings if possible. |
| Sparks but no weld | Insufficient power, poor contact, incorrect material. | Increase power (gear) setting. Ensure firm and even contact. Verify material is suitable for spot welding (nickel or nickel-plated). |
If you cannot resolve the issue using the troubleshooting guide, please contact SEESII customer support for further assistance.
8. Spesifikasies
| Kenmerk | Spesifikasie |
|---|---|
| Vervaardiger | SEESII |
| Modelnommer | SE209-26Q1 |
| Pakket afmetings | 28.1 x 8.5 x 4.2 cm |
| Gewig | 510 gram |
| Battery Tipe | 1 Litium-ioon (ingesluit) |
| Kragbron | Battery aangedrewe |
| Verstelbare snelhede | 80 Ratte |
| Max Welding Thickness (Nickel-plated) | 0.2 mm |
| Max Welding Thickness (Pure Nickel) | 0.15 mm |
| Beskerming oor oorverhitting | Automatic shutdown at >65°C |
9. Waarborg en Ondersteuning
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official SEESII webwebwerf. Bewaar u aankoopbewys as bewys van aankoop.
No official product videos were provided in the product data. Please check the manufacturer's official webwebwerf of produkbladsy vir enige beskikbare video-tutoriale of demonstrasies.
Image 9.1: The SEESII spot welder is ideal for various DIY electronics projects.
