1. Veiligheidsinligting
Please read all safety instructions carefully before using the Ymiko Food Vacuum Sealer Machine. Retain this manual for future reference.
- Moenie die toestel, kragkabel of prop in water of ander vloeistowwe dompel nie.
- Hou die toestel buite bereik van kinders.
- Moenie die toestel met 'n beskadigde koord of prop gebruik nie. Kontak kliëntediens vir hulp.
- Use only Ymiko-approved vacuum bags or compatible bags designed for vacuum sealing.
- Koppel die toestel uit die kragpunt wanneer dit nie gebruik word nie en voor skoonmaak.
- Avoid touching hot sealing strips immediately after use.
- Maak seker dat die toestel tydens werking op 'n stabiele, plat en droë oppervlak geplaas word.
2. Produk verbyview
The Ymiko Food Vacuum Sealer Machine is designed to preserve food freshness by removing air from specially designed bags and sealing them. It features a powerful 60KPA suction, dry and wet food modes, and a compact design for home kitchen use.
2.1 Komponente
- Vacuum Sealer Main Unit
- 20 x Vacuum Sealer Bags
- Gebruikershandleiding (hierdie dokument)
- Plakker
2.2 Sleutelkenmerke
- Powerful 60KPA Suction: Ensures quick and effective air removal for optimal food preservation.
- Dry and Wet Modes: Specialized settings for sealing both dry and moist foods, preventing liquid ingress during sealing.
- Gebruikersvriendelike ontwerp: Compact and lightweight with a digital display for easy operation.
- Verlengde Varsheid: Helps keep food fresh up to 7 times longer than traditional storage methods.
Figuur 1: oorview of the Ymiko Food Vacuum Sealer's key features.
3. Opstelling
- Pak die toestel uit: Verwyder die vakuumverseëlaar en alle bykomstighede versigtig uit die verpakking.
- Inspekteer vir skade: Kontroleer die toestel en kragkabel vir enige tekens van skade. Moenie gebruik as dit beskadig is nie.
- Clean the Appliance: Wipe the exterior of the vacuum sealer with a damp cloth. Ensure the sealing strip and vacuum channel are clean and dry.
- Posisioneer die toestel: Place the vacuum sealer on a flat, stable, and dry surface near a power outlet.
- Inprop: Connect the power cord to the appliance and then to a standard 110V US power outlet. The digital display should illuminate.
4. Bedryfsinstruksies
4.1 Preparing the Bag
- Place the food item into a vacuum sealer bag, ensuring there is at least 2-3 inches of space between the food and the top of the bag.
- Ensure the open end of the bag is clean, dry, and free of wrinkles.
4.2 Vacuum Sealing Food
- Maak die deksel van die vakuumverseëlaar oop.
- Place the open end of the bag into the vacuum channel, ensuring it lies flat across the sealing strip.
- Close the lid firmly until you hear a click, indicating it is locked.
- Select the appropriate mode on the digital display:
- Droë modus: For dry foods like grains, nuts, or dried fruits.
- Nat modus: For moist foods like meats, fish, or marinated items. The intelligent design prevents liquid from being drawn into the machine.
- Press the corresponding button (e.g., 'Vacuum Seal' or 'Dry/Wet' button) to start the vacuuming and sealing process. The machine will automatically vacuum the air and then seal the bag.
- Once the process is complete, the indicator light will turn off. Press the release buttons on the sides (if applicable) to open the lid and remove the sealed bag.
Figure 2: LED Smart Display showing control options.
Figure 3: Demonstrating Dry and Wet Mode operation.
Figure 4: Vacuum sealing a large item, showcasing the 210mm sealing width.
4.3 Sealing Only (No Vacuum)
This mode is useful for sealing bags without removing air, such as for snack bags or delicate items.
- Place the open end of the bag across the sealing strip.
- Maak die deksel stewig toe.
- Press the 'Single Seal' button. The machine will heat and seal the bag without vacuuming.
- Once complete, open the lid and remove the sealed bag.

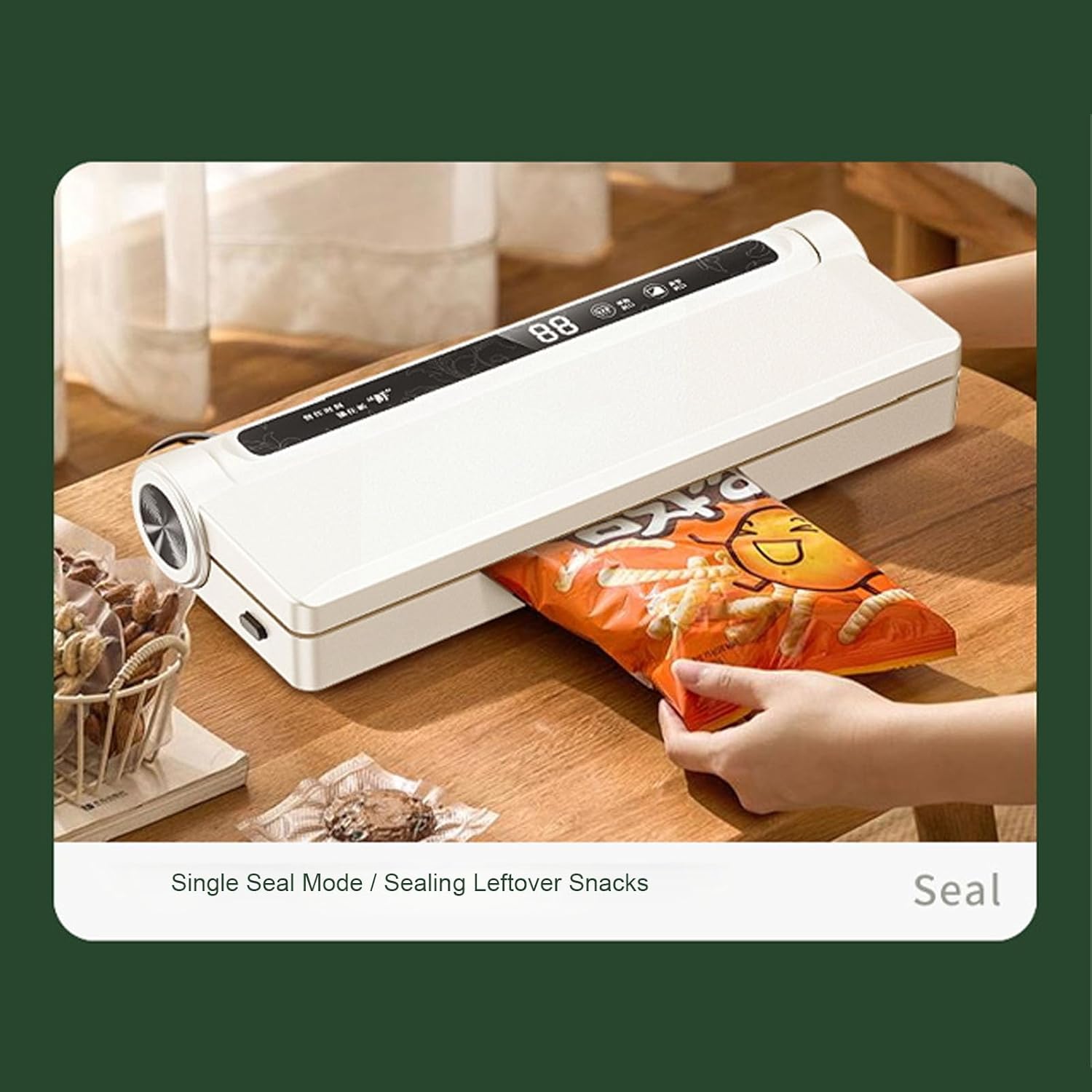

Figure 5: Using the Single Seal Mode for snacks.
5. Onderhoud
5.1 Skoonmaak
- Ontkoppel altyd die toestel voordat dit skoongemaak word.
- Vee die buitekant van die masjien af met 'n sagte, damp lap. Moenie skuur skoonmaakmiddels of oplosmiddels gebruik nie.
- Clean the vacuum channel and sealing strip regularly to prevent food residue buildup. Use a mild detergent if necessary, then wipe dry.
- Maak seker dat alle dele heeltemal droog is voor berging of volgende gebruik.
5.2 Berging
Store the vacuum sealer in a cool, dry place. For compact storage, ensure the lid is not fully latched to prevent compression of the sealing gaskets, which can affect performance over time.
6. Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Masjien kan nie aanskakel nie. | Nie ingeprop nie; kragpunt wanfunksioneer. | Maak seker dat die kragkabel stewig in 'n werkende stopcontact ingeprop is. |
| Masjien stofsuig maar seël nie. | Sealing strip dirty or wet; bag not positioned correctly; sealing strip worn. | Clean and dry the sealing strip. Reposition the bag. Contact support if strip is worn. |
| Machine seals but does not vacuum. | Lid not closed properly; vacuum channel blocked; bag punctured. | Ensure lid is firmly latched. Clear any obstructions in the vacuum channel. Check bag for holes. |
| Lug lek in die sak na verseëling. | Bag not sealed properly; bag material incompatible; sharp food edges. | Reseal the bag. Use only vacuum sealer bags. Ensure no sharp edges are piercing the bag. |
7. Spesifikasies
- Model: Ymiko0ixnguadm8-11
- Handelsmerk: Ymiko
- Materiaal: ABS Plastiek
- Gegradeerde krag: 130 W
- Actual Vacuum Degree: 60kPa
- Gegradeerde frekwensie: 60Hz
- Voltage: 110V (US Plug)
8. Waarborg en Ondersteuning
For warranty information or technical support, please refer to the documentation provided with your purchase or contact Ymiko customer service directly. Keep your purchase receipt as proof of purchase.
Kliëntediens: Please visit the official Ymiko website or contact your retailer for support contact details.
