Vivitar Digital Camera Binocular

Inleiding

Thank you for choosing the Vivitar Digital Camera Binocular. This device combines powerful binocular viewing with high-quality digital camera and video recording capabilities, designed for outdoor enthusiasts, travelers, and sports observers. It allows you to capture 16MP photos and record 2.7K QHD videos, featuring both day and night use functionality.

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new digital camera binocular. Please read it thoroughly before use to ensure optimal performance and longevity of your device.

Figuur 1: Voorkant view of the Vivitar Digital Camera Binocular, highlighting its 3.0" screen, 4x optical zoom, 10x digital zoom, 2.5K UHD video resolution, 40MP image resolution, and 2500mAh rechargeable lithium battery.

Opstelling

Follow these steps to prepare your Vivitar Digital Camera Binocular for first use.

1. Laai die battery

The device is powered by a rechargeable Lithium Ion battery. Before first use, fully charge the battery.

• Connect the included USB cable to the binocular's USB port.
• Koppel die ander kant van die USB-kabel aan 'n versoenbare USB-kragadapter (nie ingesluit nie) of 'n rekenaar se USB-poort.
• The charging indicator will illuminate. Once fully charged, the indicator light will change or turn off (refer to device screen for battery status).

2. Plaas 'n geheuekaart

A MicroSD card (not included) is required to store photos and videos. The device supports cards up to 32GB.

• Locate the memory card slot, typically on the side or bottom of the device.
• Gently insert the MicroSD card with the gold contacts facing the correct direction (refer to the diagram near the slot).
• Push the card in until it clicks into place. To remove, push it again until it springs out.

Figuur 2: The Vivitar Digital Camera Binocular shown with its carrying case, USB cable, and a 32GB MicroSD card, illustrating the accessories for setup and use.

3. Skakel aan/af

• Druk en hou die Kragknoppie (usually marked with a universal power symbol) to turn the device on or off.
• The 3-inch IPS LCD screen will activate upon power-on.

Bedryfsinstruksies

This section details how to use the various functions of your digital camera binocular.

1. Basiese kontroles

Familiarize yourself with the main control buttons:

• Kragknoppie: Skakel die toestel aan/af.
• Modus (M) Knoppie: Switches between Photo, Video, and Playback modes.
• OK knoppie: Confirms selections or starts/stops recording/capturing.
• Navigasieknoppies (Op/Af/Links/Regs): Used for menu navigation, zoom control, and adjusting settings.
• Brightness/IR Button: Adjusts screen brightness or activates/deactivates night vision (infrared) mode.

Figuur 3: The Vivitar Digital Camera Binocular displaying its control buttons and illustrating its capability for both day and night use.

2. Neem foto's

• Druk die Modus (M) knoppie until the camera icon appears on the screen, indicating Photo mode.
• Aim the binoculars at your subject. Use the navigation buttons to adjust the 4x optical zoom and up to 10x digital zoom as needed.
• Druk die OK knoppie to capture a 16MP photo. The effective still resolution is 40MP.

Figuur 4: The Vivitar Digital Camera Binocular in use, demonstrating its 10x digital zoom capability to bring distant subjects, such as a squirrel, closer into view.

3. Opneem van video's

• Druk die Modus (M) knoppie until the video camera icon appears, indicating Video mode.
• Frame your subject using the binoculars and the 3-inch IPS LCD screen.
• Druk die OK knoppie to start recording 2.7K QHD video at 30 frames per second. Press OK weer om op te hou opneem.

4. Day and Night Use

The binocular is equipped with night vision capabilities for use in low-light conditions.

• In low light, press the Brightness/IR button to activate the infrared (IR) illuminator for enhanced viewing and recording in darkness.
• The screen will display a monochrome image in night vision mode.

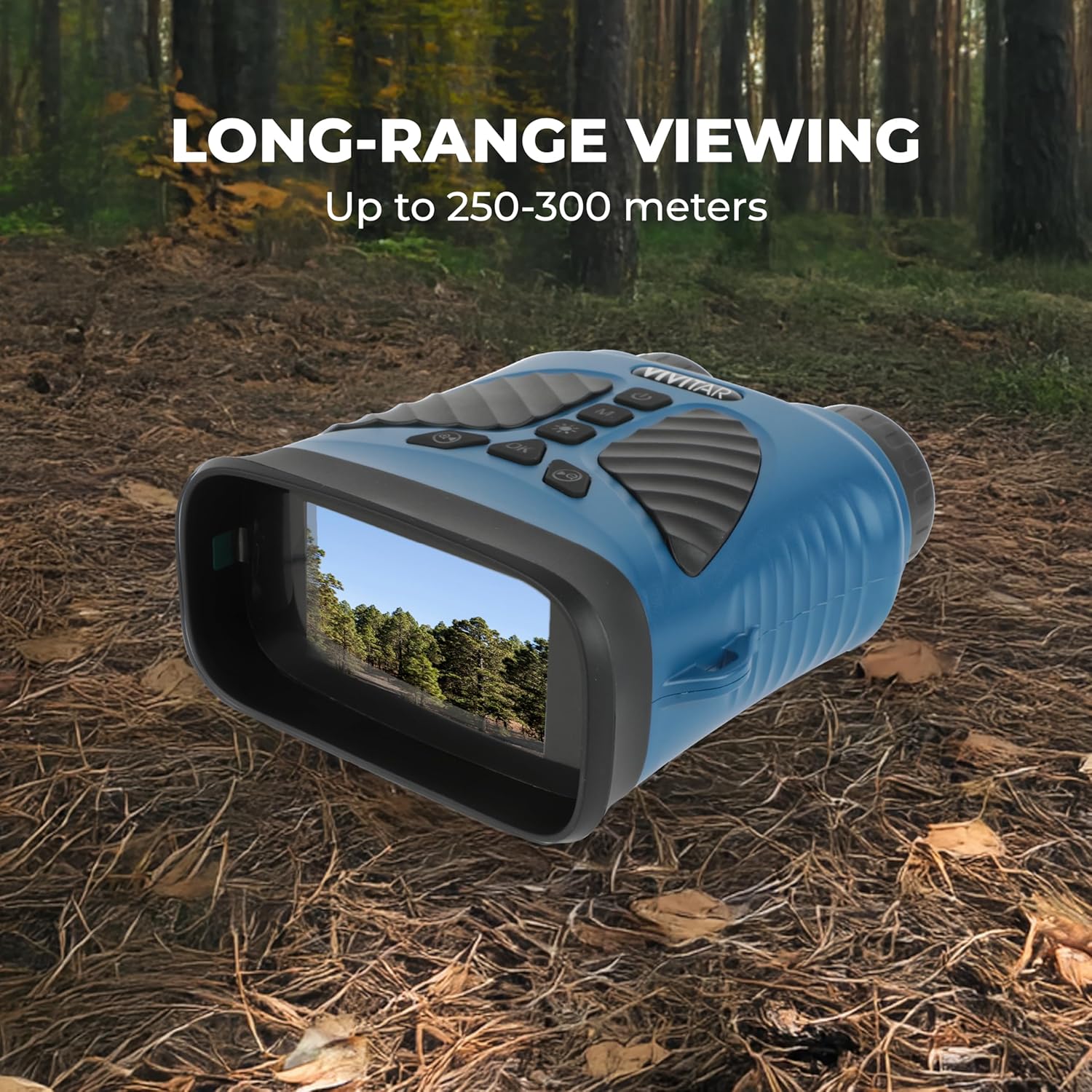

Figuur 5: The Vivitar Digital Camera Binocular displaying a clear view of a forest on its screen, demonstrating its long-range viewing capability of up to 250-300 meters.

5. Afspeelmodus

• Druk die Modus (M) knoppie until the playback icon appears.
• Gebruik die Navigasie knoppies to scroll through your captured photos and videos.
• Druk die OK knoppie aan view 'n foto of speel 'n video.

6. Koppel aan 'n rekenaar

• Turn off the binocular.
• Connect the binocular to your computer using the USB cable.
• The device should appear as a removable disk drive on your computer, allowing you to transfer files.

Onderhoud

Proper care will extend the life and performance of your Vivitar Digital Camera Binocular.

• Cleaning Lenses and Screen: Use a soft, lint-free cloth specifically designed for optical surfaces. Do not use abrasive cleaners or solvents.
• Liggaam skoonmaak: Wipe the rubberized body with a soft, damp lap. Vermy oormatige vog.
• Batterysorg: Store the device with a partially charged battery if not used for extended periods. Avoid extreme temperatures.
• Berging: Store the binocular in a cool, dry place, away from direct sunlight and dust. Use the provided carrying case for protection during transport.
• Waterweerstand: Hierdie toestel is NIE waterbestand nieVermy blootstelling aan reën, spatsels of onderdompeling in water.
• Valweerstand: While designed with a soft rubber body for durability, avoid dropping the device from significant heights to prevent internal damage.

Probleemoplossing

If you encounter issues with your Vivitar Digital Camera Binocular, refer to the following common problems and solutions.

Toestel skakel nie aan nie

• Ensure the battery is fully charged. Connect the device to a power source and allow it to charge for at least 30 minutes before attempting to power on again.
• Kontroleer die USB-kabel en kragadapter vir skade.

Memory Card Not Recognized or Error Message

• Ensure the MicroSD card is inserted correctly and fully seated in the slot.
• Try removing and reinserting the memory card.
• Format the memory card using the device's menu (if available) or a computer. Waarskuwing: Formatering sal alle data op die kaart uitvee.
• Try a different compatible MicroSD card to rule out a faulty card.

Swak beeld-/videokwaliteit

• Ensure the lenses are clean and free from smudges or dust.
• Check lighting conditions. For low light, activate night vision mode.
• Hold the device steady during capture to avoid blur.
• Ensure the subject is within the optimal focus range.

Device Freezes or Becomes Unresponsive

• Druk en hou die Kragknoppie for 10-15 seconds to force a shutdown.
• If the device does not respond, allow the battery to fully discharge, then recharge and restart.

Spesifikasies

Waarborg en Ondersteuning

For detailed warranty information, please refer to the warranty card included with your purchase or visit the official Vivitar webwebwerf. Waarborgbepalings en -voorwaardes kan per streek verskil.

If you require technical assistance or have questions not covered in this manual, please visit the Vivitar support website or contact their customer service department. Contact information can typically be found on the Vivitar official webwebwerf of op u produkverpakking.

Official Vivitar Webwebwerf: www.vivitar.com
