CUKTECH 10000mAh Magnetic Wireless Portable Charger Power Bank

Inleiding

This manual provides essential instructions for the safe and efficient use of your CUKTECH 10000mAh Magnetic Wireless Portable Charger Power Bank, Model WPB100L. Please read this guide thoroughly before operating the device and retain it for future reference.

Produk verbyview

The CUKTECH WPB100L is a versatile 10000mAh power bank designed for portable and desktop charging. It features strong magnetic attachment for compatible devices and a built-in USB-C cable for wired charging. It also functions as a charging stand.

This image illustrates the 10,000mAh high capacity of the CUKTECH power bank, capable of fully charging an iPhone 17 up to 1.8 times. It also provides charging estimates for iPhone 15 (approx. 2 charges), iPhone 16 (approx. 1.8 charges), and iPhone 17 Pro (approx. 1.5 charges).

This image highlights the 2-in-1 functionality of the CUKTECH power bank, serving as both a magnetic mobile power bank that snaps onto your phone and a desktop charging dock for stable, hands-free charging.

This image demonstrates the strong magnetic attachment feature of the CUKTECH power bank, detailing the 15 N52 rare-earth magnets inside. It visually confirms the power bank's ability to securely hold devices, equivalent to the weight of up to 5 smartphones.

Opstelling

Aanvanklike laai

Before first use, fully charge your CUKTECH power bank. Connect the built-in USB-C cable to a compatible USB power adapter (not included) and a power outlet. The indicator lights will show the charging progress. Once all lights are solid, the power bank is fully charged.

Bedryfsinstruksies

Draadlose laai (magneties)

1. Ensure your device is compatible with magnetic wireless charging (e.g., iPhone 12 series and newer).
2. Align your compatible device with the magnetic charging area on the power bank. The magnets will snap into place, securing the device and initiating wireless charging.
3. Die kragbank bied tot 7.5W draadlose laai vir iPhones.

Note: Magnetic function is exclusive to iPhone 12 and newer models. It is not compatible with Android devices for magnetic attachment, though some Android devices may support standard Qi wireless charging if placed correctly.

This image displays the CUKTECH power bank being used as a charging stand, with an iPhone placed horizontally in StandBy Mode. This feature allows for convenient viewing of time and notifications while charging.

Bedrade laai (USB-C)

1. Vind die ingeboude USB-C-kabel op die kragbank.
2. Connect the USB-C cable to the charging port of your device.
3. The power bank will automatically begin charging your device. It supports up to 20W fast charging via the built-in cable.

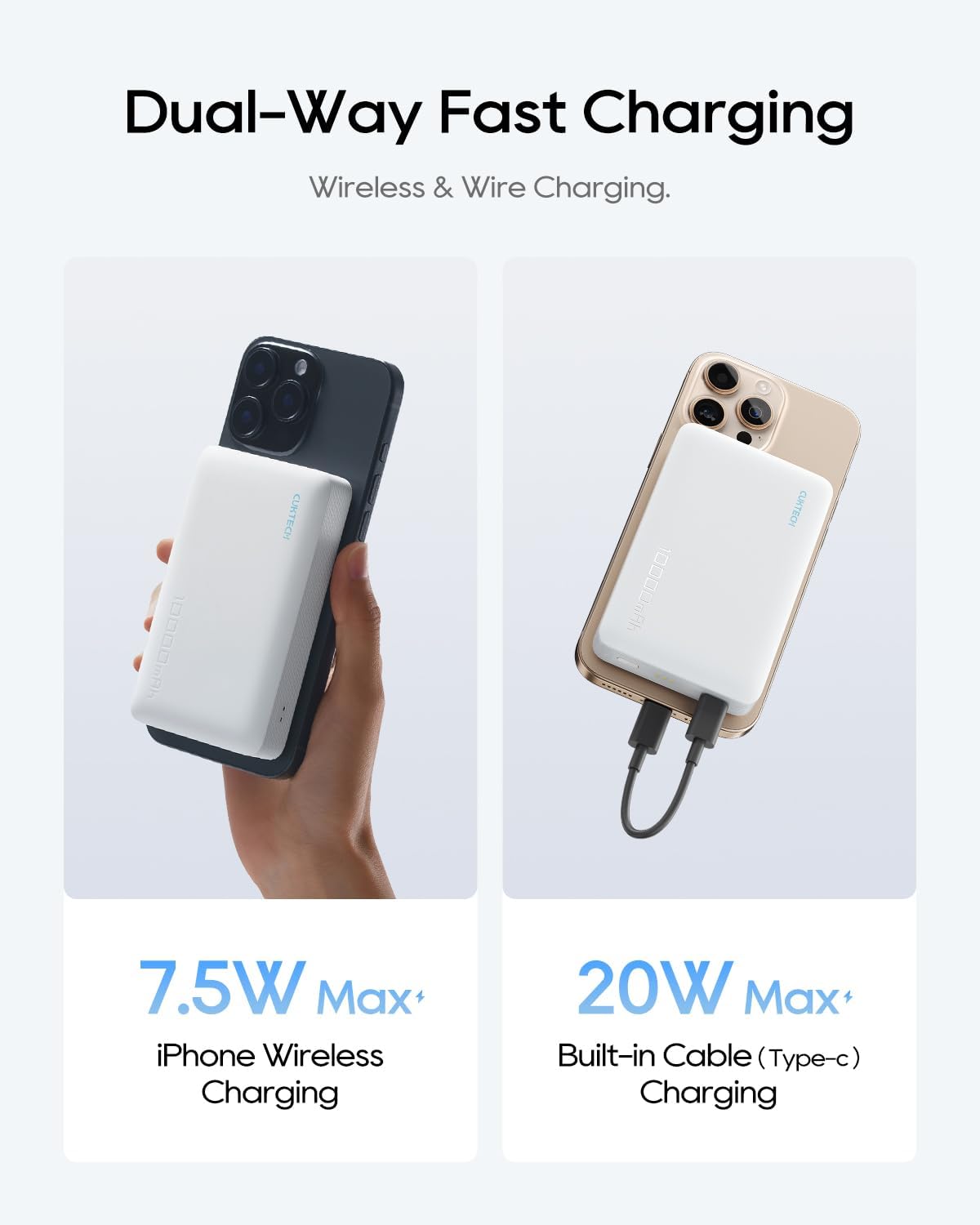

This image illustrates the dual-way fast charging capabilities of the CUKTECH power bank. It shows wireless charging for an iPhone at up to 7.5W Max and wired charging using the integrated USB-C cable at up to 20W Max.

Laai verskeie toestelle

The power bank can charge two devices simultaneously: one wirelessly via magnetic attachment and another via the built-in USB-C cable.

This image demonstrates the CUKTECH power bank's ability to charge two devices concurrently. One iPhone is shown charging wirelessly via magnetic attachment, while another is connected and charging using the built-in USB-C cable.

Using as a Charging Stand

The power bank can be used as a stable wireless charging stand, supporting both horizontal and vertical orientations. This is ideal for watching videos or making calls while your device charges.

Onderhoud

• Skoonmaak: Use a soft, dry cloth to clean the surface of the power bank. Avoid liquid cleaners or aerosols.
• Berging: Bêre die kragbank op 'n koel, droë plek weg van direkte sonlig en uiterste temperature.
• Batterysorg: Om die batterylewe te verleng, laai die kragbank ten minste een keer elke drie maande volledig as dit nie gereeld gebruik word nie.

Probleemoplossing

• Toestel laai nie draadloos nie: Ensure your device is magnetically aligned and compatible with magnetic wireless charging (iPhone 12 or newer). Remove any thick cases that might interfere with the magnetic connection or wireless charging.
• Toestel laai nie via kabel nie: Check if the built-in USB-C cable is securely connected to both the power bank and your device. Ensure the power bank has sufficient charge.
• Kragbank laai nie: Verify that the USB-C cable is properly connected to a working power adapter and outlet. Try a different power adapter or cable if available.
• Stadige laai: Ensure your device and power bank are not overheating. Fast charging requires compatible devices and cables.

Spesifikasies

Veiligheidsinligting

• Moenie die kragbank aan uiterste temperature (bo 45°C of onder 0°C) blootstel nie.
• Vermy die val, demontage of wysiging van die toestel.
• Hou weg van water en hoë humiditeit.
• Moenie gebruik as die toestel beskadig of geswel is nie.
• Hou buite bereik van kinders.
• Gooi die produk verantwoordelik volgens plaaslike regulasies weg.

Waarborg en Ondersteuning

Your CUKTECH power bank comes with a 24-month stress-free warranty against manufacturing defects. For any product inquiries, technical support, or warranty claims, please contact our friendly customer service team.

Kliëntediens -e -pos: service@cuktech.com
