GROOVYPETS Automatic Pet Feeder PTM20A3 User Manual

Inleiding

This manual provides instructions for the GROOVYPETS Automatic Pet Feeder PTM20A3. This 4-liter digital smart food dispenser is designed to provide scheduled meals for cats and small to medium dogs. It features an LCD display, programmable timer, and a durable stainless steel food bowl. The anti-tip 4-leg design with non-slip pads ensures stability and safety. The feeder supports up to 6 meals per day with 12 customizable portion sizes per feeding, and its large capacity tank can hold dry kibble up to 0.6 inches (15mm).

The feeder's intuitive touch screen allows for easy setup of meal plans and clock settings. All settings are retained even if power is lost or batteries run out, thanks to its memory function. A child lock switch is included for added safety. The main body is constructed from scratch-resistant ABS material, and the food-grade stainless steel bowl is rust-free and hygienic. The entire system is designed for easy disassembly for cleaning.

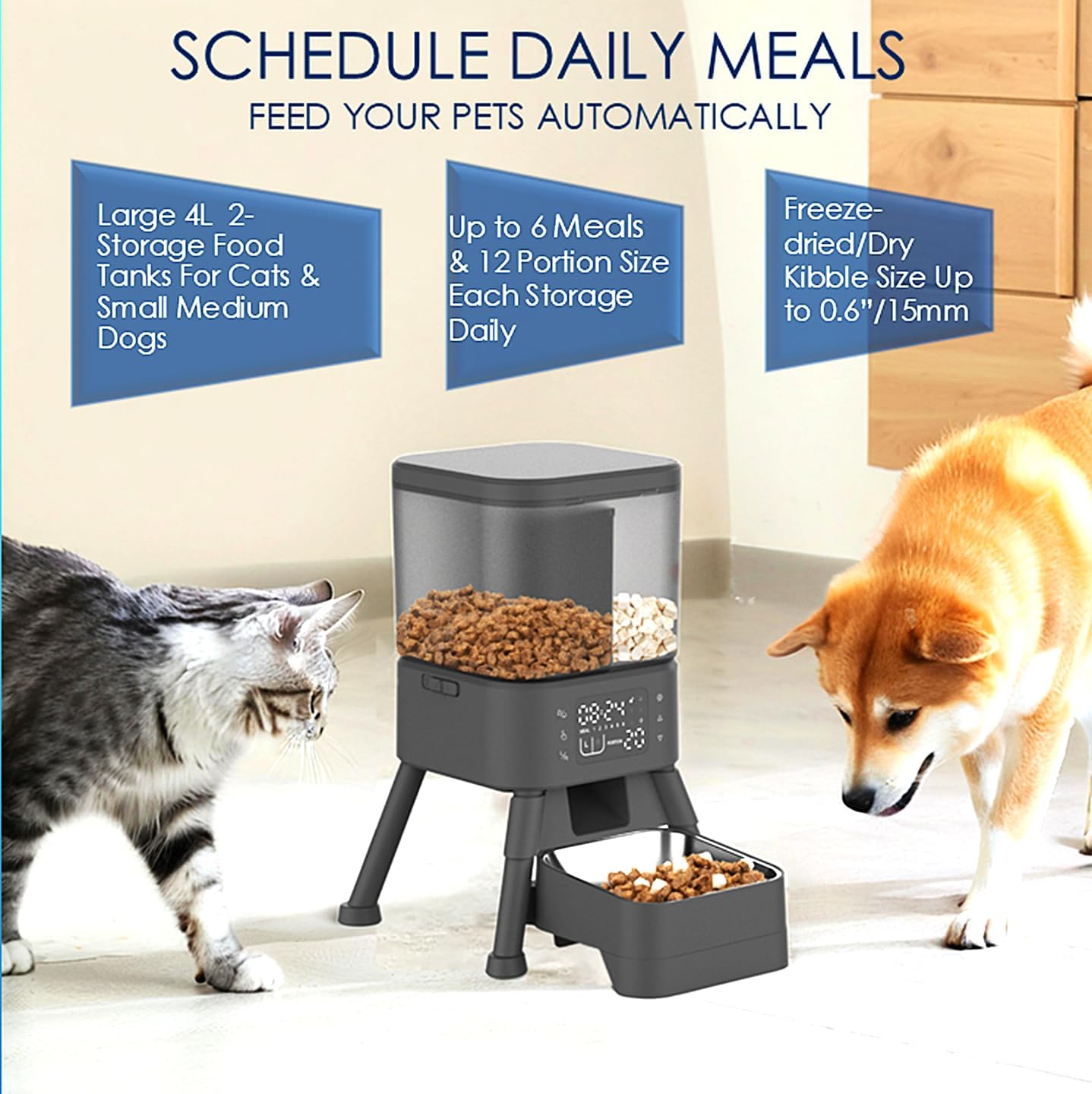

Image: The GROOVYPETS Automatic Pet Feeder in use, showing its dual food tanks and feeding two pets. It highlights its 4L capacity, up to 6 meals daily, and compatibility with kibble up to 0.6 inches/15mm.

Opstelling

1. Pak die voerder uit: Carefully remove all components from the packaging. Ensure all parts, including the main unit, food tanks, stainless steel bowl, and power adapter, are present.
2. Monteer die eenheid: Place the main feeder unit on a stable, flat surface. Attach the 4-leg stand if it is not pre-assembled, ensuring the non-slip pads are securely in place.
3. Install Food Tanks: The feeder features two separate storage tanks. Open the lids and place them securely on the main unit.
4. Fill with Food: Fill the food tanks with dry kibble. The feeder is compatible with kibble up to 0.6 inches (15mm). You can use different types of dry food in each compartment.
5. Plaas die bak: Insert the stainless steel food bowl into its designated slot at the base of the feeder.
6. Koppel krag: The feeder supports dual power options. Connect the Type-C power cable to an AC outlet for continuous power. For backup power, insert 4 AA batteries into the battery compartment located at the bottom of the unit. This ensures uninterrupted operation during power outages.

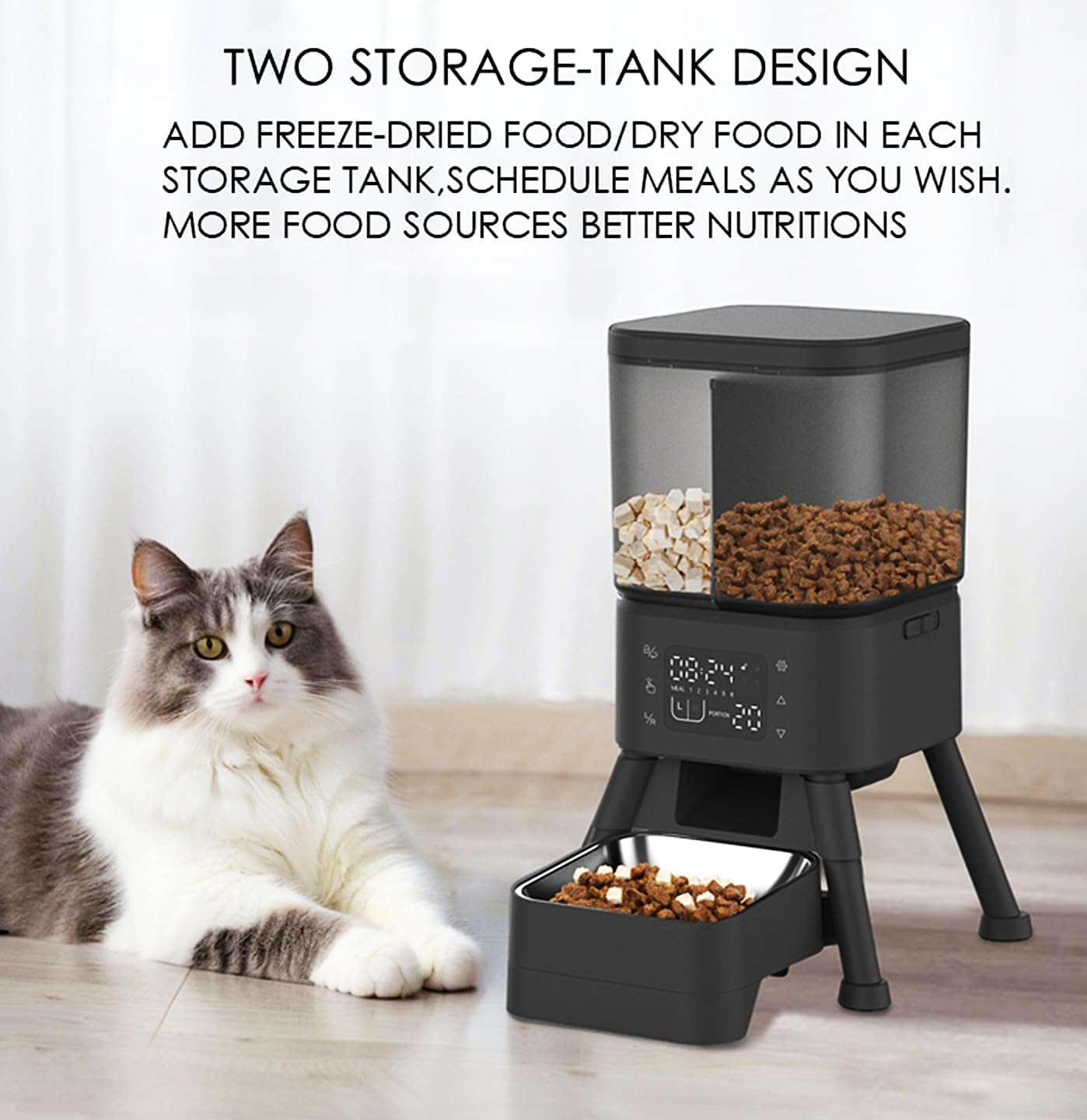

Image: The pet feeder showcasing its two separate storage tanks, allowing for different types of food.

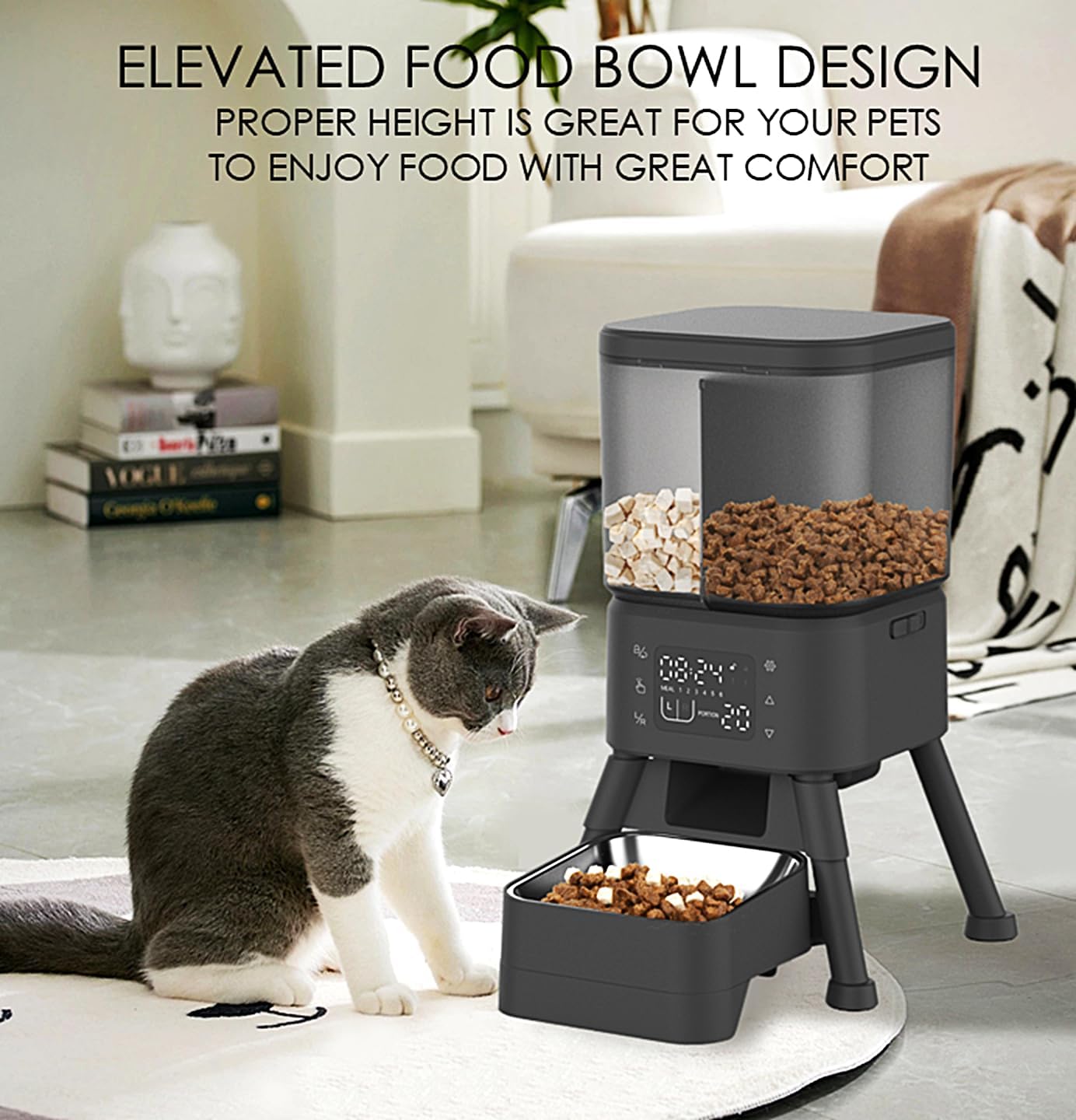

Image: A cat eating from the elevated food bowl, demonstrating the comfortable feeding height.

Image: A close-up of the feeder's base, highlighting the dual power options: battery compartment for 4 AA batteries and the Type-C power input.

Bedryfsinstruksies

The GROOVYPETS Automatic Pet Feeder features an intuitive touch-button control panel for easy programming.

Beeld: 'n Gedetailleerde view of the feeder's LCD display and control buttons, indicating functions like child lock, manual feeding, L/R switch, settings, upward/downward adjustments, and reset.

1. Stel huidige tyd:
   • Druk die Instellings button (gear icon).
   • Gebruik die Opwaarts en Afwaarts buttons (triangle icons) to adjust the hour and minute.
   • Druk Instellings weer om te bevestig.
2. Program Meal Times:
   • Nadat u die tyd ingestel het, druk Instellings to enter meal programming mode. The 'MEAL' indicator will show '1'.
   • Gebruik die Opwaarts en Afwaarts buttons to set the desired feeding time for Meal 1.
   • Druk Instellings to move to portion size adjustment for Meal 1.
   • Gebruik die Opwaarts en Afwaarts buttons to select the portion size (1-12).
   • Druk Instellings to save Meal 1 and proceed to Meal 2. Repeat for up to 6 meals.
   • To switch between left (L) and right (R) food bins for a meal, use the L/R switch button.
3. Handmatige voeding:
   • Druk die Manual Feeding button (hand icon) to dispense a single portion immediately.
4. Kinderslot:
   • Om die kinderslot te aktiveer of deaktiveer, druk en hou die Child Lock/Return button (lock icon) for a few seconds. A lock indicator will appear on the display when active.
5. Stel instellings terug:
   • To reset all settings, press and hold the Herstel knoppie (Upward + Settings icons) simultaneously for a few seconds.

Onderhoud

Gereelde skoonmaak verseker die lang lewensduur en higiëniese werking van jou troeteldiervoerder.

• Vlekvrye staal bak: The stainless steel bowl is removable and can be hand-washed with mild soap and water. Rinse thoroughly and dry completely before placing it back into the feeder.
• Hoof Eenheid: Vee die buitekant van die voerder af met advertensiemateriaalamp cloth. Do not submerge the main unit in water or use abrasive cleaners.
• Food Tanks: The food tanks can be removed and wiped clean with a damp cloth. Ensure they are completely dry before refilling with kibble to prevent mold or spoilage.
• Elektronika: Always keep the electronic components, including the control panel and power connections, dry. Avoid direct contact with water.
• Demontage vir skoonmaak: The entire system is designed for easy disassembly, making thorough cleaning of all food-contacting parts straightforward. Refer to the assembly steps in reverse for disassembly.

Probleemoplossing

• Feeder Not Dispensing Food:
  • Check if the food tanks are empty.
  • Ensure the feeder is powered on and connected to an AC outlet, or that the backup batteries are charged and correctly installed.
  • Verify that the meal schedule is correctly programmed and the current time is set accurately.
  • Check for food jamming. The feeder has a jam-proof dispenser system, but large or irregularly shaped kibble might occasionally cause issues. Clear any obstructions.
• Food Jamming Alert Indicator: If the food jamming alert indicator appears on the LCD, inspect the dispenser mechanism for any blockages and clear them.
• Instellings word nie gestoor nie: Ensure the power source is stable. If using batteries, check their charge level. The feeder is designed to remember settings even after power loss.
• Vertoning werk nie: Check the power connection and battery status. If the issue persists, contact customer support.
• Feeder Tipping Over: The feeder is designed with an anti-tip 4-leg stand and non-slip pads. Ensure it is placed on a flat, stable surface and that the legs are fully extended and secure.

Beeld: 'n Interne view of the feeder's jam-proof dispenser system, designed to handle various kibble sizes smoothly.

Spesifikasies

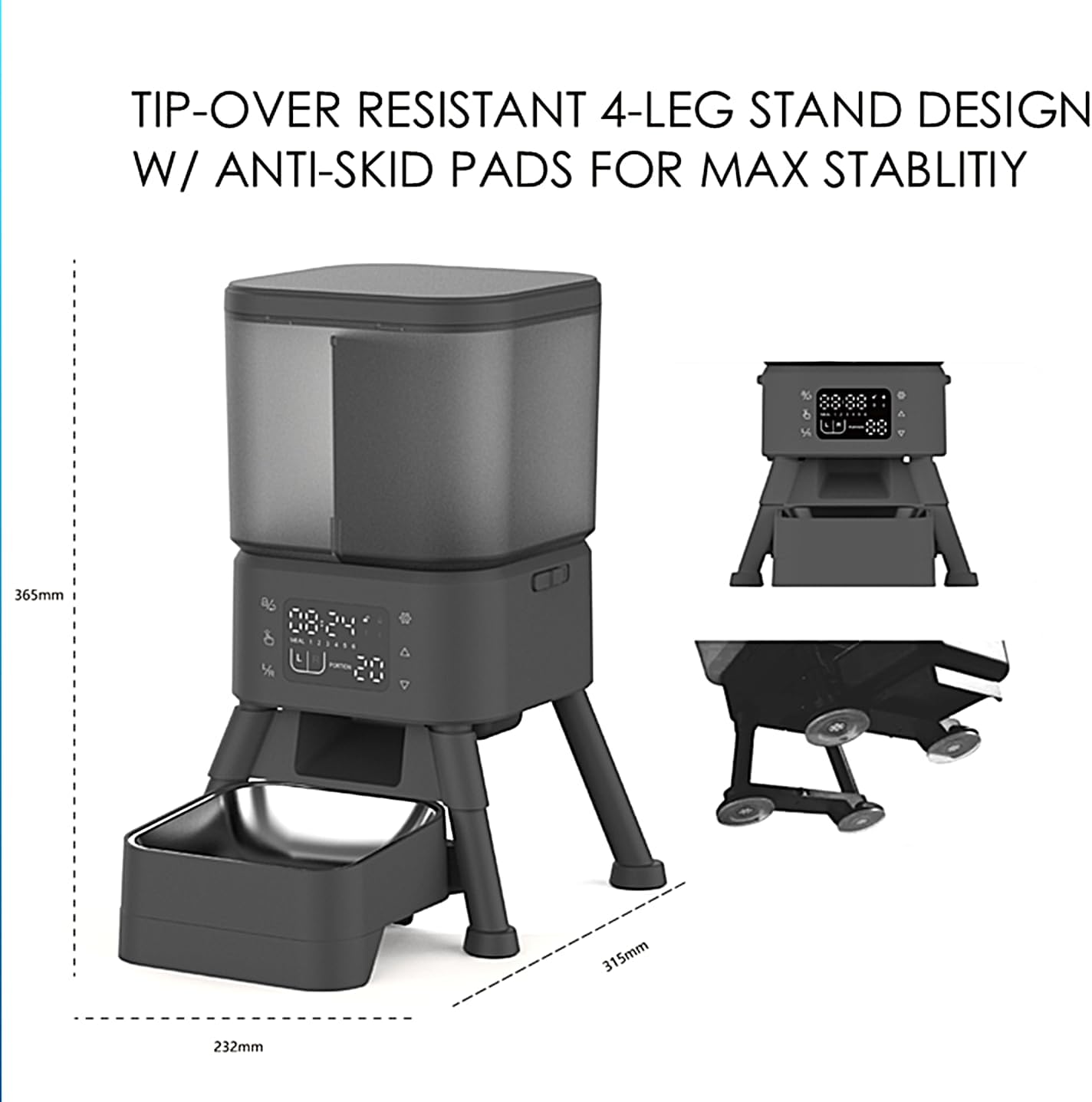

Image: Technical drawing illustrating the dimensions of the pet feeder: 232mm (width), 315mm (depth), and 365mm (height).

Waarborg en Ondersteuning

For warranty information or technical support, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your purchase receipt as proof of purchase for any warranty claims.

Manufacturer: SHENZHEN IPETMON CREATIVE TECHNOLOGY CO,LTD
