1. Inleiding
This manual provides detailed instructions for the safe and efficient use of your Qubo X232 phone. Please read this manual thoroughly before operating the device and retain it for future reference.
2. Produk verbyview
The Qubo X232 is a 4G mobile phone designed for ease of use, featuring a large 2.3-inch screen, loud audio, and a dedicated SOS emergency button. Its robust 1700mAh battery ensures extended usage, and the unlocked status provides compatibility with various Mexican carriers.
2.1. Pakketinhoud
- Qubo X232 Phone
- 1700mAh battery
- USB Type-C laaikabel
- USB OTG-adapter
- Gebruikershandleiding
3. Sleutel kenmerke
- Clear Display & Simple Operation: Features a 2.3-inch color screen for enhanced readability, large illuminated buttons with voice prompts, and a simplified user interface for straightforward navigation. Includes side buttons for keypad lock/unlock and volume control.
- SOS Noodfunksie: A dedicated SOS button allows for automatic dialing to up to 5 pre-set emergency contacts and simultaneous alert message sending.
- Loud Audio & Clear Calls: Equipped with a high-volume speaker for improved audibility in various environments. Supports 3.5mm headphones and Bluetooth accessories.
- Efficient 1700mAh Battery: Offers extended battery life, providing up to 14 days of standby time depending on usage. Features a reversible USB Type-C port for convenient charging.
- Unlocked & Wide Compatibility: Compatible with major Mexican carriers including Telcel, AT&T, Movistar, BAIT, CFE, and Altan. Supports 4G, 3G, and 2G networks, and accepts 5G SIM cards operating on 4G.
- Geïntegreerde gereedskap: Includes FM radio (usable without headphones), camera, multimedia player, alarm, calendar, calculator, call recorder, SMS, and photo contacts.
- Kompakte en ergonomiese ontwerp: Dimensions of 132.1 x 58.2 x 14.1 mm and a weight of approximately 110 grams ensure comfortable handling and portability.
4. Opstelling
4.1. Die SIM-kaart en battery installeer
- Verwyder die agterkant van die foon versigtig.
- Insert your Nano SIM card(s) into the designated slot(s). Ensure the gold contacts face downwards and the card is correctly oriented.
- If desired, insert a MicroSD card (up to 64GB) into its dedicated slot for expanded storage.
- Place the 1700mAh battery into the battery compartment, aligning the contacts.
- Plaas die agterste deksel terug totdat dit stewig in plek klik.
4.2. Aanvanklike laai
Before first use, fully charge the phone battery. Connect the USB Type-C cable to the phone's charging port and the other end to a compatible USB power adapter. The charging indicator will show the battery status. A full charge typically takes a few hours.
The Qubo X232 features a 1700mAh battery for extended use, with convenient Type-C charging.
4.3. Skakel aan/af
- Om aan te skakel: Druk en hou die Aan/Aan/Beëindig Oproep-knoppie (gewoonlik rooi) in totdat die skerm aanskakel.
- Om af te skakel: Press and hold the Power/End Call button until the power-off options appear, then select 'Power Off'.
5. Bedryfsinstruksies
5.1. Basiese navigasie
Use the directional keys (up, down, left, right) to navigate through menus. The 'OK' button (center) confirms selections, and the 'Back' button (often the right soft key) returns to the previous screen.
The Qubo X232 features a user-friendly, multi-language menu with voice prompts for keys, enhancing ease of use.
5.2. Maak en Ontvang Oproepe
- Om te skakel: Voer die telefoonnommer in met behulp van die sleutelbord en druk die Groen Oproep-knoppie.
- Om te antwoord: When the phone rings, press the Green Call button.
- Om oproep te beëindig: Druk die Rooi Beëindig Oproep-knoppie.
- Spoedskakel: Assign frequently called numbers to specific keys for quick dialing. Refer to the 'Phone Settings' menu for setup.
- Photo Contacts: Store contacts with associated photos for easy visual identification.

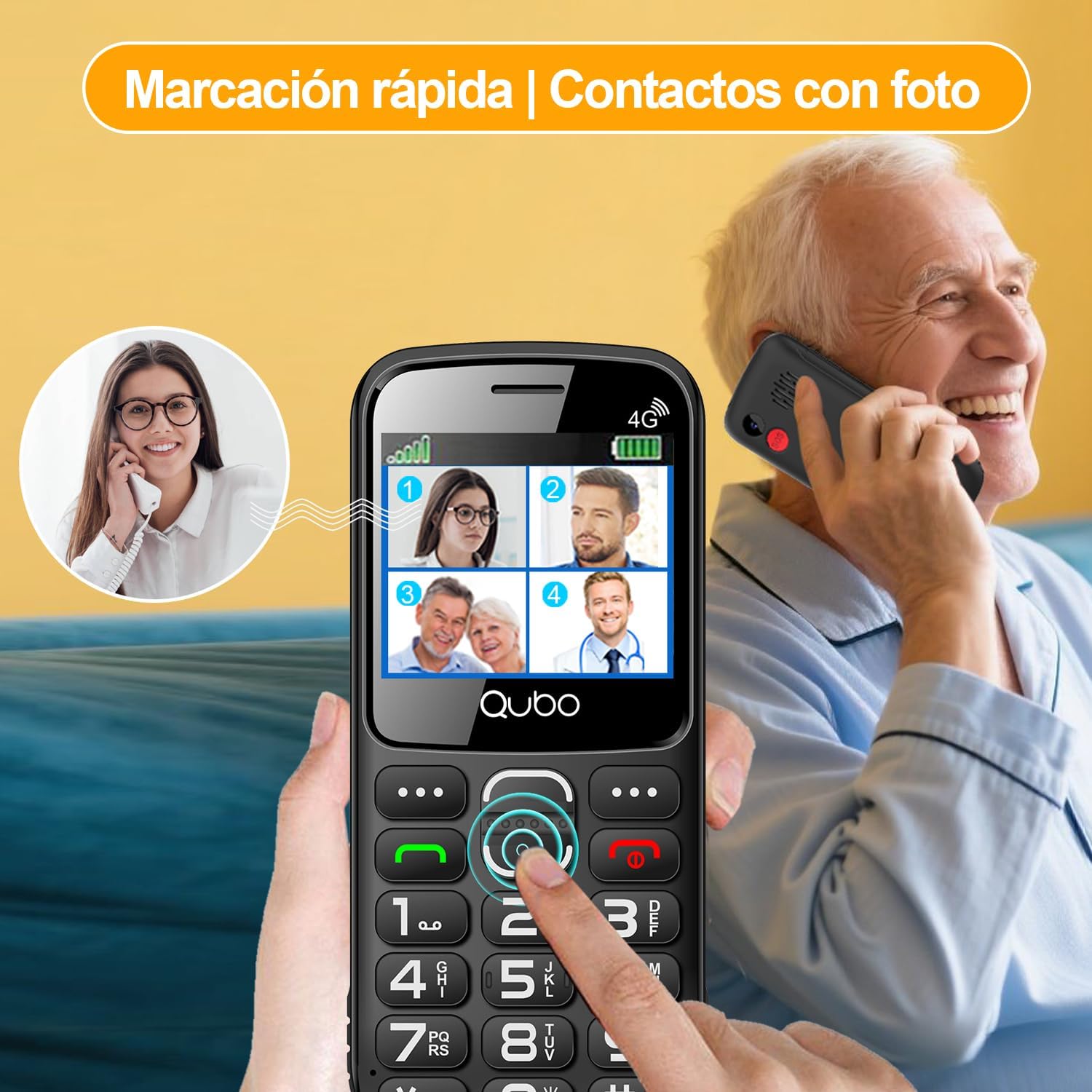

Quick dial and photo contacts on the Qubo X232 simplify calling for users, allowing them to recognize contacts visually.
5.3. SOS-noodknoppie
The SOS button is located on the back of the phone. In an emergency:
- Press and hold the SOS button for a few seconds.
- The phone will automatically dial up to 5 pre-set emergency contacts in sequence until one answers.
- Simultaneously, an alert message will be sent to these contacts.
To set up SOS contacts: Navigate to Menu > SOS Settings and add/edit emergency numbers.

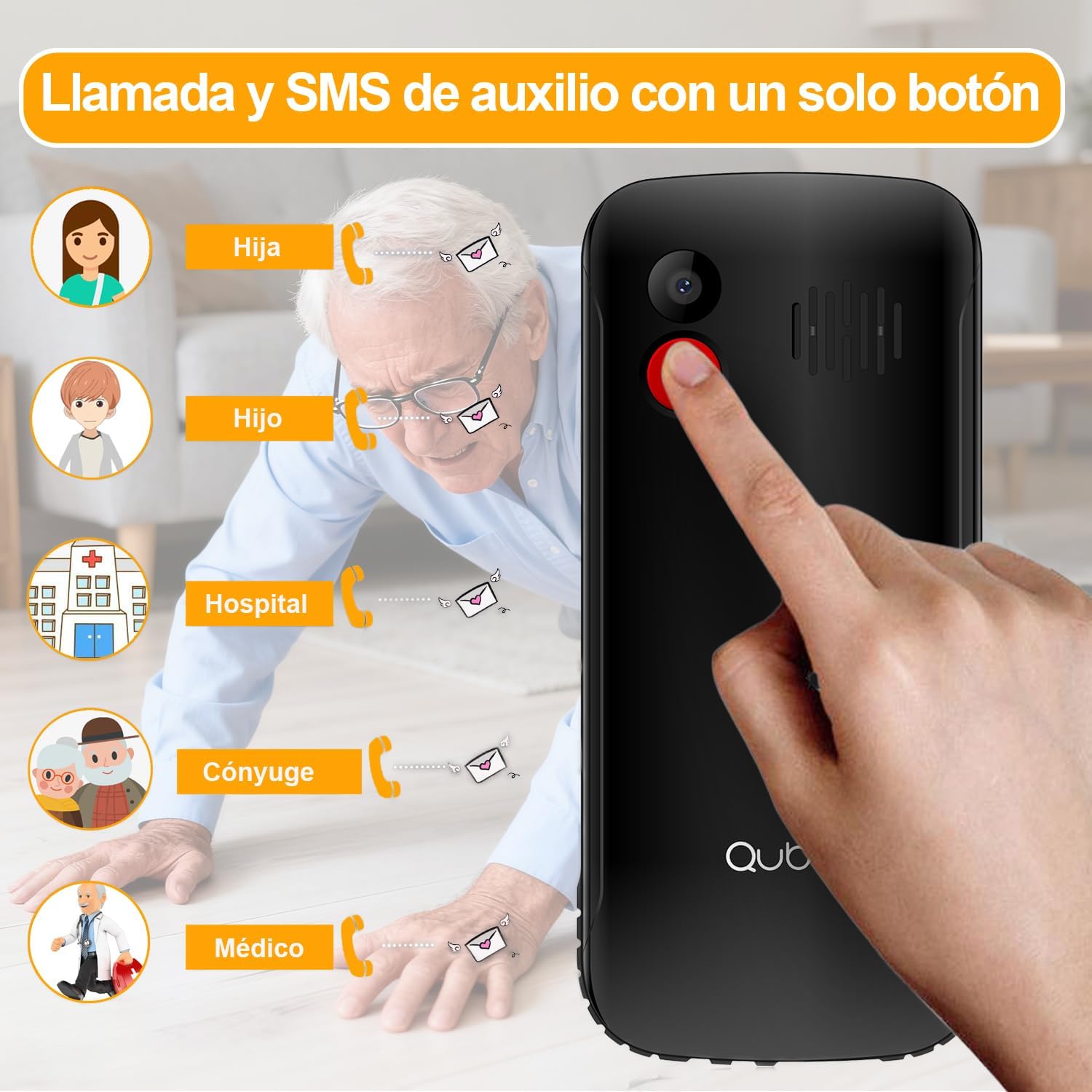

The dedicated SOS button on the Qubo X232 allows for quick emergency calls to up to five pre-selected contacts.
5.4. Boodskappe (SMS)
To send or read text messages, navigate to Menu > Messages. The large screen and clear font facilitate easy reading and composing.
5.5. Flitslig
The Qubo X232 includes a built-in LED flashlight. To activate/deactivate, use the dedicated side button or access it via the menu.
The Qubo X232 includes a bright built-in flashlight, easily accessible for use in low-light conditions.
5.6. FM Radio
Access the FM Radio via the Spyskaart. The Qubo X232 allows listening to FM radio without requiring headphones.
Enjoy FM radio on the Qubo X232, which can be used without the need for headphones.
5.7. Other Applications
The phone includes various useful applications:
- Kamera: For taking basic photos.
- Multimedia speler: For playing audio and video files wat op die toestel of MicroSD-kaart gestoor is.
- Alarm: Stel verskeie alarms.
- Kalender: Hou datums en gebeure dop.
- sakrekenaar: Voer basiese rekenkunde uit.
- Call Recorder: Record phone conversations (check local laws regarding consent).
- Blaaier: Basic internet access.
The Qubo X232 offers essential applications such as messaging, FM radio, a camera, and a calculator, along with Bluetooth connectivity.
5.8. Taalinstellings
The phone supports multiple languages including Spanish, English, and Portuguese. To change the language, navigate to Menu > Settings > Phone Settings > Languages.
6. Onderhoud
- Skoonmaak: Gebruik 'n sagte, droë lap om die foon skoon te maak. Vermy vloeibare skoonmaakmiddels.
- Batterysorg: Om die batterylewe te verleng, vermy uiterste temperature en moenie die foon vir lang tye heeltemal ontlaai laat nie.
- Berging: Bêre die foon op 'n koel, droë plek wanneer dit nie gebruik word nie.
7. Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Foon skakel nie aan nie | Battery is discharged or not properly installed. | Charge the battery for at least 30 minutes. Ensure the battery is correctly inserted. |
| Geen netwerksein nie | Out of network coverage, SIM card not inserted correctly, or network settings issue. | Move to an area with better coverage. Reinsert the SIM card. Check network settings in the menu. |
| Kan nie oproepe maak/ontvang nie | No network signal, insufficient balance (prepaid), or call barring activated. | Check network signal. Ensure sufficient balance. Deactivate call barring if active. |
| SOS-knoppie werk nie | Emergency contacts not set up or incorrect numbers. | Verify SOS settings and ensure emergency contacts are correctly saved. |
| Battery raak vinnig leeg | Heavy usage, poor network signal, or background applications. | Reduce usage. Turn off features like Bluetooth when not needed. Charge regularly. |
8. Spesifikasies
| Kenmerk | Detail |
|---|---|
| Handelsmerk | Qubo |
| Model | X232 |
| Bedryfstelsel | Kern-OS |
| RAM | 48 MB |
| Interne berging | 1 GB |
| Uitbreidbare berging | MicroSD tot 64 GB |
| Skerm grootte | 2.31 duim |
| Resolusie | 320 x 240 piksels |
| Skerm tipe | AMOLED |
| Mobiele Tegnologie | 4G (compatible with 5G SIM on 4G network) |
| SIM-kaartgleuwe | Dubbele SIM |
| SIM-kaart grootte | Nano |
| Battery kapasiteit | 1700 mAh |
| Praat Tyd | Tot 6 ure |
| Bystandtyd | Tot 14 dae |
| Laaipoort | USB Tipe-C |
| Klankaansluiting | 3.5 mm |
| Afmetings (L x B x H) | 132.1 x 58.2 x 14.1 mm |
| Gewig | Ongeveer. 110 gram |
| Oorsprong | China |
9. Amptelike produkvideo's
9.1. HXEIR 4G Phone Features Overview
Video demonstrating the features of a 4G phone for seniors, including large buttons, SOS function, flashlight, and a simplified user interface.
9.2. artfone 4G Basic Mobile Phone for Seniors
verbyview video of a basic 4G mobile phone for seniors, showcasing features like large buttons, SOS emergency call, charging dock, and built-in flashlight.
9.3. artfone C1+ 4G Mobile Phone for Seniors
Demonstration of the artfone C1+ 4G mobile phone for seniors, highlighting its large buttons, SOS function, charging cradle, and voice dialing capabilities.
10. Waarborg en Ondersteuning
10.1. Waarborginligting
Your Qubo X232 phone comes with a 30-day product warranty from the date of purchase. This warranty covers manufacturing defects. Please retain your proof of purchase for warranty claims.
10.2. Kliëntediens
For technical assistance, troubleshooting, or warranty inquiries, please contact your retailer or the Qubo customer support line. Refer to the packaging or official Qubo webwebwerf vir kontakbesonderhede.
