1. Inleiding
This manual provides essential instructions for the safe and efficient use of your Happiest Minds Techno COBA CB-802 rechargeable flashlight. Please read this manual thoroughly before operating the device and retain it for future reference.
2. Veiligheidsinligting
- Do not look directly into the light beam. The high intensity light can cause temporary vision impairment or eye damage.
- Hou buite bereik van kinders.
- Do not disassemble the flashlight. This may void the warranty and cause damage.
- Use only the specified battery type and charging method. Incorrect use can lead to battery damage, overheating, or explosion.
- Vermy die blootstelling van die flitslig aan uiterste temperature of direkte sonlig vir lang tydperke.
- Maak seker dat die laaipoortdeksel stewig toe is wanneer dit nie laai nie om waterbestandheid te handhaaf.
3. Pakketinhoud
Verifieer dat alle items in die pakket teenwoordig is:
- Happiest Minds Techno COBA CB-802 Flashlight
- Herlaaibare battery (vooraf geïnstalleer of apart)
- USB-C-laaikabel
- Tail Rope
- Gebruikershandleiding (hierdie dokument)
4. Produk verbyview
The COBA CB-802 is a versatile rechargeable flashlight designed for various applications, including outdoor activities, security, emergencies, and general home use. It features a white laser light source, multiple beam modes, and a durable aluminum alloy construction.

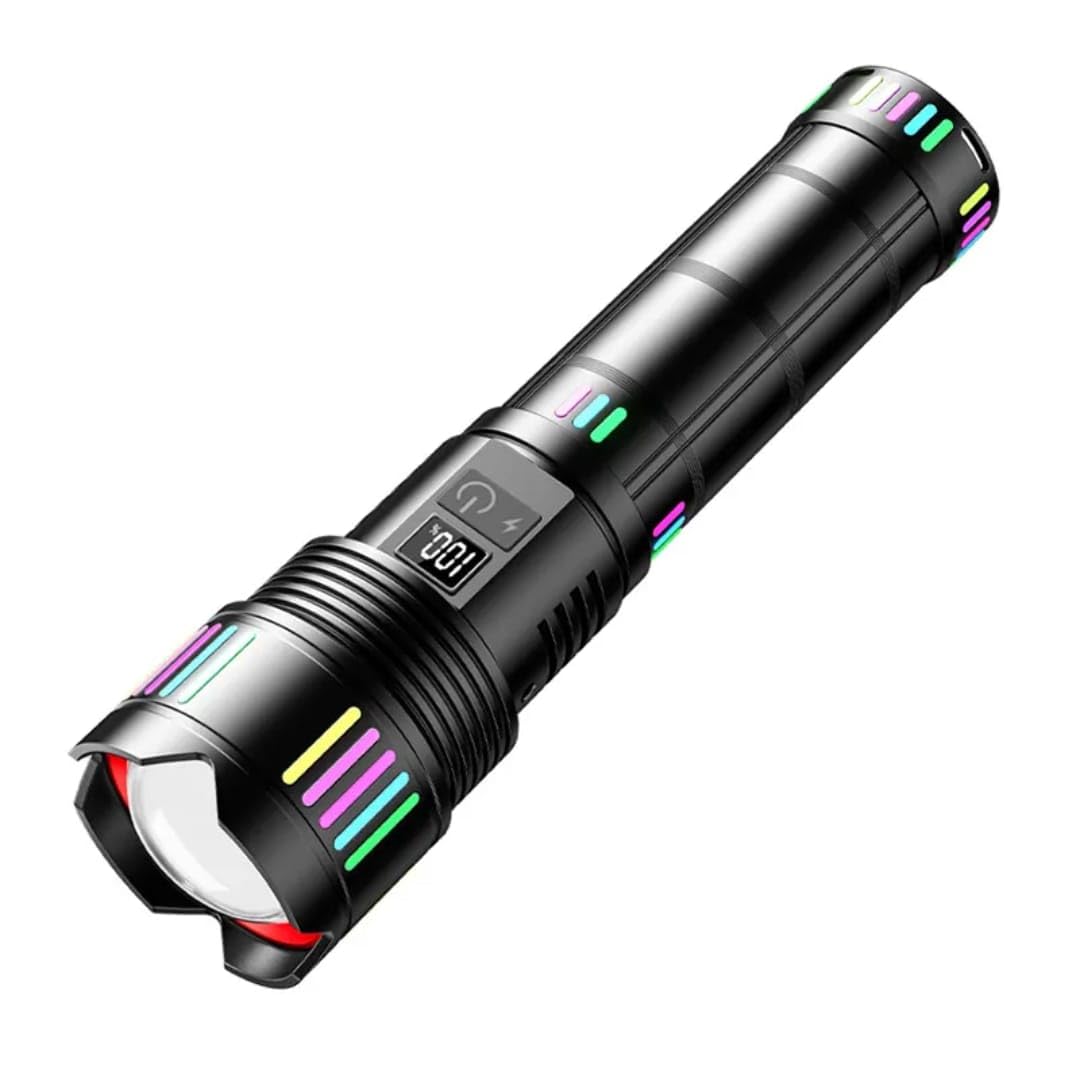

Figuur 4.1: verbyview of the Happiest Minds Techno COBA CB-802 Rechargeable Flashlight. This image displays the flashlight's overall design, including its white laser zoom capability and strong light output.
Sleutel kenmerke:
- Ligbron: White Laser
- Materiaal: Lugvaart-graad aluminiumlegering
- Straalmodusse: Hoog, Medium, Laag, Strobe, SOS
- Laai: USB-C vinnig laai
- Battery: Built-in high-capacity Lithium-ion battery
- Duursaamheid: Water-resistant (IP65 rating) and shockproof
- Ontwerp: Non-slip grip, night fluorescent strip, digital battery level display
Figuur 4.2: Illustration of the flashlight's adjustable beam. The image shows how to switch between a focused spotlight mode (small aperture area) and a wide floodlight mode (large aperture area) by adjusting the flashlight head.

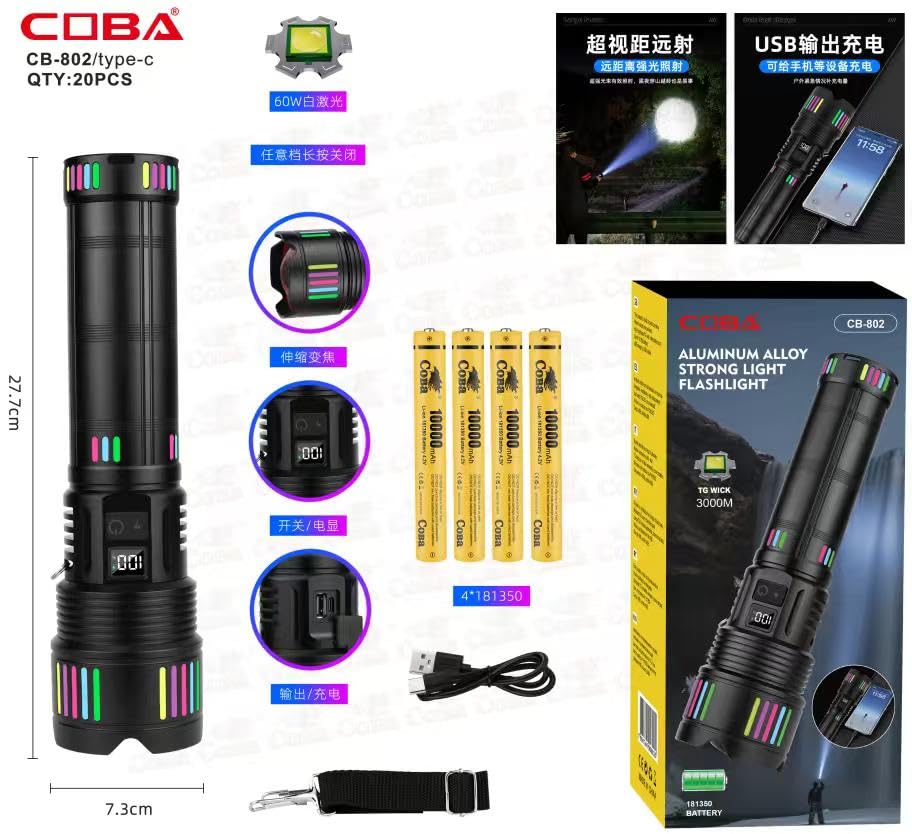

Figuur 4.3: Gedetailleerd view of the COBA CB-802 flashlight, highlighting its dimensions (27.7cm length, 7.3cm head diameter), internal components, battery compartment, power switch, and USB-C charging port. The image also shows the included batteries and packaging.
5. Opstelling
5.1 Battery installasie
The COBA CB-802 flashlight uses a built-in rechargeable lithium-ion battery. If the battery is not pre-installed or needs replacement:
- Skroef die stertdop van die flitslig los deur dit antikloksgewys te draai.
- Insert the rechargeable battery with the positive (+) terminal facing towards the flashlight head.
- Skroef die stertdop kloksgewys terug totdat dit stewig vasgedraai is.
5.2 Aanvanklike heffing
For optimal performance, fully charge the flashlight before first use. Refer to the "6. Charging" section for detailed instructions.
6. Bedryfsinstruksies
6.1 Krag aan/af
- Om die flitslig te skakel ON, press the power button located on the body of the flashlight.
- Om die flitslig te skakel AF, press and hold the power button for approximately 1-2 seconds.
6.2 Changing Light Modes
With the flashlight turned ON, short press the power button to cycle through the different light modes:
- Hoë helderheid
- Medium Helderheid
- Lae helderheid
- Strobe Mode (rapid flashing)
- SOS Mode (Morse code for distress)
6.3 Adjusting Beam Focus (Zoom)
The COBA CB-802 features an adjustable zoom function to switch between spotlight and floodlight modes:
- To achieve a focused spotlight beam, extend the flashlight head forward.
- To achieve a wide floodlight beam, retract the flashlight head backward.
Figuur 6.1: The flashlight demonstrating its white laser zoom capability, allowing users to adjust the beam from a wide flood to a focused spot.
7. Laai
The COBA CB-802 flashlight is equipped with a USB-C charging port for convenient recharging.
- Locate the USB-C charging port on the flashlight body. It is typically covered by a rubber flap to protect against water and dust.
- Maak die rubberklep oop.
- Koppel die meegeleverde USB-C-kabel aan die flitslig se laaipoort.
- Koppel die ander kant van die USB-C-kabel aan 'n versoenbare USB-kragbron (bv. muuradapter, kragbank, rekenaar se USB-poort).
- The digital display on the flashlight will indicate the charging status and battery level.
- Once fully charged, disconnect the charging cable and securely close the rubber flap over the USB-C port.
The flashlight can also function as an emergency power bank to charge other devices via its USB output port.
Figuur 7.1: Demonstrates the Type-C charging capability of the COBA CB-802 flashlight, showing connections to various power sources like a laptop, power bank, and wall adapter.
8. Onderhoud
8.1 Skoonmaak
- Vee die flitsliggaam af met 'n sagte, damp lap. Moenie skuur skoonmaakmiddels of oplosmiddels gebruik nie.
- Clean the lens gently with a lens cleaning cloth to avoid scratches.
8.2 Berging
- Store the flashlight in a cool, dry place away from direct sunlight.
- Indien dit vir 'n lang tydperk gestoor word, laai die battery elke 3-6 maande om die batterygesondheid te handhaaf.
8.3 Waterweerstand
The flashlight has an IP65 water-resistant rating, meaning it is protected against dust and low-pressure water jets from any direction. It is not designed for submersion. Ensure all port covers are sealed to maintain water resistance.
Figuur 8.1: The flashlight demonstrating its waterproof design, shown with water droplets on its surface, indicating resistance to splashes and rain.
Figuur 8.2: Nog een view of the flashlight's water-resistant construction, showing it being splashed with water, highlighting its ability to withstand wet weather conditions.
9. Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Flitslig skakel nie aan nie. | Die battery is leeg of verkeerd geïnstalleer. | Charge the battery. Ensure the battery is inserted with the correct polarity. Check if the tail cap is fully tightened. |
| Liguitset is dof. | Lae batteryvlak. | Herlaai die battery. |
| Flitslig laai nie. | Faulty charging cable or power source. Charging port is dirty. | Try a different USB-C cable and power adapter. Clean the charging port gently with a dry cotton swab. |
| Beam focus (zoom) is stiff. | Vuilgoed of puin in die meganisme. | Gently clean the movable parts. Do not force the mechanism. |
10. Spesifikasies
| Kenmerk | Detail |
|---|---|
| Modelnommer | CB-802 |
| Ligbrontipe | White Laser |
| Materiaal | Aluminium |
| Kleur | SWART |
| Kragbron | Battery aangedrewe |
| Battery Tipe | Litiumioon |
| Aantal batterye | 1 (9V batteries required, likely refers to internal pack) |
| Looptyd | Tot 10 uur |
| Waterweerstandvlak | Waterbestand (IP65) |
| Item gewig | 622 gram |
| Itemafmetings (L x B x H) | 16L x 9W x 31H Centimeters (Note: This appears to be packaging dimensions; actual product length is approximately 27.7cm) |
| Vervaardiger | HAPPIEST MINDS TECHNO |
| Land van oorsprong | Indië |
11. Waarborg en Ondersteuning
11.1 Waarborginligting
Hierdie produk kwalifiseer vir 'n 10-dae vervanging policy from the date of purchase, subject to the terms and conditions of the retailer. Please retain your proof of purchase for any warranty claims.
11.2 Kliëntediens
For any questions, technical assistance, or support regarding your Happiest Minds Techno COBA CB-802 flashlight, please contact the manufacturer:
Vervaardiger: HAPPIEST MINDS TECHNO
Refer to your purchase documentation or retailer's webwebwerf vir spesifieke kontakbesonderhede.
