SereneLife Stainless Steel Kitchen Sink SL7546GG.5 User Manual

Inleiding

This manual provides detailed instructions for the installation, operation, and maintenance of your SereneLife Stainless Steel Kitchen Sink, model SL7546GG.5. This kitchen sink is designed for both undermount and drop-in installations and includes a comprehensive set of accessories to enhance kitchen functionality.

The sink features durable SUS304 stainless steel construction, a sound-reducing design, and efficient drainage. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.

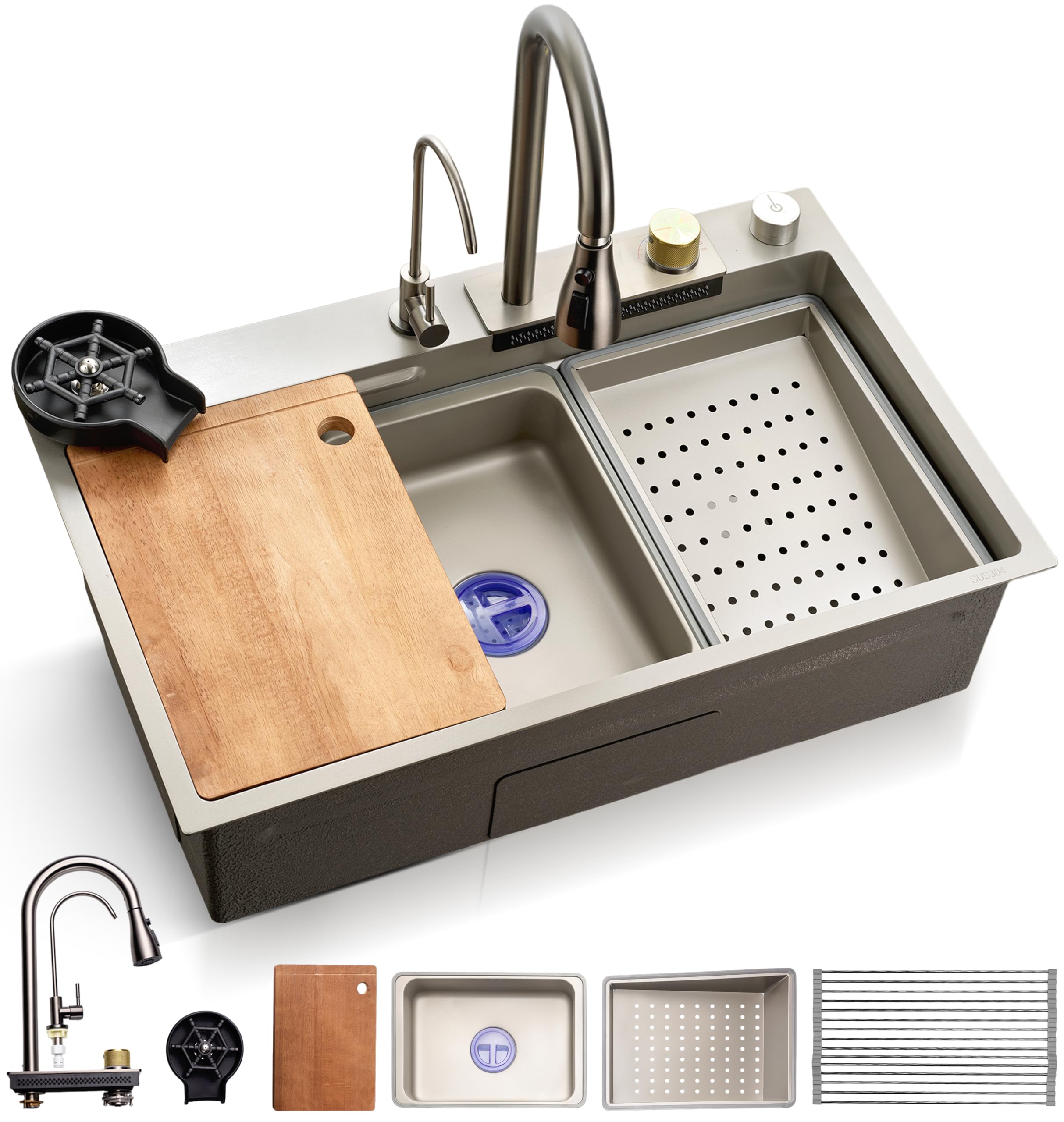

Image: SereneLife Stainless Steel Kitchen Sink with included faucet, drain rack, and other accessories.

Veiligheidsinligting

• Always read and understand all instructions before attempting installation or operation.
• Professional installation is recommended for plumbing and electrical connections (if applicable to faucet).
• Maak seker dat alle plaaslike loodgieters- en boukodes tydens installasie gevolg word.
• Dra gepaste persoonlike beskermende toerusting, soos handskoene en oogbeskerming, tydens installasie.
• Do not use abrasive cleaners or harsh chemicals on the sink surface, as this may damage the finish.
• Keep small children and pets away from the installation area.

Pakketinhoud

The SereneLife Stainless Steel Kitchen Sink package includes the following components:

• Vlekvrye staal wasbak
• Stainless Steel Sink Drain
• Drain Rack
• Stortkraan
• Water Purifier Tap
• Square Basket
• Basin Spuit
• Snyplank
• Kop wasser

Installasie

1. Choose Installation Type

This sink supports both Undermount and Drop-In (Top-Mount) installations. Select the method appropriate for your countertop and desired aesthetic.

Image: Illustration of Drop-In and Undermount installation methods for the sink.

2. Prepare Countertop Opening

For a drop-in installation, ensure the countertop cutout matches the sink's outer dimensions. For an undermount installation, the cutout should be slightly smaller than the sink's inner rim. The sink dimensions are approximately 29.5"D x 18"W x 8.66"H.

Image: Visual representation of the sink's dimensions, highlighting its spacious single bowl design.

3. Install Sink and Faucet

1. Secure the sink to the countertop using the provided mounting clips according to your chosen installation type.
2. Install the shower faucet and water purifier tap into the designated holes on the sink deck. Ensure all connections are tight and sealed to prevent leaks.
3. Connect the hot and cold water supply lines to the shower faucet.
4. Connect the water purifier tap to your water filtration system (if applicable).

4. Install Drain Assembly and Cup Washer

1. Assemble the stainless steel sink drain and install it into the sink's drain opening. Apply plumber's putty or sealant as directed by the drain assembly instructions.
2. Connect the drain assembly to your household plumbing system.
3. Install the cup washer into its designated opening and connect its water supply line.

Bedryfsinstruksies

Using the Faucet and Taps

• Shower Faucet: Operate the handle to control water flow and temperature. The pull-down spray head offers versatile cleaning options.
• Water Purifier Tap: Turn the handle to dispense filtered water for drinking or cooking.
• Cup Washer: Place a cup or glass upside down on the washer and press down to activate a powerful spray for quick rinsing.

Utilizing Sink Accessories

• Roll-up Drying Rack: Position the roll-up rack over the sink for air-drying dishes, fruits, or vegetables. It can be rolled up for compact storage when not in use.
• Hardwood Cutting Board: Place the cutting board over the sink's edge for convenient food preparation, allowing scraps to be easily directed into the sink.
• Square Basket: Use the square basket for washing smaller items, soaking utensils, or collecting food waste.
• Basin Spuit: The multi-hole basin spray promotes consistent water dispersion and efficient draining.

Image: Demonstrations of the roll-up drying rack, basin spray, and hardwood cutting board accessories.

Drain Assembly and Cover

• The stainless steel drain assembly includes a removable strainer basket to block debris.
• A simple push on the strainer seals the sink for soaking.
• The removable drain cover hides the drain while allowing water to flow through open grooves, maintaining a clean aesthetic.

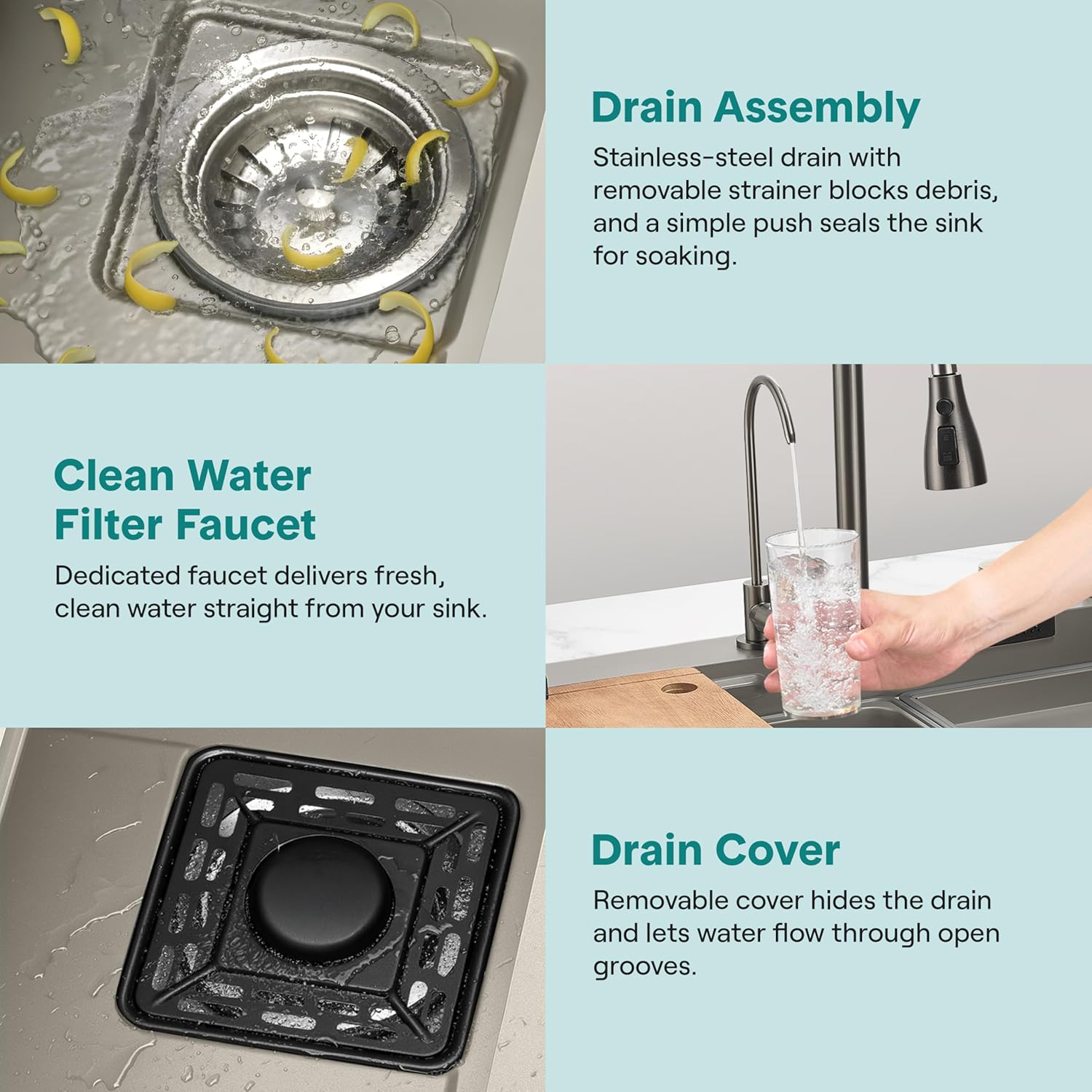

Beeld: Nabyskoot views of the drain assembly, clean water filter faucet, and drain cover.

Onderhoud

Skoonmaak van die wasbak

• Clean the stainless steel sink regularly with mild soap or a non-abrasive cleaner and a soft cloth or sponge.
• Rinse thoroughly with water and dry with a clean cloth to prevent water spots.
• Avoid using steel wool, abrasive pads, or harsh chemical cleaners (e.g., bleach, ammonia-based products) as these can scratch or damage the stainless steel finish.
• The sink's sloped bottom and efficient drainage design facilitate easy cleaning and prevent water pooling.

Bybehore sorg

• Drain Rack: The roll-up drying rack is dishwasher-safe for easy cleaning.
• Snyplank: Wash the hardwood cutting board with mild soap and water. Do not soak. Periodically treat with food-grade mineral oil to maintain its condition.
• Drain Strainer and Cover: Remove and clean regularly to prevent debris buildup and ensure proper drainage.

Probleemoplossing

Stadige Dreinering:

Check the drain strainer for food particles or debris. Remove and clean the strainer and drain cover. Ensure the plumbing trap is clear.

Leaks Around Faucet or Drain:

Inspect all plumbing connections under the sink. Tighten any loose connections. If leaks persist, check seals and gaskets for damage and replace if necessary. Professional assistance may be required.

Water Spots on Sink Surface:

This is common with stainless steel. Wipe the sink dry after each use. For stubborn spots, use a stainless steel cleaner and polish in the direction of the grain.

Spesifikasies

Image: Illustration detailing the gauge thickness of the sink panel and bottom for durability.

Waarborg inligting

Specific warranty details for the SereneLife Stainless Steel Kitchen Sink SL7546GG.5 are not provided in the product data. Please refer to the official SereneLife website or contact their customer service for comprehensive warranty terms and conditions.

Kliënte ondersteuning

Customer support contact information for SereneLife products is not available in the provided data. For assistance with your SereneLife Stainless Steel Kitchen Sink, please visit the official SereneLife website or consult your purchase documentation for support contacts.
