1. Inleiding
Thank you for choosing the IINCOOY 10W LED Floodlight. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new floodlight. Please read these instructions carefully before use and retain them for future reference. This LED floodlight is designed for both indoor and outdoor applications, offering bright, energy-efficient illumination with a durable, waterproof design.
2. Veiligheidsinligting
- Elektriese veiligheid: Installation must be performed by a qualified electrician or competent person in accordance with local electrical codes and regulations. Ensure the power supply is disconnected before installation, maintenance, or cleaning.
- Aarding: This product requires proper grounding to prevent electric shock. Ensure the ground wire is correctly connected.
- Waterweerstand: The floodlight is rated IP66, meaning it is protected against powerful water jets and dust. However, it is nie designed for submersion in water. Do not use it underwater.
- Temperatuur: Operate the floodlight within the specified working temperature range of -35°C to +55°C.
- No Plug Included: This floodlight does not come with a pre-attached plug. It requires direct wiring. If a plug-and-play solution is needed, this product may not be suitable.
- Ligbron: Moenie direk in die LED-ligbron staar wanneer dit brand nie, aangesien dit oogspanning of skade kan veroorsaak.
3. Pakketinhoud
Verifieer dat alle komponente teenwoordig en onbeskadig is wanneer die verpakking oopgemaak word:
- 1 x IINCOOY 10W LED Floodlight
- 1 x Installasie Instruksies Handleiding
4. Produk verbyview
The IINCOOY 10W LED Floodlight is an ultra-slim, high-efficiency lighting solution designed for various applications. Its robust construction ensures longevity and reliable performance in diverse environments.
Sleutel kenmerke:
- High Light Efficiency: Delivers 700 lumens, providing effective illumination while saving up to 90% energy compared to traditional halogen floodlights.
- Duursame konstruksie: Features a tempered glass mask for high light transmittance and hardness, and a die-cast aluminum shell to prevent rust and extend lifespan.
- IP66 Weerbestandheid: Fully sealed design ensures protection against dust and powerful water jets, suitable for outdoor use in various weather conditions.
- Buigsame installasie: Equipped with an adjustable metal bracket for mounting on ceilings, walls, or floors, allowing for precise light direction.
- Wye straalhoek: A 120-degree luminous angle ensures broad coverage.
- Lang lewensduur: LED life exceeds 50,000 hours.

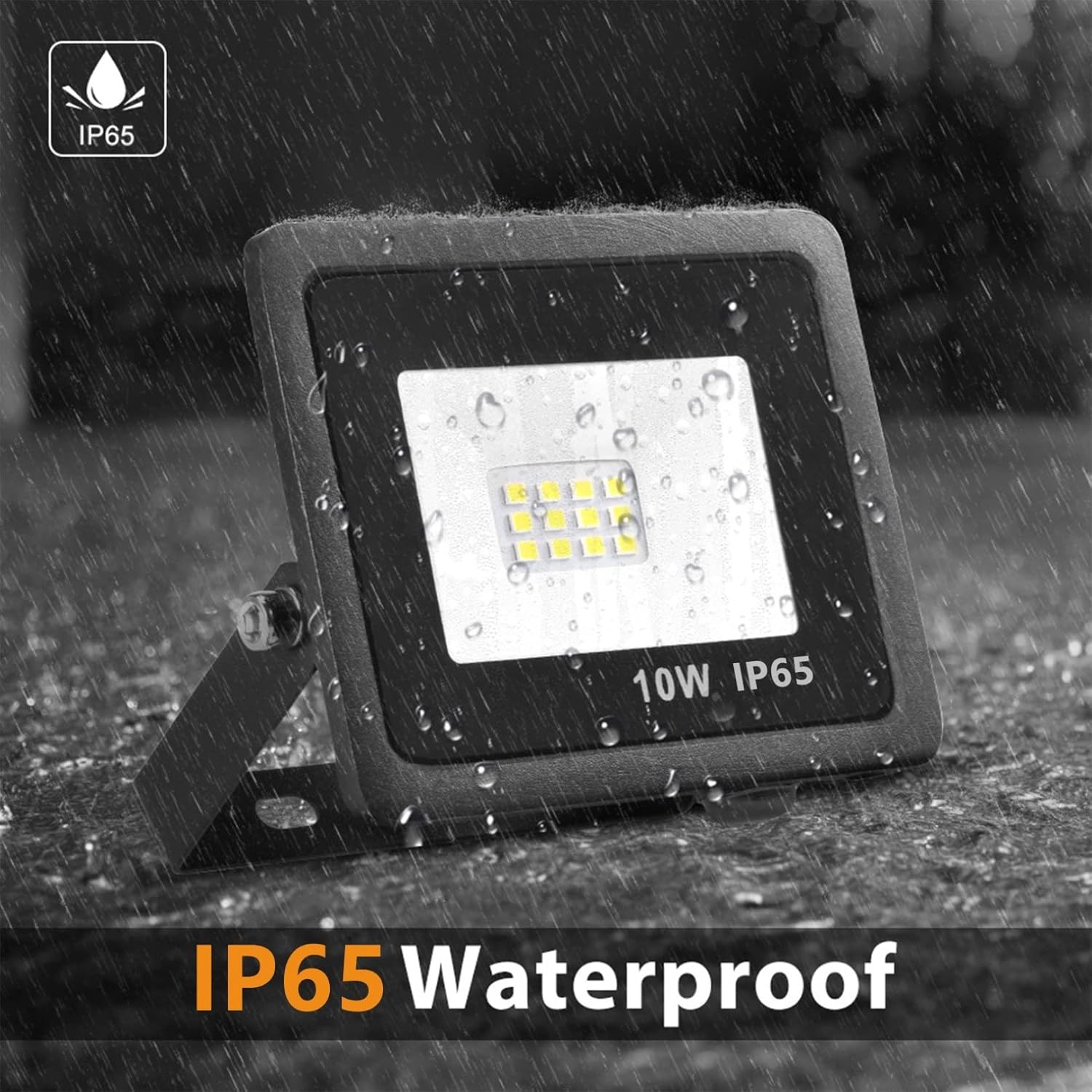

Figure 1: The IINCOOY 10W LED Floodlight demonstrating its IP66 waterproof capability under simulated rain conditions.
Figure 2: Illustration of the floodlight's 120-degree wide beam angle, providing extensive illumination for areas like a garage entrance.

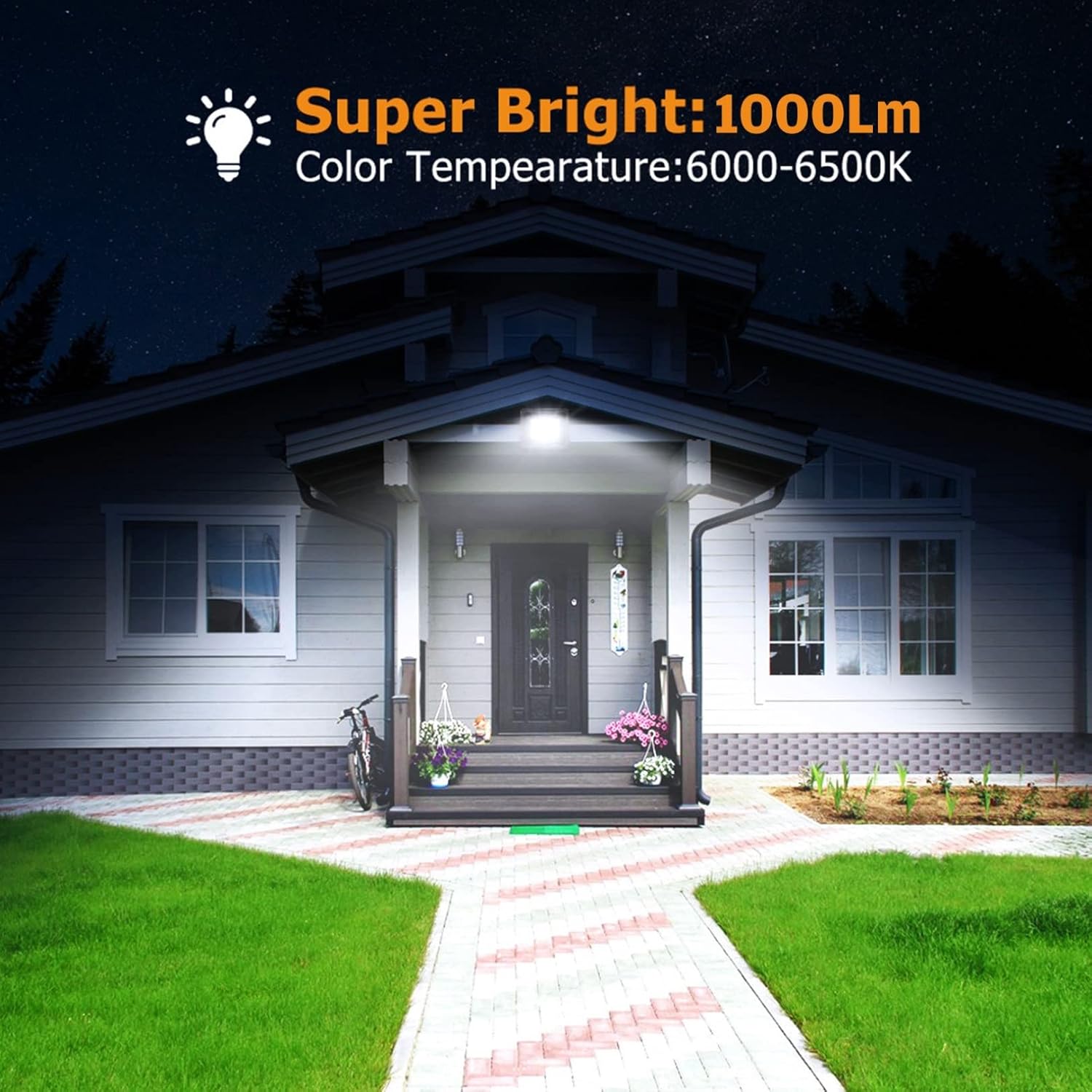

Figure 3: The floodlight illuminating a house entrance, highlighting its super bright output of 700 lumens and cool white color temperature.
Figure 4: Summary of the 10W LED Floodlight's core features, including brightness, beam angle, and lifespan.
5. Spesifikasies
| Eienskap | Spesifikasie |
|---|---|
| Handelsmerk | IINCOOY |
| Model | 10 W |
| Krag | 10 Watt |
| Helderheid | 700 Lumen |
| Ligte Kleur | Koelwit (6500K) |
| Lighoek | 120° |
| Beskermingsvlak | IP66 (waterdig) |
| Materiaal | Die-cast Aluminum, Tempered Glass |
| LED Lewe | >50,000 XNUMX uur |
| Werkstemperatuur | -35°C tot +55°C |
| Lynlengte | 50 cm |
| Aantal LED-krale | 12 pieces (SMD 2835) |
| Energiedoeltreffendheidklas | A |
| Sertifisering | CE & RoHS |
| Montage tipe | Ceiling Mount, Wall Mount, Floor Mount |
Figure 5: Detailed dimensions of the floodlight and visual guides for wall mounting, adjusting the angle, and connecting the ground wire.
6. Opstelling en installering
Follow these steps for proper installation of your LED floodlight. Ensure power is OFF before beginning.
- Kies ligging: Select a suitable location for mounting, such as a wall, ceiling, or floor. Consider the desired illumination area and beam angle.
- Montering: Use the adjustable metal bracket to secure the floodlight. Mark the drilling points on the surface, drill holes, and attach the bracket using appropriate screws and anchors (not included). Ensure the bracket is firmly fixed.
- Pas hoek aan: Once mounted, adjust the floodlight's angle to direct the light as needed. The bracket allows for flexible positioning.
- Bedrading:
- The floodlight comes with a 50cm power cord but no plug. It requires direct wiring to your electrical system.
- Connect the live (brown), neutral (blue), and ground (yellow/green) wires from the floodlight to your main power supply wires. Ensure all connections are secure and insulated with waterproof connectors suitable for outdoor use if applicable.
- Belangrik: Proper grounding is crucial for safety. Connect the yellow/green wire to the ground terminal of your electrical system.
- Toets: After installation and wiring are complete, restore power and test the floodlight.
7. Bedryfsinstruksies
The IINCOOY 10W LED Floodlight operates simply by connecting it to a power source. There are no complex controls or settings.
- Krag aan/af: The floodlight will illuminate when power is supplied and turn off when power is disconnected. Control can be managed via a wall switch, timer, or smart plug connected to its power source.
- Gebruiksomgewings: Suitable for various indoor and outdoor applications including garages, gardens, patios, workshops, backyards, and for illuminating billboards or building facades.
Figuur 6: Examples of the floodlight in use, providing bright illumination for various outdoor settings such as driveways, gardens, and pathways.
8. Onderhoud
Gereelde onderhoud help om die lang lewensduur en optimale werkverrigting van jou vloedlig te verseker.
- Skoonmaak: Periodically clean the tempered glass mask with a soft, damp cloth to remove dirt, dust, or debris that may obstruct light output. Do not use abrasive cleaners or solvents. Ensure power is off before cleaning.
- Inspeksie: Regularly inspect the power cord and connections for any signs of damage, wear, or corrosion. Ensure all mounting screws remain tight.
- Geen gebruikerdiensbare onderdele nie: The LED light source is integrated and not user-replaceable. Do not attempt to open or repair the floodlight yourself. Contact qualified personnel for any issues beyond basic maintenance.
9. Probleemoplossing
Indien u probleme met u vloedlig ondervind, verwys na die volgende algemene probleme en oplossings:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Lig gaan nie aan nie | Geen kragtoevoer Los bedrading konneksie Faulty switch/timer | Kontroleer die kragbron en stroombreker. Verifieer dat alle draadverbindings stewig is (maak seker dat die krag eers afgeskakel is). Test the switch or timer. |
| Lig is dof of flikker | Onvoldoende krag Los verbinding Extreme operating temperature | Verseker stabiele kragtoevoer. Gaan bedradingverbindings na. Verify ambient temperature is within -35°C to +55°C. |
| Water binne-in die casing | Improper installation/sealing Skade aan casing/seal | Ensure all seals are intact and installation is correct. If damage is present, discontinue use and replace the unit. |
Indien die probleem voortduur nadat u hierdie oplossings probeer het, kontak asseblief kliëntediens of 'n gekwalifiseerde elektrisiën.
10. Waarborg en Ondersteuning
This product is manufactured to high-quality standards. For any questions, technical assistance, or support regarding your IINCOOY 10W LED Floodlight, please refer to the retailer's return policy or contact the manufacturer directly through their official channels. Please retain your proof of purchase for any warranty claims.
