Tilta Khronos Case for iPhone 17 Pro Max

Inleiding

This manual provides detailed instructions for the proper setup, operation, maintenance, and troubleshooting of your Tilta Khronos Case for iPhone 17 Pro Max. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

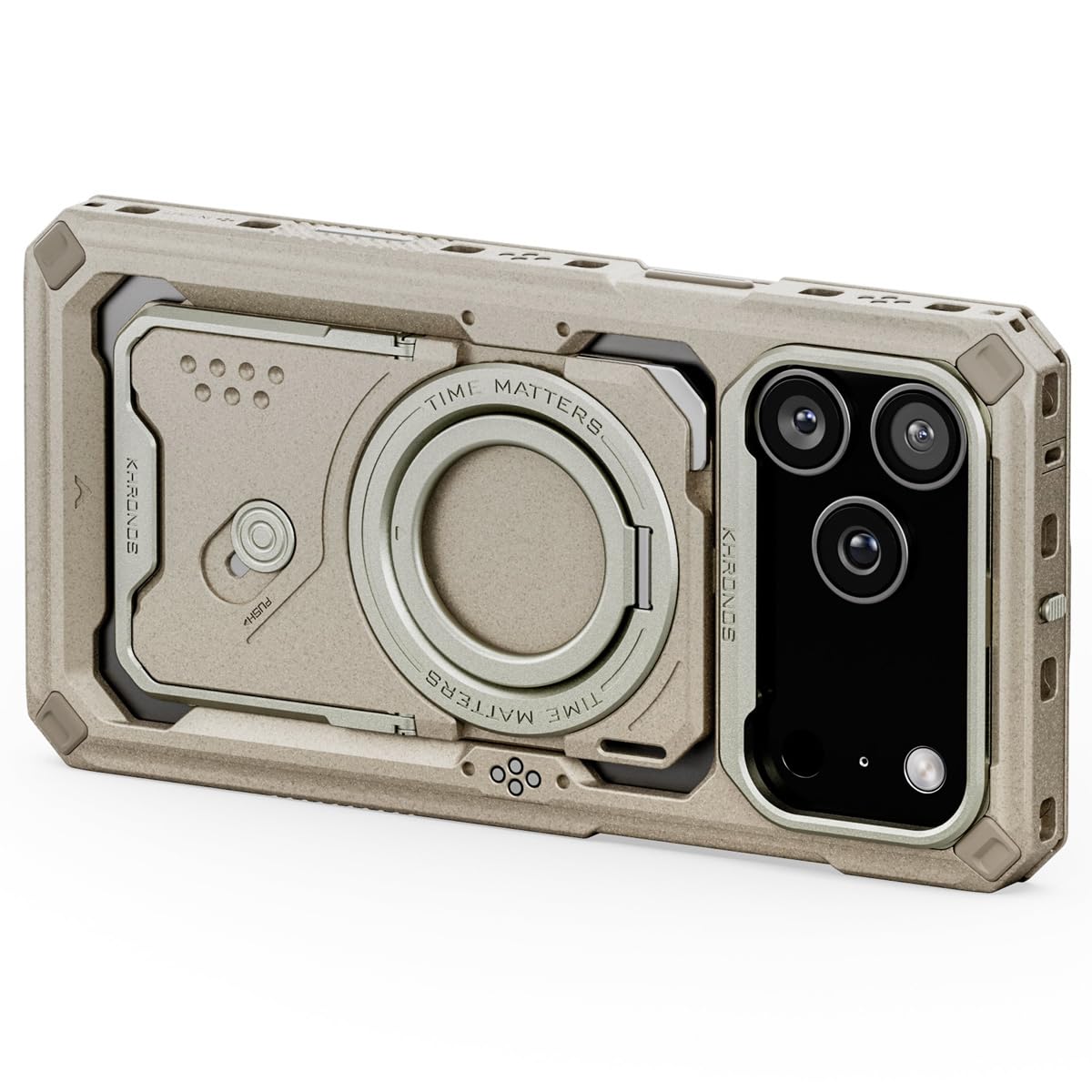

Image: The Tilta Khronos Case for iPhone 17 Pro Max in beige, featuring its integrated kickstand extended for hands-free viewing.

Produk verbyview

The Tilta Khronos Case is designed to enhance the functionality and protection of your iPhone 17 Pro Max, offering a versatile platform for mobile filmmaking and photography. Key features include:

• Custom Designed: Specifically engineered for iPhone 17 Pro Max smartphones, ensuring a precise fit and full access to all ports and buttons.
• Uitbreidbare ontwerp: Compatible with a wide range of accessories such as focus side handles, cooling modules, filters, on-board lights, and USB-C hubs, creating a comprehensive mobile production ecosystem.
• Veilige montering: Features a locking clamp design for securely attaching accessories and mounting the system to tripods or other support systems.
• Passthrough Power: Integrated electronic contact points provide convenient passthrough power options for connected accessories.
• Snap-in Design: Allows for quick and easy installation or removal of your iPhone when needed.

Opstelling

1. Installing Your iPhone

1. Maak seker dat die kas skoon en vry van puin is.
2. Align your iPhone 17 Pro Max with the case, ensuring the camera module and ports match the case cutouts.
3. Gently press your iPhone into the case until it snaps securely into place. Verify that all edges are flush and the phone is firmly seated.

Image: Visual guide confirming the Tilta Khronos Case is specifically designed for the iPhone 17 Pro Max, highlighting its precise fit.

2. Aanheg van bykomstighede

The Khronos Case features multiple mounting points and a locking clamp system for various accessories.

• Back Plate System: The practical 3+3 back plate system allows for modular attachment of accessories. Align the accessory with the desired slot and slide it into place until it locks securely.
• Sluiting Clamp: For larger accessories or mounting to tripods, utilize the integrated locking clamp. Open the clamp, position the accessory or mounting plate, and close the clamp stewig te beveilig.
• Passthrough Power: Accessories designed for passthrough power will connect via the electronic contact points on the case. Ensure a firm connection for power delivery.

Image: An illustration detailing the modular 3+3 back plate system, showcasing the multi-functional back plate, magnetic ring stand, and an optional card holder.

Beeld: 'n Nabyskoot view of the Tilta Khronos Case highlighting its built-in circuitry, which enables passthrough power for compatible accessories.

Bedryf

1. Using the Integrated Kickstand

The case features a magnetic ring stand integrated into the back plate. To use it, simply pull out the ring stand from its recess. It can rotate 360 degrees, allowing for both horizontal and vertical phone orientation. Push it back into the recess when not in use.

2. Horizontal and Vertical Shooting

The modular design and various mounting points facilitate effortless switching between horizontal and vertical shooting modes. Attach side handles or other grips as needed for comfortable and stable operation in either orientation.

Image: Demonstrates the versatility of the Tilta Khronos Case, showing an iPhone mounted horizontally and vertically with attached accessories for seamless shooting.

3. Utilizing the Open Ecosystem for Filters and Lenses

The Khronos Case supports an open ecosystem for creative enhancements:

• Filterbak: Compatible with the Khronos Filter Tray (58mm). Snap the filter tray onto the case over the camera module.
• Lens Adapters: Compatible with Khronos Lens Adapters for 17mm thread lenses and T-series mount lenses. Attach the appropriate lens adapter to expand your photographic capabilities.

Image: Illustrates the Tilta Khronos Case's compatibility with various photographic accessories, including a 58mm filter tray and lens adapters for 17mm thread and T-series mount lenses.

4. Amptelike Produkvideo

Onderhoud

To maintain the condition and functionality of your Tilta Khronos Case, follow these guidelines:

• Skoonmaak: Vee die kas gereeld af met 'n sagte, damp cloth. Avoid using harsh chemicals or abrasive materials, which can damage the polycarbonate material.
• Inspeksie: Periodically check the locking clamps and accessory mounting points for any signs of wear or damage. Ensure they are functioning correctly to maintain secure attachment.
• Berging: When not in use, store the case in a clean, dry environment away from extreme temperatures and direct sunlight.

Image: A visual representation emphasizing the rugged protection and premium finish of the Tilta Khronos Case, highlighting its durable construction.

Probleemoplossing

If you encounter any issues with your Tilta Khronos Case, refer to the following common solutions:

• iPhone Not Fitting Securely: Ensure your iPhone is correctly aligned with the case and pressed firmly until it snaps into place. Check for any obstructions or debris within the case.
• Accessories Not Attaching: Verify that the accessory is compatible with the Khronos system. Ensure the locking clamp or back plate mechanism is fully engaged and free from obstructions.
• Passthrough Power Issues: Check that the accessory requiring power is properly connected to the electronic contact points. Ensure the power source (e.g., USB-C hub) is functioning correctly.
• Knoppies reageer nie: Confirm that your iPhone is seated correctly within the case and that the case's buttons align perfectly with your phone's buttons.

If problems persist, please contact Tilta customer support for further assistance.

Spesifikasies

Waarborg en Ondersteuning

Waarborg inligting

The Tilta Khronos Case for iPhone 17 Pro Max comes with a 2 jaar meganiese waarborg en a 1-year electronic warrantyHierdie waarborg dek defekte in materiaal en vakmanskap onder normale gebruik. Bewaar asseblief u bewys van aankoop vir waarborgeise.

Kliënte ondersteuning

For any questions, technical assistance, or warranty inquiries, please contact Tilta customer support through their official website or the retailer where the product was purchased. Provide your model number (TK-IP17-PMFC-BG) and a detailed description of your issue for efficient service.
