Lifelong Treadmill (Model LLTM183) User Manual

1. Inleiding

Thank you for choosing the Lifelong Treadmill (Model LLTM183). This manual provides essential information for the safe and efficient operation, setup, and maintenance of your new treadmill. Please read this manual thoroughly before using the product and retain it for future reference.

2. Veiligheidsinligting

WAARSKUWING: Om die risiko van ernstige beserings te verminder, lees alle belangrike voorsorgmaatreëls en instruksies in hierdie handleiding voordat u die loopband gebruik.

• Raadpleeg u dokter voordat u met enige oefenprogram begin.
• Hou kinders en troeteldiere te alle tye weg van die trapmeul.
• Plaas die trapmeul op 'n gelyk oppervlak met ten minste 2 meter (6.5 voet) oop spasie daaragter en 0.5 meter (1.6 voet) aan elke kant.
• Maak seker dat die veiligheidsleutel behoorlik vasgemaak is voordat die trapmeul begin word.
• Dra gepaste oefenklere en atletiese skoene. Moenie los klere dra wat in die trapmeul kan vashaak nie.
• Moenie die loopband gebruik as dit 'n beskadigde kragkabel of prop het nie, of as dit nie behoorlik werk nie.
• Always hold the handrails when starting or stopping the treadmill, or when adjusting speed.
• Do not step on or off the treadmill while the running belt is in motion.
• Disconnect the power cord when not in use or before cleaning and maintenance.
• Die maksimum gebruikersgewig vir hierdie trapmeul is 110 kg.

3. Produk verbyview

The Lifelong Treadmill (Model LLTM183) is designed for home use, offering a powerful 3 HP brushless motor for smooth and quiet operation. It features a compact, foldable design for easy storage and a manual incline system to enhance your workout.

Sleutel kenmerke:

• Powerful 3 HP Brushless Motor: Delivers smooth performance and quiet operation for walking and light jogging.
• 2-Step Manual Incline: Adjust incline levels to increase workout intensity and target different muscle groups.
• Foldable Space-Saving Design: Easily folds for storage, ideal for homes with limited space.
• Built-In Transport Wheels: Facilitates easy movement and storage of the treadmill.
• LED skerm: Monitors speed, time, calories, and distance.
• Antiskid Belt with Shock Reduction: Provides a secure and comfortable running surface.

Komponente ingesluit:

• 1 N Main Unit (Treadmill)
• 1 N Toolkit
• 1 N Manual

Image: Key specifications of the Lifelong Treadmill, highlighting its 3 HP motor, speed range, maximum user weight, incline levels, and transport wheels.

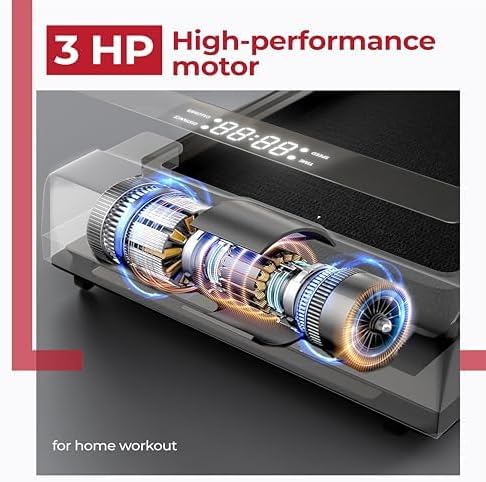

Beeld: Gedetailleerd view of the 3 HP high-performance brushless motor, illustrating its internal components.

Image: Diagram illustrating the multi-layered antiskid belt design, emphasizing its shock reduction capabilities for user comfort and safety.

4. Opstelling

The Lifelong Treadmill (Model LLTM183) comes pre-assembled, requiring no complex setup. Follow these steps to prepare your treadmill for use:

1. Pak uit: Carefully remove the treadmill from its packaging. Retain packaging materials for potential future transport or storage.
2. Plasing: Place the treadmill on a firm, level surface. Ensure there is adequate clear space around the treadmill as specified in the Safety Information section.
3. Vou oop (indien van toepassing): If the treadmill is in a folded position, gently unfold it until it locks into place. Refer to the diagram below for space-saving storage options.
4. Kragverbinding: Steek die kragkabel in 'n geaarde elektriese aansluiting.

Image: The treadmill being stored under a bed, demonstrating its space-saving design and built-in transport wheels for easy maneuverability.

5. Bedryfsinstruksies

This section guides you through the basic operation of your Lifelong Treadmill. Always ensure you have read and understood the safety information before starting your workout.

5.1 Begin van 'n oefensessie

1. Krag aan: Plug in the treadmill and turn on the main power switch (if present). The LED display will illuminate.
2. Heg veiligheidsleutel aan: Clip the safety key to your clothing and insert the other end into the designated slot on the treadmill console. The treadmill will not operate without the safety key.
3. Stand on Side Rails: Staan op die sykante van die trapmeul, nie op die hardloopband nie.
4. Begin: Press the 'START' button on the console or remote control. The belt will begin to move at a low speed.
5. Pas spoed aan: Gradually increase the speed using the '+' or 'SPEED UP' buttons on the console or remote control to your desired walking or jogging pace (maximum speed 8 km/h).
6. Step onto Belt: Once the belt is moving at a comfortable speed, carefully step onto the running belt.

5.2 Aanpassing van helling

The LLTM183 features a 2-step manual incline. To adjust the incline:

1. Stop loopband: For safety, stop the treadmill and unplug it before adjusting the incline.
2. Locate Adjustment Points: Identify the manual incline adjustment points at the rear of the treadmill.
3. Pas aan: Manually lift or lower the rear of the treadmill to select one of the two available incline levels. Ensure both sides are set equally.
4. Resume Workout: Plug in the treadmill and restart your workout.

Image: The treadmill in use, showing a person exercising and highlighting the manual incline capability and the remote control for operation.

5.3 Gebruik die LED-skerm

Die geïntegreerde LED-skerm bied intydse terugvoer oor jou oefensessie:

• Spoed: Huidige spoed van die hardloopband.
• Tyd: Duur van jou oefensessie.
• Afstand: Totale afstand afgelê tydens oefensessie.
• Kalorieë: Geskatte kalorieë verbrand.

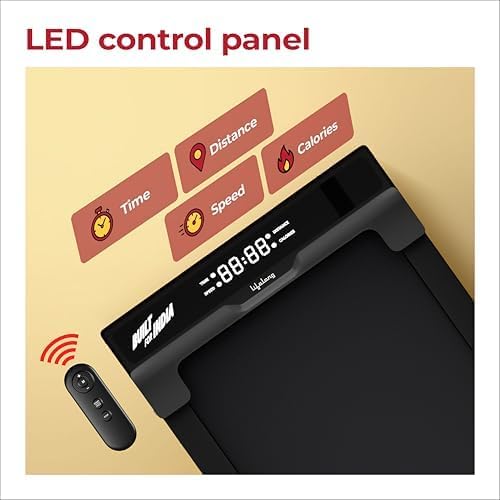

Image: The LED control panel showing various fitness metrics, including time, distance, speed, and calories burned.

5.4 Beëindig 'n Oefensessie

1. Vertraag: Press the '-' or 'SPEED DOWN' button to gradually decrease the speed until the belt stops.
2. stop: Press the 'STOP' button to immediately stop the treadmill.
3. Remove Safety Key: Remove the safety key from the console. This will also stop the treadmill.
4. Skakel af: Turn off the main power switch and unplug the treadmill from the wall outlet.

Image: The treadmill demonstrating its versatility for both jogging and walking modes, and its compact design allowing storage under furniture.

6. Onderhoud

Regular maintenance ensures the longevity and optimal performance of your Lifelong Treadmill. Always unplug the treadmill before performing any maintenance.

• Skoonmaak: Vee die loopbandoppervlaktes af met advertensiesamp lap na elke gebruik. Vermy die gebruik van skuurmiddels of oplosmiddels.
• Gordelsmering: The running belt requires periodic lubrication to reduce friction and extend its lifespan. Refer to the toolkit for lubricant and instructions. Lubricate every 3-6 months depending on usage.
• Bandspanning en -belyning: Check the running belt tension and alignment regularly. If the belt slips or drifts to one side, refer to the troubleshooting section or contact customer support.
• Motordeksel: Periodically vacuum around the motor cover to prevent dust buildup, ensuring proper ventilation.

7. Probleemoplossing

If you encounter any issues with your treadmill, refer to the following common problems and solutions. If the problem persists, contact customer support.

8. Spesifikasies

9. Waarborg en Ondersteuning

For warranty information, please refer to the warranty card included with your product or contact Lifelong customer support. Lifelong is committed to providing quality products and excellent customer service.

Kliëntediens:

If you have any questions, require assistance, or need to report an issue, please contact Lifelong customer support using the details below:

• Vervaardiger / invoerder: Lewenslange aanlyn kleinhandel privaat beperk
• Adres: 5th Floor, Unit No. 508, DLF South Court, Saket District Center, Saket New Delhi, India – 110017
• Telefoon: +91 9711558877
• E-pos: customercare@lifelongonline.com
