Eridanus BATHSNIK-011 Rectangular Ceramic Vessel Sink Instruction Manual

Inleiding

Thank you for choosing the Eridanus BATHSNIK-011 Rectangular Ceramic Vessel Sink. This manual provides essential information for the safe and proper installation, operation, and maintenance of your new sink. Please read these instructions thoroughly before beginning installation and retain them for future reference.

The Eridanus BATHSNIK-011 is a durable, high-fired premium white ceramic vessel sink designed for above-counter installation. Its non-porous surface is resistant to scratches, stains, and fading, ensuring long-lasting performance and easy cleaning.

Pakketinhoud

Verify that all components are present and undamaged before proceeding with installation. If any parts are missing or damaged, please contact customer support.

• 1x Eridanus BATHSNIK-011 Rectangular Ceramic Vessel Sink (24" x 13.6")
• 1x Pop-Up Drain

Image: Package contents and basic specifications. This image illustrates the ceramic vessel sink and the included pop-up drain, detailing its material (ceramic), shape (rectangle), and confirming no overflow feature.

Veiligheidsinligting

Neem altyd die volgende veiligheidsmaatreëls in ag tydens installasie en gebruik:

• Dra gepaste persoonlike beskermende toerusting (PPE), soos veiligheidsbril en handskoene, tydens installasie.
• Ensure the countertop or vanity is structurally sound and capable of supporting the weight of the sink and water.
• Skakel die hoofwatertoevoer af voordat u enige loodgieterswerk begin.
• Handle the ceramic sink with care to prevent chipping or breakage.
• Do not overtighten plumbing connections, as this can damage the sink or pipes.
• As jy onseker is oor enige stap, raadpleeg 'n gekwalifiseerde loodgieter.

Opstelling en installasie

The Eridanus BATHSNIK-011 vessel sink is designed for straightforward above-counter installation on various vanity top materials, including wood, stone, granite, or laminate.

Vereiste gereedskap (nie ingesluit nie):

• Potlood of merker
• Maatband
• Drill with appropriate hole saw (for drain opening)
• Silicone sealant (plumber's putty not recommended for vessel sinks)
• Verstelbare moersleutel of tang
• Maak lappe skoon

Installasie stappe:

1. Berei die toonbank voor: Position the sink on the desired location of the countertop. Using a pencil, carefully trace the outline of the drain opening onto the countertop.
2. Drill Drain Hole: Using an appropriate hole saw, drill the drain opening in the countertop according to the traced outline. Ensure the hole is large enough for the pop-up drain assembly. Refer to the dimensions diagram for precise measurements.
3. Install Pop-Up Drain: Follow the manufacturer's instructions for installing the pop-up drain into the sink's drain hole. Apply a thin bead of silicone sealant around the drain opening on the underside of the sink to create a watertight seal.
4. Position Sink: Carefully place the sink onto the countertop, aligning the installed pop-up drain with the drilled hole.
5. Secure Sink: Apply a continuous bead of silicone sealant around the entire base of the sink where it meets the countertop. This will secure the sink in place and prevent water from seeping underneath. Allow the sealant to cure completely as per the manufacturer's instructions.
6. Koppel loodgieterswerk: Connect the P-trap and water supply lines to the pop-up drain and faucet (faucet not included). Ensure all connections are hand-tightened, then use a wrench for a final quarter-turn to secure. Do not overtighten.
7. Toets vir lekkasies: Once the sealant has cured and plumbing connections are secure, turn on the water supply and fill the sink. Check all connections for any signs of leaks.

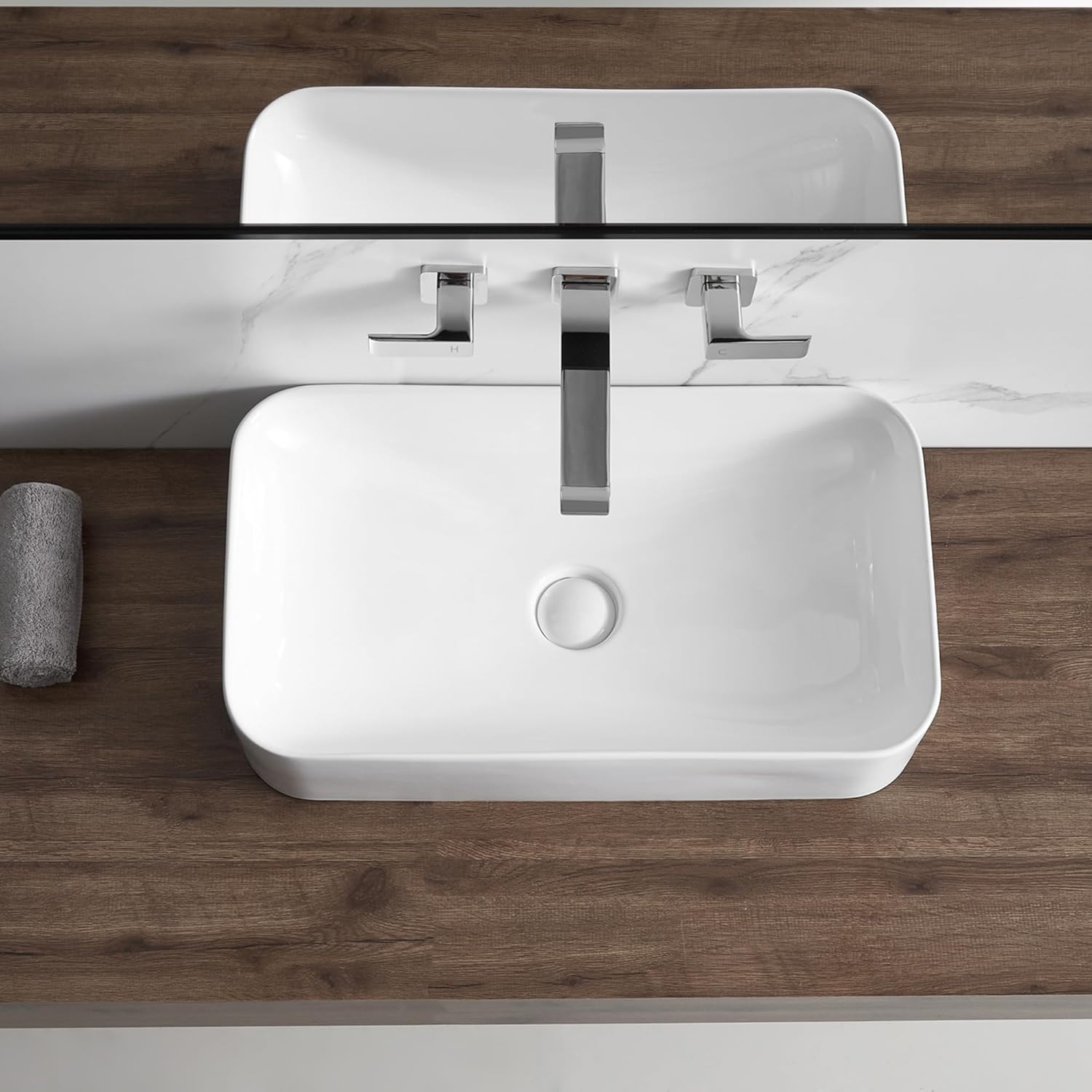

Beeld: Bvample of the vessel sink installed on a countertop. This image shows the sink's aesthetic when properly installed, providing a visual reference for placement and integration with a wall-mounted faucet.

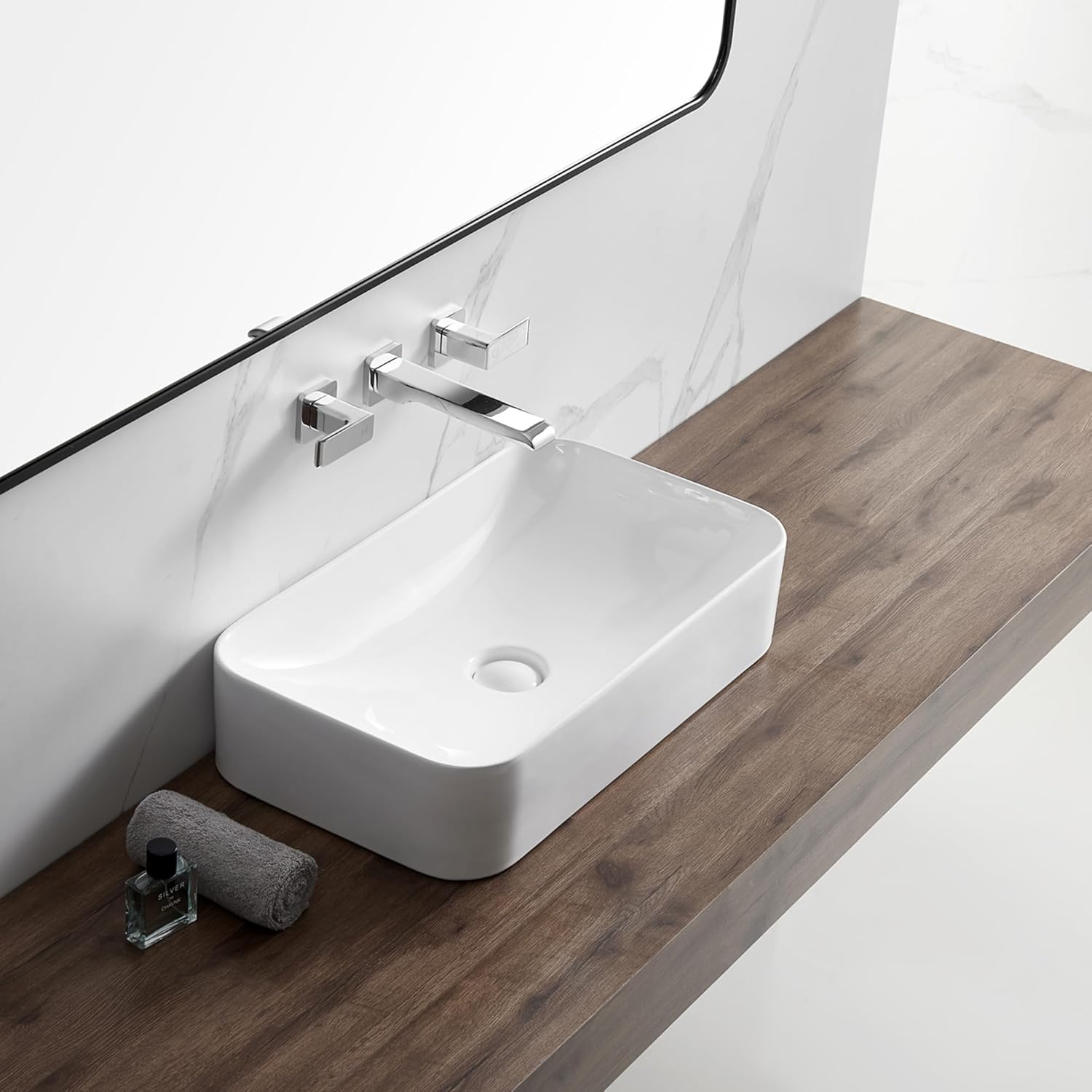

Image: Eridanus BATHSNIK-011 vessel sink in a bathroom setting. This image highlights the sink's modern design and how it complements contemporary bathroom fixtures.

Bedryfsinstruksies

The Eridanus BATHSNIK-011 vessel sink operates like any standard bathroom sink. Use the faucet (not included) to control water flow and temperature. The included pop-up drain allows for easy filling and draining of the sink basin.

• To fill the sink: Push down on the pop-up drain stopper to close the drain.
• To drain the sink: Push down on the pop-up drain stopper again to open the drain.

Onderhoud

Proper care and maintenance will ensure the longevity and pristine appearance of your Eridanus vessel sink.

• Daaglikse skoonmaak: The smooth, high-gloss finish makes daily cleaning simple. Wipe the sink bowl with a soft, damp cloth after each use to remove toothpaste, soap residue, and water spots.
• Diep skoonmaak: For more thorough cleaning, use a mild, non-abrasive cleaner specifically designed for ceramic surfaces. Avoid harsh chemicals, abrasive pads, or scouring powders, as these can damage the glaze.
• Vlekverwydering: For stubborn stains, a solution of mild soap and water or a ceramic-safe stain remover can be used. Always rinse thoroughly with clean water after cleaning.
• Dreininstandhouding: Periodically remove the pop-up drain stopper and clean any accumulated hair or debris to ensure proper drainage.
• Vermy impak: While durable, ceramic can chip or break under heavy impact. Avoid dropping heavy objects into the sink.

Produkversorgingsinstruksies: Vee af met 'n droë lap.

Probleemoplossing

This section addresses common issues you might encounter with your vessel sink.

Spesifikasies

Detailed specifications for the Eridanus BATHSNIK-011 vessel sink:

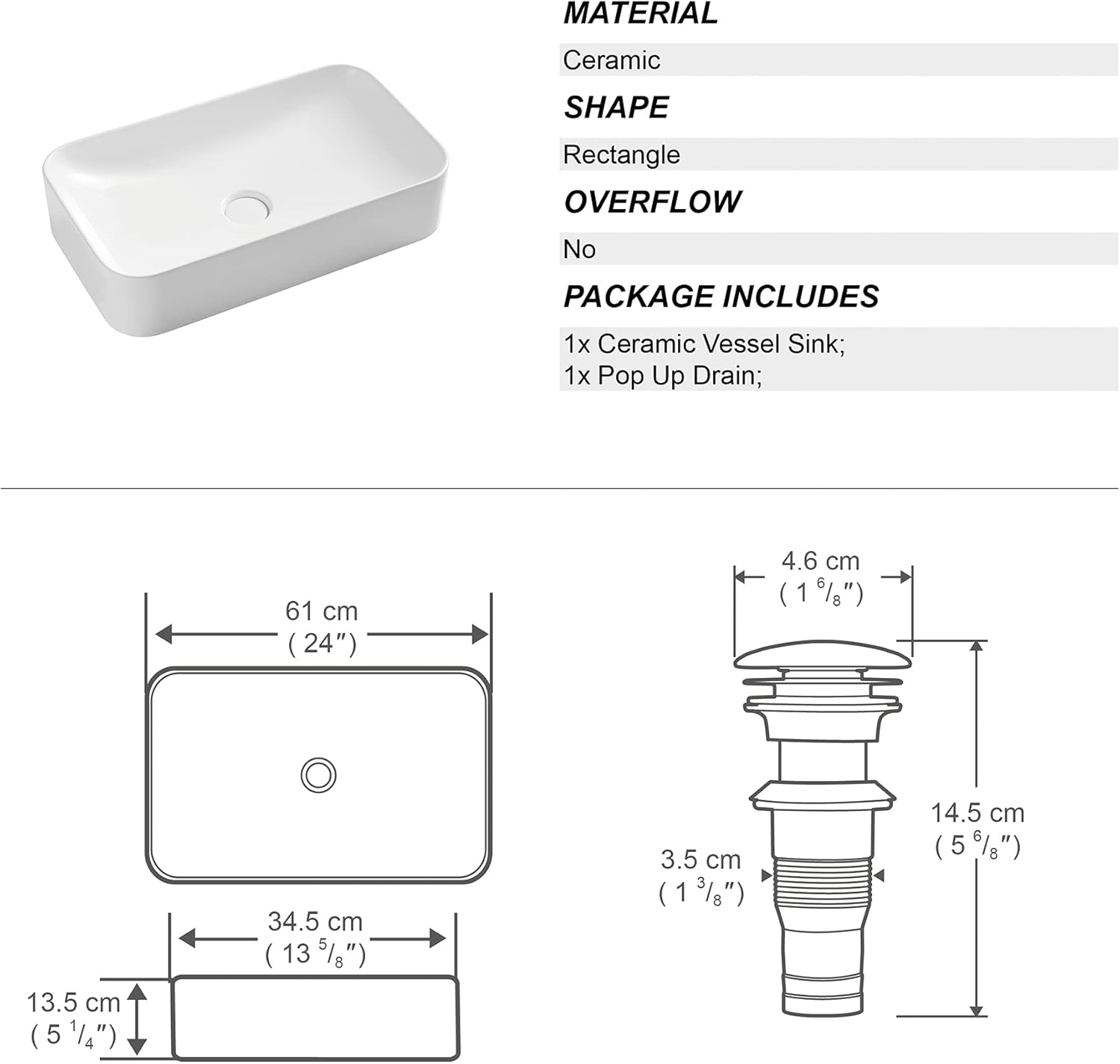

Image: Technical dimensions of the sink and pop-up drain. This diagram provides precise measurements for the sink (length, width, height) and the pop-up drain, crucial for installation planning.

Waarborg inligting

Specific warranty details for the Eridanus BATHSNIK-011 vessel sink are not provided in the product data. Please refer to the product packaging or contact the seller directly for warranty terms and conditions.

Kliënte ondersteuning

If you have any questions, require assistance with installation, or need to report a missing or damaged part, please contact the seller or manufacturer directly. Contact information is typically found on the product packaging or the retailer's webwebwerf.

For general inquiries, you may visit the Eridanus Store on Amazon: Eridanus Store
