1. oorview
The CORBOBO AULA F3099 is a versatile wireless keyboard designed for various computing needs, offering multiple connectivity options, customizable RGB backlighting, and a comfortable typing experience. This manual provides detailed instructions for setup, operation, and maintenance.
Sleutel kenmerke:
- Drievoudige-modus konnektiwiteit: Seamlessly switch between 2.4GHz wireless, Bluetooth 5.0, and USB-C wired connections.
- 2-in-1 Multifunction Knob: Control media volume/mute or cycle RGB backlight effects and brightness.
- Programmeerbare drywer: Customize macros and assign functions to individual keys (Windows systems, wired mode only).
- Durable & Quiet Typing: Membrane silicone keys provide a smooth, quiet keystroke feel.
- RGB-agterbeligting: Multiple lighting effects with 16.8 million colors, adjustable brightness and speed.
- Ergonomiese ontwerp: Foldable dual-stage stand for adjustable tilt angles to reduce wrist strain.

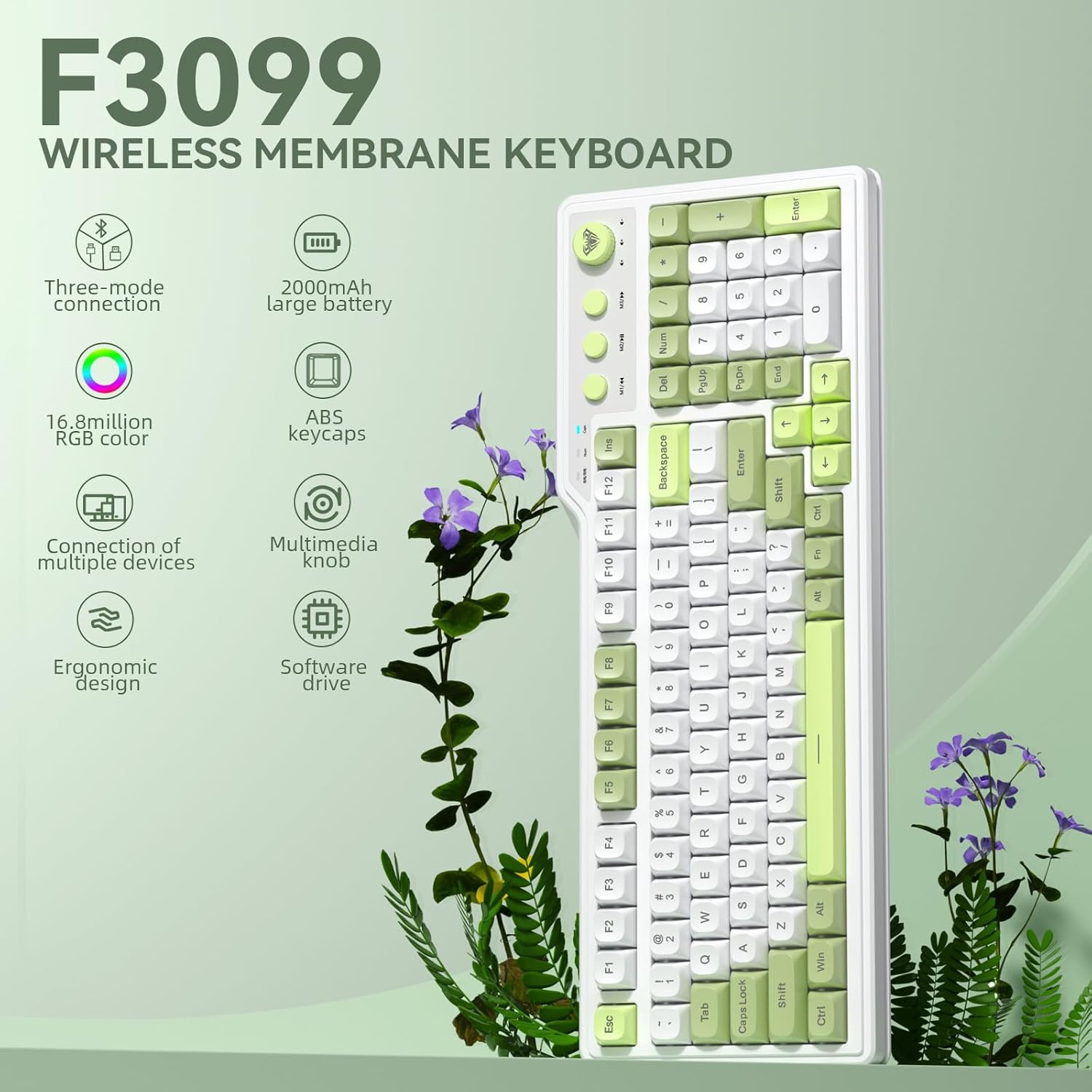

Beeld 1.1: verbyview of the AULA F3099 Wireless Membrane Keyboard, illustrating its triple-mode connection, 2000mAh battery, RGB color, multi-device support, multimedia knob, ergonomic design, and software driver capabilities.
2. Pakketinhoud
Verifieer dat alle items in u produkpakket teenwoordig is:
- AULA F3099 Wireless Keyboard x 1
- Gebruikershandleiding x 1
- USB-C-kabel x 1
- Sleutelkaptrekker x 1
Video 2.1: An unboxing video demonstrating the contents of the AULA F3099 Wireless Keyboard package, including the keyboard, USB-C cable, and keycap puller.
3. Opstelling
The AULA F3099 keyboard supports three connection modes: 2.4GHz wireless, Bluetooth 5.0, and USB-C wired. Choose the mode that best suits your device and needs.
3.1. Skakel aan/af
Locate the power switch on the back of the keyboard. Slide it to "ON" to power on the keyboard or "OFF" to power it down.
3.2. 2.4GHz Draadlose Modus
- Locate the 2.4GHz USB receiver stored in the compartment on the back of the keyboard.
- Koppel die USB-ontvanger in 'n beskikbare USB-poort op jou rekenaar.
- Op die sleutelbord, druk Fn + ~ to switch to 2.4GHz wireless mode. The keyboard will automatically connect.
Image 3.1: Illustration of the keyboard's tri-mode connection capabilities, showing 2.4GHz wireless, Bluetooth 5.0, and USB-C wired connections to various devices.
3.3. Bluetooth 5.0-modus
- Druk fn+1, fn+2, of fn+3 om 'n Bluetooth-kanaal te kies. Die aanwyserliggie sal flikker, wat paringsmodus aandui.
- On your device (PC, laptop, smartphone, tablet), go to Bluetooth settings and search for "AULA F3099".
- Kies die sleutelbord om te koppel. Sodra dit gekoppel is, sal die aanwyserliggie ophou flikker.
- The keyboard can save up to three different Bluetooth devices. Repeat the process for additional devices on different channels.
Note: Windows 7 and earlier systems do not support Bluetooth connections.
3.4. USB-C Bedrade Modus
- Koppel die meegeleverde USB-C-kabel aan die sleutelbord se USB-C-poort en die ander kant aan jou rekenaar se USB-poort.
- Druk fn+4 to switch to wired mode. The keyboard will be ready for use.
4. Bedryfsinstruksies
4.1. Multifunction Knob & Media Keys
The keyboard features a dual-mode knob and dedicated media keys for enhanced control.
- Skakelmodusse: Long-press the knob for 3 seconds to toggle between Gaming Mode and Office Mode.
- Speelmodus:
- Press the knob to cycle through RGB backlight effects.
- Rotate the knob to adjust backlight brightness.
- M1/M2/M3 keys can be programmed for macros (see section 4.3).
- Kantoormodus:
- Rotate the knob to increase/decrease computer volume.
- Press the knob briefly to mute/unmute audio.
- M1 (Previous Song), M2 (Play/Pause), M3 (Next Song) keys function as standard multimedia controls.
Beeld 4.1: Gedetailleerd view of the dual-mode multimedia knob and adjacent media keys, explaining their functionalities for both gaming and office environments.
Video 4.2: A demonstration of the F3099 Wireless Keyboard's media knob functionality, showcasing its use for volume control and backlight adjustments.
4.2. RGB-agterbeligtingsbeheer
The keyboard features multiple RGB lighting effects. Adjust them using the knob or shortcut keys:
- Fn + Einde: Adjust lighting colors (in constant light mode).
- Fn + PgUp: Adjust to the next light effect.
- Fn + PgDn: Adjust to the last light effect.
- Fn + [: Adjust lighting brightness up.
- Fn + ]: Adjust lighting brightness down.
- Fn + -: Adjust lighting speed up.
- Fn + =: Adjust lighting speed down.

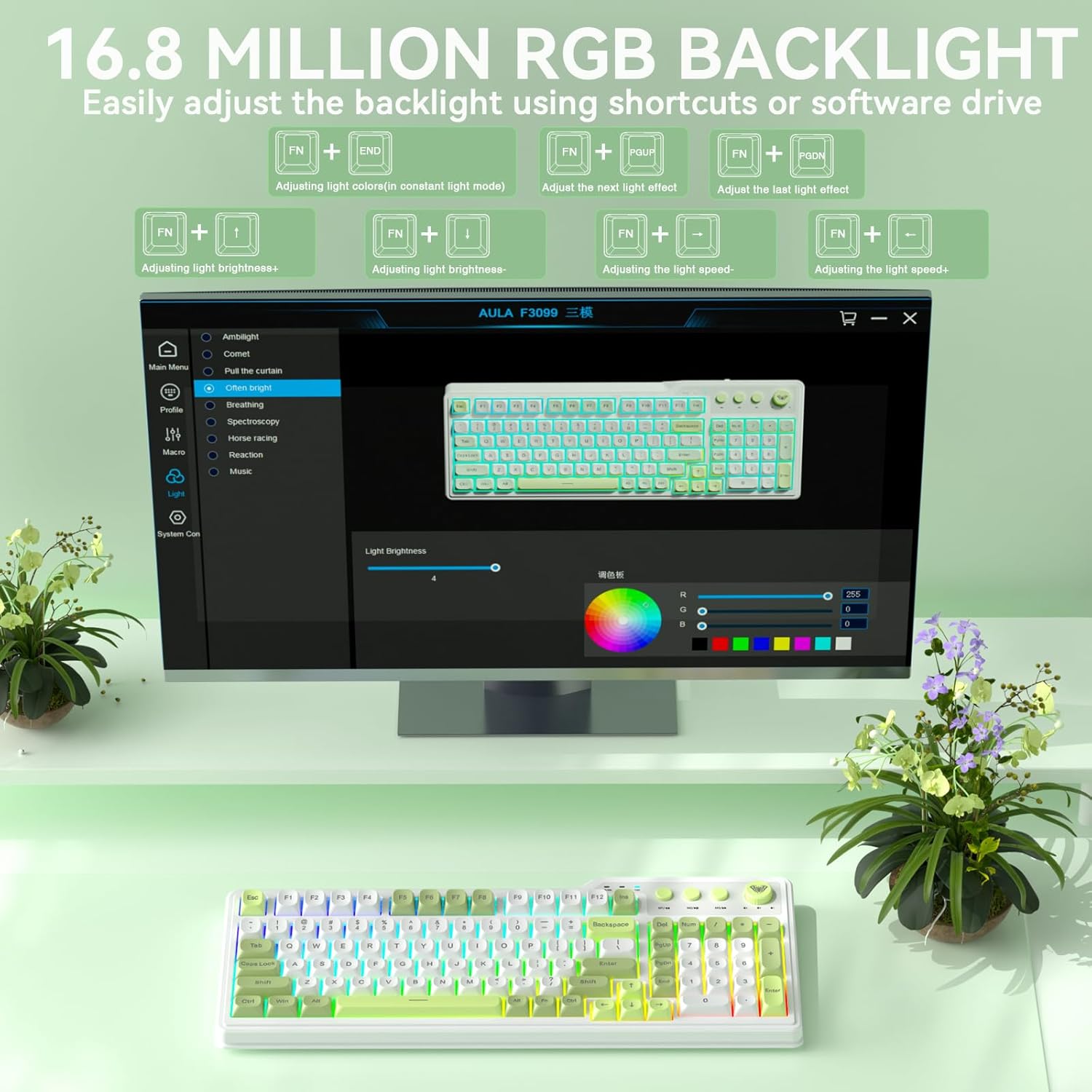

Image 4.3: Visual representation of the 16.8 million RGB backlighting, showing different lighting effects and the shortcut keys for adjustment.
4.3. Programmable Driver & Macro Customization
The F3099 keyboard supports full-key macro programming via its dedicated driver. This feature is available only when the keyboard is connected in wired mode on Windows systems.
- Laai die bestuurder af van: bit.ly/m/corbobo
- Install the driver on your Windows system.
- Connect the keyboard via USB-C cable.
- Open the driver software to access macro customization, key remapping, and advanced RGB settings.
Image 4.4: The software driver interface for the AULA F3099, demonstrating options for macro recording, all-key programmability, and RGB settings.
5. Onderhoud
5.1. Skoonmaak
- Ontkoppel die sleutelbord van alle kragbronne voordat u dit skoonmaak.
- Gebruik 'n sagte, pluisvrye lap effens dampmet water of 'n sagte skoonmaakoplossing om die oppervlak af te vee.
- For dust and debris between keys, use compressed air or the provided keycap puller to remove keycaps for deeper cleaning.
5.2. Battery laai
The keyboard is equipped with a rechargeable battery. Connect the USB-C cable to the keyboard and a power source (computer USB port or USB wall adapter) to charge. The charging indicator light will show the charging status.
5.3. Keycap Removal and Installation
Use the included keycap puller to safely remove and install keycaps for cleaning or customization.
Video 5.1: A short video demonstrating the method for installing accidentally detached keycaps, useful for maintenance and customization.
6. Probleemoplossing
| Probleem | Oplossing |
|---|---|
| Keyboard not connecting via 2.4GHz wireless. | Ensure the USB receiver is securely plugged in and the keyboard is in 2.4GHz mode (Fn + ~). Try a different USB port. |
| Sleutelbord koppel nie via Bluetooth nie. | Ensure the keyboard is in Bluetooth pairing mode (Fn + 1/2/3) and your device's Bluetooth is enabled. Forget the device on your computer and re-pair. Ensure your operating system supports Bluetooth 5.0. |
| Sleutels reageer nie of tik verkeerd. | Check the connection mode (wired/wireless). Ensure the keyboard is charged. If using the programmable driver, verify macro settings. Restart the keyboard and computer. |
| RGB backlighting is not working or stuck. | Ensure the keyboard is powered on. Try cycling through lighting effects using Fn + PgUpPas helderheid aan met Fn + [ or Fn + ]. If using the driver, check lighting settings. |
| Programmable driver not working. | The driver only supports wired mode operation on Windows systems. Ensure the keyboard is connected via USB-C and your system is Windows. Reinstall the driver if necessary. |
7. Spesifikasies
| Kenmerk | Detail |
|---|---|
| Produk afmetings | 8.07 cm L x 17.51 cm B x 1.96 cm H |
| Item gewig | 2.57 pond |
| Vervaardiger | CORBOBO |
| Item Modelnommer | F3099 |
| Batterye | 1 Nie-standaard battery (ingesluit) |
| Verbindingstegnologie | 2.4GHz, BT 5.0, USB-C |
| Sleutelbordbeskrywing | Membraan |
| Spesiale kenmerk | Backlit, Ergonomic, Rechargeable, Volume Roller |
| Sleutelbord agtergrondbeligting kleur ondersteuning | RGB (16.8 million colors) |
| Versoenbare toestelle | Spelkonsole, Skootrekenaar, Rekenaar, Slimfoon, Tablet |
8. Waarborg en Ondersteuning
For warranty information and technical support, please refer to the documentation included with your purchase or visit the official CORBOBO webwebwerf. Bewaar u bewys van aankoop vir enige waarborgeise.
