NUU GARDEN Outdoor Storage Shed Instruction Manual

1. Inleiding en Produk Oorview

This manual provides detailed instructions for the assembly, operation, and maintenance of your NUU GARDEN Outdoor Storage Shed, Model GS001-01. This compact yet spacious outdoor storage shed offers 94.6 cubic feet of interior space, ideal for various storage needs. Constructed from rust-resistant galvanized panels, it is designed to withstand diverse weather conditions, including winds up to Grade 5. The shed features a reinforced structure with a 16-degree sloped roof to prevent water buildup, steel-reinforced double sliding doors with locking capabilities for security, and a professional airflow system for optimal ventilation. A sloped threshold ensures easy access for equipment.

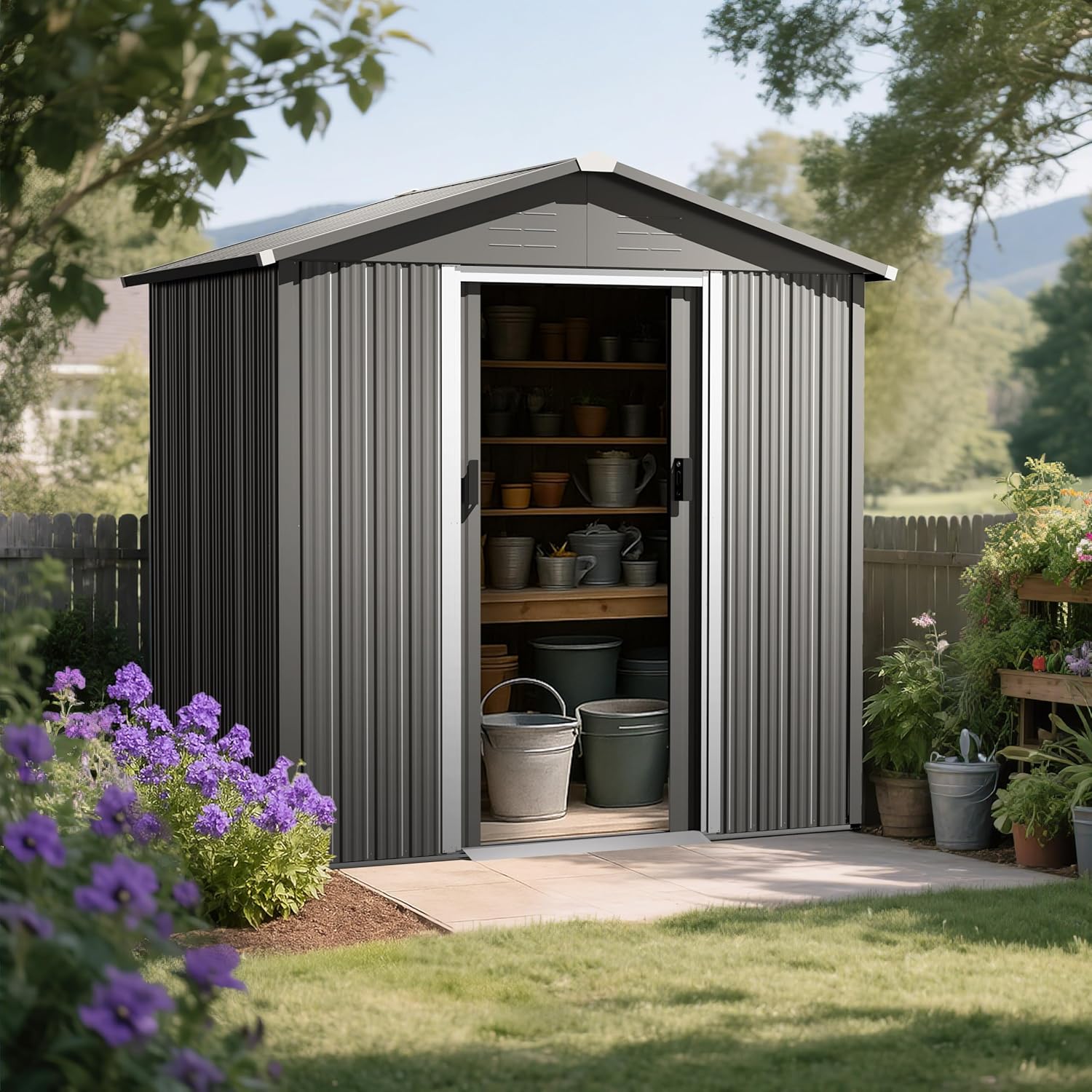

Image 1.1: The NUU GARDEN Outdoor Storage Shed, Model GS001-01, in a typical backyard environment.

2. Veiligheidsinligting

Please read and understand all safety warnings before beginning assembly or using the shed. Failure to follow these instructions may result in injury or damage to the product.

• Install on a solid, level surface to prevent structural instability.
• Secure the shed to the ground as instructed to avoid tipping in strong winds.
• Dra beskermende handskoene en veiligheidsbril tydens montering.
• Always have two or more people handle large panels and roof sections.
• Do not climb on the roof during or after installation.
• Hou kinders en troeteldiere weg van die bymekaarmaakarea.

3. Monteer-instruksies

Assembly requires two or more people. Ensure all parts are present and undamaged before starting. Refer to the detailed assembly video for visual guidance.

Key Assembly Details:

• Basisraamsamestelling: Begin by assembling the base frame on a level surface. Ensure all corner connections are secure.
• Muurpaneelinstallasie: Attach the wall panels to the frame, ensuring they are properly aligned and secured with the provided fasteners. Pay attention to the orientation of panels with air vents.
• Dakstruktuur: Assemble the roof support beams and then attach the roof panels. The sloped design aids in water runoff.
• Deur installasie: Install the sliding doors, ensuring they move freely along their tracks. Attach the lockable handles.
• Finale Bevestiging: Double-check all screws and bolts for tightness. Install protective caps on exposed screw ends inside the shed for safety.

Image 3.2: Thoughtful details for convenience, showing the corner protection cap, air vents design, lockable door handle, and sloped entryway.

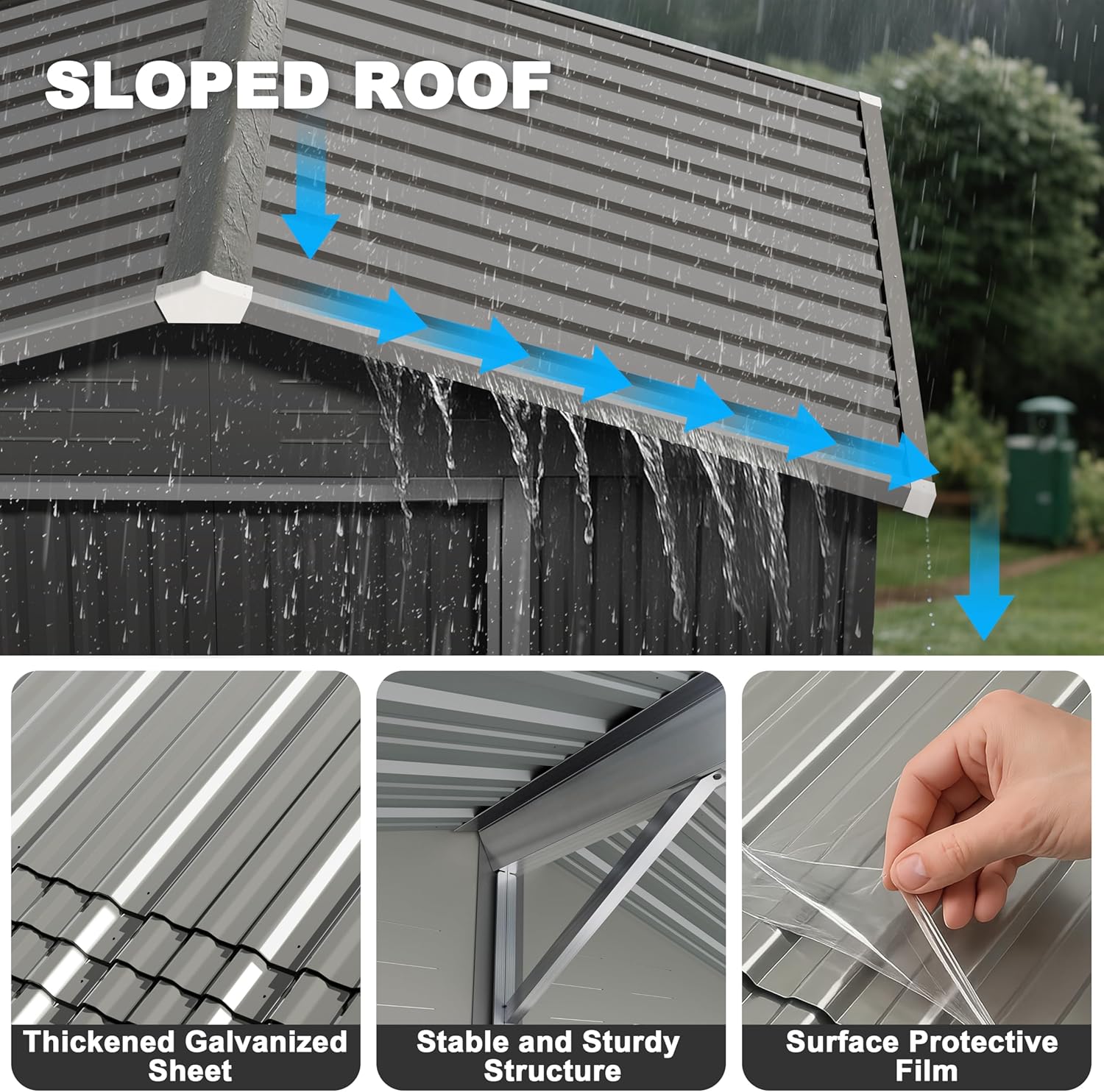

Image 3.3: Details of the sloped roof construction, highlighting the thickened galvanized sheet and stable structure.

4. Operasie

4.1 Skuifdeure

The shed features double sliding doors for easy access. To open, slide the doors along their tracks. To close, ensure the doors meet in the center and engage the locking mechanism for security. The sloped threshold facilitates moving items in and out.

4.2 Ventilasie

Integrated air vents are designed to maintain optimal air circulation within the shed, reducing condensation and keeping stored items dry. Ensure these vents are not obstructed by stored items or external debris.

4.3 Sekuriteit

The shed is equipped with lockable door handles. Use a padlock (not included) to secure your belongings. Regularly check the locking mechanism for proper function.

5. Onderhoud

Regular maintenance will extend the life of your NUU GARDEN storage shed.

• Skoonmaak: Clean the exterior and interior of the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the galvanized finish.
• Inspeksie: Annually inspect all fasteners (screws, bolts) for tightness and re-tighten as necessary. Check for any signs of rust or damage to panels and address them promptly.
• Deurspore: Keep the sliding door tracks clear of dirt, leaves, and other debris to ensure smooth operation. Lubricate tracks with a silicone-based spray if doors become stiff.
• Sneeuverwydering: In areas with heavy snowfall, regularly remove snow from the roof to prevent excessive weight buildup, which could compromise the roof structure.

6. Probleemoplossing

Hier is oplossings vir algemene probleme wat jy mag teëkom:

• Waterlekkasie: Ensure all roof and wall panels are correctly overlapped and all fasteners are tight. Check that the shed is installed on a level surface to prevent water pooling. Apply silicone sealant to any persistent gaps if necessary.
• Doors Sticking: Clean the door tracks thoroughly to remove any debris. Lubricate the tracks with a suitable lubricant (e.g., silicone spray). Check for any bent door panels or misaligned tracks and adjust if possible.
• Skuuronstabiliteit: Verify that the shed is securely anchored to the ground as per assembly instructions. Ensure all frame connections and panel fasteners are tightened.
• Difficulty Aligning Panels: During assembly, ensure the base frame is perfectly square and level. Do not fully tighten all fasteners until all panels are in place and aligned, allowing for minor adjustments.

7. Produkspesifikasies

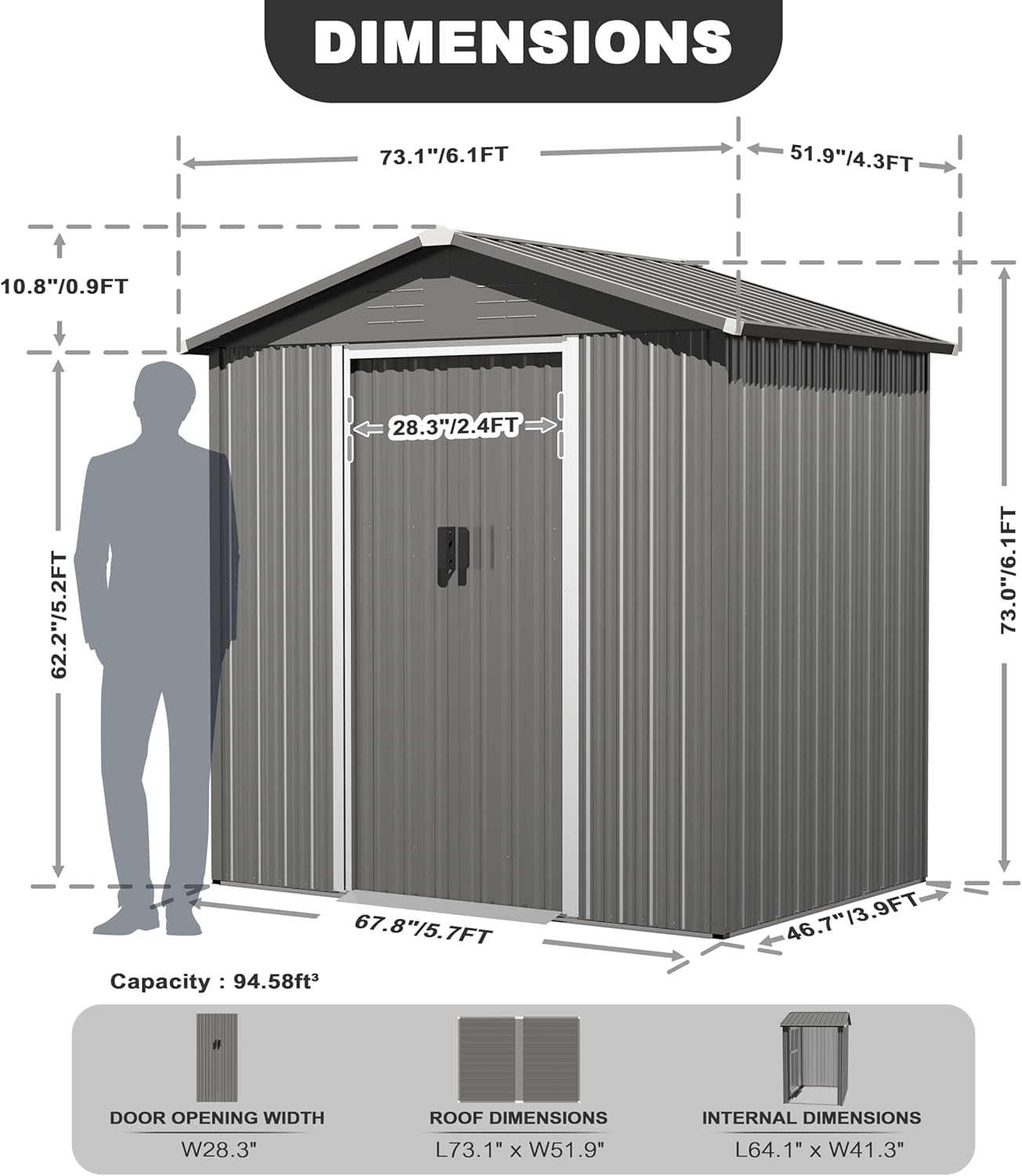

Image 7.1: Detailed dimensions of the NUU GARDEN Outdoor Storage Shed.

8. Waarborg en Kliëntediens

For warranty information, please refer to the documentation included with your purchase or contact NUU GARDEN customer support directly. If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact NUU GARDEN customer service. Contact details can typically be found on the product packaging or the official NUU GARDEN webwebwerf.
