THOMSON COSMO 500W Wi-Fi Connected Fluid-Free Electric Towel Dryer User Manual

1. Inleiding

Thank you for choosing the THOMSON COSMO 500W Wi-Fi Connected Fluid-Free Electric Towel Dryer. This appliance is designed to provide rapid and uniform heat, ensuring warm towels and a comfortable bathroom environment. Its elegant design and smart connectivity features offer both performance and convenience.

This manual provides essential information for the safe installation, operation, and maintenance of your new towel dryer. Please read it thoroughly before use and retain it for future reference.

2. Veiligheidsinstruksies

WAARSKUWING: Failure to follow these safety instructions may result in fire, electric shock, or injury.

• Lees alle instruksies voordat u hierdie toestel installeer of gebruik.
• Hierdie toestel is slegs bedoel vir huishoudelike gebruik. Moenie dit vir kommersiële of industriële doeleindes gebruik nie.
• Verseker die kragtoevoer voltage stem ooreen met die graderingsetiket op die toestel.
• Do not operate the appliance with a damaged cord or plug, or if it has malfunctioned or been dropped.
• Hou die kragsnoer weg van verhitte oppervlaktes.
• Moenie die toestel, koord of prop in water of ander vloeistowwe dompel nie.
• Ontkoppel altyd die toestel uit die kragpunt wanneer dit nie gebruik word nie en voor skoonmaak.
• Do not allow children to operate or play with the appliance. Close supervision is necessary when the appliance is used near children.
• Install the towel dryer in a location where it is not accessible to persons in the bath or shower.
• Ensure proper ventilation around the appliance. Do not cover the towel dryer.
• This appliance is equipped with overheat protection. If it overheats, it will automatically shut off.
• Installasie moet deur 'n gekwalifiseerde elektrisiën uitgevoer word in ooreenstemming met plaaslike bedradingsregulasies.

3. Produk verbyview

The THOMSON COSMO towel dryer features a sleek design and advanced fluid-free heating technology for rapid and even heat distribution. It includes a digital control panel and Wi-Fi connectivity for remote management.

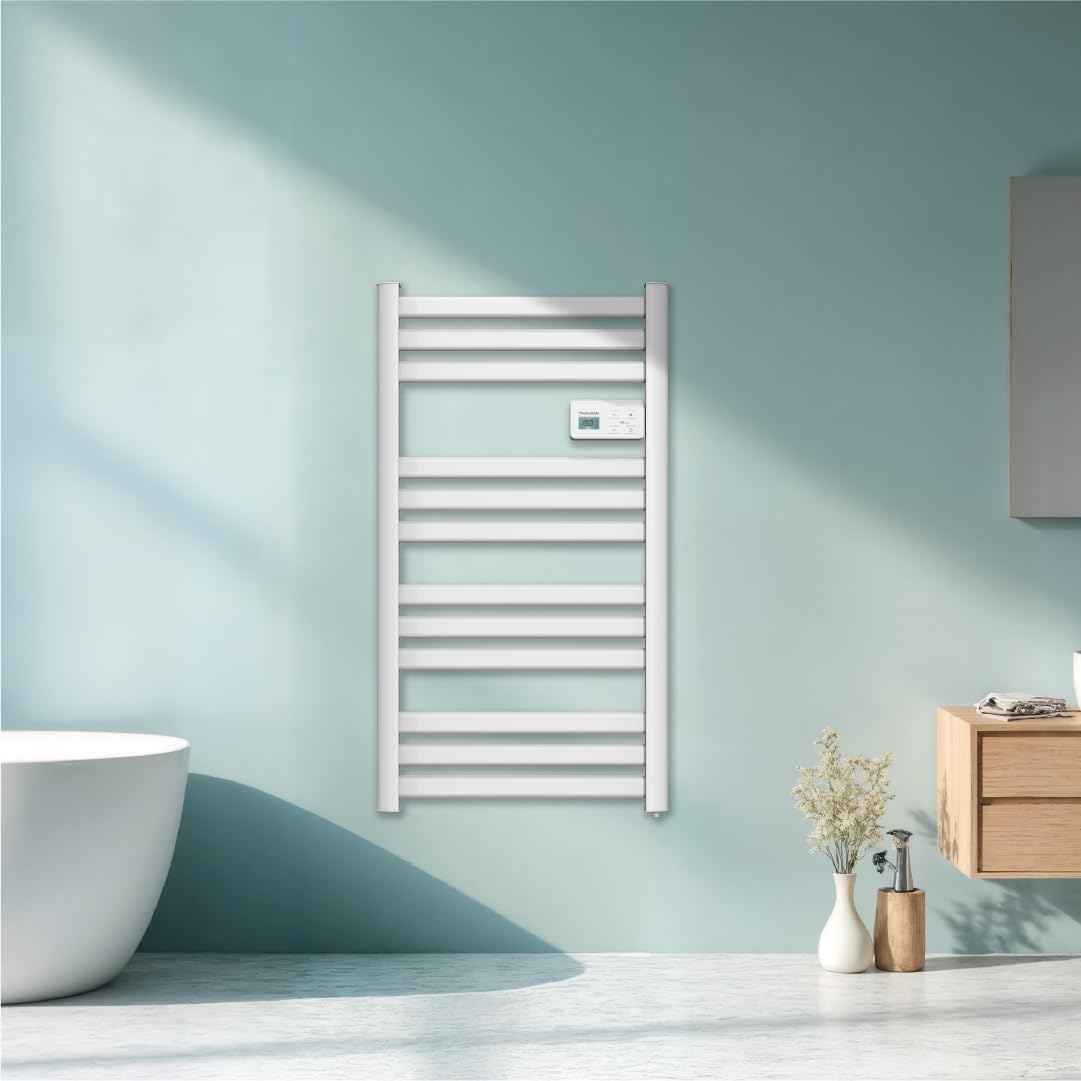

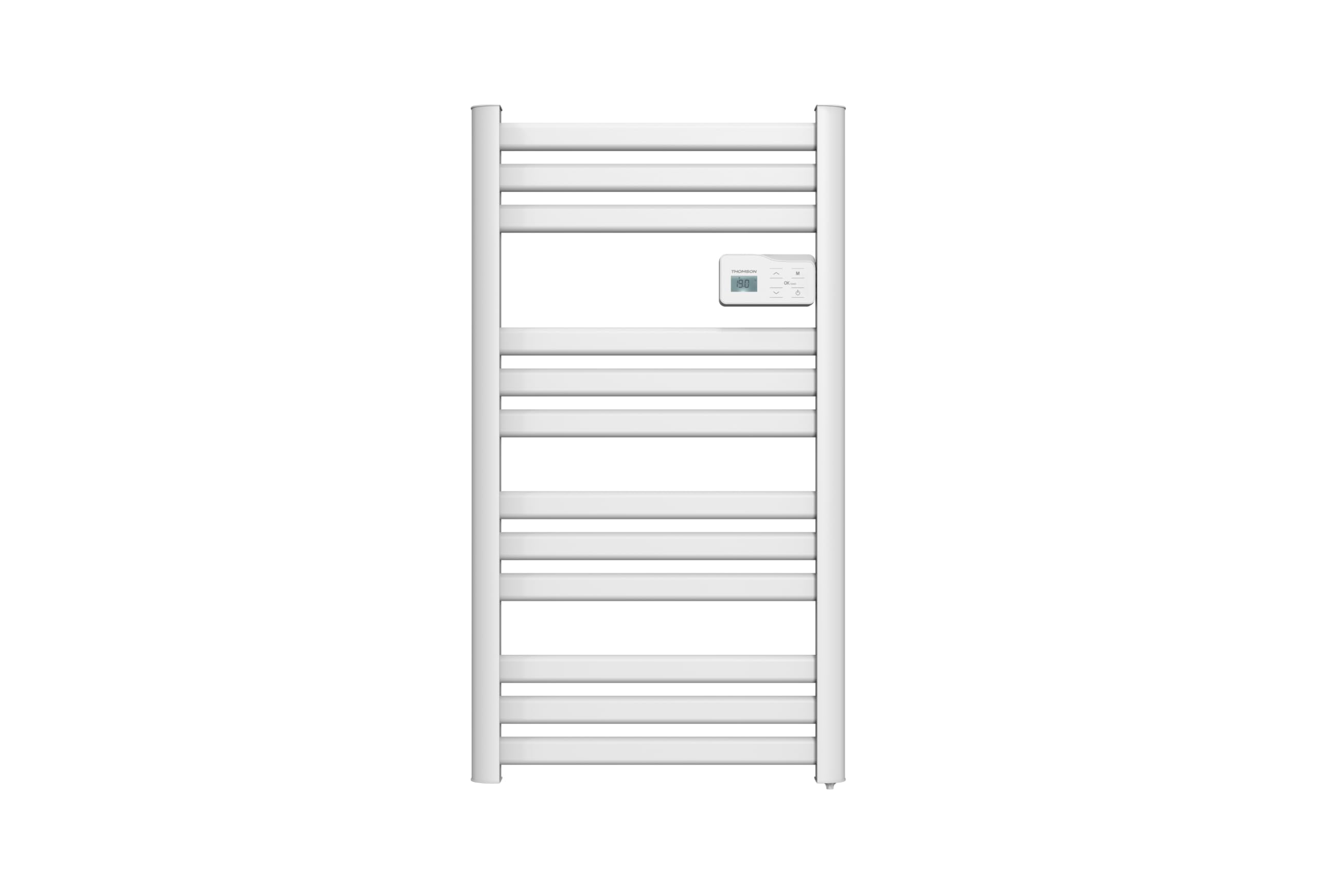

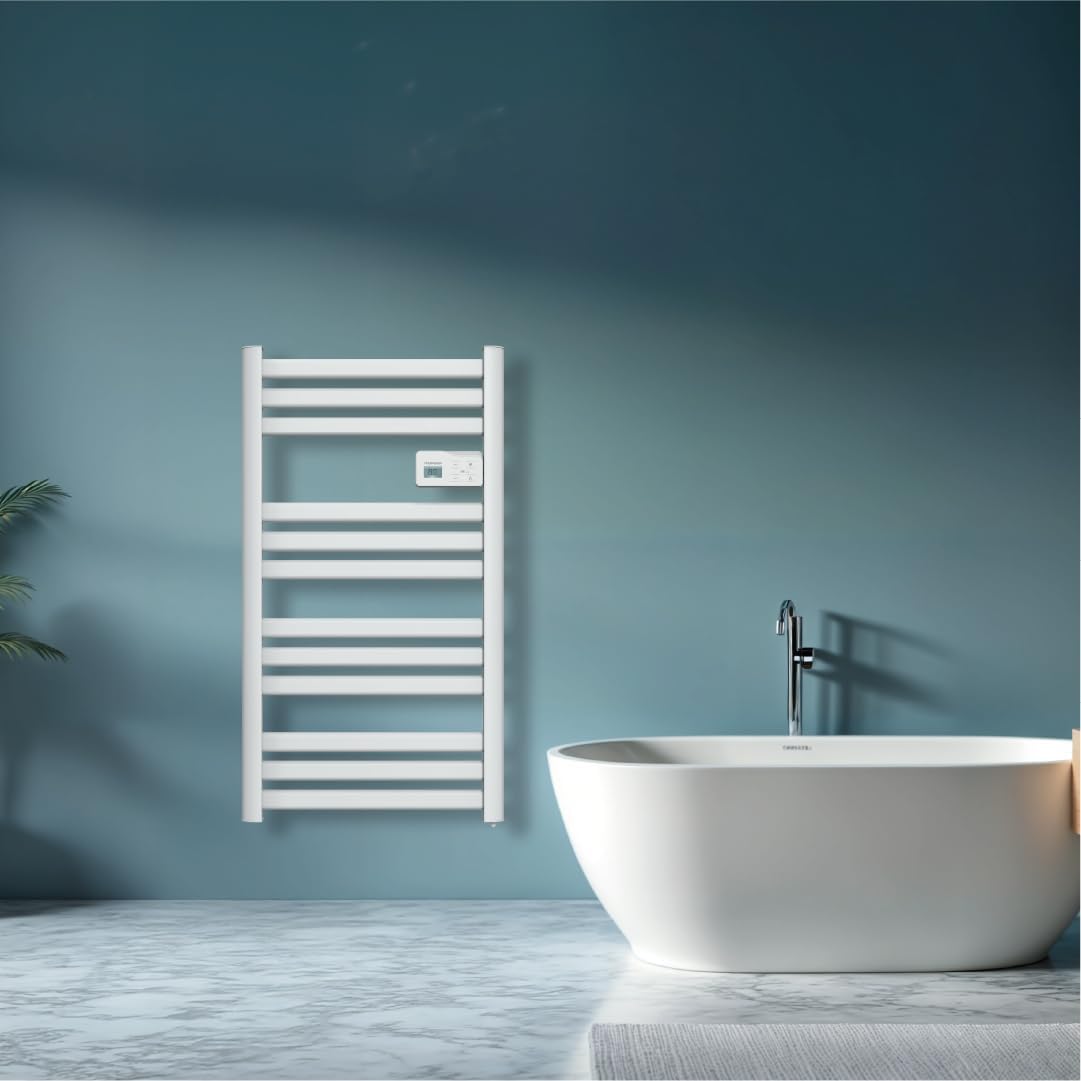

Prent: Voorkant view of the THOMSON COSMO electric towel dryer, white, wall-mounted, showcasing its design in a bathroom.

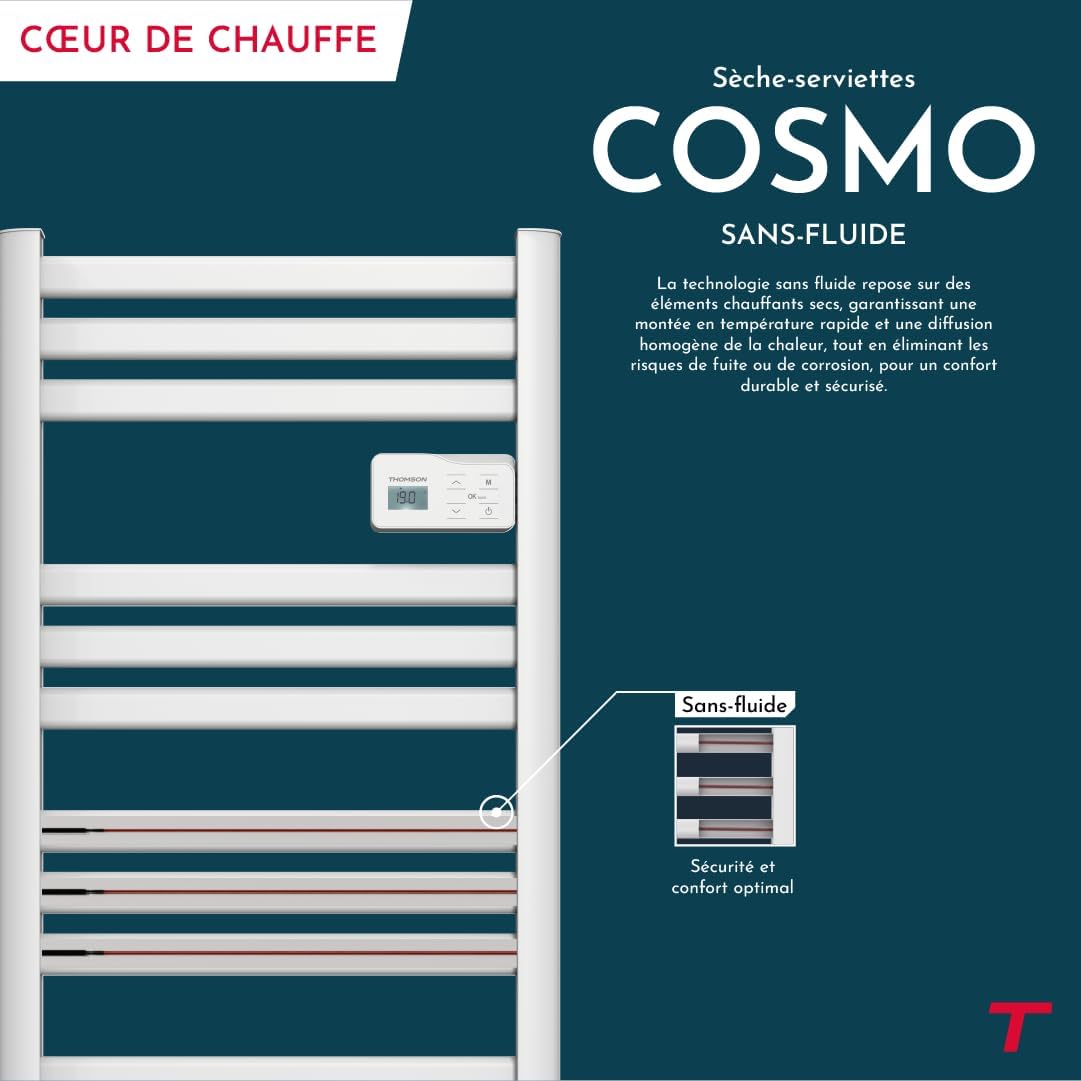

Prent: Diagram illustrating the internal fluid-free heating elements, highlighting rapid and homogeneous heat distribution and programmable thermostat.

Sleutel kenmerke:

• 500W krag: Efficient heating for towels and bathroom.
• Fluid-Free Technology: Ensures quick heat-up and uniform temperature across the surface.
• Wi-Fi konneksie: Compatible with Tuya Smart and Smart Life applications for remote control.
• Digitale beheerpaneel: Intuitive LCD display for direct temperature and mode adjustments.
• Programmeerbare termostaat: 7 daily pre-recorded and customizable programs.
• Venster oop opsporing: Automatically cuts heating to save energy if a sudden temperature drop is detected.
• Kinderslot: Voorkom onbedoelde veranderinge aan instellings.

4. Opstelling en installering

The THOMSON COSMO towel dryer is designed for wall-mounted installation. Professional installation is recommended.

4.1. Uitpak

• Carefully remove the towel dryer and all accessories from the packaging.
• Check for any damage during transit. If damaged, do not install and contact your retailer.
• Bewaar verpakking vir toekomstige vervoer of berging.

4.2. Monteerplek

• Choose a suitable wall in your bathroom, ensuring it is structurally sound to support the weight of the unit (approximately 3.9 kg).
• Ensure the location complies with local electrical safety regulations, especially regarding proximity to water sources (baths, showers, sinks).
• Maintain adequate clearance around the unit for air circulation and access.

Prent: Product dimensions and weight for installation planning.

4.3. Muurmontering

1. Mark the drilling points on the wall using the provided mounting template or by measuring the bracket positions.
2. Drill holes of appropriate size for the wall plugs (e.g., Molly anchors for plasterboard, as suggested by a user review).
3. Insert the wall plugs and secure the mounting brackets to the wall.
4. Carefully hang the towel dryer onto the secured brackets.
5. Ensure the unit is level and securely fastened to the wall.

4.4. Elektriese aansluiting

• The appliance connects via an electrical cable. Ensure the power supply is switched off at the main circuit breaker before making any connections.
• Connect the towel dryer to a suitable electrical outlet or junction box according to local electrical codes.
• Once connected, switch on the power supply.

5. Bedryfsinstruksies

The THOMSON COSMO towel dryer features an intuitive digital control panel for easy operation.

Prent: Digital control panel with LCD display and buttons for temperature adjustment and mode selection, shown with a hand pressing the power button.

5.1. Beheerpaneel verbyview

• LCD-skerm: Shows current temperature, mode, and other settings.
• Kragknoppie (⏻): Skakel die eenheid AAN/UIT.
• Up/Down Arrows (⌃ / ⌄): Adjust temperature settings or navigate menus.
• Modusknoppie (M): Cycles through different operating modes (e.g., Comfort, Eco, Boost, Program).
• Menu/Confirm Button (≡): Accesses menu options or confirms selections.

5.2. Basiese werking

1. Krag AAN/AF: Druk die aan / af-knoppie (⏻) to turn the towel dryer on or off.
2. Stel temperatuur: When the unit is on, use the Up/Down arrows (⌃ / ⌄) to adjust the desired temperature. The display will show the set temperature.
3. Verander modus: Press the Mode button (M) to cycle through available operating modes. Refer to the full product manual for detailed descriptions of each mode (e.g., Comfort, Eco, Boost, Frost Protection).

5.3. Programmering

The towel dryer offers 7 daily pre-recorded and customizable programs. Access the programming menu via the Menu/Confirm button (≡) and follow the on-screen instructions to set your desired heating schedules.

For a visual guide on programming, you can refer to the official video tutorial playlist:

6. Wi-Fi Connectivity & Smart Features

The THOMSON COSMO towel dryer can be controlled remotely via Wi-Fi using the Tuya Smart or Smart Life mobile applications.

Prent: A graphic indicating the towel dryer's Wi-Fi connectivity and compatibility with the Tuya Smart application.

6.1. App-installasie en -paring

1. Download the "Tuya Smart" or "Smart Life" app from your smartphone's app store (Google Play Store for Android, Apple App Store for iOS).
2. Registreer of meld by u rekening aan.
3. Ensure your towel dryer is powered on and your smartphone is connected to a 2.4 GHz Wi-Fi network.
4. Tik in die toepassing op "Voeg toestel by" of die "+"-ikoon.
5. Select the appropriate device category (e.g., "Heater" or "Towel Warmer").
6. Follow the in-app instructions to put your towel dryer into pairing mode (usually by pressing and holding a button on the control panel until an indicator light flashes).
7. Complete the pairing process within the app.

6.2. Remote Control Features

Once connected, you can use the app to:

• Turn the towel dryer ON/OFF.
• Pas die temperatuur aan.
• Verander bedryfsmodusse.
• Set and customize heating schedules.
• Monitor energy consumption (if supported by the app and device).

Prent: The Tuya Smart app interface demonstrating energy monitoring and scheduling features for connected devices.

6.3. Stembeheerintegrasie

The THOMSON COSMO towel dryer is compatible with voice assistants like Amazon Alexa and Google Home via the Tuya Smart/Smart Life app integration.

Prent: Logos of Amazon Alexa and Google Home, signifying that the towel dryer can be controlled using voice commands through these platforms.

1. Enable the "Tuya Smart" or "Smart Life" skill/service in your Alexa or Google Home app.
2. Koppel jou Tuya/Smart Life-rekening met jou stemassistent-rekening.
3. Discover devices. Your towel dryer should appear as a controllable device.
4. Jy kan nou stemopdragte soos die volgende gebruik:
   • "Alexa, turn on the bathroom heater."
   • "Hey Google, set the bathroom heater to 22 degrees."

7. Onderhoud

Regular maintenance ensures the longevity and efficient operation of your THOMSON COSMO towel dryer.

7.1. Skoonmaak

• Ontkoppel altyd die toestel en laat dit heeltemal afkoel voordat dit skoongemaak word.
• Vee die buite-oppervlaktes af met 'n sagte, damp lap. Moenie skuurmiddels, oplosmiddels of harde chemikalieë gebruik nie, aangesien dit die afwerking kan beskadig.
• Maak seker dat geen water die beheerpaneel of elektriese komponente binnedring nie.
• Do not use water jets or immerse the appliance in water.

7.2. Berging

If storing the towel dryer for an extended period, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging to protect it from dust and damage.

8. Probleemoplossing

If you encounter issues with your THOMSON COSMO towel dryer, refer to the following common problems and solutions:

Indien die probleem voortduur nadat u hierdie oplossings probeer het, kontak asseblief kliëntediens.

9. Spesifikasies

10. Waarborg en Ondersteuning

10.1. Waarborginligting

Your THOMSON COSMO towel dryer comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.

10.2. Kliëntediens

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your retailer or the manufacturer's customer service. Contact details can typically be found on the product packaging or the manufacturer's official webwebwerf.

Aanlyn hulpbronne: For additional support and video tutorials, visit the official THOMSON website or the YouTube playlist provided in this manual.
