Inleiding
This manual provides instructions for the safe and efficient use of your Ledvion Rechargeable LED Table Lamp. Hierdie lamp features a dimmable LED light with adjustable color temperature (2700K-5000K), a 3600mAh rechargeable battery, and intuitive touch control. Please read this manual thoroughly before use and retain it for future reference.
The Ledvion Rechargeable LED Table Lamp, designed for versatile indoor use.
Wat is in die boks
Carefully unpack the contents and ensure all items are present and undamaged. If any items are missing or damaged, please contact customer support.
- Ledvion Rechargeable LED Table Lamp
- USB-C-laaikabel (100 cm)
- Gebruikershandleiding
Illustrasie van die items wat in die produkverpakking ingesluit is.
Opstelling
- Pak uit: Verwyder die lamp en alle bykomstighede uit die verpakking.
- Aanvanklike heffing: Voor die eerste gebruik, laai die l volledigamp. Connect the USB-C cable to the lamp's charging port and the other end to a compatible USB power adapter (not included). The charging indicator light will show the charging status.
- Plasing: Plaas die lamp on a stable, flat surface. Ensure it is not exposed to direct sunlight or extreme temperatures.
Bedryfsinstruksies
The Ledvion table lamp features intuitive touch control located on its base.

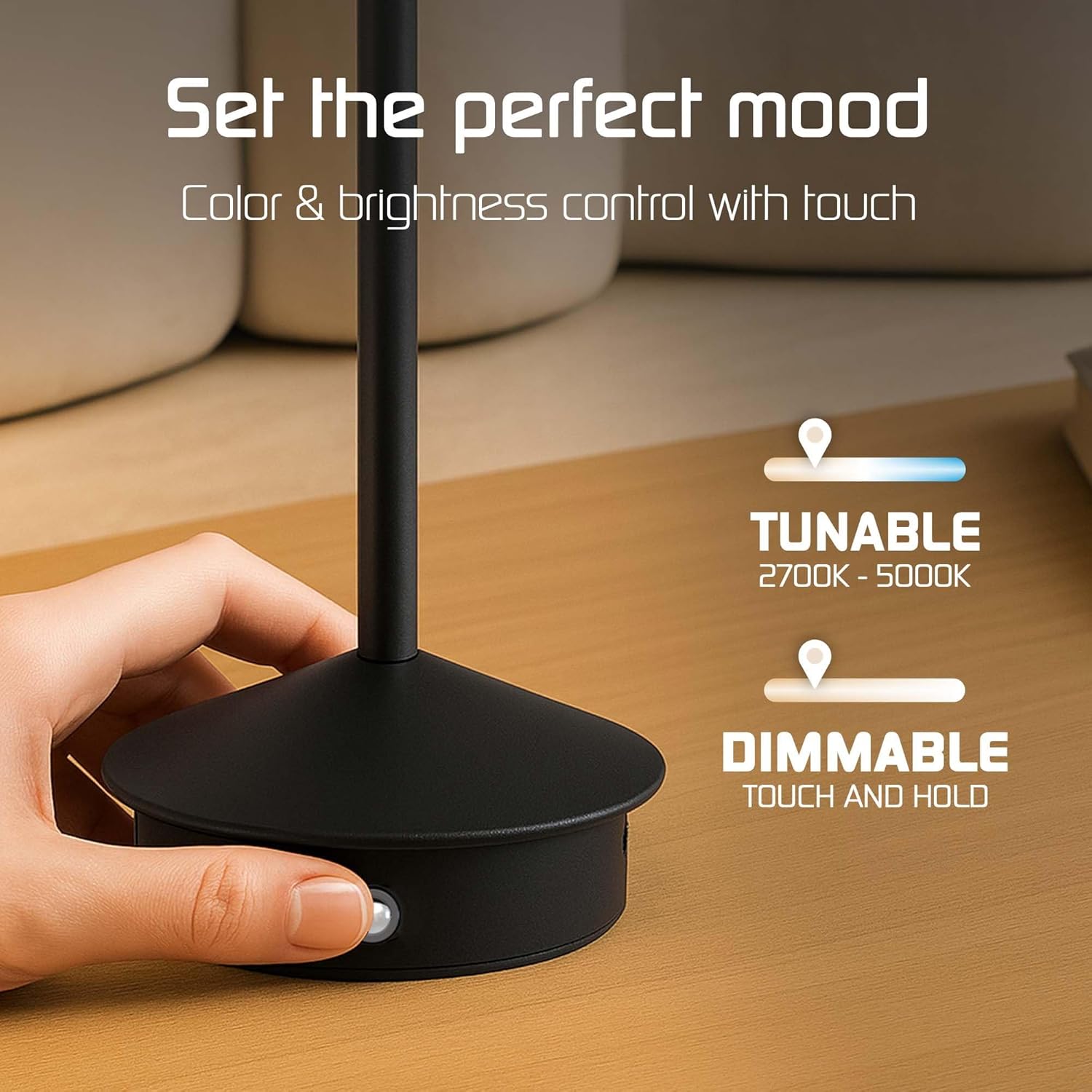

Die lamp's base features a touch-sensitive area for controlling light settings.
- Krag aan/af: Lightly tap the touch control area once to turn the lamp aan of af.
- Pas Helderheid aan (Verduistering): Wanneer die lamp is on, press and hold the touch control area to smoothly adjust the brightness level. Release when the desired brightness is reached.
- Verander kleurtemperatuur: Met die lamp on, tap the touch control area repeatedly to cycle through the available color temperatures:
- Warm Wit (2700K)
- Neutraal wit (4000K)
- Koelwit (5000K)

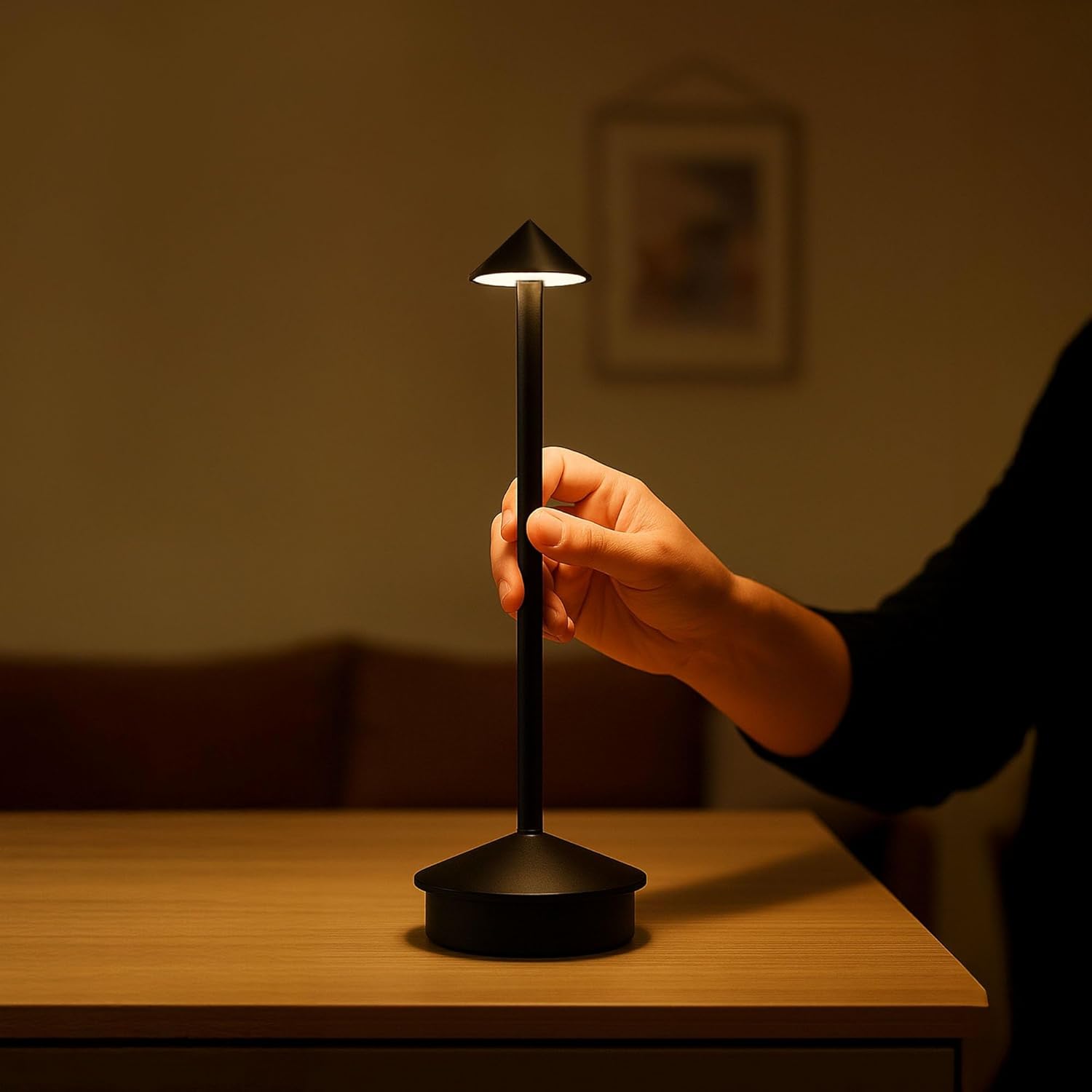

Die lamp's compact design allows for easy handling and placement.
Laai die battery
Die lamp is equipped with a 3600mAh rechargeable battery, providing up to 16 hours of operation depending on brightness settings. A USB-C port is located on the base for convenient charging.
The USB-C charging port is located on the side of the lampse basis.
- Koppel: Insert the USB-C end of the provided cable into the lamp's charging port. Connect the standard USB-A end to a USB power source (e.g., wall adapter, computer USB port).
- Laai aanwyser: A small indicator light near the charging port will illuminate during charging. It typically turns off or changes color when fully charged.
- Laai tyd: 'n Volle laai neem ongeveer 6 uur.
- Batterylewe:
- 100% Brightness: Approximately 10 hours
- 75% Brightness: Approximately 13 hours
- 50% Brightness: Approximately 16 hours
Onderhoud
- Skoonmaak: Ontkoppel die lamp from any power source before cleaning. Use a soft, dry cloth to wipe the lampse oppervlak. Moenie skuurmiddels, oplosmiddels of harde chemikalieë gebruik nie.
- Berging: As die lamp for an extended period, ensure it is fully charged and store it in a cool, dry place. Recharge every 3-6 months to maintain battery health.
- Batterysorg: Do not attempt to replace the internal battery. Do not expose the lamp tot uiterste hitte of koue.
Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Lamp skakel nie aan nie. | Battery is leeg. | Laai die lamp met behulp van die meegeleverde USB-C-kabel. |
| Lamp hef nie. | Cable or power adapter issue; charging port obstruction. | Ensure the USB-C cable is securely connected. Try a different USB power adapter. Check the charging port for debris. |
| Helderheid of kleurtemperatuur kan nie aangepas word nie. | Incorrect touch control method. | For brightness, press and hold. For color temperature, tap repeatedly. |
| Kort batterylewe. | Lamp used at high brightness; battery not fully charged. | Reduce brightness for longer battery life. Ensure the lamp is ten volle gelaai voor gebruik. |
Spesifikasies
| Kenmerk | Detail |
|---|---|
| Modelnommer | LV10130 |
| Ligbron | LED |
| Lumen Uitset | 40 Lumen (for this variant) |
| Kleur temperatuur | 2700K - 5000K (Dimmable) |
| Battery kapasiteit | 3600mAh |
| Laaipoort | USB-C |
| Laai tyd | Ongeveer. 6 uur |
| Bedryfstyd | Up to 16 hours (depending on brightness) |
| Tipe beheer | Raak Beheer |
| Materiaal | ABS, Iron (Base Material: Metal, Shade Material: ABS) |
| Kleur | Mat Swart |
| Afmetings (D x B x H) | 11P x 11l x 30H cm (11cm x 11cm x 30cm) |
| Gewig | 300 gram |
| IP-gradering | IP20 (Indoor use only, not protected against water) |
| Krag | 1 watt |
| Voltage | 230 Volt (Input for charging adapter, lamp operates on battery) |
| Koordloos | Ja |

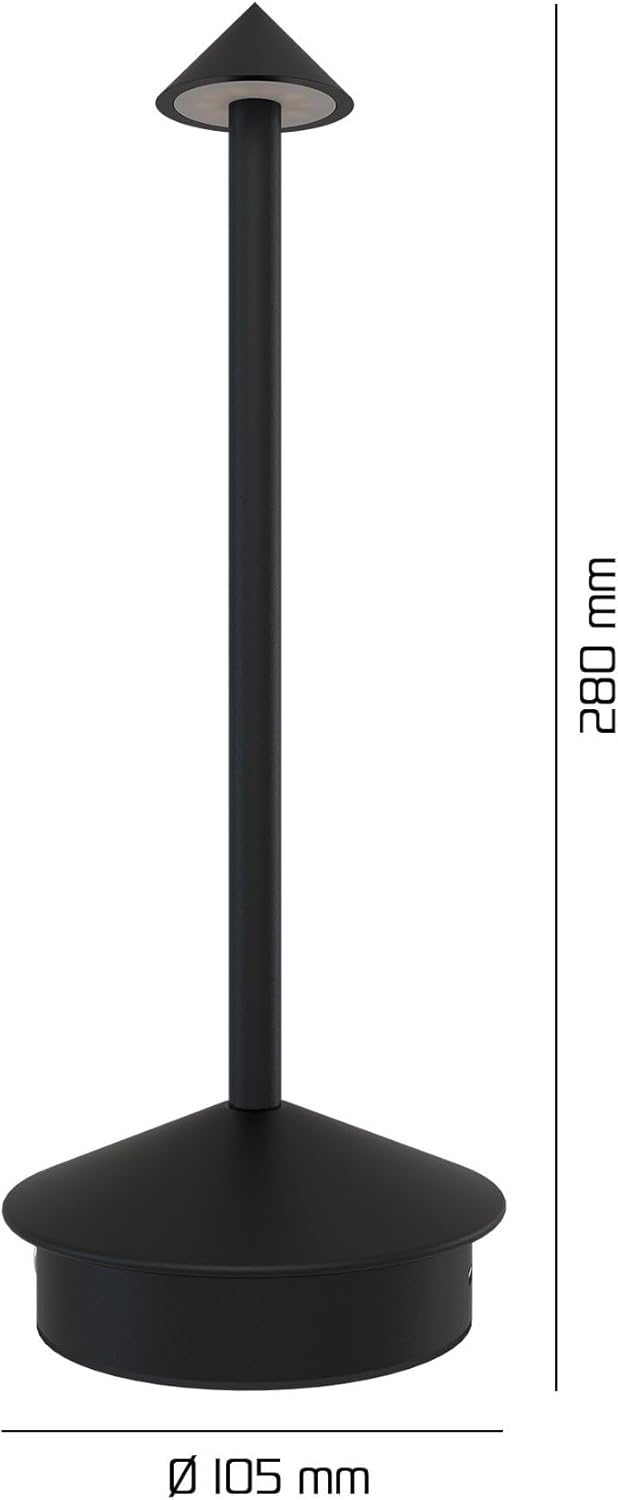

Dimensional diagram of the Ledvion Rechargeable LED Table Lamp.
Waarborg en Ondersteuning
For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official Ledvion webwebwerf. Bewaar u bewys van aankoop vir waarborgeise.
Vervaardiger: Ledvion
