DIYtoolifz Cordless Tire Inflator Air Compressor (150 PSI) User Manual

1. Inleiding

This manual provides instructions for the DIYtoolifz 150 PSI Cordless Tire Inflator Air Compressor. Designed for portability and ease of use, this tool is compatible with Dewalt 20V lithium-ion batteries (battery not included). It features a digital pressure gauge, automatic shut-off, and a multi-mode LED light for various inflation needs and emergency situations.

2. Veiligheidsinligting

Always read and understand all safety warnings and instructions before operating this device. Failure to follow warnings and instructions may result in electric shock, fire, and/or serious injury.

• This product is a bare tool; battery and charger are sold separately.
• Moenie in plofbare atmosfeer werk nie, soos in die teenwoordigheid van vlambare vloeistowwe, gasse of stof.
• Keep children and bystanders away while operating the inflator.
• Always wear eye protection when operating the inflator.
• Do not over-inflate. Follow recommended pressure levels for items being inflated.
• Disconnect the battery pack from the inflator before making any adjustments, changing accessories, or storing the tool.

3. Pakketinhoud

Verifieer dat al die items wat hieronder gelys word, in jou pakket ingesluit is:

• 1 x Cordless Tire Inflator (Tool Only)
• 1 x lugslang
• 1 x Air Nozzle (Tapered)
• 1 x Balnaald
• 1 x French Valve Adapter (Presta)
• 1 x Gebruikershandleiding

Image: The package contents laid out, showing the cordless tire inflator, air hose, tapered air nozzle, ball needle, French valve adapter, and user manual.

4. Produk verbyview

4.1. Sleutel kenmerke

• Batteryversoenbaarheid: Works with Dewalt 18V/20V lithium-ion batteries (DCB206, DCB205, DCB204, DCB203, DCB200, etc.).
• Digitale drukmeter: Large LCD display shows real-time and preset pressure.
• Outomatiese afskakeling: Stops inflation once preset pressure is reached.
• 5 Inflasiemodusse: Car, Motorcycle, Bicycle, Ball, and Custom (0-150 PSI adjustable).
• 3-in-1 LED Light: Bright white LED, steady red warning light, and red SOS strobe.
• All-Metal Cylinder: Ensures durability and reliable performance.

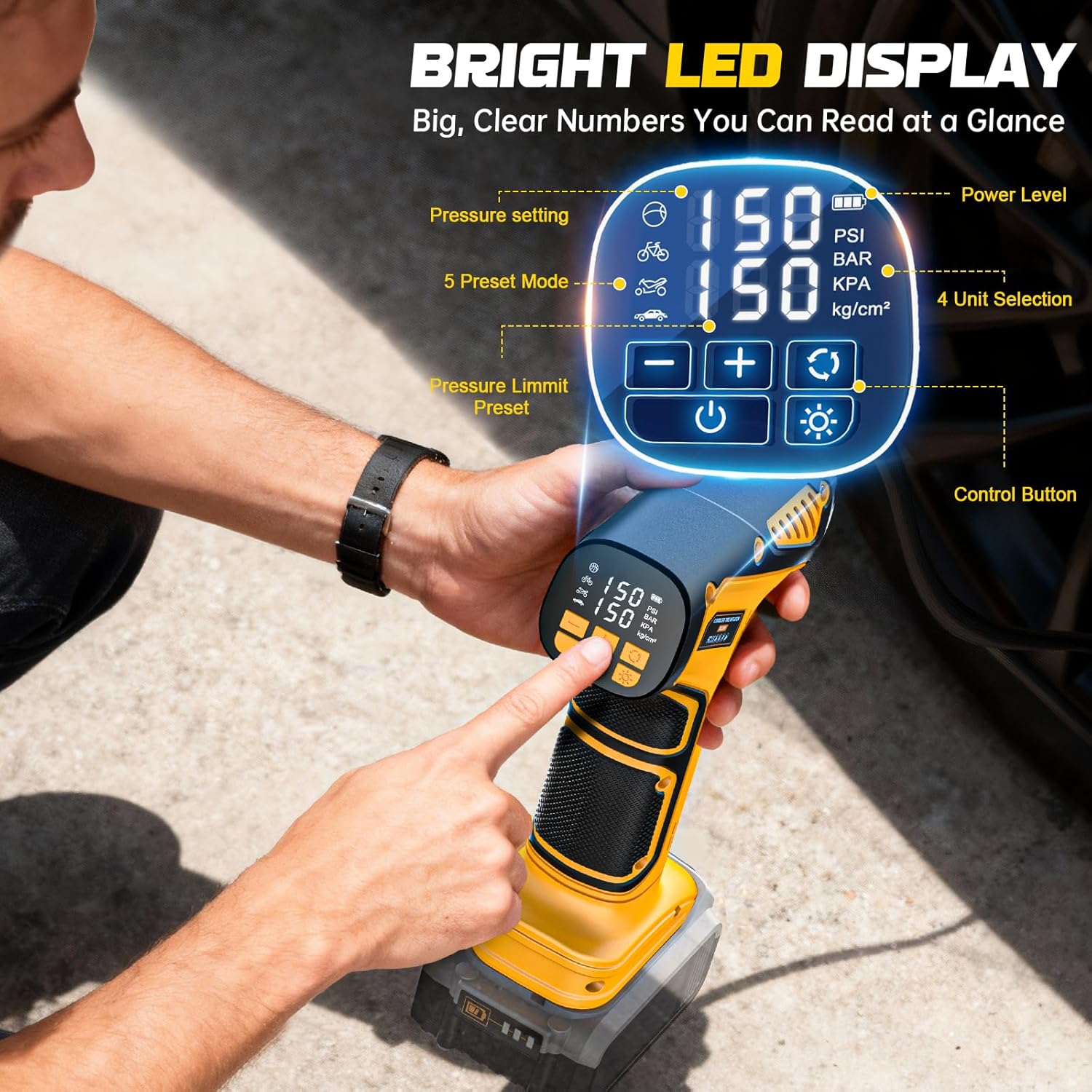

Image: The inflator's digital display, highlighting the pressure setting, 5 preset modes, power level, and 4 unit selection options (PSI, BAR, KPA, Kg/cm²).

Image: The inflator shown with different Dewalt 20V battery models (DCB201, DCB203, DCB204, DCB208, DCB200), emphasizing that the battery is not included.

5. Opstelling

5.1. Die battery aanheg

Insert a charged Dewalt 18V/20V lithium-ion battery into the battery port at the base of the inflator until it clicks securely into place. Ensure the battery is fully seated.

5.2. Attaching the Air Hose and Nozzles

The main air hose is pre-attached. For specific inflation needs, select the appropriate nozzle from the included accessories:

• Schrader Valve (Pre-attached): For car, motorcycle, and most bicycle tires.
• French Valve Adapter (Presta): For bicycles with Presta valves. Screw onto the Schrader valve.
• Balnaald: For sports balls. Screw onto the Schrader valve.
• Tapered Air Nozzle: For inflatable toys, air mattresses, etc. Push onto the Schrader valve.

Image: An illustration showing the different types of nozzles and adapters included, such as the car tire nozzle, French valve adapter, air nozzle, and ball needle, for various inflation applications.

6. Bedryfsinstruksies

6.1. Skakel aan/af

Druk en hou die kragknoppie (⏻) for 3 seconds to turn the inflator ON. The LCD screen will illuminate. To turn OFF, press and hold the power button again.

6.2. Setting Desired Pressure and Units

Once powered on, the LCD will display the current pressure and the last set target pressure. Use the '+' and '-' buttons to adjust the target pressure. Press the unit button (EENHEID) to cycle through pressure units: PSI, BAR, kPa, and Kg/cm².

Beeld: 'n Duidelike view of the inflator's control panel with buttons for power, unit selection, and pressure adjustment, along with the digital display.

6.3. Selecting Inflation Modes

Druk die modusknoppie (MODUS) to cycle through the 5 preset inflation modes:

• Motormodus: Typically 20-80 PSI.
• Motorfietsmodus: Typically 20-60 PSI.
• Fietsmodus: Typically 20-145 PSI.
• Balmodus: Typically 4-16 PSI.
• Gepasmaakte modus: Adjustable from 0-150 PSI.

Image: Visual representation of the five inflation modes (Car, Motorcycle, Bicycle, Ball, Custom) and their respective pressure ranges.

6.4. Inflation Process (Automatic Shut-Off)

Connect the air hose securely to the item you wish to inflate. Once the desired pressure is set, press the start button (BEGIN). The inflator will begin pumping and automatically stop when the target pressure is reached, preventing over-inflation.

Image: The inflator actively inflating a tire, with a graphic indicating the "Auto Stop" function when the preset pressure is achieved.

6.5. Using the 3-in-1 LED Light

Druk die ligknoppie (💡) to activate the LED light. Cycle through the modes with successive presses:

• Bright White LED: For illuminating the work area.
• Steady Red Warning Light: For roadside visibility.
• Red SOS Strobe: Vir noodsein.

Image: The inflator's LED light in action, showing its three modes: a bright white light for illumination, a steady red warning light, and a flashing red SOS light for emergencies.

7. Onderhoud

• Keep the inflator clean and free of dust and debris.
• Store the inflator and accessories in a dry place away from direct sunlight and extreme temperatures.
• Regularly check the air hose and nozzles for any signs of wear or damage. Replace if necessary.
• Maak seker dat die batterykontakte skoon is.

8. Probleemoplossing

9. Spesifikasies

10. Waarborg en Ondersteuning

For warranty information or technical support, please contact DIYtoolifz customer service at support@diytolifz.com. Please provide your product model number and purchase date when contacting support.
