CORBOBO LEOBOG AMG65 Wireless Mechanical Keyboard User Manual

1. Inleiding

Thank you for choosing the CORBOBO LEOBOG AMG65 Wireless Mechanical Keyboard. This keyboard is designed for versatility and performance, featuring a 65% compact layout, dual smart screens, hot-swappable switches, and multi-mode connectivity. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal use of your device.

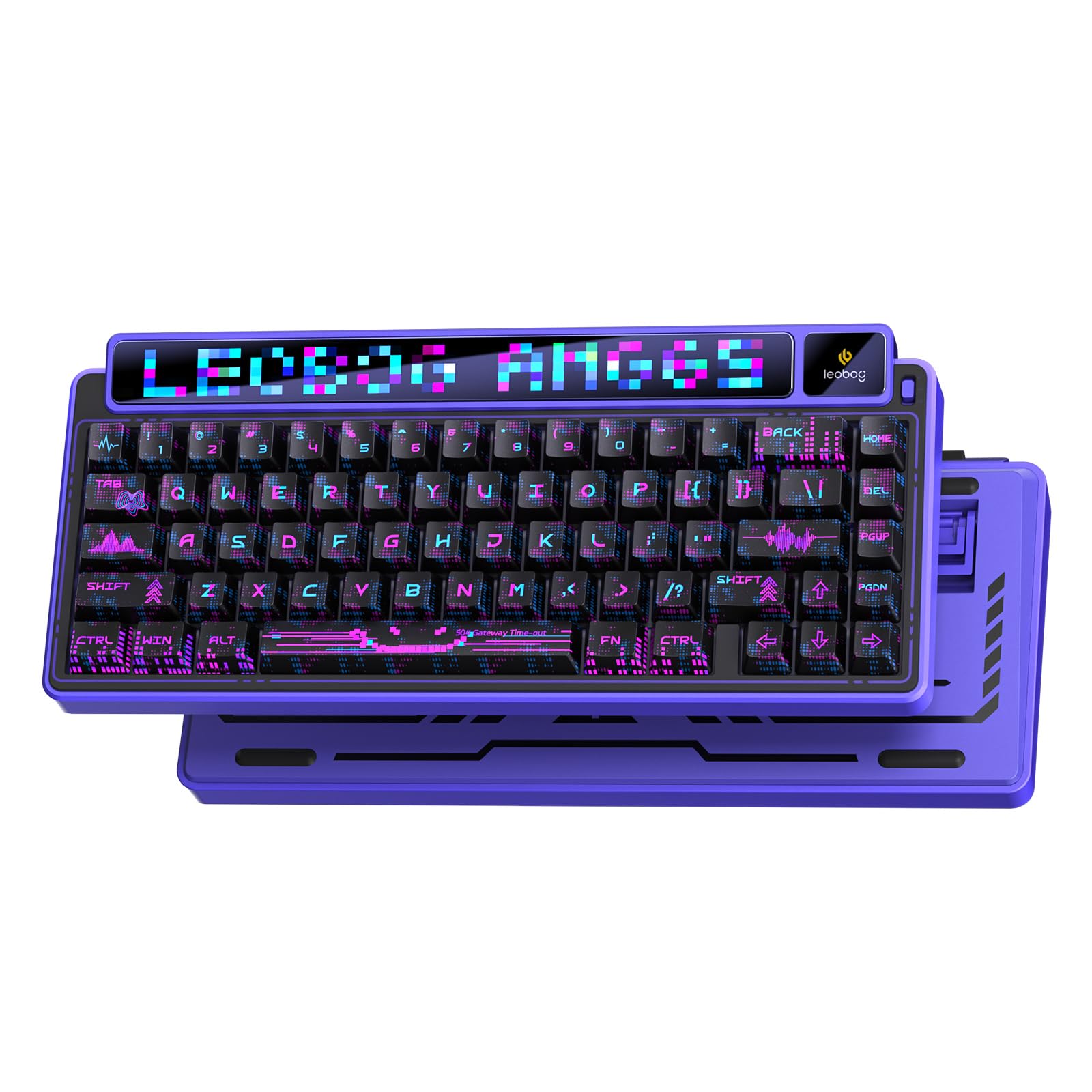

Image 1: The LEOBOG AMG65 Wireless Mechanical Keyboard, showcasing its compact design and dual screens.

2. Pakketinhoud

Verifieer asseblief dat alle items in u pakket teenwoordig is:

• Sleutelbord x 1
• Gebruikershandleiding x 1
• USB-C-kabel x 1
• Sleutelkaptrekker x 1
• Extra Leobog Switches x 2

3. Opstelling

3.1 Aanvanklike laai

Before first use, it is recommended to fully charge the keyboard. Connect the provided USB-C cable to the keyboard's USB-C port and to a power source (e.g., computer USB port or wall adapter). The keyboard features an 8000mAh battery, providing extended usage time.

3.2 Verbindingsmodusse

The LEOBOG AMG65 keyboard supports three connection modes: 2.4GHz wireless, Bluetooth (BT5.0), and wired (USB-C). You can switch between these modes using the dedicated switch on the keyboard.

Image 2: The keyboard supports 2.4G wireless, Bluetooth, and USB-C wired connections across various devices and operating systems.

3.2.1 2.4GHz Draadlose Verbinding

1. Vind die 2.4GHz USB-ontvanger.
2. Koppel die ontvanger in 'n beskikbare USB-poort op jou rekenaar.
3. Switch the keyboard to 2.4GHz mode using the mode switch. The keyboard will automatically connect.

3.2.2 Bluetooth-verbinding

1. Skakel die sleutelbord na Bluetooth-modus met die modusskakelaar.
2. On your device (PC, laptop, smartphone, tablet), enable Bluetooth and search for new devices.
3. Select "LEOBOG AMG65" from the list of available devices to pair. The keyboard can save up to 5 different Bluetooth devices.

3.2.3 Bedrade verbinding

1. Koppel die meegeleverde USB-C-kabel aan die sleutelbord se USB-C-poort.
2. Connect the other end of the USB-C cable to your computer's USB port.
3. Die sleutelbord sal outomaties na bedrade modus oorskakel en begin laai.

4. Operasie

4.1 Smart Dot Matrix LED Screen

The 6.9-inch dot matrix LED screen displays custom animations and can be modified via software or web drivers. It supports 315 different RGB dot matrix displays. During use, it can display sound effect rhythms by intelligently recognizing computer sound information in real-time.

Image 3: The keyboard's dual screens, including the larger dot matrix LED screen for custom animations.

4.2 1.14-inch TFT Smart Screen

The 1.14-inch smart display automatically shows the date, time, connection mode, and battery level. It functions as a multimedia control center, allowing adjustments to keyboard lighting effects, language settings, and computer volume using shortcut keys. GIF animations can be uploaded to customize the interface. Let wel: The screen time needs to be calibrated via the driver software.

4.3 RGB-agterbeligtingsbeheer

The keyboard features 16.8 million colors for personalized RGB backlighting. Lighting effects can be quickly switched using shortcut keys. The RGB lighting can also follow the rhythm of computer music via the driver software.

Image 4: Control RGB backlighting and TFT screen settings using dedicated function key combinations.

• FN + BACK: Turn on/off the TFT screen.
• FN + ENTER: Enter/Confirm and exit options within the TFT screen.
• FN + Left/Right Arrow: Switch to select options within the TFT screen.
• FN + SHIFT: Switch dot matrix screen lighting effects.

4.4 Hot-Swappable Switches and PBT Keycaps

The keyboard is equipped with pre-lubed LEOBOG linear switches and a full-key hot-swappable design, allowing users to easily replace 3-pin/5-pin mechanical switches for customization. The two-color injection-molded PBT keycaps are wear-resistant, ensuring character longevity.

Image 5: Detail of the hot-swappable switch sockets and durable PBT keycaps.

4.5 Programmable Driver

The 65% 68-key layout supports full-key macro programming through dedicated software or web-based drivers. This allows for deep customization of key functions and lighting. Let wel: Driver settings are only supported on Windows systems and require a wired connection for operation. Driver download: bit.ly/m/AULA

Image 6: The software driver interface for advanced customization of keyboard functions and lighting effects.

5. Produkvideo's

5.1 Leobog AMG65 Mechanical Keyboard Overview

6. Onderhoud

6.1 Skoonmaak

To maintain the keyboard's appearance and functionality, regularly clean it with a soft, dry cloth. For deeper cleaning, use a can of compressed air to remove dust and debris from between the keycaps. Avoid using harsh chemicals or abrasive materials.

6.2 Vervanging van sleuteldop en skakelaar

The hot-swappable design allows for easy replacement of keycaps and switches. Use the provided keycap puller to carefully remove keycaps. For switches, use a switch puller (not included unless specified) to gently extract them. Ensure proper alignment when inserting new switches to avoid bending pins.

7. Probleemoplossing

• Sleutelbord reageer nie: Ensure the keyboard is charged. Check the connection mode (2.4GHz, Bluetooth, or wired) and ensure it matches your device's connection. For wired mode, try a different USB port or cable.
• Bluetooth-verbindingsprobleme: Ensure Bluetooth is enabled on your device and the keyboard is in pairing mode. Remove previous pairings and try reconnecting.
• Sleutels registreer nie: If specific keys are not working, try replacing the switch for that key, as the keyboard is hot-swappable.
• Skermvertoningsprobleme: Ensure the keyboard is powered on. If the TFT screen time is incorrect, calibrate it using the driver software (wired connection required on Windows).
• RGB-beligting werk nie: Check the keyboard's lighting settings using the function keys or the driver software.

8. Spesifikasies

9. Waarborg en Ondersteuning

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official CORBOBO webwebwerf. Bewaar u bewys van aankoop vir enige waarborgeise.
