SHIHOT 54" Black Ceiling Fan with Lights and Remote - Instruction Manual

1. Inleiding

Dankie vir die aankoopasing the SHIHOT 54" Black Ceiling Fan with Lights and Remote. This modern ceiling fan is designed to provide efficient air circulation and adjustable lighting for various indoor and covered outdoor spaces. It features an ultra-quiet DC motor, 6 adjustable speeds, a reversible function for year-round comfort, and versatile control options via both a remote and a smartphone application. Please read this manual thoroughly before installation and use to ensure safe and optimal performance.

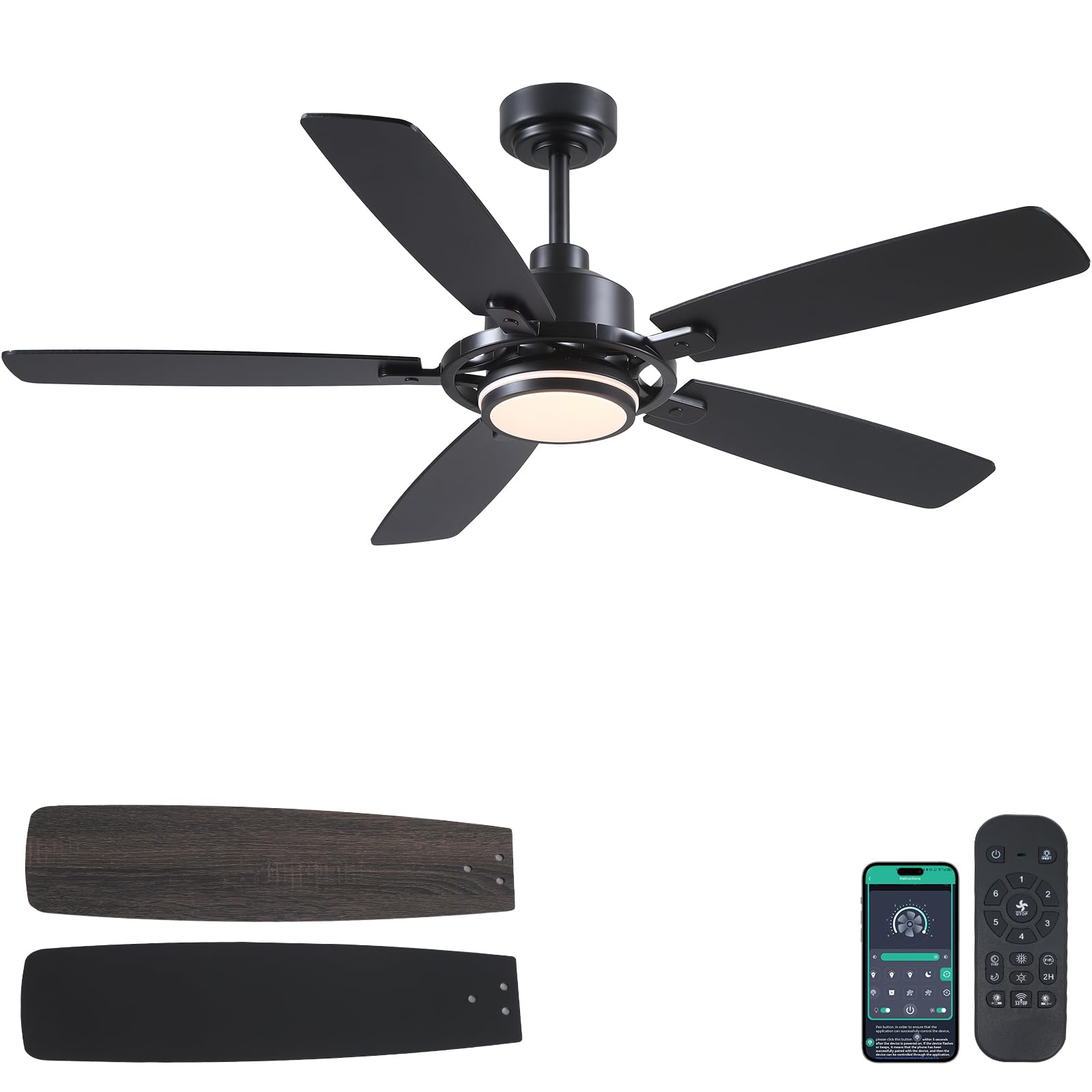

Figure 1: SHIHOT 54-inch Black Ceiling Fan with Lights

2. Veiligheidsinligting

To reduce the risk of electric shock, fire, or personal injury, always follow these basic safety precautions:

• Lees alle instruksies noukeurig deur voordat jy begin met installasie.
• Maak seker dat die elektriese toevoer by die hoofsekeringboks of stroombreker afgeskakel is voor installasie of onderhoud.
• All electrical connections must be in accordance with local codes, ordinances, and the National Electric Code. If you are unfamiliar with electrical wiring, consult a qualified electrician.
• Die monteringsstruktuur moet die gewig van die waaier (ongeveer 12.32 lbs) kan ondersteun.
• Ensure there is adequate clearance from the blade tips to the floor (at least 7 feet) and to any walls or obstructions.
• Moenie die waaier gebruik as enige onderdeel beskadig is nie.
• Vermy om voorwerpe in die pad van die waaierblaaie te plaas.

3. Pakketinhoud

Verifieer dat al die komponente wat hieronder gelys word, in u pakket ingesluit is:

• Fan liggaam samestelling
• Afdak
• Bedekking
• Downrod (4" and 8" options)
• Lemme (5 stukke)
• Blades Arm (5 pieces)
• Ligbron
• Lamp Skaduwee
• Afstandbeheer
• Ontvanger
• Skroewe en monteer hardeware
• Instruksie Handleiding

4. Spesifikasies

Figure 2: Product dimensions and compatible mounting types (flat and angled up to 15°).

5. Installasie-instruksies

Follow these steps for proper installation. Refer to Video 1 for a visual guide.

5.1 Lemsamestelling

1. Attach each blade arm to a blade using the provided screws. Ensure the screws are tightened securely.
2. Repeat for all five blades.

Figure 3: The fan blades are double-sided, offering a black finish on one side and a wood grain finish on the other for versatile styling.

5.2 Motor and Light Assembly

1. Secure the light source to the fan body assembly.
2. Heg die lamp skaduwee.
3. Connect the downrod to the fan body, feeding the wires through the downrod.

5.3 Mounting to Ceiling

1. Install the mounting bracket to the ceiling junction box using appropriate screws. Ensure the bracket is securely fastened.
2. Hang die waaiersamestelling aan die monteerbeugel.
3. Connect the electrical wires (live, neutral, ground) from the fan to the household wiring. Use wire nuts to secure connections.
4. Plaas die ontvanger in die monteerbeugel.
5. Bevestig die afdak om die bedrading en monteerbeugel te bedek.

6. Bedryfsinstruksies

Your SHIHOT ceiling fan can be controlled via the included remote control or a smartphone application.

6.1 Afstandbeheerfunksies

Die afstandbeheer laat jou toe om verskeie instellings aan te pas:

• Krag aan/af: Skakel die waaier en lig aan of af.
• Fan Spoed: Select from 6 different fan speeds.
• Lig aan/af: Beheer die lig onafhanklik.
• Ligte kleurtemperatuur: Cycle through 3 color temperatures (Warm, Natural, White).
• Helderheid aanpassing: Dims or brightens the light (stepless dimming).
• Omkeerbare funksie: Changes the direction of blade rotation.
• Afteller: Sets a 1-hour or 2-hour timer for automatic shutdown.

Figure 4: The fan offers 6 adjustable speeds to suit various comfort levels.

Figure 5: The integrated LED light offers stepless dimming from 0-100% and 3 adjustable color temperatures (3000K Warm, 4500K Natural, 6000K White Light).

6.2 Toepassingsbeheer

The fan can also be controlled using the "Fan Lamp Pro" smartphone application. Follow these steps to connect:

1. Scan the QR code provided in the manual or on the product packaging to download the "Fan Lamp Pro"-app.
2. Maak seker dat Bluetooth op jou slimfoon geaktiveer is.
3. Turn off the main power to the fan for a few seconds, then turn it back on.
4. Within 5 seconds of restoring power, open the app and follow the on-screen instructions to add a new device. The fan light will blink twice to confirm a successful connection.
5. Once connected, you can control fan speed, light settings, and other functions directly from your phone.

6.3 Omkeerbare Funksie (Somer/Wintermodus)

The reversible function allows you to change the direction of the fan blades to optimize air circulation for different seasons:

• Somermodus (Afwaartse trek): Blades rotate counter-clockwise, pushing cool air downwards to create a cooling effect.
• Wintermodus (Opwaartse lugstroom): Blades rotate clockwise, drawing cool air up and pushing warm air down from the ceiling, helping to distribute heat more evenly.

Figure 6: Illustration of downdraft (summer) and updraft (winter) modes for optimal air circulation.

7. Onderhoud

Gereelde onderhoud verseker die lang lewensduur en optimale werkverrigting van jou plafonwaaier.

• Skoonmaak: Vee die waaierblaaie en motorbehuising gereeld af met 'n sagte, damp lap. Moenie skuur skoonmaakmiddels of oplosmiddels gebruik nie.
• Draai skroewe: Kontroleer alle skroewe en verbindings jaarliks ​​om te verseker dat hulle stewig is. Los verbindings kan geraas of wiebel veroorsaak.
• Lembalans: If the fan wobbles, ensure all blades are securely attached and balanced. A balancing kit (not included) may be used if necessary.

8. Probleemoplossing

As jy probleme met jou waaier ondervind, raadpleeg die volgende algemene probleme en oplossings:

9. Waarborg en Ondersteuning

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official SHIHOT store on Amazon. Keep your purchase receipt for warranty claims.
