Ctronics 4K Hybrid Zoom 10x Outdoor WiFi Surveillance Camera (Model 930-4KD) User Manual

Inleiding

This manual provides detailed instructions for the installation, operation, and maintenance of your Ctronics 4K Hybrid Zoom 10x Outdoor WiFi Surveillance Camera, Model 930-4KD. This camera is designed for outdoor security, featuring dual lenses, 10x hybrid zoom, auto-tracking, human detection, color night vision, two-way audio, and an IP66 weatherproof rating.

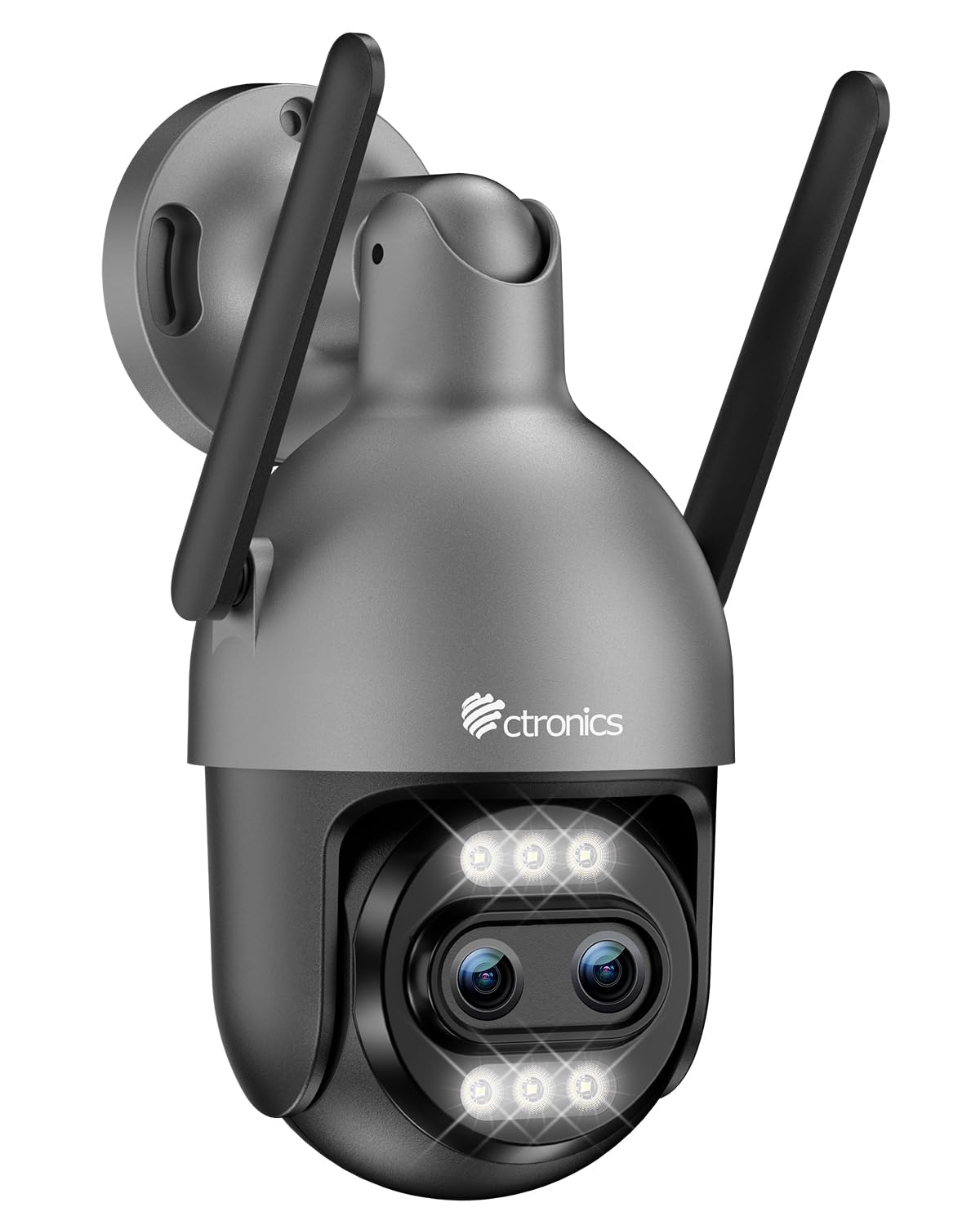

Image: Ctronics 4K Hybrid Zoom 10x Outdoor WiFi Surveillance Camera, Model 930-4KD.

1. Opstelling en installering

1.1 Pakketinhoud

Verifieer dat alle komponente in die pakket teenwoordig is:

• Ctronics 4K Hybrid Zoom 10x Outdoor WiFi Surveillance Camera (Model 930-4KD)
• Kragadapter
• Monteer skroewe en ankers
• Waterdigte Stel vir Netwerkkabel
• Gebruikershandleiding (hierdie dokument)

1.2 Fisiese installasie

The camera is designed for outdoor use and ceiling mounting. Choose a location that provides optimal surveillance coverage and has a stable surface for mounting. Ensure the camera is within range of your Wi-Fi network or close to an Ethernet connection point.

1. Mark the drilling positions on the wall or ceiling using the mounting template (if provided, otherwise use the camera base).
2. Boor gate en plaas die muurankers.
3. Bevestig die kamerabasis aan die oppervlak met die meegeleverde skroewe.
4. Adjust the camera angle as needed before final tightening.

Beeld: Bvample of a Ctronics dual-lens PTZ camera, similar to Model 930-4KD, mounted for outdoor surveillance.

1.3 Krag- en netwerkverbinding

Connect the camera to power using the provided power adapter. For network connectivity, you have two options:

• Wi-Fi-verbinding: Ensure your Wi-Fi network is 2.4GHz or 5GHz compatible. Follow the in-app instructions for Wi-Fi setup.
• Bedrade verbinding: Connect an Ethernet cable from your router to the camera's network port. Use the waterproof kit to protect the connection if installed outdoors.

1.4 App-installasie en -konfigurasie

Download the official Ctronics Pro app from your smartphone's app store (iOS or Android). Alternatively, use the HiP2P Client software for Windows or Mac OS.

1. Install the Ctronics Pro app on your smartphone or HiP2P Client on your computer.
2. Registreer 'n rekening en meld aan.
3. Follow the on-screen prompts to add your camera. This typically involves scanning a QR code on the camera or manually entering its ID.
4. Configure initial settings such as time zone, recording preferences, and alert notifications.

Image: The Ctronics multi-platform software interface, showing compatibility with desktop, laptop, tablet, and smartphone devices.

2. Bedryfsinstruksies

2.1 Lewendig View en Opname

Once connected, access the live feed through the Ctronics Pro app or HiP2P Client. You can view real-time video, initiate manual recordings, and capture screenshots.

2.2 Gevorderde kenmerke

• 10x Hibriede Zoom: Utilize the digital controls in the app to zoom in and out, combining optical and digital zoom for detailed views.
• Auto Zoom Tracking: Enable this feature to allow the camera to automatically track detected human movement and zoom in for clearer identification.
• Menslike opsporing: Configure motion detection zones and sensitivity. The camera will send alerts upon detecting human shapes, reducing false alarms.
• Kleur Nag Visie: The camera employs Starlight vision technology and LED lights to provide full-color video even in low-light conditions, up to 30 meters.
• Tweerigting-klank: Use the built-in microphone and speaker to communicate with visitors or deter intruders remotely.
• PTZ-beheer: Pan, Tilt, and Zoom the camera remotely via the app to adjust the viewing angle and cover a 360-degree area.

Image: The Ctronics 10x Hybrid Zoom camera, highlighting its advanced optical capabilities.

2.3 Bergingsopsies

The camera supports local recording to a Micro SD card (up to 256GB). Ensure the card is inserted correctly and formatted through the app. Cloud storage options may also be available through the Ctronics service.

3. Onderhoud

• Skoonmaak: Maak die kameralens en behuising gereeld skoon met 'n sagte, damp lap om duidelike beeldkwaliteit te verseker. Moenie harde chemikalieë gebruik nie.
• Firmware -opdaterings: Check the Ctronics Pro app periodically for firmware updates. Keeping your camera's firmware updated ensures optimal performance and security.
• Kragtoevoer: Maak seker dat die kragadapter en kabel vry van skade is.

4. Probleemoplossing

5. Spesifikasies

6. Waarborg en Ondersteuning

For warranty information, technical support, or further assistance, please refer to the official Ctronics website or contact their customer service directly. Details are typically provided on the product packaging or the official Ctronics support page.

You can also find additional resources and FAQs on the Ctronics official webwebwerf: www.ctronics.com
