Zomolither Android 15 Car Stereo User Manual

1. Produk verbyview

The Zomolither Android 15 Car Stereo is designed as an upgrade head unit for Subaru Forester, Impreza, and WRX models manufactured between 2008 and 2012. This unit features a 9-inch 1280x720 IPS touchscreen display, powered by an 8-core processor with 4GB RAM and 64GB ROM, running on the Android 15 operating system. It integrates various functionalities including wireless Apple CarPlay, Android Auto, Mirror Link, Bluetooth 5.0, GPS navigation, and FM/RDS radio.

Image 1.1: Zomolither Android 15 Car Stereo installed in a Subaru dashboard, showing the display and surrounding vehicle interior.

Sleutel kenmerke:

• Bedryfstelsel: Android 15
• Verwerker: 8-kern
• Geheue: 4 GB RAM + 64 GB ROM
• Vertoon: 9-inch 1280x720 IPS Touchscreen
• Verbinding: Wireless Apple CarPlay, Wireless Android Auto, Mirror Link (WiFi/USB), Bluetooth 5.0, Wi-Fi
• Oudio: Built-in DSP with 36-band EQ
• Navigasie: Professional GPS Navigation (supports online/offline maps)
• Radio: FM/RDS-radio
• Bykomende: AHD Backup Camera support, Steering Wheel Control (SWC) compatibility, Multiple UI themes.

2. Pakketinhoud

Verifieer dat al die items wat hieronder gelys word in u pakket ingesluit is. Indien enige items ontbreek of beskadig is, kontak asseblief kliëntediens.

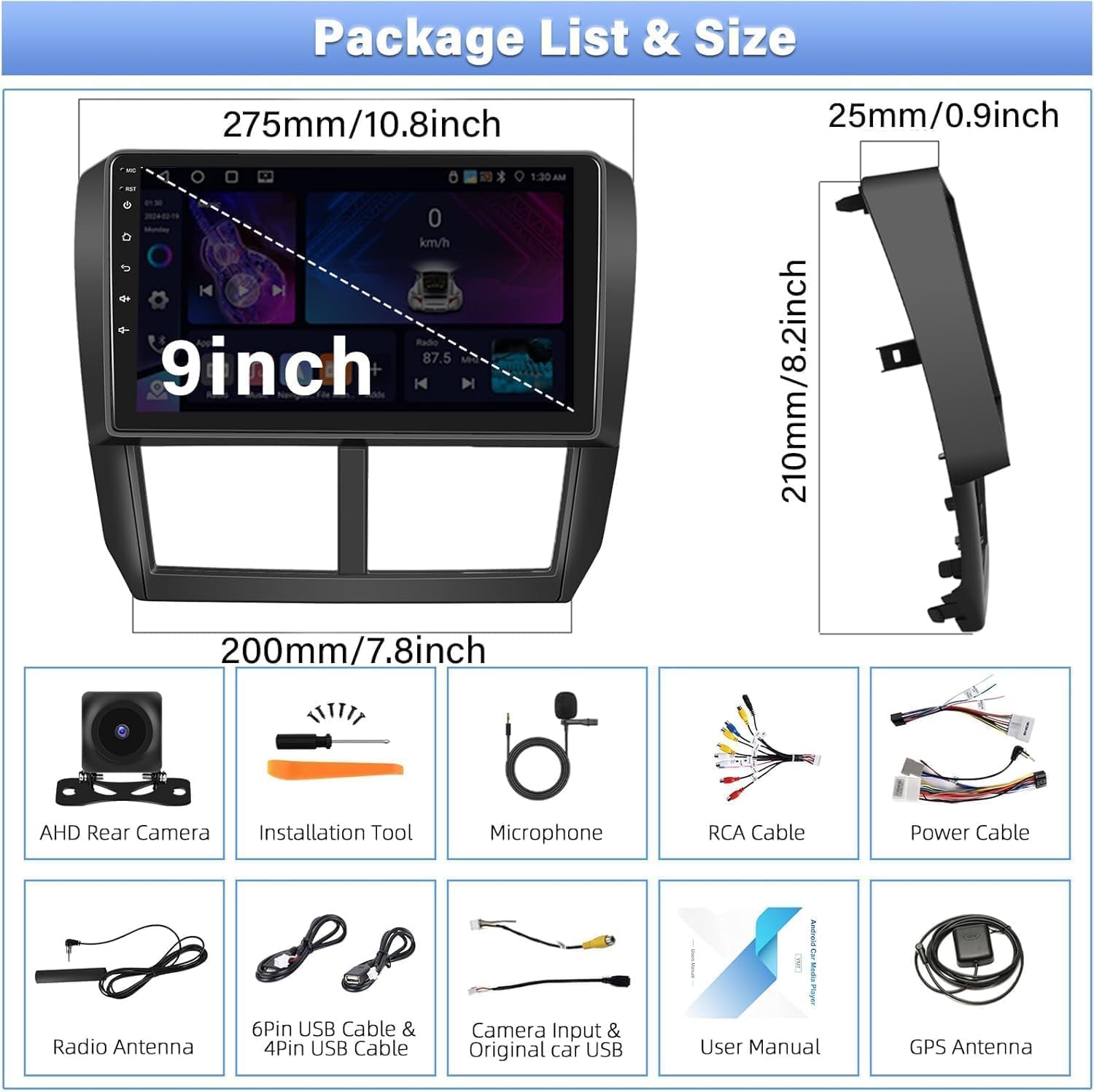

Image 2.1: Visual representation of the package contents, including the main unit and accessories.

• Android Car Stereo (with Frame)
• AHD-rugsteunkamera
• Eksterne mikrofoon
• Kragkabel (x2)
• Installasie Gereedskap
• GPS-antenne
• USB kabel
• RCA-kabel
• Gebruikershandleiding
• Radio Antenne
• Original USB Cable

3. Installasie

Professional installation is recommended. Ensure the vehicle's power is disconnected before beginning installation. Refer to your vehicle's specific service manual for dashboard disassembly and reassembly procedures.

3.1 Bedradingsverbindings

Carefully connect all cables according to the provided wiring diagrams. Ensure secure connections to prevent intermittent issues.

Image 3.1: Wiring diagram for the backup camera. Connect the pink wire labeled 'Reverse / Parking Sensor Control / Back in' to the car's reversing light positive pole.

3.2 Backup Camera Installation

The included AHD backup camera supports a 170-degree ultra-wide angle and is waterproof. Connect the camera as shown in the wiring diagram. The display will automatically switch to the rear view when the vehicle is in reverse gear, enhancing safety.

Image 3.2: The backup camera provides a clear view with parking guidelines. The image also shows the steering wheel control interface for programming.

3.3 Steering Wheel Control (SWC) Setup

After correct wiring, access the steering wheel control learning function in the unit's settings. Follow the on-screen prompts to assign functions to your vehicle's steering wheel buttons.

4. Bedryfsinstruksies

This section details the primary functions and how to operate your Zomolither car stereo.

4.1 Power On/Off and Basic Interface

Press the power button to turn the unit on or off. The 9-inch IPS touchscreen provides a sensitive and clear display. You can customize the interface with 59 available UI desktop themes.

Image 4.1: The 1280x720 IPS screen offers a wide viewing angle and supports 59 UI themes for personalization.

4.2 Wireless CarPlay & Android Auto & Mirror Link

Connect your smartphone wirelessly via Bluetooth or USB to access Apple CarPlay or Android Auto. This allows for hands-free calling, GPS navigation, messaging, and music streaming directly from your phone. The Mirror Link feature enables casting your phone's screen to the car stereo via WiFi or USB.

Beeld 4.2: Voorbeeldamples of Apple CarPlay and Android Auto interfaces, along with Mirror Link functionality.

4.3 Bluetooth 5.0 Functionality

The built-in Bluetooth 5.0 module allows for stable hands-free calling and audio streaming. Pair your phone to make and receive calls safely while driving, and enjoy your music library wirelessly.

Image 4.3: The Bluetooth interface showing options for phone calls, music, and phonebook access.

4.4 GPS Navigation and Wi-Fi

The unit comes with pre-installed Google Maps. Connect to Wi-Fi to access real-time traffic conditions and download offline maps for navigation without an internet connection. The Wi-Fi connection also enables access to various online applications.

Image 4.4: The GPS navigation screen displaying map data and route information.

4.5 FM/RDS-radio

Tune into your favorite radio stations using the built-in FM/RDS radio. The RDS (Radio Data System) feature provides additional information like station name and song titles where available.

Image 4.5: The FM/RDS radio interface for selecting and displaying radio stations.

4.6 Audio Equalizer (DSP)

Utilize the built-in DSP (Digital Signal Processor) with a 36-band equalizer to fine-tune your audio experience. Adjust frequency bands to match your preferences and vehicle acoustics.

Image 4.6: The DSP interface showing the 36-band equalizer for detailed audio adjustments.

4.7 Gesplete skermfunksionaliteit

The split-screen feature allows you to run two applications simultaneously on the display, such as navigation and music playback.

Image 4.7: The split screen feature displaying navigation and music applications side-by-side.

5. Probleemoplossing

This section addresses common issues you might encounter with your car stereo.

5.1 Unstable Bluetooth Connection

• Kontroleer paring: Ensure your device is correctly paired with the car stereo. Delete the pairing on both devices and re-pair.
• Inmenging: Minimize other Bluetooth devices in the vehicle that might cause interference.
• Sagteware-opdatering: Check for available software updates for the car stereo, as these can resolve connectivity issues.
• Herstel: Perform a system reset if the issue persists. Refer to the 'System Settings' for the reset option.

5.2 Screen Goes Black Randomly

• Kragverbinding: Verify all power connections are secure and free from corrosion.
• Oorverhitting: Ensure adequate ventilation around the unit. Prolonged use in extreme temperatures can cause issues.
• Stelselterugstelling: A system reset can often resolve temporary software glitches causing the screen to go black.
• Firmware: Ensure the unit's firmware is up to date.

5.3 Audio Cuts Off at Higher Volumes

• Luidspreker impedansie: Ensure your vehicle's speakers are compatible with the car stereo's output specifications. Incorrect impedance can cause protection circuits to activate.
• Bedrading: Check speaker wiring for shorts or loose connections.
• DSP-instellings: Review the DSP and equalizer settings. Extreme boosts in certain frequencies or volume levels can trigger audio protection.
• Ampverligter (indien van toepassing): As 'n eksterne amplifier is used, check its power supply and settings.

If these troubleshooting steps do not resolve the issue, please contact Zomolither customer support for further assistance.

6. Spesifikasies

7. Waarborg en Ondersteuning

Zomolither offers the following support and warranty for this product:

• Waarborg: 1 Jaar
• Terugbetalingsbeleid: 30-dae terugbetaling
• Vervangingsbeleid: 12-months replacement
• Tegniese ondersteuning: Lewenslange tegniese ondersteuning
• Aanlyn ondersteuning: For any concerns or compatibility questions, please contact us at Zomolither@126.com.
