Holzmann CTF45P_230V CNC Milling Machine User Manual

1. Inleiding

The Holzmann CTF45P_230V CNC milling machine is designed for precision work on various materials including wood, plastic, and aluminum. Its modular construction allows for straightforward assembly and operation, making it suitable for a range of applications from shaping to detailed engraving. This manual provides comprehensive guidance to ensure safe and effective use of your machine.

For optimal performance and safety, please read this manual thoroughly before operating the machine and retain it for future reference.

2. Veiligheidsinstruksies

Adhering to safety guidelines is crucial for preventing accidents and ensuring safe operation.

• Always wear appropriate personal protective equipment (PPE), including safety glasses and hearing protection.
• Maak seker dat die werkarea skoon, goed belig en vry van obstruksies is.
• Verify that the machine is securely placed on a stable surface before operation.
• Disconnect power before performing any maintenance, adjustments, or tool changes.
• Hou hande en los klere weg van bewegende dele tydens werking.
• Moenie die masjien gebruik as enige komponente beskadig of wanfunksioneer nie.
• Maak jouself vertroud met die noodstopprosedure.

3. Ingesluit komponente

The package for your Holzmann CTF45P_230V CNC milling machine typically includes the following items:

• V-bit milling cutter
• 2 x Milling cutters
• 10 x Carving cutters
• 2 x Collets (ER11-6 mm, ER11-1/4 inch)
• 6 x Workpiece clamps

Image: Holzmann CTF45P_230V CNC Milling Machine with various included accessories laid out.

4. Opstelling

The modular design of the CTF45P_230V facilitates quick and easy setup.

1. Uitpak: Verwyder alle komponente versigtig uit die verpakking.
2. Vergadering: Follow the detailed assembly instructions provided in the separate assembly guide (not part of this manual) to construct the machine frame and attach the spindle unit.
3. Plasing: Position the machine on a stable, level workbench.
4. Kragverbinding: Connect the machine to a 230V AC power supply.
5. Verbinding: The machine supports USB interface, Wi-Fi connection, and includes an SD card reader (with a 4 GB TF card) for data transfer. Connect your preferred interface for control.

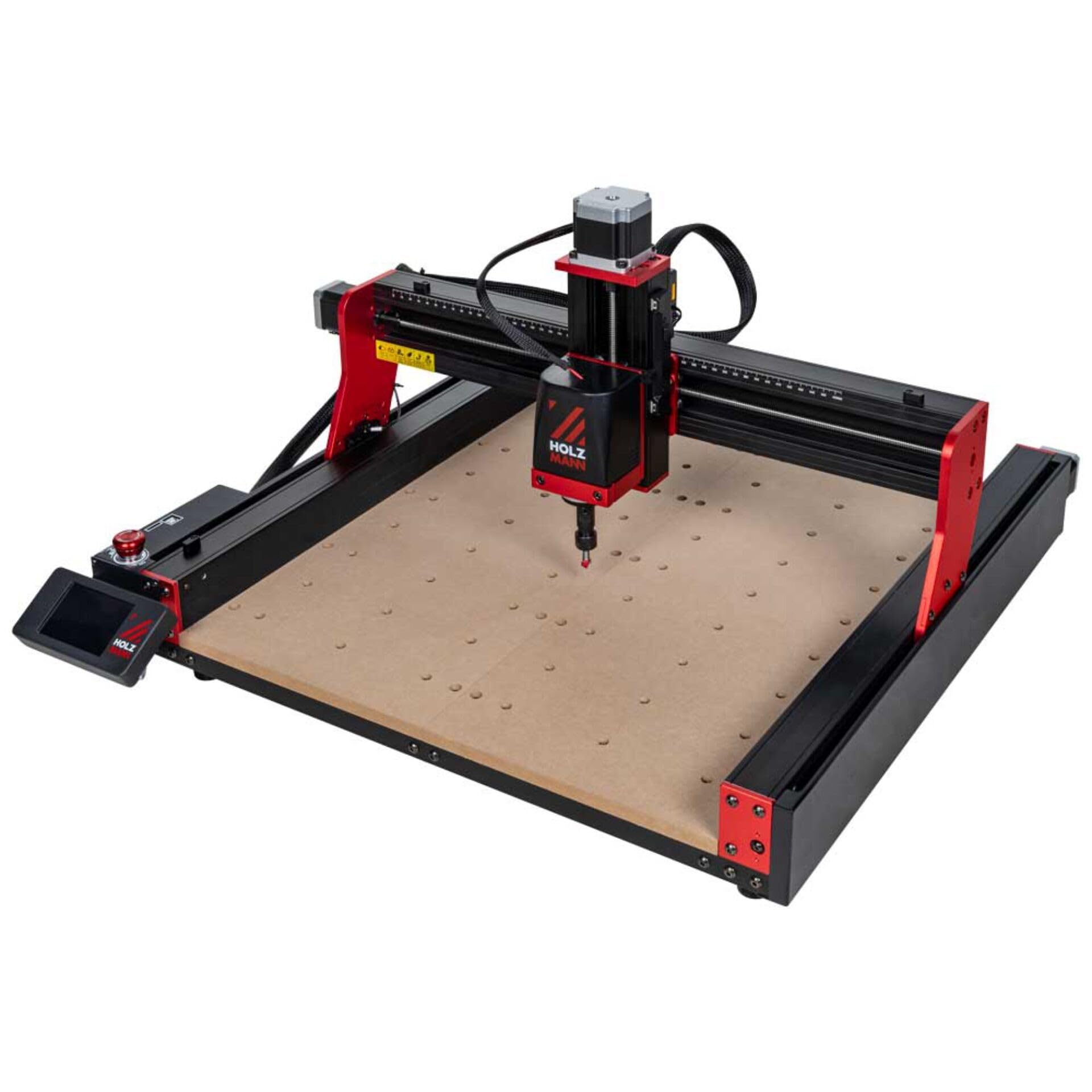

Image: Holzmann CTF45P_230V CNC Milling Machine, showcasing its compact design and work area.

5. Bedryfsinstruksies

Follow these steps for effective operation of your CNC milling machine:

1. Materiaal voorbereiding: Securely fasten your workpiece (wood, plastic, or aluminum) to the work area using the provided clamps.
2. Gereedskap installasie: Select and install the appropriate milling or carving cutter into the ER11 collet. Ensure it is tightened securely.
3. Sagteware-opstelling: Utilize supported CAM software such as Candle, Carveco, Artcam, or Easel to design your project and generate G-code.
4. File oordra: Transfer the G-code file to the machine via USB, Wi-Fi, or SD card.
5. Nulstelling: Carefully set the X, Y, and Z axis zero points according to your project requirements and material thickness.
6. Operasie: Initiate the milling process through the control interface. Monitor the machine during operation.
7. Spilspoed: The 80W motor spindle operates up to 8,000 RPM. Adjust spindle speed as necessary for different materials and tools.
8. Voer koers: The maximum feed rate is 800 mm/min. Adjust for optimal cutting performance.
9. Deurlopende werking: The machine is designed for a maximum continuous operating time of 6 hours. Allow for cooling periods as needed.

6. Onderhoud

Regular maintenance ensures the longevity and performance of your CNC milling machine.

• Skoonmaak: After each use, clean the work area, spindle, and guide rails to remove dust, chips, and debris. Use a soft brush or vacuum.
• Smering: Periodically lubricate the moving parts, such as lead screws and linear guides, according to the manufacturer's recommendations.
• Gereedskapinspeksie: Inspect milling cutters and collets for wear or damage before each use. Replace worn tools promptly.
• Elektriese verbindings: Regularly check all electrical connections for tightness and signs of wear.
• Sagteware-opdaterings: Keep CAM software and machine firmware updated for optimal compatibility and features.

7. Probleemoplossing

Hierdie afdeling spreek algemene probleme aan wat jy mag teëkom en bied oplossings.

• Masjien word nie aangeskakel nie:
  • Check power cable connection to the machine and outlet.
  • Verifieer dat die kragskakelaar in die "AAN"-posisie is.
  • Ensure the power supply is providing adequate voltage (230V AC).
• Milling Errors/Inaccuracies:
  • Confirm workpiece is securely clamped and not shifting.
  • Check tool sharpness and proper installation.
  • Verify G-code and CAM software settings are correct for the material.
  • Ensure X-Y axis positioning accuracy (0.05 mm) is maintained by checking for loose components or debris on rails.
• Oormatige geraas/vibrasie:
  • Inspect for loose components or fasteners.
  • Check if the tool is properly seated and balanced.
  • Reduce feed rate or spindle speed if necessary.
• Connectivity Issues (USB/Wi-Fi):
  • Maak seker dat kabels veilig verbind is.
  • For Wi-Fi, verify network connection and correct settings.
  • Restart the machine and computer/device.

8. Spesifikasies

9. Waarborg en Ondersteuning

Specific warranty terms and conditions for the Holzmann CTF45P_230V CNC Milling Machine are not provided in this document. For detailed warranty information, technical support, or service inquiries, please refer to the manufacturer's official website or contact your point of purchase (e.g., Conrad Electronic Sweden).
