SKONYON T-102A Electric Pressure Washer User Manual

1. Inleiding

Thank you for choosing the SKONYON T-102A Electric Pressure Washer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pressure washer. Please read this manual thoroughly before first use and keep it for future reference.

2. Belangrike veiligheidsinligting

WAARSKUWING: High-pressure water can cause serious injury. Always follow safety guidelines.

• Never point the pressure washer gun at people or pets.
• Keep children away from the running machine.
• After turning off the pressure washer, always release any residual pressure by squeezing the gun trigger before disconnecting hoses and nozzles.
• It is strictly forbidden to operate the machine without water. If the water supply stops during use, immediately shut down the machine. Running without water for more than 1 minute can damage the machine and affect its lifespan.
• The unit features an auto-stop system that shuts off the motor when idle, saving power and extending lifespan.
• Built-in thermal and overload protection ensures reliable performance during extended use.

Figure 2.1: The pressure washer features a Total Stop System and a safety lock on the spray gun handle to prevent accidental operation.

3. Produkkenmerke

• Kragtige prestasie: 2000-watt universal motor generates up to 5000 PSI Max pressure and 3.5 GPM water flow for effective cleaning.
• Veelsydige spuitpunte: Includes 5 quick-connect nozzles (0°, 15°, 25°, 40°, and Foam Cannon) for various cleaning tasks.
• Uitgebreide bereik: Equipped with a 16.5 ft power cord and a 26 ft high-pressure hose for convenient cleaning in various locations.
• Maklike berging: Built-in reel simplifies hose and cord storage, protecting them from kinks.
• Draagbaarheid: Compact design with wheels and an adjustable handle for easy movement.
• Veiligheidskenmerke: Auto-stop system, thermal protection, and overload protection.

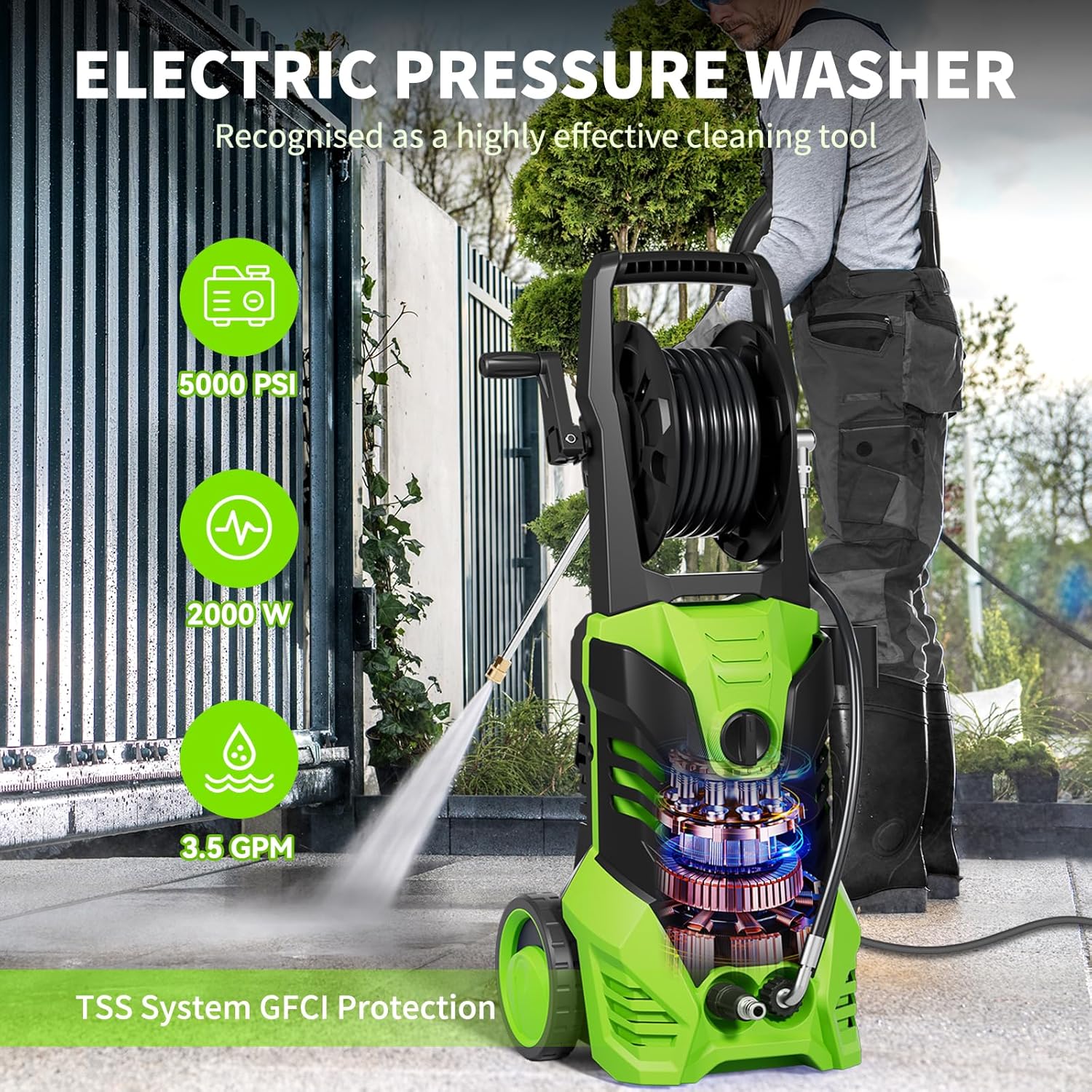

Figuur 3.1: oorview of the SKONYON T-102A Electric Pressure Washer highlighting its key performance specifications.

Figure 3.2: The powerful 2000-watt motor provides high-pressure cleaning capability.

Figure 3.3: The optional surface cleaner attachment features a splash-free skirt and powerful twin rotating jets for efficient patio and driveway cleaning.

Figure 3.4: The five quick-connect nozzles (0°, 15°, 25°, 40°, and Foam Cannon) offer various spray patterns for different cleaning needs.

Figure 3.5: The generous hose and power cord lengths provide extended reach for various cleaning tasks.

4. Opstelinstruksies

1. Sit die spuitpistool bymekaar: Connect the spray wand to the spray gun handle. Ensure it clicks securely into place.
2. Heg die hoëdrukslang aan: Connect one end of the high-pressure hose to the pressure washer's high-pressure outlet and the other end to the spray gun handle.
3. Koppel watertoevoer: Heg 'n tuinslang (nie ingesluit nie) aan die waterinlaat op die hoëdrukreiniger vas. Maak seker dat die verbinding styf is om lekkasies te voorkom.
4. Kies mondstuk: Choose the appropriate quick-connect nozzle for your cleaning task and insert it into the end of the spray wand. Push in the gold part of the wand to insert the nozzle, then release to lock.
5. Koppel krag: Steek die kragkabel in 'n geaarde elektriese aansluiting.
6. Bleed Air from System: Before turning on the power, turn on the water supply completely. Squeeze the trigger on the spray gun to allow water to flow through the system and expel any trapped air. Continue until a steady stream of water emerges.

5. Bedryfsinstruksies

1. Krag aan: After completing the setup and bleeding air, press the power button located on the unit to turn on the pressure washer.
2. Pas druk aan: The unit offers 15 different pressure levels and three modes (soft, medium, hard). Use the plus (+) and minus (-) buttons on the control panel to adjust the pressure according to your cleaning needs.
3. Begin skoonmaak: Rig die spuitpistool op die oppervlak wat skoongemaak moet word en handhaaf 'n veilige afstand. Druk die sneller om die hoëdrukspuit te begin.
4. Spuitkopkeuse:
   • 0°-spuitstuk (rooi): For tough dirt in tight spaces, highly concentrated stream.
   • 15°-spuitstuk (geel): For intense cleaning of small areas.
   • 25°-mondstuk (groen): Vir algemene skoonmaak van die meeste oppervlaktes.
   • 40°-spuitstuk (wit): For gentle cleaning of delicate surfaces or wide coverage.
   • Skuimkanon: For applying detergent, ideal for car washing.
5. Applying Detergent (Foam Cannon): Fill the soap bottle with appropriate pressure washer detergent. Attach the Foam Cannon nozzle. The pressure washer will mix the detergent with water for a foamy application.
6. Veiligheidslot: When not actively spraying, engage the safety lock on the spray gun handle to prevent accidental discharge.
7. Skakel af: To stop operation, release the trigger, engage the safety lock, and press the power button on the unit. Turn off the water supply and release residual pressure from the gun.

Figure 5.1: The pressure washer is suitable for cleaning decks, patios, driveways, siding, sheds, cars, and other outdoor equipment.

6. Onderhoud

• Skoonmaakspuitstukke: Regularly inspect and clean nozzles to prevent blockages. Use the included nozzle cleaning tool if necessary.
• Hose and Cord Care: After each use, carefully wind the high-pressure hose and power cord onto their respective reels to prevent kinks and damage.
• Berging: Store the pressure washer in a dry, frost-free area. Disconnect all hoses and drain any remaining water from the pump and hoses before storage, especially in cold climates.
• Algemene skoonmaak: Vee die buitekant van die eenheid af met adamp lap. Moenie harde chemikalieë gebruik nie.

Figure 6.1: The integrated hose and power cord reels facilitate tidy storage and protect components.

7. Probleemoplossing

8. Spesifikasies

• Handelsmerk: SKONYON
• Modelnommer: T-102A
• Kragbron: WS Elektries
• Maksimum druk: 5000 PSI maks
• Maksimum vloeitempo: 3.5 Gallonne Per Minuut (GPM)
• Item gewig: 20 pond
• Slang lengte: 26 voet (300 duim)
• Kragkabellengte: 16.5 Voet
• Produkafmetings (L x B x H): 11" x 10.2" x 38.6"
• UPC: 790898184004

9. Waarborg en Ondersteuning

SKONYON is committed to customer satisfaction. If you encounter any issues or have questions regarding your electric pressure washer, please contact our responsive customer service team. We are available to address inquiries or concerns promptly.

For support, please refer to the contact information provided with your product packaging or visit the official SKONYON webwebwerf.
