SWOFY 128GB MP3 Player with Bluetooth M4-128GB User Manual

Inleiding

Dankie vir die aankoopasing the SWOFY 128GB MP3 Player with Bluetooth. This manual provides detailed instructions on how to set up, operate, and maintain your device. Please read this manual thoroughly before use to ensure proper functionality and to maximize your listening experience.

Produk Kenmerke

• Hoë kapasiteit berging: 128GB built-in memory, expandable up to 512GB via Micro SD card.
• HiFi Lossless Sound: Supports MP3, OGG, FLAC, AAC, WMA, WAV, APE audio formats.
• Bluetooth 5.3-verbinding: Enhanced speed and stable connection for wireless audio.
• Lang batterylewe: Up to 50 hours of usage time on a full charge (approximately 2 hours charging time).
• 2.4-Inch Sensitive Touchscreen: Intuitive navigation and control.
• Veelvuldige funksies: Includes Music Player, FM Radio, Voice Recorder, Video Player, Picture Viewer, E-Book Reader, Calendar, and Settings.

Image: The SWOFY MP3 Player highlighting its 128GB built-in storage, expandable to 512GB, with charging and usage times.

Image: A person enjoying music with headphones, representing the HiFi Lossless Sound quality and supported audio formats.

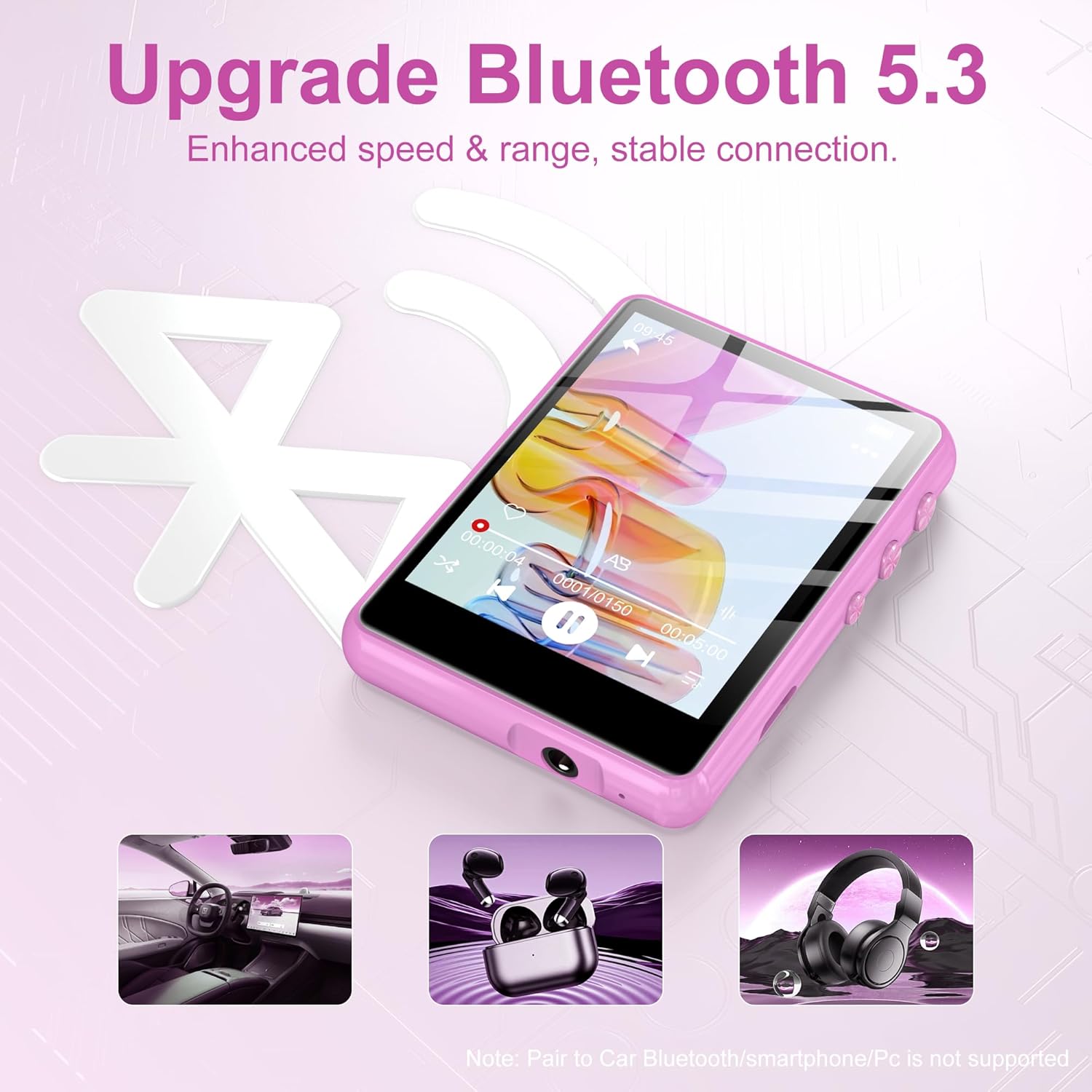

Image: The MP3 player displaying the Bluetooth 5.3 feature, indicating enhanced speed and stable connection. Note: Direct pairing to car Bluetooth, smartphones, or PCs is not supported for audio streaming.

Image: The MP3 player screen indicating a long battery life of up to 50 hours of continuous music playback after a 2-hour charge.

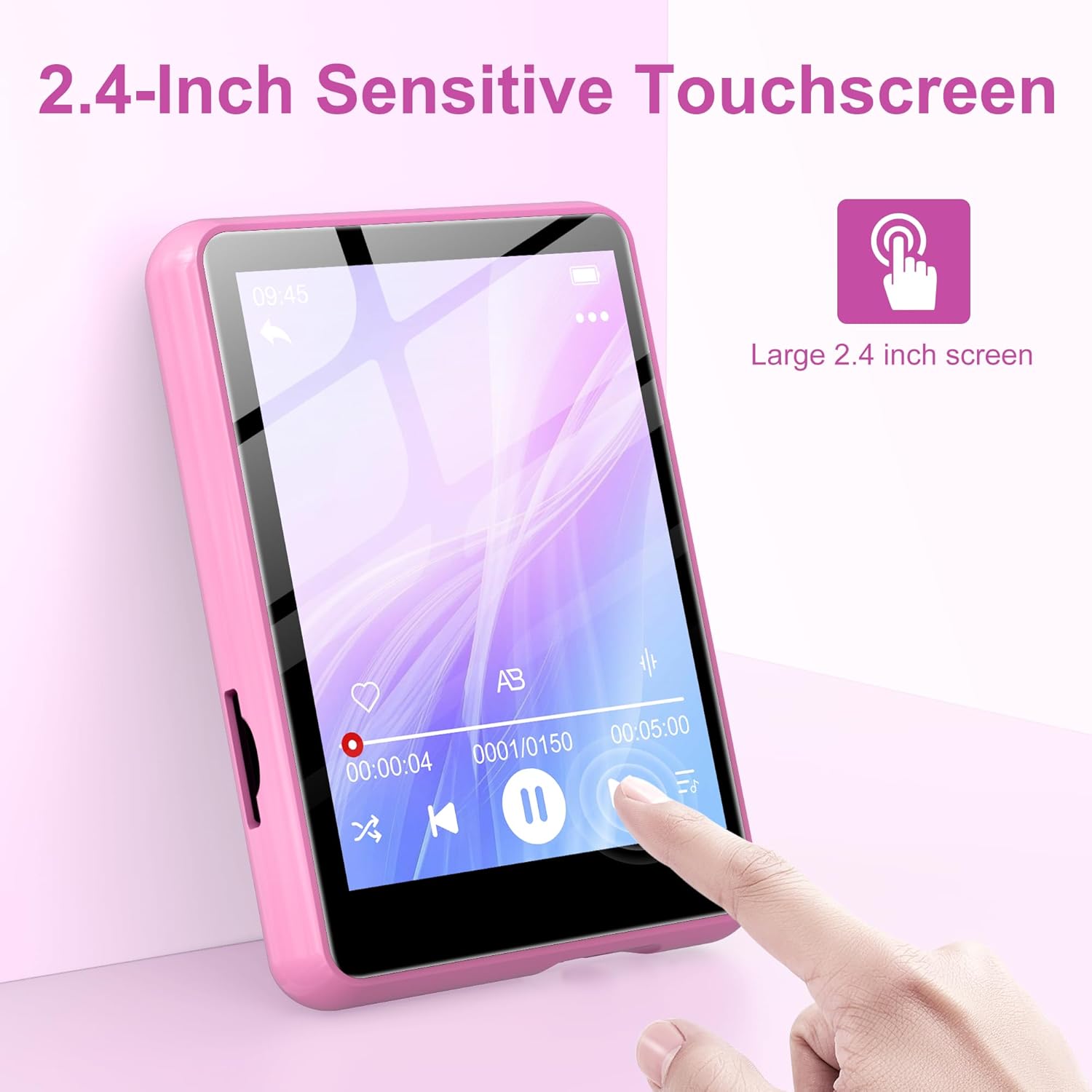

Image: A hand interacting with the 2.4-inch sensitive touchscreen of the MP3 player, demonstrating its touch interface.

Beeld: Die MP3-speler vertoningasing its various functions through icons, including Music, FM Radio, Folder, Bluetooth, Recording, Picture, Video, Calendar, EBook, and Settings.

Pakketinhoud

Kontroleer asseblief die pakket vir die volgende items:

• SWOFY 128GB MP3 Player
• USB-laaikabel
• Bedrade oorfone
• Protective Case (silicone)
• Gebruikershandleiding

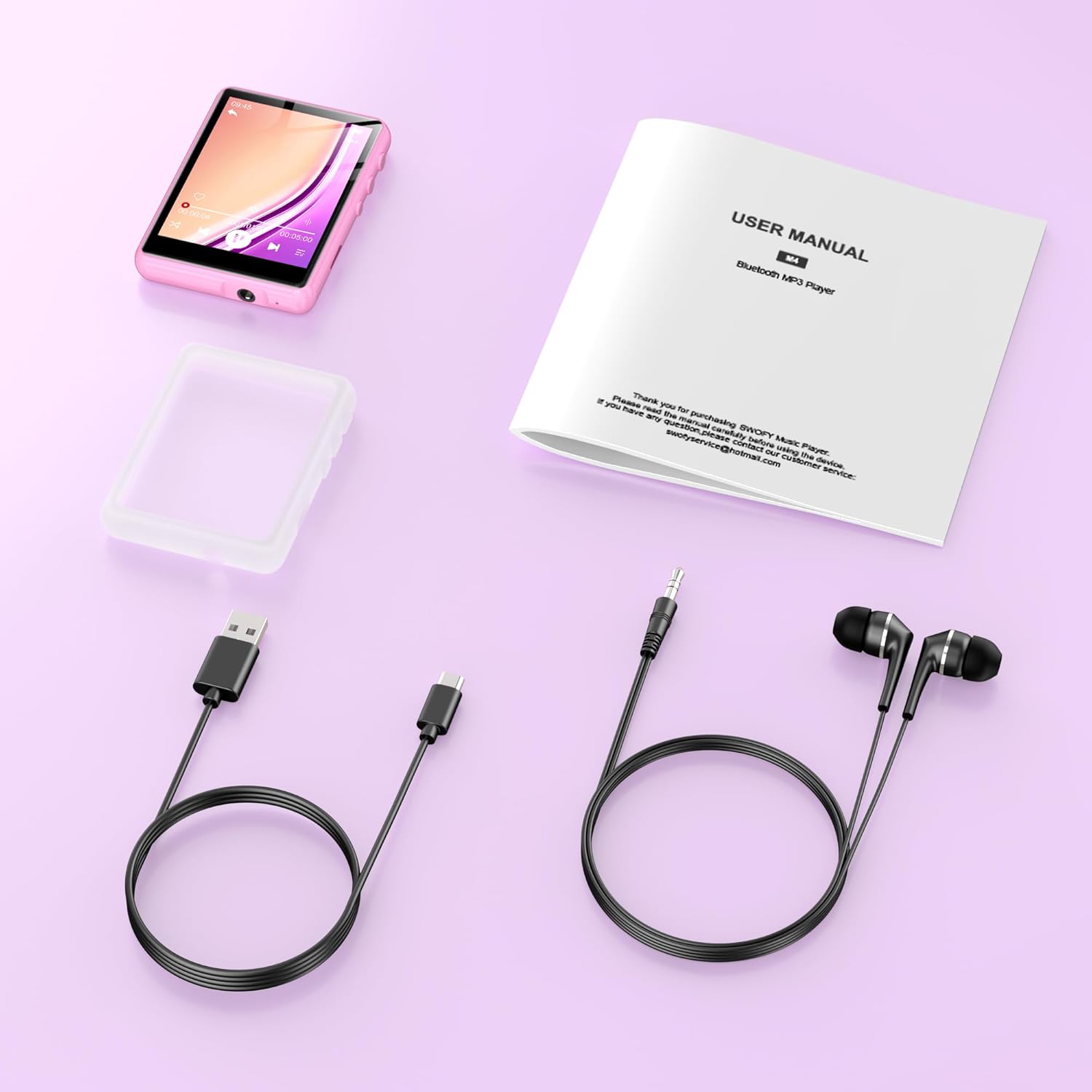

Image: All items included in the product package: the MP3 player, USB charging cable, wired earphones, a protective case, and the user manual.

Opstelling

1. Laai die toestel

1. Connect the small end of the USB charging cable to the MP3 player's charging port.
2. Koppel die groter punt van die USB-kabel aan 'n USB-kragadapter (nie ingesluit nie) of 'n rekenaar se USB-poort.
3. The device will indicate charging status. A full charge takes approximately 2 hours.

2. Invoeging van 'n Mikro SD-kaart (Opsioneel)

To expand storage beyond the built-in 128GB, you can insert a Micro SD card (up to 512GB).

1. Locate the Micro SD card slot on the side of the MP3 player.
2. Steek die Micro SD-kaart versigtig in die gleuf totdat dit in plek klik. Maak seker dat die kaart korrek georiënteer is.
3. Om te verwyder, druk die kaart liggies na binne totdat dit uitspring.

3. Oordrag Files

To transfer music, videos, pictures, or e-books to your MP3 player:

1. Koppel die MP3-speler aan jou rekenaar met die meegeleverde USB-kabel.
2. Die toestel sal as 'n verwyderbare skyf op jou rekenaar verskyn.
3. Sleep en los jou verlangde files into the appropriate folders on the MP3 player (e.g., 'Music' for audio files, 'Video' for videos).
4. Een keer files are transferred, safely eject the device from your computer before disconnecting the USB cable.

Bedryfsinstruksies

1. Skakel aan/af

• Om aan te skakel: Druk en hou die aan / uit-knoppie totdat die skerm brand.
• Om af te skakel: Press and hold the power button until a power-off option appears on the screen, then confirm.

2. Basiese navigasie

• The device features a 2.4-inch sensitive touchscreen. Tap icons to select functions or options.
• Swipe left/right or up/down to navigate through menus or lists.
• Use the physical buttons on the side for volume control and screen lock/unlock.

3. Musiekweergawe

1. From the main menu, tap the 'Music' icon.
2. Blaai deur jou musiek volgens kunstenaar, album, liedjies of vouer.
3. Tap a song to begin playback.
4. On the playback screen, you can pause/play, skip tracks, adjust volume, and access playback settings.

4. Bluetooth-verbinding

Om aan Bluetooth-oorfone of -luidsprekers te koppel:

1. From the main menu, tap the 'Bluetooth' icon.
2. Turn on Bluetooth on the MP3 player.
3. Maak seker dat jou Bluetooth-klanktoestel in paringsmodus is.
4. The MP3 player will scan for available devices. Select your device from the list to pair.
5. Once paired, audio will be routed to your Bluetooth device.

5. FM Radio

1. Connect wired earphones to the 3.5mm audio jack; they act as the antenna.
2. From the main menu, tap the 'FM Radio' icon.
3. Use the on-screen controls to scan for stations or manually tune to a frequency.

6. Ander funksies

• Opname: Tap the 'Recording' icon to access the voice recorder.
• Video/Picture: Tap 'Video' or 'Picture' to browse and view jou media files.
• EBook: Tap 'EBook' to read supported text files.
• Instellings: Access device settings such as display, date/time, language, and system information.

Onderhoud

• Skoonmaak: Gebruik 'n sagte, droë lap om die toestel skoon te maak. Vermy vloeibare skoonmaakmiddels of skuurmiddels.
• Berging: Store the MP3 player in a cool, dry place away from direct sunlight and extreme temperatures.
• Batterysorg: Om die batterylewe te verleng, vermy om die toestel gereeld heeltemal te ontlaai. Laai dit gereeld, selfs al word dit nie vir lang tye gebruik nie.
• Sagteware-opdaterings: Gaan die vervaardiger na website periodically for any available firmware updates.

Probleemoplossing

• Toestel skakel nie aan nie: Maak seker dat die battery gelaai is. Koppel aan 'n kragbron en probeer weer.
• Kan nie oordra nie files: Ensure the USB cable is securely connected and the device is recognized by your computer. Try a different USB port or cable.
• Geen klank nie: Check the volume level. Ensure headphones or Bluetooth devices are properly connected and functioning.
• Bluetooth-toestel koppel nie: Ensure both devices are in pairing mode and within range. Disconnect and reconnect Bluetooth on the MP3 player.
• Skerm reageer nie: Probeer om die toestel te herbegin. Kontak kliëntediens as die probleem voortduur.

Spesifikasies

Waarborg en Ondersteuning

This product comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included in your package or visit the official SWOFY website. For technical support, troubleshooting assistance, or any other inquiries, please contact SWOFY customer service through the contact information provided on the product packaging or webwebwerf.
