1. Inleiding
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Uthfy HY12GWH115 Split Air Conditioner. Please read this manual thoroughly before using the appliance and retain it for future reference.
The Uthfy HY12GWH115 is a 12000 BTU (1 Ton) mini split air conditioner and heat pump system designed for year-round comfort in spaces up to 750 sq. ft. It features advanced inverter technology for energy efficiency, ultra-quiet operation, and robust construction to withstand various weather conditions. The unit offers 7 versatile working modes including cooling, heating, fan, and dry functions.
Image: The Uthfy HY12GWH115 Split Air Conditioner demonstrating its four primary functions: cooling, heating, fan mode for air circulation, and dry mode for dehumidification. This illustrates its versatility for different environmental conditions.
Image: A visual explanation of the inverter technology used in the Uthfy HY12GWH115, highlighting its ability to reduce energy costs by up to 25% compared to traditional systems, and showing improved efficiency for both cooling and heating.
Image: An illustration of the Uthfy HY12GWH115's performance, showcasing quick cooling in 30 seconds and quick heating in 60 seconds, with a 12000 BTU cooling capacity and 1-ton heat pump, effectively covering up to 750 square feet.
2. Veiligheidsinligting
Volg altyd basiese veiligheidsmaatreëls wanneer u elektriese toestelle gebruik om die risiko van brand, elektriese skok en beserings te verminder.
- Lees alle instruksies voor gebruik.
- Hierdie toestel moet behoorlik geaard wees.
- Moenie die toestel met nat hande gebruik nie.
- Maak seker dat die kragtoevoer ooreenstem met die eenheid se spesifikasies (115V).
- Hou kinders en troeteldiere weg van die eenheid tydens werking.
- Moenie luginlate of -uitlate blokkeer nie.
- For optimal performance and safety, professional installation is advised.
- Moenie probeer om die eenheid self te herstel of te wysig nie. Kontak gekwalifiseerde dienspersoneel.
3. Pakketinhoud
The Uthfy HY12GWH115 mini split system is shipped in two separate boxes to prevent transit damage. Verify that all components are present upon delivery.

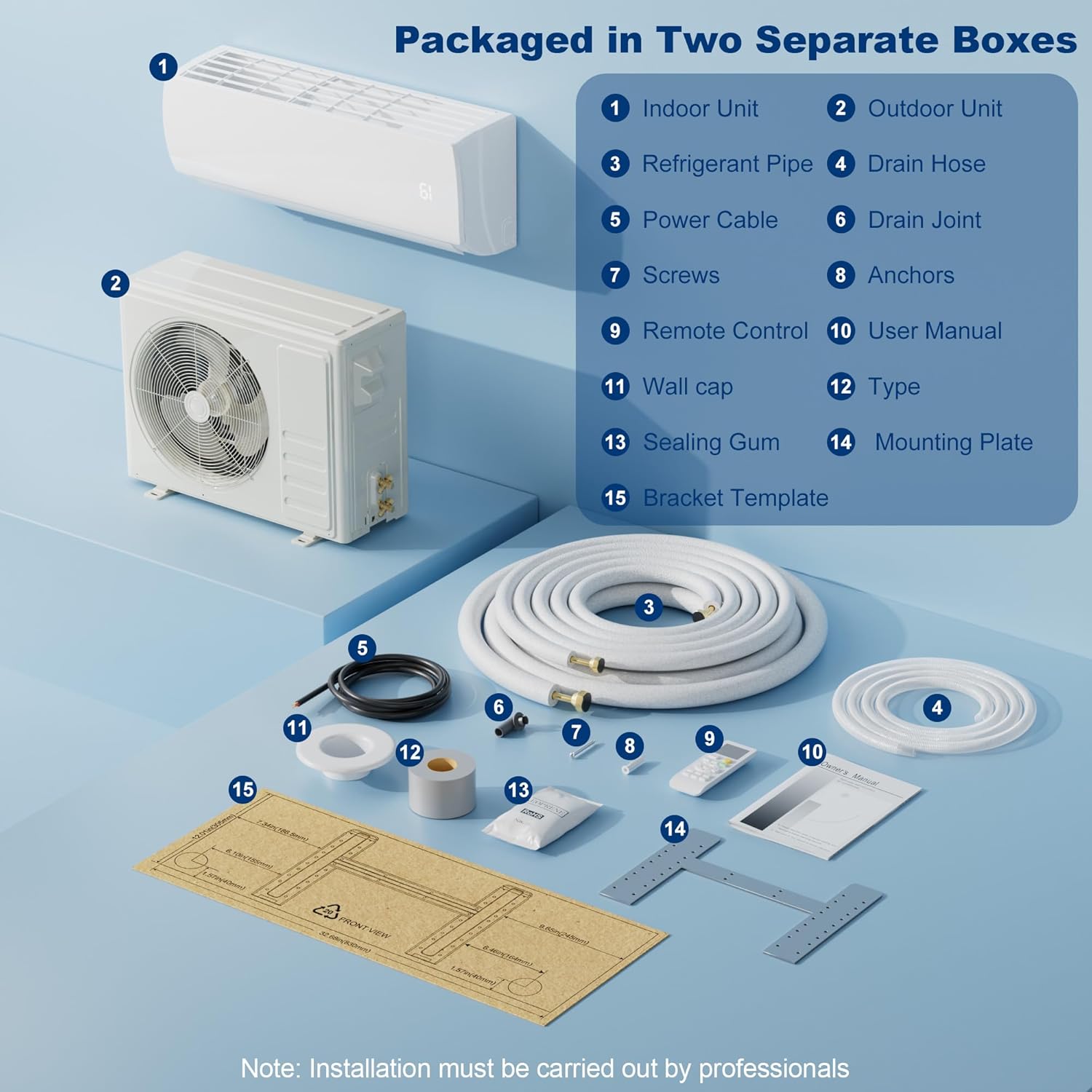

Image: A visual representation of the Uthfy HY12GWH115 Split Air Conditioner's complete package contents, including the indoor unit, outdoor unit, refrigerant pipe, drain hose, power cable, drain joint, screws, anchors, remote control, user manual, wall cap, sealing gum, mounting plate, and bracket template. These items are essential for installation.
Die pakket sluit in:
- Binne-eenheid
- Buitelug Eenheid
- Multifunksionele afstandbeheer
- Koelmiddelpyp
- Dreineer die slang
- Kragkabel
- Dreineer Joint
- Skroewe
- Ankers
- Muurdop
- Seëlgom
- Montageplaat
- Hakiesjabloon
- Gebruikershandleiding (hierdie dokument)
4. Opstelling en installering
The Uthfy HY12GWH115 is a split-system air conditioner requiring both an indoor and an outdoor unit installation. The system comes pre-charged with eco-friendly R32 refrigerant.
Belangrik: For optimal performance, safety, and to ensure proper refrigerant handling, professional installation is strongly advised. Improper installation can lead to reduced efficiency, damage to the unit, and safety hazards.
The installation kit includes all necessary mounting hardware. Refer to the detailed installation guide provided with the unit for specific steps. Ensure the outdoor unit is placed on a stable, level surface with adequate clearance for airflow.
5. Bedryfsinstruksies
Your Uthfy HY12GWH115 unit offers various modes and settings for personalized comfort, controlled via the multifunction remote control.
Image: The remote control for the Uthfy HY12GWH115 Split Air Conditioner, displaying options for multiple operating modes (Turbo, Swing, Mute, Sleep, ECO, Fan), four wind speeds (Low, Mid, High, Auto), and additional features like Self-Cleaning, 24H Timer, and Screen Off. This remote provides comprehensive control over the unit's functions.
5.1 Bedryfsmodusse
The unit features 7 versatile working modes:
- Koel modus: Vir die verkoeling van die kamer.
- Hitte modus: Vir die verhitting van die kamer.
- Aanhangermodus: Sirkuleer lug sonder verkoeling of verhitting.
- Droë modus: Ontvochtig die lug.
- ECO -modus: Optimaliseer energieverbruik vir doeltreffende werking.
- Slaap stelling: Adjusts temperature and fan speed for quiet, comfortable sleep, and automatically turns off the display screen.
- Turbo-funksie: Provides rapid cooling or heating for quick temperature changes.
- Swaaimodus: Controls the louver movement for even air distribution.
5.2 waaiersnelhede
Select from 4 fan speeds:
- Laag
- Middel
- Hoog
- Auto (unit adjusts speed based on room conditions)
5.3 Timer-funksie
The intelligent 24-hour timer allows you to program the unit to turn on or off at specific times, enhancing convenience and energy savings.
5.4 Stil Bedryf
The unit operates at a low noise level of 25 dB at its lowest speed, ensuring a peaceful environment. In Sleep Mode, the display screen on the indoor unit can be turned off to prevent light disruption.
Image: The Uthfy HY12GWH115 Split Air Conditioner installed in a bedroom, illustrating its ultra-quiet operation (as low as 20dB, comparable to a whisper), Sleep Mode, 24-hour timer, and the option to turn off the display screen for an undisturbed night's rest.
6. Onderhoud
Regular maintenance ensures the longevity and efficient operation of your Uthfy HY12GWH115 Split Air Conditioner.
6.1 Selfreinigende funksie
This ductless air conditioner includes an automatic self-cleaning function for its interior. This feature helps maintain air quality and unit efficiency by preventing the buildup of dust and mold.
6.2 Filter Skoonmaak
The unit is equipped with filters that require periodic cleaning to ensure optimal airflow and air quality. Refer to the user manual for specific instructions on how to access and clean the filters. Typically, filters should be cleaned every 2-4 weeks, depending on usage and environmental conditions.
Beeld: 'n Nabyskoot view of the Uthfy HY12GWH115 indoor unit, highlighting its "Top Opened Filter" and "Healthy Filters" design, which contributes to cleaner air and easier maintenance.
7. Probleemoplossing
If you encounter issues with your Uthfy HY12GWH115, consult the following common troubleshooting tips. For more complex problems, contact customer support or a qualified technician.
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Eenheid skakel nie aan nie | Geen krag, stroombreker het afgeskakel, afstandbeheerder se batterye is laag. | Kontroleer kragtoevoer, herstel stroombreker, vervang afstandbeheerbatterye. |
| Onvoldoende verkoeling/verhitting | Dirty filters, blocked air vents, incorrect mode selected, room size exceeds capacity. | Clean filters, clear obstructions, select correct mode, ensure unit matches room size (up to 750 sq. ft.). |
| Ongewone geraas | Los onderdele, vreemde voorwerpe, eenheid nie waterpas nie. | Inspect unit for loose components or obstructions, ensure stable installation. |
| Water lekkasie | Verstopte dreineringslang, onbehoorlike installasie. | Check and clear drain hose, verify proper installation (professional assistance recommended). |
8. Spesifikasies
Technical specifications for the Uthfy HY12GWH115 Split Air Conditioner:
Image: A diagram illustrating the dimensions of both the indoor and outdoor units of the Uthfy HY12GWH115 Split Air Conditioner, along with key performance metrics such as SEER2, HSPF2, heating/cooling capacity, max input power, and airflow volume.
| Kenmerk | Detail |
|---|---|
| Modelnommer | HY12GWH115 |
| Verkoelingskapasiteit | 12000 BTU/h (1 Ton) |
| Verhittingskapasiteit | 12200 XNUMX BTU/h |
| Aanbevole dekkingsgebied | Tot 750 vk. |
| SEER2-gradering | 19 |
| HSPF2-gradering | 8.5 |
| Voltage | 115 Volt |
| Noise Level (Low Speed) | 25 Desibel |
| Aantal waaiersnelhede | 4 |
| Beheer tipe | Afstandbeheer |
| Koelmiddel tipe | R32 (Pre-charged) |
| Afmetings van die binnenshuise eenheid (D x B x H) | 82D x 30.3W x 20.9H cm (approx. 32.3" x 11.9" x 8.2") |
| Afmetings van die buite-eenheid (D x B x H) | 78D x 33W x 60.2H cm (approx. 30.7" x 13" x 23.7") |
| Item gewig | 33.49 kg |
| Materiaal | Metaal |
| Montage tipe | Freestanding (Outdoor Unit) |
9. Waarborg en Ondersteuning
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Uthfy customer service. Keep your purchase receipt as proof of purchase.
Uthfy Customer Support: Please visit the official Uthfy website or refer to the contact details provided in your product packaging for assistance.
