Inkbird IBS-P03R+IM-03-W Pool Thermometer Set: Indoor/Outdoor Temperature and Humidity Monitor User Manual

Inleiding

This manual provides detailed instructions for the setup, operation, and maintenance of your Inkbird IBS-P03R+IM-03-W Pool Thermometer Set. This set includes a solar-powered floating pool thermometer and a multi-functional indoor monitor with a WiFi gateway. It allows you to monitor water temperature, indoor temperature, humidity, and other environmental data, with remote access via a smartphone application. Please read this manual thoroughly before using the product to ensure proper function and longevity.

Belangrike nota: Upon receiving the product, place the pool thermometer in direct sunlight for 5 to 7 hours to charge it before initial use.

Produk verbyview

Sleutel kenmerke

• Sonkrag-aangedrewe ontwerp: The wireless pool thermometer operates continuously with sunlight, eliminating the need for frequent battery replacements.
• IP68 Waterdig: The pool thermometer features a seamless, one-piece injection molding design and a soft silicone gasket for superior IP68 waterproofing and impact protection.
• WiFi-verbinding: Monitor water temperature remotely from your smartphone via 2.4GHz WiFi connection using the indoor display's gateway function.
• Uitgebreide transmissiebereik: The wireless transmission distance between the indoor display and the pool thermometer is up to 300 meters (980 feet) in open areas.
• Multi-functional Indoor Display: View current water temperature, indoor temperature and relative humidity, outdoor UV index, daily weather forecasts, water temperature comfort level, and MAX/MIN temperature readings.
• Customizable Comfort Level: Set a personalized water temperature comfort range via the app.
• Verskeie waarskuwings: Configure high/low temperature and humidity alerts, as well as low battery warnings, through the smart application. Receive real-time notifications.
• Databerging en -uitvoer: Track historical temperature and humidity data for up to one year in the cloud, with options to export data for detailed analysis.
• Wye toepassings: Suitable for swimming pools, spas, hot tubs, baby baths, and small ponds.

Pakketinhoud

• 1 × Inkbird Pool Thermometer (IBS-P03R)
• 1 × Inkbird Indoor Display with Gateway (IM-03-W)
• 1 × USB Type-C Power Cable
• 1 × Power Plug
• 1 × User Manual (This document)

Produkkomponente

Prentbeskrywing: 'n verbyview of the Inkbird IBS-P03R+IM-03-W Pool Thermometer Set, showing the floating pool thermometer and the indoor display unit. Key features like Indoor/Outdoor Monitoring, WiFi Connection, Solar Powered, IP68 Waterproof, Outdoor UV Index, Local Weather & Forecast, Water Temp Comfort Level, Real-time Alarms, Data Storage & Export, and Time Display are highlighted around the products.

Opstel instruksies

1. Charge the Pool Thermometer: Before first use, place the IBS-P03R pool thermometer in direct sunlight for 5 to 7 hours to ensure it is fully charged. The solar panel is located on top of the floating unit.


   Prentbeskrywing: An illustration showing the Inkbird pool thermometer floating in water with sunlight hitting its solar panel, indicating its solar-powered design.
2. Power the Indoor Display: Connect the IM-03-W indoor display to a power outlet using the provided USB Type-C power cable and power plug.
3. Laai die toepassing af: Soek vir the "Inkbird Smart" app on your smartphone's app store (iOS or Android) and download it.
4. Koppel toestelle:
   • Open the Inkbird Smart app and create an account or log in.
   • Follow the in-app instructions to add a new device. Select the IBS-P03R+IM-03-W model.
   • Ensure your smartphone is connected to a 2.4GHz WiFi network. The indoor display acts as a gateway to connect the pool thermometer to your WiFi network.
   • The app will guide you through the pairing process for both the indoor display and the pool thermometer.
5. Plasing:
   • Place the IBS-P03R pool thermometer directly into the water of your swimming pool, spa, or pond. Ensure it floats freely.


     Prentbeskrywing: ’n Nabyskoot view of the Inkbird pool thermometer partially submerged in water, highlighting its IP68 waterproof rating and seamless structure with an anti-collision soft silicone gasket.

   • Position the IM-03-W indoor display in a central location within 300 meters (980 feet) of the pool thermometer for optimal wireless signal reception.

Bedryfsinstruksies

Indoor Display (IM-03-W) Functions

The indoor display provides a comprehensive overview of environmental data.

Prentbeskrywing: The Inkbird indoor monitor plugged into a wall outlet, displaying various readings. Numbered labels point to: 1. Pool water temp, 2. Indoor temp & humidity, 3. Outdoor UV index, 4. Local weather & forecast, 5. Water temp comfort level, 6. Current time, 7. MAX/MIN temp.

• Huidige watertemperatuur: Displays the real-time temperature from the floating pool thermometer.
• Binnenshuise temperatuur en humiditeit: Shows the ambient temperature and relative humidity where the indoor display is located.
• Outdoor UV Index: Provides the current UV index for outdoor conditions.
• Local Weather & Forecast: Offers daily weather information and forecasts.
• Water Temperature Comfort Level: Indicates if the water temperature is within the set comfort range.
• Huidige tyd: Vertoon die huidige tyd.
• MAX/MIN Temperatuur: Shows the maximum and minimum recorded temperatures.
• Eenheidwisseling: Use the "°C/°F" button on the indoor display to switch between Celsius and Fahrenheit units.
• Maks/Min-knoppie: Press the "Max/Min" button to cycle through maximum and minimum recorded values for temperature and humidity.

Smartphone Application (Inkbird Smart)

• Afstandmonitering: View all data (water temp, indoor temp/humidity, UV index, weather) from anywhere via the app.


  Prentbeskrywing: 'n Lugfoto view of a house and pool, illustrating the 300m/980ft wireless transmission range between the pool thermometer and the indoor monitor, and the infinite WiFi control distance via the smartphone app. The app interface is shown on a phone screen.

• Waarskuwingsinstellings:
  • Set custom high and low temperature alerts for the pool water.
  • Set custom high and low humidity alerts for the indoor environment.
  • Receive notifications for low battery status of the pool thermometer.
  • All alerts are sent in real-time to your smartphone.
• Comfort Level Customization: Adjust the water temperature comfort range (default 78-86°F / 25.5-30°C) to suit your preferences.


  Prentbeskrywing: The Inkbird indoor monitor displaying a "COMFORT" indicator. An overlay shows a customizable comfort range (78-86°F / 25.5-30°C) that can be adjusted via the app.

• Historiese gegewens: Toegang en herview up to one year of historical temperature and humidity data. Data can be exported for further analysis.

Onderhoud

• Skoonmaak:
  • Wipe the indoor display with a soft, dry cloth. Do not use abrasive cleaners or immerse it in water.
  • The pool thermometer can be cleaned with a soft cloth and mild soap if necessary. Rinse thoroughly with fresh water.
• Sonpaneel: Ensure the solar panel on the pool thermometer is kept clean and free of debris to maximize charging efficiency.
• Berging: If storing the device for an extended period, ensure the pool thermometer is fully charged. Store both units in a cool, dry place away from direct sunlight.
• Battery: The pool thermometer uses a built-in rechargeable battery. The indoor display is powered by the included USB cable.

Probleemoplossing

Spesifikasies

Indoor Display (IM-03-W)

• Afmetings: 113 × 87 × 23 mm
• Temperatuurmetingreeks: -10°C tot 60°C (30°F tot 140°F)
• Temperatuur Akkuraatheid: ±0.3°C (±0.5°F)
• Resolusie van temperatuurvertoning: 0.1°C (0.1°F)
• Humiditeitsmetingsreeks: 0% tot 99% RH
• Humiditeit Akkuraatheid: ±3% RH
• Humiditeit vertoon resolusie: 1% RH
• Max Supported Thermometers: 9 units simultaneously
• Transmissieafstand: 300 meters / 980 feet (in open area)
• Verbinding: 2.4 GHz WiFi
• Kragbron: USB Type-C (via power plug)

Pool Thermometer (IBS-P03R)

• Afmetings: φ98 × 168 mm
• Temperatuurmetingreeks: -40°C tot 70°C (-40°F tot 154°F)
• Temperatuur Akkuraatheid: ±1°C (±1°F)
• Resolusie van temperatuurvertoning: 0.1°C (0.1°F)
• SampInterval: 5 sekondes
• Waterdigte gradering: IP68
• Kragbron: Solar-powered with built-in rechargeable battery
• Materiaal: Silicone (gasket)

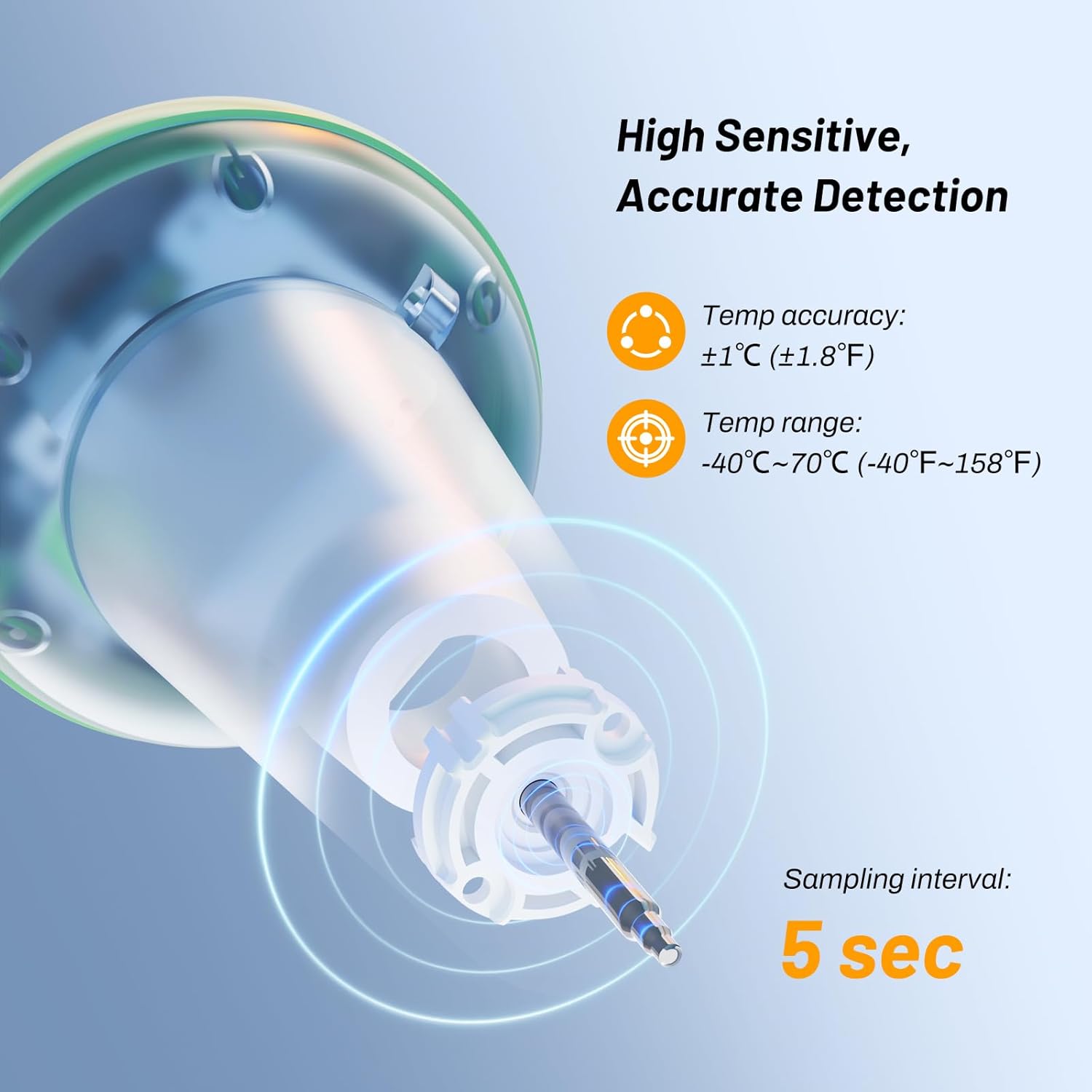

Prentbeskrywing: A diagram illustrating the high sensitivity and accurate detection of the pool thermometer sensor, showing temperature accuracy of ±1°C (±1.8°F) and a temperature range of -40°C~70°C (-40°F~158°F), with a sampling interval of 5 seconds.

Waarborg en Ondersteuning

Waarborg inligting

This Inkbird product comes with a one (1) year warranty from the date of purchase, covering defects in materials and workmanship. This warranty does not cover damage caused by misuse, accident, unauthorized modification, or neglect. Please retain your proof of purchase for warranty claims.

Kliënte ondersteuning

For technical support, warranty claims, or any questions regarding your Inkbird IBS-P03R+IM-03-W Pool Thermometer Set, please contact Inkbird customer service.

• Webwebwerf: Besoek die amptelike Inkbird webwebwerf vir algemene vrae en ondersteuningsbronne.
• E-pos: Refer to the contact information provided on the Inkbird webwebwerf of in die produkverpakking.
• Aanlyn winkel: U kan ook die Inkbird Winkel op Amazon vir produkinligting en ondersteuning.

Produk Toepassings

The Inkbird IBS-P03R+IM-03-W Pool Thermometer Set is versatile and can be used in various water environments to ensure optimal temperature.

Prentbeskrywing: A collage of images showing the Inkbird pool thermometer being used in different settings: a swimming pool, a hot spring, a hot tub, a baby bath, and a small pond, demonstrating its wide range of applications.
