BTF-LIGHTING WS2814 IC RGBWW LED Strip and Aluminum Channel System Instruction Manual

1. Produk verbyview

This manual provides instructions for the BTF-LIGHTING WS2814 IC RGBWW LED Strip and its accompanying aluminum channel system and double-sided tape. This product offers addressable RGB and pure white lighting effects, suitable for various decorative and functional lighting applications. Please note that a DC12V power adapter and a compatible addressable LED controller are required and are not included with this package.

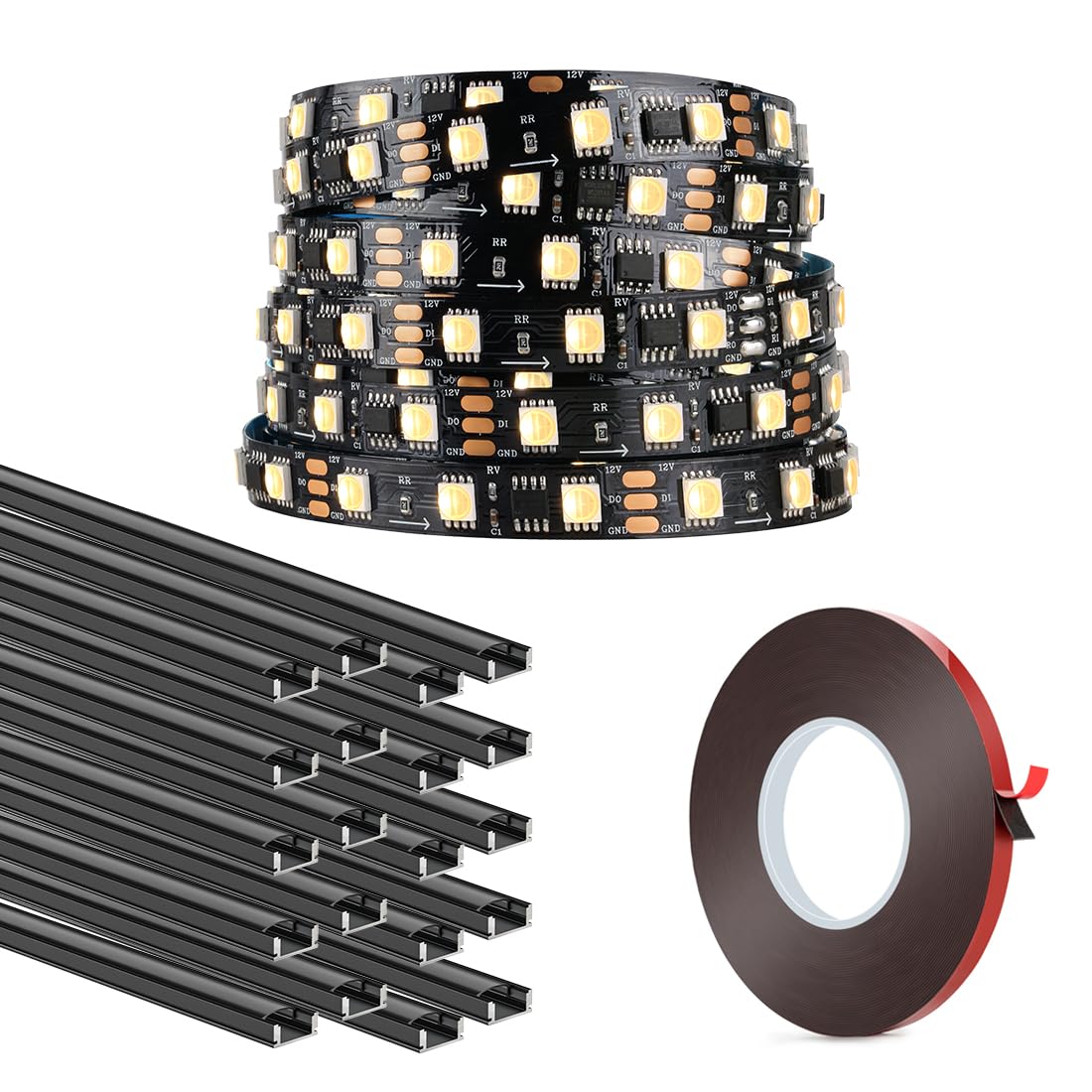

Image 1.1: Coiled BTF-LIGHTING WS2814 IC RGBWW LED Strip with input and output connectors.

Pakketinhoud:

• 1 x WS2814 IC RGBWW DC12V LED Strip (65.6FT / 20m)
• 20 x U-Shape Black LED Aluminum Channels (1.64FT / 0.5m each)
• 20 x Black Plastic LED Covers
• 22 x Eindkappe
• 44 x Metal Mounting Clips
• 44 x Screws (for wood surfaces)
• 44 x Expansion Tubes (for concrete or gypsum walls)
• 1 x Double-Sided Mounting Tape (65.6FT / 20m, 0.39in / 10mm width)

2. Opstelling en installering

2.1 LED Strip Preparation

1. Cutting the LED Strip: The WS2814 LED strip is cuttable every 3 LEDs. Locate the designated cut marks on the strip. Use sharp scissors to cut only at these marks to avoid damaging the circuit.
2. Connecting Power and Controller: Connect the LED strip to a compatible DC12V power supply and an addressable LED controller (both sold separately). Ensure correct polarity (DC12V, GND, Data In, Data Out) to prevent damage. The WS2814 IC controls groups of 3 LEDs.

2.2 Aluminum Channel Installation

The aluminum channels provide a clean, diffused look and aid in heat dissipation, extending the lifespan of the LED strip.

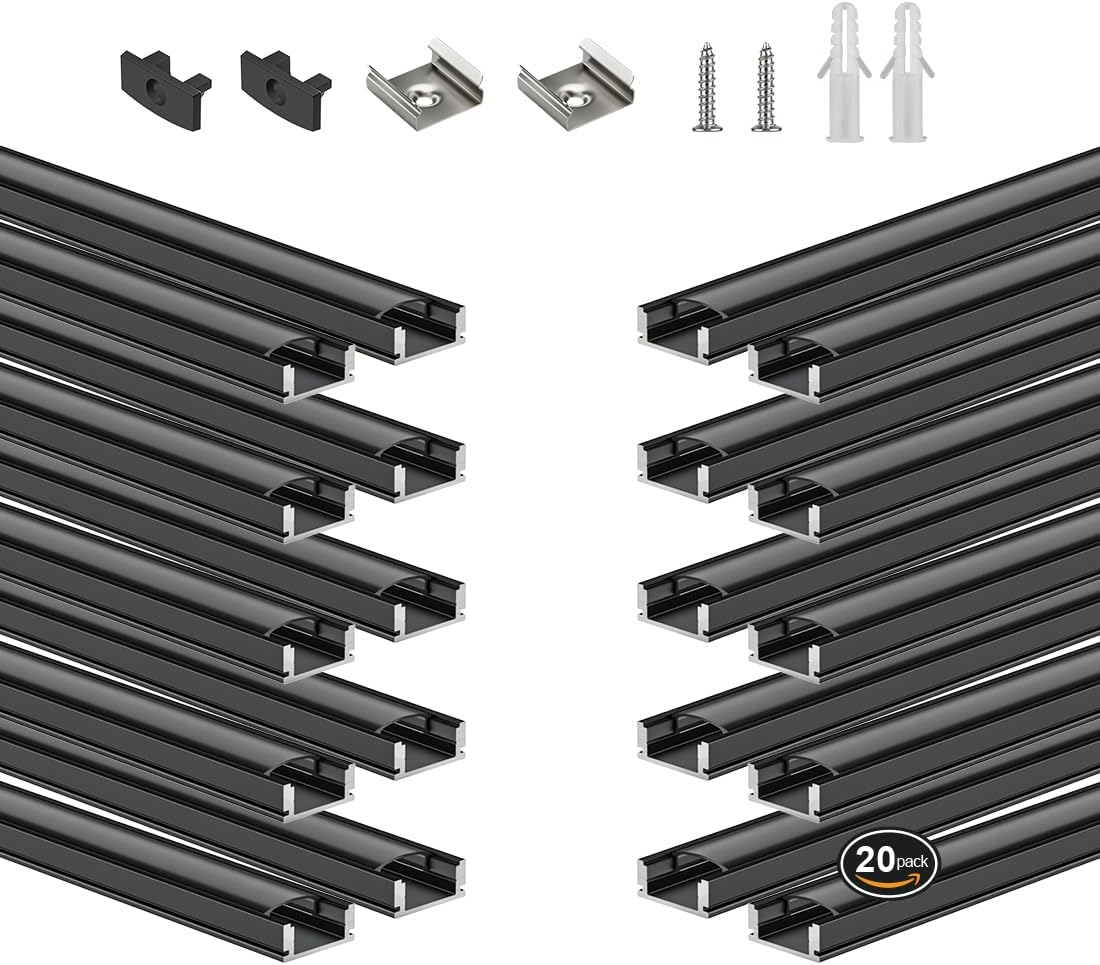

Image 2.1: The 20-pack U-shape black LED aluminum channels along with mounting clips, screws, and expansion tubes.

1. Montageklemme: Determine the desired location for your LED lighting. Secure the metal mounting clips to the surface using the provided screws for wood, or screws with expansion tubes for concrete/gypsum walls. Space clips evenly along the length of the channel.
2. Voeg LED-strook in: Peel the adhesive backing from the LED strip and carefully press it into the aluminum channel. Ensure it is straight and fully adhered.
3. Attach Channel: Snap the aluminum channel into the secured mounting clips.
4. Install Cover and End Caps: Slide the black plastic LED cover onto the channel. Attach the end caps to both ends of the channel to complete the installation and protect the strip from dust.

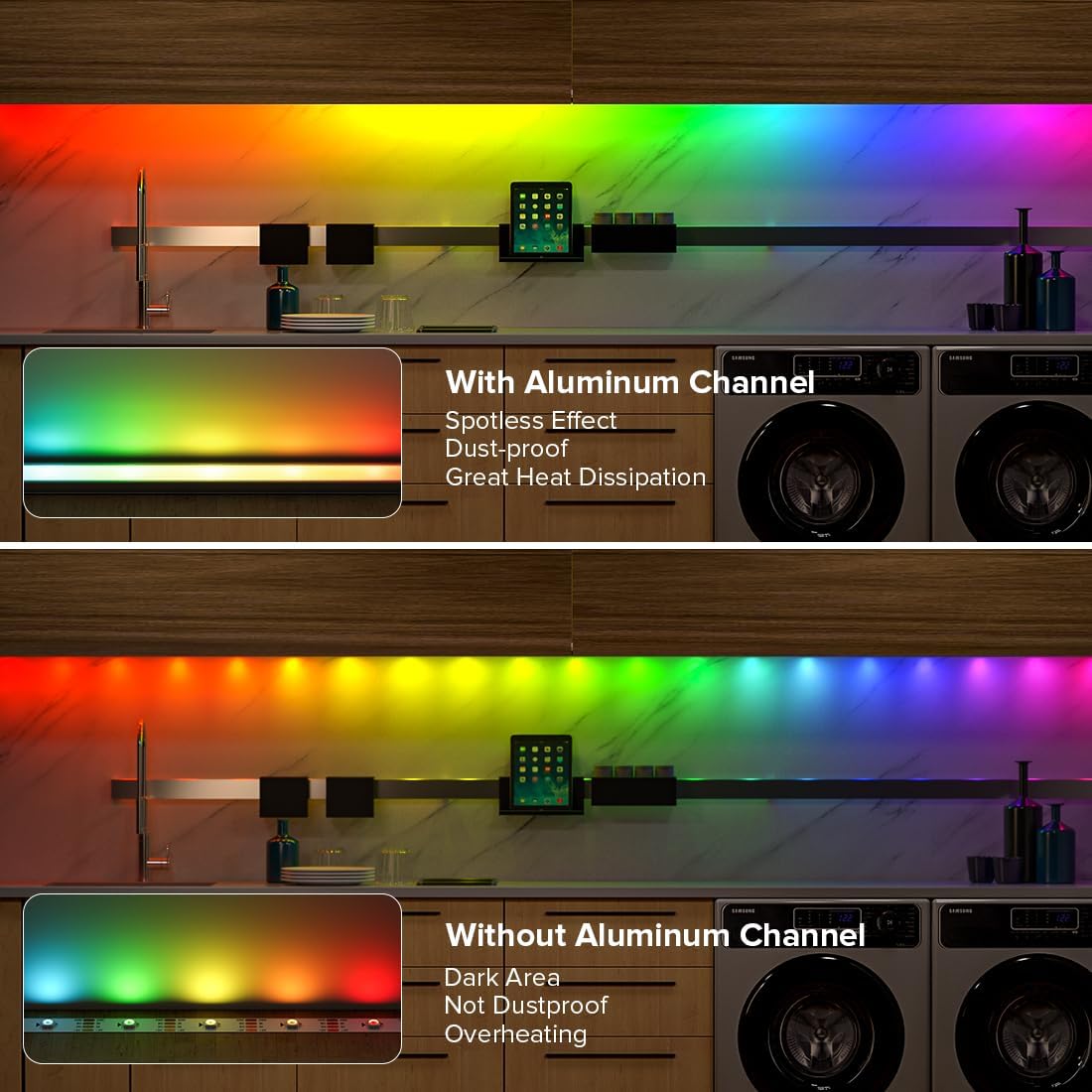

Image 2.2: Visual comparison demonstrating the improved light diffusion and heat dissipation when using an aluminum channel versus a bare LED strip.

2.3 Double-Sided Mounting Tape Application

The included double-sided tape is suitable for mounting the LED strip directly or for securing other items.

Image 2.3: A roll of the 10mm wide double-sided mounting tape.

1. Oppervlakvoorbereiding: Ensure the mounting surface is clean, dry, and free of dust, oil, or grease.
2. Apply Tape: Cut the desired length of tape. Apply one side of the tape firmly to the back of the LED strip or the surface where it will be mounted.
3. Mount Item: Peel off the protective film from the other side of the tape and press the LED strip or item firmly onto the prepared surface for at least 30 seconds.

Beeld 2.4: Voorbeeldamples of various surfaces suitable for tape application, such as automotive trim, under-cabinet lighting, picture frames, and wall decor.

3. Bedryfsinstruksies

The WS2814 IC RGBWW LED strip requires an external addressable LED controller (not included) to operate. This controller will allow you to select various lighting modes and colors.

Beeld 3.1: Voorbeeldamples of lighting effects: pure white light for functional illumination and dynamic RGB chasing colors for decorative purposes.

3.1 Beligtingseffekte

• RGB Full Color: The strip supports 24-bit color display with 256 brightness levels, allowing for a wide range of colors and dynamic effects.
• Pure White: In addition to RGB, the strip features dedicated pure white LEDs, providing a clean, bright white light. This allows for both static white light and dynamic white chasing-effekte.
• Chasing Effekte: Met 'n versoenbare beheerder kan jy verskeie ch bereikasing, flowing, and animated lighting patterns.

Image 3.2: Demonstrates the versatility of the strip, capable of displaying full RGB colors as well as various shades of white light (Cool, Natural, Warm White).

3.2 Kragverbruik

The power consumption varies depending on the color and brightness settings:

• Single Color (Red, Green, Blue, or Pure White): Approximately 0.1W per LED.
• Two Colors (e.g., Red + Green): Approximately 0.2W per LED.
• Mixed White (R+G+B): Approximately 0.3W per LED.
• Pure White (dedicated LED): Approximately 0.1W per LED (more energy-efficient than mixed white).

It is recommended to use a DC12V 10A (120W) power supply for optimal performance of the 65.6FT strip.

4. Onderhoud

Proper maintenance ensures the longevity and optimal performance of your LED strip lighting system.

• Skoonmaak: Gently wipe the LED strip and aluminum channels with a soft, dry cloth to remove dust. For stubborn dirt, a slightly damp cloth can be used, ensuring the strip is powered off and completely dry before re-energizing. Avoid harsh chemicals or abrasive cleaners.
• Verbindingskontrole: Periodically inspect all connections (power, controller, strip connectors) to ensure they are secure and free from corrosion.
• Hittebestuur: The aluminum channels are designed to dissipate heat. Ensure that the channels are not obstructed, allowing for proper airflow.
• Omgewingstoestande: This LED strip is IP30 rated (non-waterproof). Avoid exposure to moisture, high humidity, or direct water contact.

5. Probleemoplossing

If you encounter issues with your LED strip, refer to the following common troubleshooting steps:

• LED's brand nie:
  • Verify the DC12V power supply is correctly connected and functioning.
  • Check all wiring connections between the power supply, controller, and LED strip for proper polarity and secure fit.
  • Ensure the controller is powered on and set to an active mode.
• Inconsistent Colors or Effects:
  • Confirm the data line connection from the controller to the strip is secure.
  • Check the controller settings to ensure it is configured for WS2814 IC type and the correct number of pixels.
  • If the issue occurs towards the end of a long strip, it might be due to voltage drop. Consider injecting power at multiple points along the strip if your setup allows.
• Oorverhitting:
  • Ensure the LED strip is installed within the aluminum channels for optimal heat dissipation.
  • Verify the power supply is appropriate for the total length and power consumption of the strip. An undersized power supply can lead to overheating.
• Adhesion Issues with Tape:
  • Ensure the mounting surface was thoroughly cleaned and dried before tape application.
  • Apply firm, even pressure when adhering the tape and the item to the surface.

6. Spesifikasies

7. Waarborg en Ondersteuning

For warranty information or technical support, please refer to the product packaging or contact BTF-LIGHTING customer service directly through their official website or the retailer where the product was purchased. Please have your product model number (WS2814 IC RGBWW LED Strip) and purchase details ready when contacting support.
