Ozeri LS2 Multifunction Propane Tank Scale and BBQ Gas Gauge User Manual

Inleiding

The Ozeri LS2 Multifunction Propane Tank Scale and BBQ Gas Gauge is designed to provide accurate measurements for propane tanks and can also function as a general-purpose scale for items such as fish, luggage, or groceries. It features an illuminated LCD display, unit conversion, tare function, a built-in digital thermometer, and a retractable tape measure.

Wat is in die boks

• Ozeri LS2 Multifunction Propane Tank Scale
• Gebruikershandleiding
• AAA-battery (2)

Sleutel kenmerke

• Propane Tank Mode: Calibrated for common 20 lb exchangeable propane tanks, providing immediate gas level insight.
• Intuïtiewe LCD-skerm: Illuminates in 3 colors (red, orange, green) to indicate approximate gas level (Empty, ¼, ½, ¾, Full).
• Regular Scale Mode: Easily switches for weighing fish, small game, groceries, luggage, or postage.
• Eenheid omskakeling: Conveniently switch between pounds (lbs) and kilograms (kg) with a maximum capacity of 110 lbs / 50 kg.
• Tarra funksie: Allows for additive weighing by zeroing out the weight of a container or previous item.
• Built-in Digital Thermometer: Displays temperature in Celsius (°C) or Fahrenheit (°F).
• Retractable 3ft Tape Measure: Integrated for additional utility.

Opstelling en batteryinstallasie

1. Vind die battery kompartement op die agterkant van die skaal.
2. Maak die batteryvakdeksel oop.
3. Plaas 2 AAA-batterye in en maak seker dat die polariteit (+/-) korrek is.
4. Maak die batterykompartement se deksel stewig toe.
5. Druk die AAN/AF knoppie om die skaal aan te skakel.

Beeld: Agter view of the Ozeri LS2 scale, highlighting the battery compartment for installation.

Bedryfsinstruksies

Using Propane Tank Mode

1. Skakel die skaal aan deur die te druk AAN/AF knoppie.
2. Druk die MODUS button to select "Lbs Tank" mode.
3. Hook the scale onto the handle of your 20 lb propane tank.
4. Lift the tank using the scale's ergonomic grip.
5. The LCD screen will display the total weight and illuminate in one of three colors to indicate the approximate gas level:
   • Rooi: Empty or very low gas.
   • Oranje: Quarter to half full.
   • Groen: Half to full.
   A fractional readout (E, ¼, ½, ¾, F) will also be shown for more precise indication.

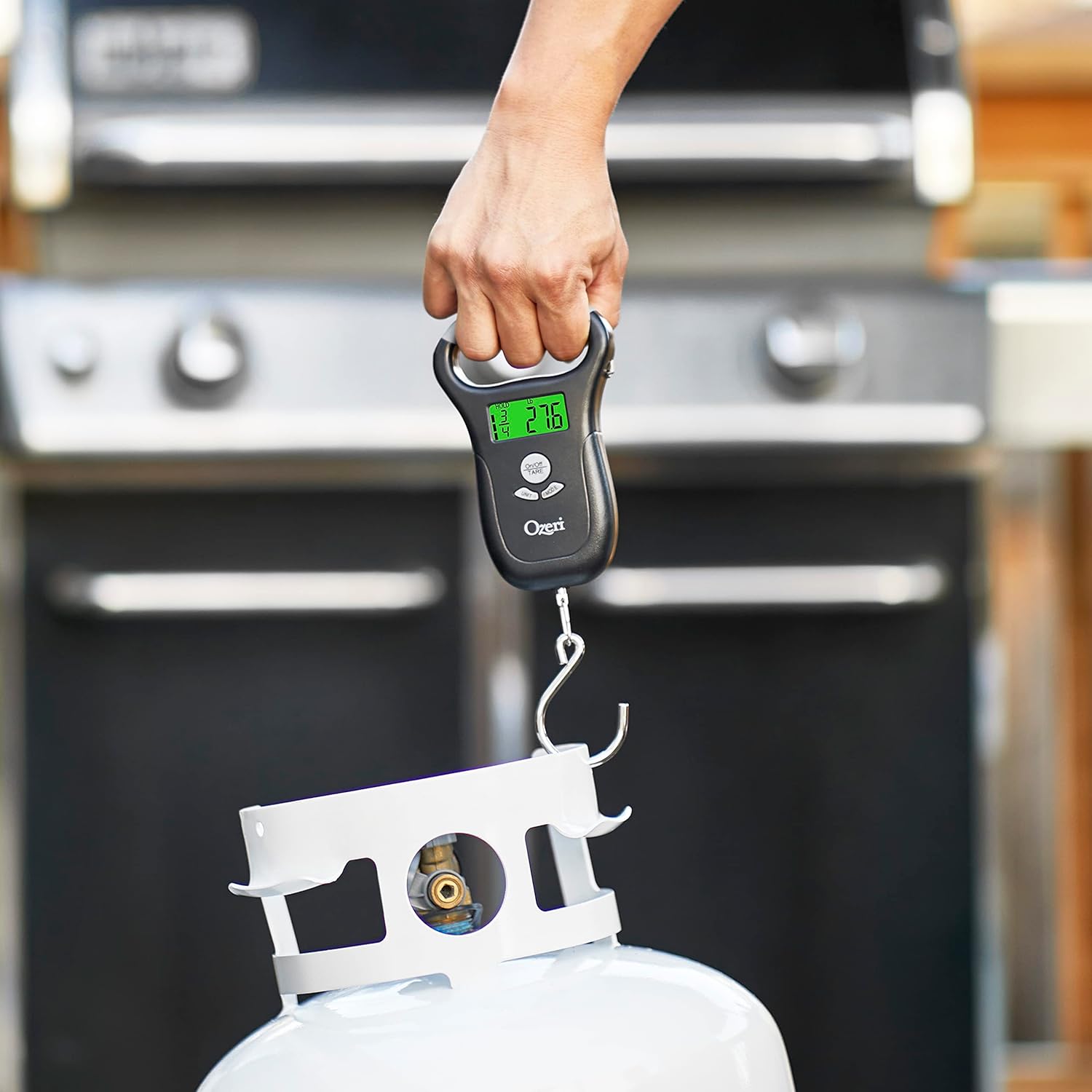

Image: The Ozeri LS2 scale displaying a green screen, indicating a full propane tank.

Image: The Ozeri LS2 scale displaying an orange screen, indicating a half-full propane tank.

Image: The Ozeri LS2 scale displaying a red screen, indicating an empty propane tank.

Using Regular Scale Mode

1. Skakel die skaal aan deur die te druk AAN/AF knoppie.
2. Druk die MODUS button until the display shows a standard weight unit (e.g., "Lbs" or "Kg") without "Tank".
3. Attach the item to be weighed to the hook.
4. Lift the scale to read the weight on the LCD display.

Image: The Ozeri LS2 scale shown alongside icons representing its multi-functional use for propane, fish, and luggage.

Changing Units (Lbs/Kg)

• Met die skaal aan, druk die EENHEID button to toggle between pounds (lbs) and kilograms (kg).

Gebruik die Tarra-funksie

• To weigh items additively, first place the container or initial item on the hook and allow the weight to stabilize.
• Druk die tarra knoppie. Die skerm sal na nul herstel word.
• Add the next item to the container or hook, and the display will show only the weight of the added item.

Digitale termometer

• The built-in digital thermometer displays the ambient temperature. Press the appropriate button (refer to the scale's interface, usually the EENHEID button or a dedicated temperature button) to switch between Celsius (°C) and Fahrenheit (°F).

Retractable Tape Measure

• Pull out the retractable tape measure from the side of the scale to measure lengths up to 3 feet.

Official Product Video: How to Use the Scale

Onderhoud

• Skoonmaak: Vee die skaal af met 'n sagte, damp lap. Moenie skuurmiddels gebruik of die skaal in water dompel nie.
• Berging: Store the scale in a cool, dry place when not in use. Remove batteries if storing for extended periods to prevent leakage.
• Battery vervanging: Vervang batterye wanneer die lae battery-aanwyser op die skerm verskyn.

Probleemoplossing

• No Display/Low Battery: Ensure batteries are correctly installed and replace them if the display is dim or non-existent.
• Onakkurate lesings: Ensure the scale is held steady and the item is properly hooked. Avoid weighing in windy conditions. Calibrate if necessary (refer to specific calibration instructions if provided in a full manual, not detailed here).
• "Olb" Error: Indicates overload. Remove the item immediately to prevent damage to the scale.

Spesifikasies

Waarborg en Ondersteuning

The Ozeri LS2 Multifunction Propane Tank Scale is backed by Ozeri's No-Hassle Warranty, which typically covers the product for 1 year from the date of purchase. For warranty claims, technical support, or further assistance, please refer to the contact information provided in the product packaging or visit the official Ozeri webwebwerf.

Vervaardiger: Ozeri
