Elac SUB1015 Powered Subwoofer User Manual

1. Inleiding

Thank you for choosing the Elac SUB1015 Powered Subwoofer. This high-performance subwoofer is engineered to deliver powerful and deep bass, enhancing your home audio experience. Featuring a 10-inch polypropylene cone, the SUB1015 handles low frequencies with clarity and precision. This manual provides essential information for proper setup, operation, and maintenance to ensure optimal performance and longevity of your subwoofer.

2. Pakketinhoud

Verifieer asseblief dat alle items in die pakket teenwoordig is:

• Elac SUB1015 Powered Subwoofer
• Rooster
• AC kragkabel

3. Opstelling en verbindings

Proper setup is crucial for achieving the best sound quality from your subwoofer. Follow these steps for installation:

3.1 Plasing

The placement of your subwoofer significantly impacts its performance. Experiment with different locations in your room to find the optimal spot. Generally, placing the subwoofer in a corner can enhance bass output, but may also lead to boomy sound. Placing it along a wall or near your main speakers can provide a more balanced sound. Ensure there is adequate ventilation around the unit.

3.2 Die subwoofer koppel

The SUB1015 offers both RCA line-level and speaker-level inputs for compatibility with various audio systems.

RCA Line-Level Input (Recommended)

If your AV receiver or pre-amplifier has a dedicated subwoofer output (often labeled LFE, Sub Out, or Pre-Out Sub), use an RCA cable to connect this output to the LINE INPUT (LFE) on the subwoofer's rear panel. This method typically provides the best performance and control.

Invoer op luidsprekervlak

As jou ontvanger of amplifier does not have a dedicated subwoofer output, you can connect the subwoofer using the speaker-level inputs. Connect the speaker outputs from your amplewendiger na die SPREKERVLAK-INVOER terminals on the subwoofer. Ensure correct polarity (positive to positive, negative to negative). You can then connect your main speakers to the LUIDSPREKERVLAK-UITSET terminals on the subwoofer, or directly to your amplifier if your main speakers are full-range.

3.3 Kragverbinding

Once all audio connections are made, connect the supplied AC power cord to the subwoofer's power inlet and then to a suitable wall outlet. The subwoofer is designed for 230 Volts input.

4. Bedryfsinstruksies

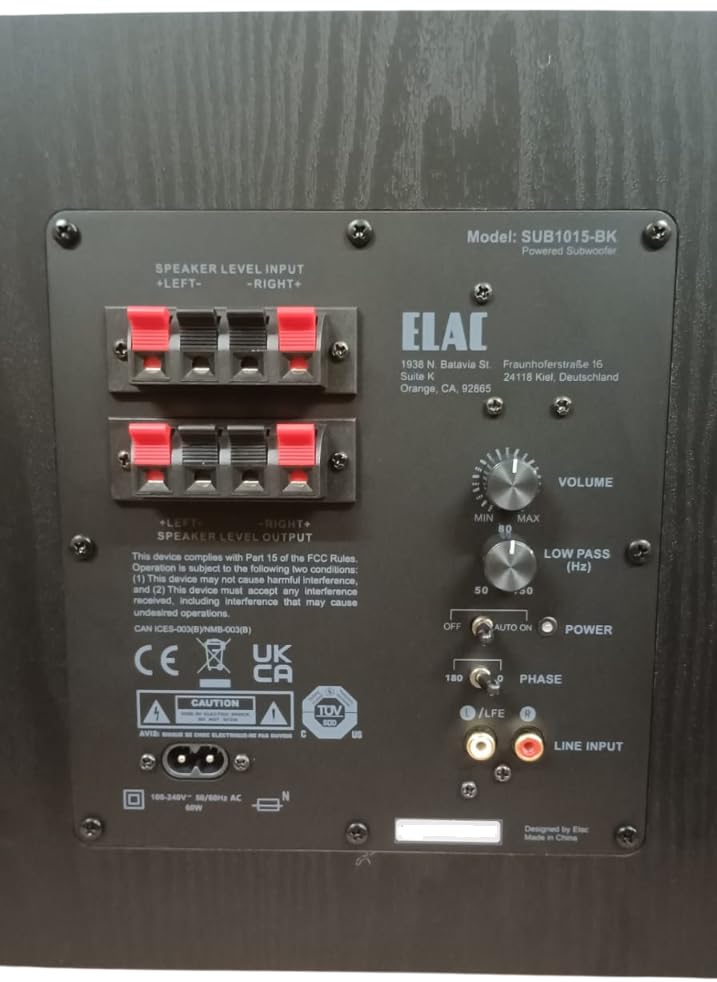

After connecting your subwoofer, use the controls on the rear panel to fine-tune its performance.

4.1 kontroles oorview

• VOLUME: Pas die algehele uitsetvlak van die subwoofer aan. Begin met 'n lae instelling en verhoog dit geleidelik totdat die bas naatloos met jou hoofluidsprekers saamsmelt.
• LOW PASS (Hz): Controls the upper frequency limit of the subwoofer. This setting determines where the subwoofer takes over from your main speakers. A common starting point is 80 Hz, but adjust based on your main speakers' low-frequency capabilities.
• KRAG: Hierdie skakelaar het drie posisies:
  • AF: Turns the subwoofer off.
  • OP: Keeps the subwoofer continuously on.
  • VOERTUIG: The subwoofer will automatically turn on when an audio signal is detected and enter standby mode after a period of inactivity. This mode consumes less than 0.5W in standby.
• FASE: Adjusts the phase of the subwoofer's output relative to your main speakers. Set to 0° or 180°. Experiment with both settings to find which provides the most coherent and impactful bass in your listening position.

5. Probleemoplossing

If you encounter issues with your Elac SUB1015 subwoofer, refer to the following common problems and solutions:

• Geen klank:
  • Ensure the power cord is securely connected and the subwoofer is plugged into a live outlet.
  • Gaan die KRAG switch position. If set to AUTO, ensure an audio signal is present.
  • Verify all audio cables (RCA or speaker-level) are correctly and securely connected.
  • Verhoog die VOLUME control on the subwoofer.
  • Check your receiver/amplifier settings to ensure the subwoofer output is enabled and volume is not muted.
• Weak or Distorted Bass:
  • Pas die VOLUME control on the subwoofer.
  • Pas die LOW PASS (Hz) control. If set too low, you might not hear enough bass.
  • Eksperimenteer met die FASE switch (0° or 180°) to see if it improves bass integration.
  • Check subwoofer placement. Moving it to a different location, especially closer to a wall or corner, might improve bass response.
  • Ensure speaker wires are connected with correct polarity (+ to +, - to -).
• Zoemende of Gonsende Geraas:
  • Try plugging the subwoofer into a different electrical outlet.
  • Ensure all audio cables are properly shielded and not running parallel to power cables.
  • As jy RCA-verbindings gebruik, probeer 'n ander RCA-kabel.
  • Disconnect all audio inputs from the subwoofer. If the hum disappears, the issue is likely with the source equipment or cabling.

6. Spesifikasies

Detailed technical specifications for the Elac SUB1015 Powered Subwoofer:

7. Onderhoud

To maintain the appearance and performance of your subwoofer:

• Skoonmaak: Use a soft, dry cloth to wipe the cabinet. Avoid using abrasive cleaners, waxes, or solvents.
• Plasing: Keep the subwoofer away from direct sunlight, heat sources, and excessive moisture.
• Ventilasie: Ensure the rear panel and any vents are not obstructed to allow for proper heat dissipation.

8. Produk verbyview Video

Kyk na hierdie video vir 'n visuele oorsigview of the Elac SUB1015 Powered Subwoofer and its key features.

9. Waarborg en Ondersteuning

The Elac SUB1015 Powered Subwoofer comes with a 1 jaar vervaardigerswaarborg.

Vervaardiger inligting:

ELAC Americas Inc.
1938 N. Batavia St. Suite K
Orange, CA 92865

Importer Contact Information (India):

Kripa Electronics (india) Pvt.Ltd
Gala No 4 5 6, Building No. C, Shreeram Complex,
Village Dapoda, Bhiwandi Thane-421032
