Inleiding
This manual provides essential information for the safe and efficient operation of your Hisense Easy Smart Inverter Air Conditioner. Please read it thoroughly before installation and use, and keep it for future reference.
Image: Hisense Easy Smart Inverter Air Conditioner indoor unit.
Veiligheidsinligting
Belangrike veiligheidsinstruksies:
- Maak altyd seker dat die eenheid behoorlik geaard is.
- Moenie probeer om die eenheid self te herstel of te wysig nie. Kontak gekwalifiseerde dienspersoneel.
- Hou kinders en troeteldiere weg van die buite-eenheid.
- Verseker behoorlike ventilasie rondom die buite-eenheid.
- Do not insert objects into the air outlet or inlet.
- Skakel die kragtoevoer af voor skoonmaak of onderhoud.
Produk verbyview
The Hisense Easy Smart Inverter Air Conditioner is designed for efficient cooling and heating, featuring advanced functionalities for enhanced comfort and control.
Sleutel kenmerke:
- WIFI INCLUDED: Remote control via the Connect Life app on your smartphone.
- Slaap funksie: Automatically adjusts temperature for comfortable sleep.
- 24-uur-tydteller: Schedule climate control on/off times.
- i-VOEL Funksie: Remote control sensor detects ambient temperature for precise comfort.
- Anti-mildew: Indoor fan continues operation after shutdown to dry condensation and prevent mildew.
Image: Hisense Easy Smart Inverter Air Conditioner outdoor unit.
Opstelling en installasie
Installation of this split-system air conditioner requires professional assistance. Ensure all components are handled carefully and installed according to local regulations and the provided technical specifications.
Voorinstallasie tjeks:
- Verify power supply matches unit requirements (220-240V~50Hz, 1P).
- Ensure adequate space for both indoor and outdoor units for proper airflow and maintenance.
- Confirm correct refrigerant type (R-32) and charge.
Buise en verbindings:
- Liquid/Gas Tubing: Refer to specifications for appropriate diameters (e.g., φ6.35/φ9.52 for 1/4"/3/8").
- Maximum Tubing Length: Up to 20 meters.
- Maximum Elevation Difference (Indoor/Outdoor Unit): Up to 10 meters.
- Electrical Connections: Main power to outdoor unit, connection between indoor and outdoor units (U.E/U.I:4 + earth).
Bedryfsinstruksies
Your Hisense air conditioner can be operated via the included remote control or the Connect Life smartphone app.
Afstandbeheer werking:
- Krag aan/af: Press the power button to start or stop the unit.
- Moduskeuse: Choose between Cooling, Heating, Fan, or Dehumidifier modes.
- Temperatuuraanpassing: Use the up/down arrows to set your desired temperature.
- Fan Spoed: Pas waaierspoed aan (Outomaties, Laag, Medium, Hoog).
- Slaap stelling: Activate for quiet operation and optimized temperature adjustments during sleep.
- Afteller: Set the 24-hour timer for automatic on/off scheduling.
- i-FEEL: Activate this function to use the remote control's sensor for more accurate room temperature sensing.
Wi-Fi en toepassingbeheer:
Download the Hisense Connect Life app from your smartphone's app store. Follow the in-app instructions to connect your air conditioner to your home Wi-Fi network. Once connected, you can control all functions remotely.
Onderhoud
Regular maintenance ensures optimal performance and longevity of your air conditioner. Always disconnect power before performing any maintenance.
Binne-eenheid:
- Lugfilter skoonmaak: Clean air filters every two weeks or more frequently if used heavily. Wash with mild detergent and water, then dry thoroughly before reinstallation.
- Anti-mildew Function: This feature helps prevent mold growth by drying the indoor coil after operation. Ensure it is enabled for best results.
- Oppervlakte skoonmaak: Vee die oppervlak van die binnenshuise eenheid af met 'n sagte, damp lap. Moenie harde chemikalieë of skuur skoonmaakmiddels gebruik nie.
Buite-eenheid:
- Spoel skoonmaak: Periodically check and clean the outdoor unit's coil to remove dust, leaves, and debris. This should ideally be done by a professional.
- Vee obstruksies uit: Ensure no objects block the airflow around the outdoor unit.
Probleemoplossing
Voordat u die diens kontak, verwys na die volgende algemene probleme en oplossings:
- Eenheid skakel nie aan nie: Kontroleer die kragtoevoer, stroombreker en afstandbeheerbatterye.
- Onvoldoende verkoeling/verhitting: Ensure air filters are clean, doors/windows are closed, and temperature settings are correct. Check for obstructions around outdoor unit.
- Ongewone geluide: Minor noises during operation are normal. If loud or unusual, contact service.
- Water lekkasie: Check drainage hose for blockages or improper installation.
- Wi-Fi-verbindingskwessies: Ensure router is working, unit is within Wi-Fi range, and app settings are correct.
If problems persist, contact Hisense customer support or a qualified technician.
Tegniese spesifikasies
Below are the detailed technical specifications for the Hisense Easy Smart Inverter Air Conditioner, including various models. The CA35MR0BG model is highlighted.

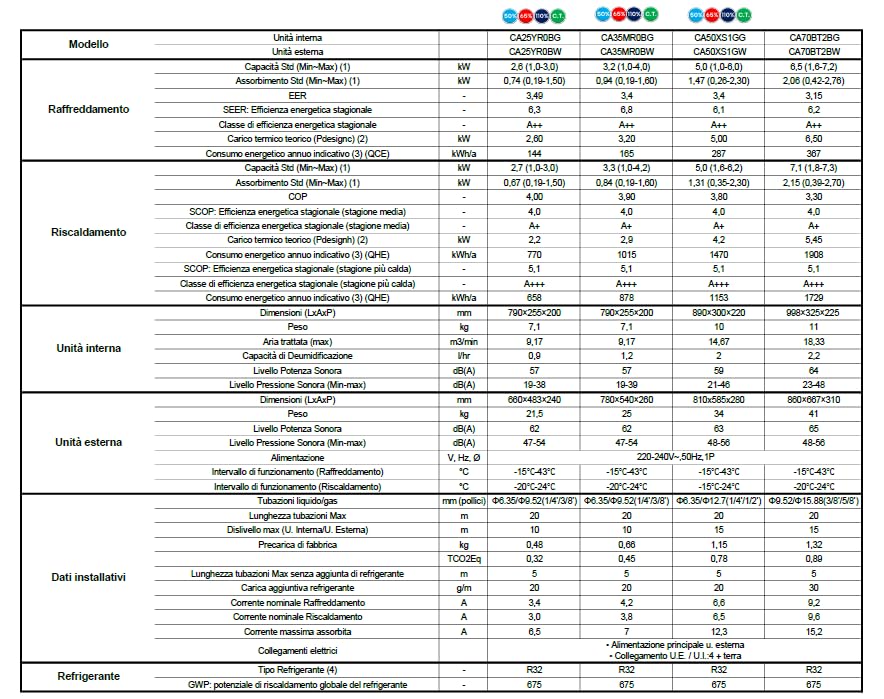

Image: Technical specifications table for Hisense Easy Smart Air Conditioners. This table provides detailed performance data for various models, including cooling and heating capacities, power consumption, dimensions, and refrigerant information.
| Kategorie | Parameter | Eenheid | CA25YR0BG / CA25YR0BW | CA35MR0BG / CA35MR0BW | CA50XS1GG / CA50XS1GW | CA70BT2BG / CA70BT2BW |
|---|---|---|---|---|---|---|
| Verkoeling | Standard Capacity (Min-Max) (1) | kW | 2.6 (1.0-3.0) | 3.2 (1.0-4.0) | 5.0 (1.0-6.0) | 6.5 (1.6-7.2) |
| Standard Absorption (Min-Max) (1) | kW | 0.74 (0.19-1.50) | 0.94 (0.19-1.60) | 1.47 (0.26-2.30) | 2.06 (0.42-2.76) | |
| EER | - | 3.49 | 3.4 | 3.4 | 3.15 | |
| SEER: Seasonal Energy Efficiency | - | 6.3 | 6.8 | 6.1 | 6.2 | |
| Seasonal Energy Efficiency Class | - | A++ | A++ | A++ | A++ | |
| Theoretical Thermal Load (Pdesignc) (2) | kW | 2.60 | 3.20 | 5.00 | 6.50 | |
| Indicative Annual Energy Consumption (3) (QCE) | kWh/a | 144 | 165 | 287 | 367 | |
| Verhitting | Standard Capacity (Min-Max) (1) | kW | 2.7 (1.0-3.0) | 3.3 (1.0-4.2) | 5.0 (1.6-6.2) | 7.1 (1.8-7.3) |
| Standard Absorption (Min-Max) (1) | kW | 0.67 (0.19-1.50) | 0.84 (0.19-1.60) | 1.31 (0.35-2.30) | 2.15 (0.39-2.70) | |
| COP | - | 4.00 | 3.90 | 3.80 | 3.30 | |
| SCOP: Seasonal Energy Efficiency (Average Season) | - | 4.0 | 4.0 | 4.0 | 4.0 | |
| Seasonal Energy Efficiency Class (Average Season) | - | A+ | A+ | A+ | A+ | |
| Theoretical Thermal Load (Pdesignh) (2) | kW | 2.2 | 2.9 | 4.2 | 5.45 | |
| Indicative Annual Energy Consumption (3) (QHE) | kWh/a | 770 | 1015 | 1470 | 1908 | |
| SCOP: Seasonal Energy Efficiency (Warmer Season) | - | 5.1 | 5.1 | 5.1 | 5.1 | |
| Seasonal Energy Efficiency Class (Warmer Season) | - | A+++ | A+++ | A+++ | A+++ | |
| Indicative Annual Energy Consumption (3) (QHE) | kWh/a | 658 | 878 | 1153 | 1729 | |
| Binne-eenheid | Afmetings (LxBxH) | mm | 790×255×200 | 790×255×200 | 800×300×220 | 998×325×225 |
| Gewig | kg | 7.1 | 7.1 | 10 | 11 | |
| Treated Air (max) | m³/min | 9.17 | 9.17 | 14.67 | 18.33 | |
| Ontvochtigingskapasiteit | l/uur | 0.9 | 1.2 | 2 | 2.2 | |
| Klankkragvlak | dB(A) | 57 | 57 | 59 | 64 | |
| Sound Pressure Level (Min-Max) | dB(A) | 19-38 | 19-39 | 21-46 | 23-48 | |
| Buitelug Eenheid | Afmetings (LxBxH) | mm | 660×483×240 | 780×540×260 | 810×585×280 | 860×667×310 |
| Gewig | kg | 21.5 | 25 | 34 | 41 | |
| Klankkragvlak | dB(A) | 62 | 62 | 63 | 65 | |
| Sound Pressure Level (Min-Max) | dB(A) | 47-54 | 47-54 | 48-56 | 48-56 | |
| Algemene data | Kragtoevoer | V, Hz, Ø | 220-240V~50Hz, 1P | |||
| Operating Range (Cooling) | °C | -15°C - 43°C | ||||
| Operating Range (Heating) | °C | -20°C - 24°C | -20°C - 24°C | -15°C - 24°C | -20°C - 24°C | |
| Installasie data | Liquid/Gas Piping | mm (duim) | φ6.35/φ9.52 (1/4"/3/8") | φ6.35/φ9.52 (1/4"/3/8") | φ6.35/φ12.7 (1/4"/1/2") | φ9.52/φ15.88 (3/8"/5/8") |
| Max pyplengte | m | 20 | 20 | 20 | 20 | |
| Max Elevation Difference (Indoor/Outdoor) | m | 10 | 10 | 15 | 15 | |
| Factory Pre-charge | kg | 0.48 | 0.66 | 1.15 | 1.32 | |
| TCO2Eq | - | 0.32 | 0.45 | 0.78 | 0.89 | |
| Max Piping Length without additional refrigerant | m | 5 | 5 | 5 | 5 | |
| Bykomende koelmiddelheffing | g/m | 20 | 20 | 20 | 30 | |
| Elektriese verbindings | - | Main power to outdoor unit, connection U.E/U.I:4 + earth | ||||
| Stroom | Nominal Cooling Current | A | 3.4 | 4.2 | 6.6 | 9.2 |
| Nominal Heating Current | A | 3.0 | 3.8 | 6.5 | 9.6 | |
| Maximum Absorbed Current | A | 6.5 | 7 | 12.3 | 15.2 | |
| Koelmiddel | Refrigerant Type (4) | - | R32 | R32 | R32 | R32 |
| GWP: Aardverwarmingspotensiaal | - | 675 | 675 | 675 | 675 | |
Waarborg en Ondersteuning
For warranty information, technical support, or service requests, please refer to the warranty card included with your product or visit the official Hisense webwebwerf. Bewaar u aankoopbewys as bewys van aankoop.
Hisense Kliëntediens: www.hisense.com/support
