SOLO 211-HD Industrial Tank Sprayer 1-Gallon User Manual

Belangrike veiligheidsinligting

Warning: Compressed Air! Always use the pressure relief valve to release pressure in the tank before attempting to open or service the sprayer. MOENIE NIE remove the pump assembly with pressure in the tank. Failure to do so can result in ERNSTIGE SKADE. Refer to the operator's manual for complete details. Do not spray flammable materials. Always wear appropriate eye protection when operating the sprayer.

Produk verbyview

The SOLO 211-HD Industrial Tank Sprayer is a 1-gallon capacity sprayer designed for various applications including industrial use, pest control, bleach solutions, cleaning, and disinfecting. It features a high-density polyethylene (HDPE) tank for durability and chemical resistance.

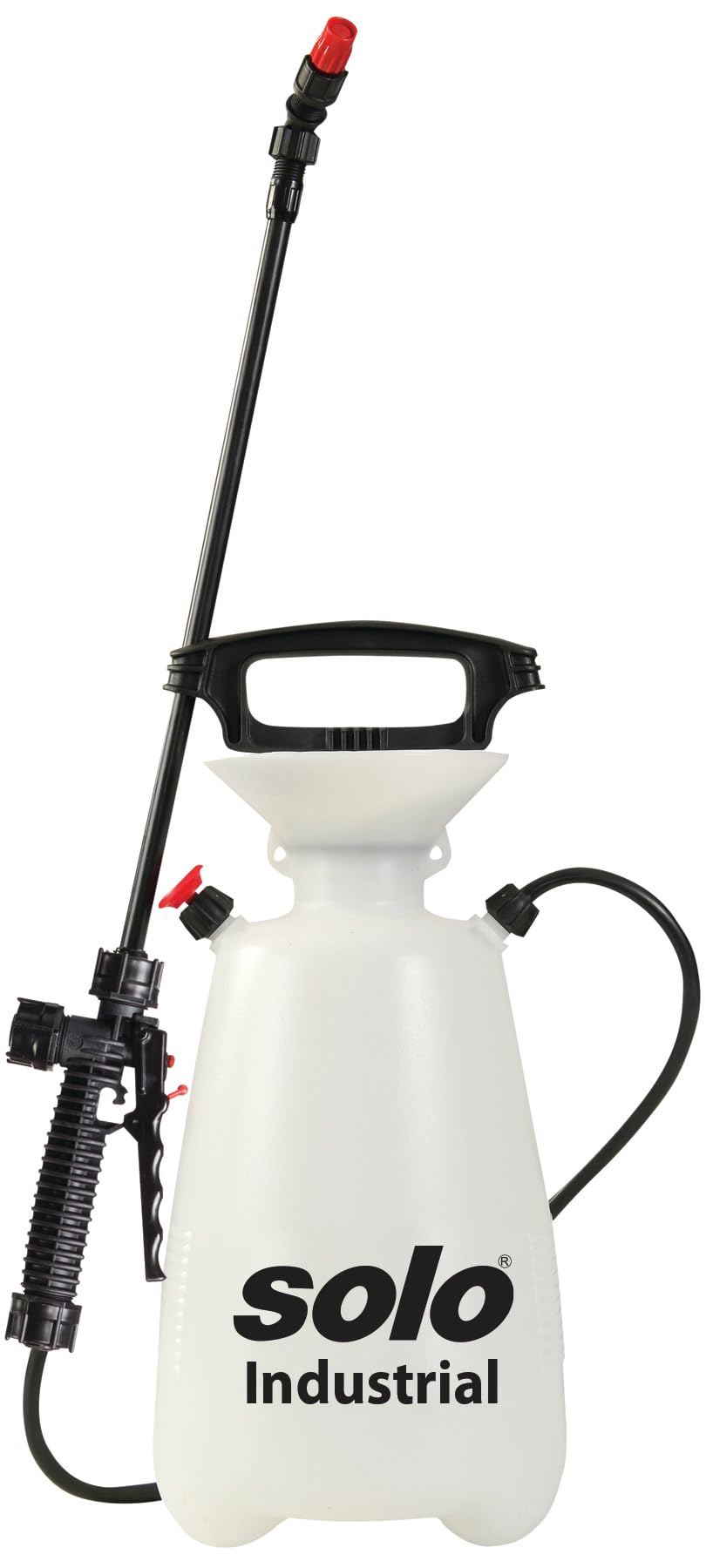

Image: The SOLO 211-HD Industrial Tank Sprayer, a 1-gallon capacity unit with a black pump handle and wand, and a white tank.

Sleutel kenmerke:

• High-density Polyethylene (HDPE) tank resists cracking and corrosion.
• Innovative design with an easy-to-fill funnel top and a large pump handle featuring a built-in wand retainer.
• High-performance piston pump boosts tank pressurization efficiency by up to 50% compared to competitors.
• Equipped with durable, chemical-resistant Viton seals and an automatic pressure relief valve for safety.
• Includes a 48-inch PVC hose for extended reach, a 24-inch poly wand with a professional shut-off valve, and a no-drip check valve to prevent nozzle drip.

Opstelling en samestelling

1. Pak komponente uit: Verwyder alle dele versigtig uit die verpakking. Maak seker dat alle komponente wat in die produkhandleiding gelys word, teenwoordig is.
2. Attach Hose and Wand: Connect the 48-inch PVC hose to the sprayer tank outlet and the 24-inch poly wand to the other end of the hose. Ensure all connections are secure to prevent leaks.
3. Berei oplossing voor: Unscrew the pump assembly from the tank. Fill the tank with the desired liquid solution, ensuring not to exceed the 1-gallon capacity mark. The funnel top design aids in easy filling.
4. Secure Pump Assembly: Reinsert the pump assembly into the tank and screw it down tightly to create an airtight seal.

Bedryfsinstruksies

1. Pressurize the Tank: Hold the sprayer firmly and pump the large handle up and down repeatedly. Continue pumping until resistance is felt and the tank is sufficiently pressurized. The high-performance piston pump is designed for efficient pressurization.
2. Verstel mondstuk: The nozzle on the poly wand can be adjusted to change the spray pattern from a fine mist to a solid stream. Turn the nozzle tip to achieve the desired spray.
3. Begin spuit: Aim the wand at the target area. Squeeze the professional shut-off valve handle on the wand to begin spraying. Release the handle to stop spraying. The no-drip check valve prevents unwanted drips.
4. Handhaaf Druk: If the spray pressure decreases during use, pump the handle a few more times to re-pressurize the tank.
5. Release Pressure After Use: After each use, or before opening the tank, ALTYD activate the automatic pressure relief valve to safely release all internal pressure. This is a critical safety step.

Image: The SOLO 211-HD Sprayer positioned in a room with visible mold on the ceiling, demonstrating its use for cleaning or treatment applications.

Image: The SOLO 211-HD Sprayer placed in a commercial restroom, illustrating its suitability for disinfecting and cleaning tasks in public or industrial environments.

Onderhoud

1. Maak skoon na elke gebruik: After each use, especially when using chemicals, thoroughly rinse the tank, pump, hose, and wand with clean water. Pump clean water through the nozzle to flush out any residue.
2. Inspekteer seëls: Regularly inspect the Viton seals for any signs of wear, cracking, or damage. Replace worn seals to maintain proper pressure and prevent leaks.
3. Smeer bewegende dele: Periodically apply a silicone-based lubricant to the pump piston and O-rings to ensure smooth operation and extend their lifespan.
4. Berging: Store the sprayer in a clean, dry, and frost-free area. Release all pressure from the tank before storage. Avoid storing in direct sunlight or extreme temperatures.

Probleemoplossing

• Geen druk of lae druk:
  • Ensure the pump assembly is screwed on tightly.
  • Check for leaks around the tank, hose, or wand connections. Tighten if loose.
  • Inspect the pump piston and seals for wear or damage. Replace if necessary.
  • Verify the pressure relief valve is fully closed.
• Leaking from Nozzle:
  • Check the nozzle for blockages or damage. Clean or replace if needed.
  • Ensure the shut-off valve is fully closed.
  • Inspect the no-drip check valve for proper function.
• Ongelyke spuitpatroon:
  • Clean the nozzle tip to remove any obstructions.
  • Adjust the nozzle to achieve the desired spray pattern.

Spesifikasies

Waarborg en Ondersteuning

Vir waarborginligting of tegniese ondersteuning, verwys asseblief na die amptelike SOLO webwebwerf of kontak hul kliëntediensafdeling. Bewaar u aankoopbewys as bewys van aankoop.
