1. Inleiding
Thank you for choosing the Mega Motion MM-7305-MN TRIO TENACITY Lift/Recliner Chair. This manual provides essential information for the safe and efficient use, setup, operation, and maintenance of your new chair. Please read these instructions thoroughly before using the product and retain them for future reference.
The MM-7305-MN is an extra-large, heavy-duty 3-position power lift and recliner chair designed for comfort and durability, featuring a 500-lb. weight capacity and a whisper-quiet power recline and lift function.
2. Veiligheidsinstruksies
WAARSKUWING: Versuim om hierdie veiligheidsinstruksies te volg, kan lei tot besering of skade aan die produk.
- Gewig kapasiteit: Moenie die maksimum gewigskapasiteit van 500 lbs (227 kg) oorskry nie.
- Opruiming: Ensure adequate clearance around the chair during operation to prevent obstruction or entanglement. Keep children and pets away from moving parts.
- Kragkabel: Always inspect the power cord for damage before use. Do not operate the chair if the cord is frayed or damaged. Plug the chair directly into a wall outlet; avoid using extension cords.
- Stabiliteit: Do not stand on the footrest or armrests. Ensure the chair is placed on a level surface.
- Noodbattery-rugsteun: The integrated emergency battery backup is for temporary use during power outages to return the chair to a seated position. It is not intended for continuous operation.
- Mediese toestande: Consult a physician before using the lift function if you have any medical conditions that could be aggravated by movement or positioning.
3. Opstelling en samestelling
The Mega Motion MM-7305-MN chair requires minimal assembly. It is designed for straightforward setup.
- Uitpak: Carefully remove all components from the packaging. Retain packaging materials for potential future transport or returns.
- Plasing: Position the chair on a level, stable surface. Ensure there is at least 18.5 inches (47 cm) of clearance from the wall to allow for full recline.
- Kragverbinding: Locate the power cord and plug it securely into a grounded electrical outlet.
- Afstandbeheer: The remote control is pre-connected. Ensure its cable is not pinched or obstructed.
The chair features an exclusive two-motor lift design, synchronized to prevent tipping and capable of supporting up to 500 lbs. This design ensures smooth and stable operation during both lifting and reclining.

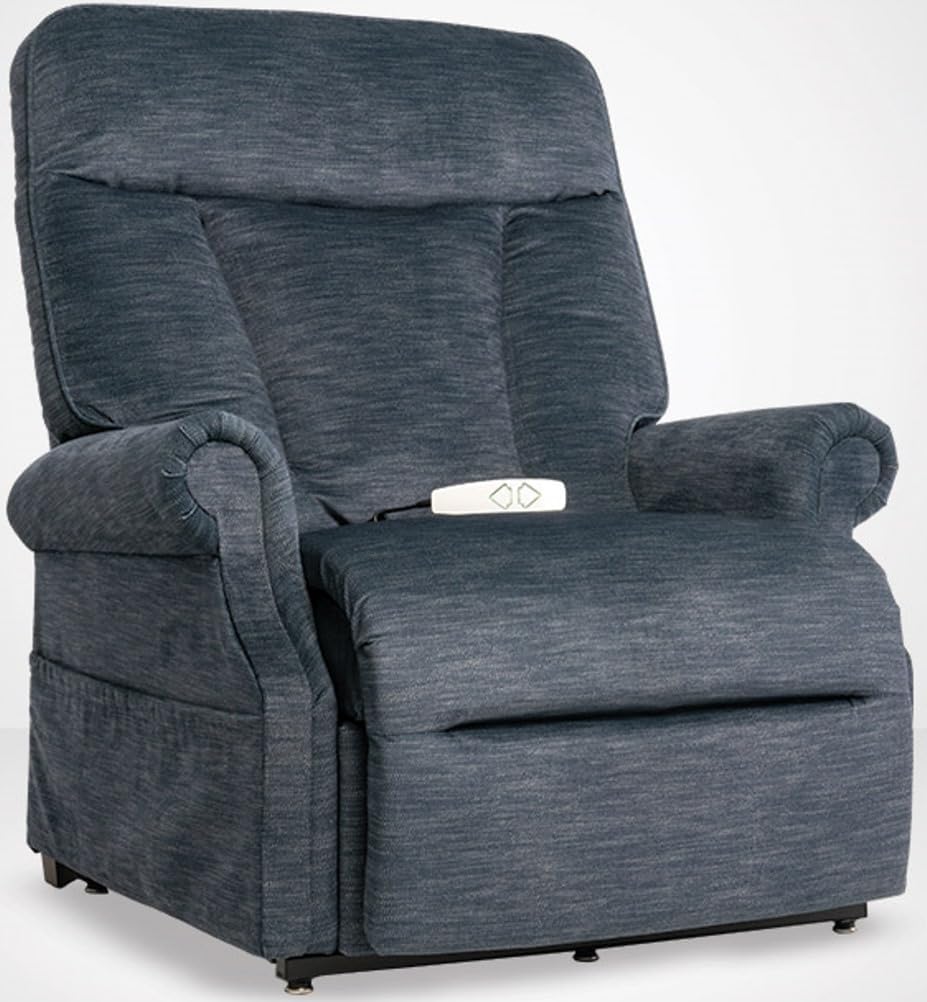

Image 1: The Mega Motion MM-7305-MN TRIO TENACITY Lift/Recliner Chair in its upright, seated position. The remote control is visible on the seat.
4. Bedryfsinstruksies
Your lift/recliner chair is operated using the wired remote control.
- Leun agteroor funksie: Druk en hou die PIL OMLAAG button on the remote to recline the chair. Release the button when you reach your desired comfort zone. The chair offers three distinct positions.
- Hysfunksie: Druk en hou die Op "pyltjie button on the remote to gently lift the chair, assisting you in standing up or exiting the chair. Release the button when the desired height is reached.
- USB-poort: The remote control includes a USB port, allowing you to charge your tablet or phone conveniently from the comfort of your recliner.
- Sysakke: Utilize the easy-to-reach side pockets on both sides of the chair to store magazines, newspapers, or the remote control.
Image 2: The Mega Motion MM-7305-MN TRIO TENACITY Lift/Recliner Chair fully reclined, illustrating the extended footrest and the robust steel lift mechanism.

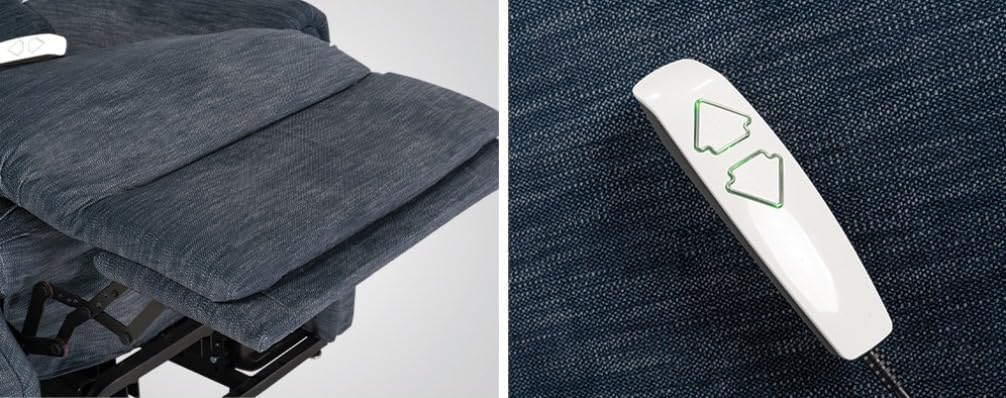

Beeld 3: 'n Gedetailleerde view of the remote control with its up and down arrow buttons, alongside the extended chaise pad construction of the footrest.
5. Onderhoud
Proper care and maintenance will extend the life and performance of your chair.
- Stofversorging: The chair is upholstered in Darby Fabrics, 100% Polyester-W. For general cleaning, gently vacuum the fabric to remove dust and loose debris. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild, water-based cleaning solution and a soft cloth, testing on an inconspicuous area first. Do not saturate the fabric.
- Meganisme: The heavy-duty steel lift mechanism is designed for durability and typically requires no lubrication. Keep the mechanism free from dust and debris.
- Kragkabel: Inspekteer die kragsnoer en verbindings gereeld vir enige tekens van slytasie of skade.
- Algemene skoonmaak: Wipe down non-fabric surfaces with a soft, damp lap. Vermy harde chemikalieë of skuurmiddels.
6. Probleemoplossing
If you encounter issues with your chair, refer to the following common troubleshooting steps:
- Voorsitter reageer nie:
- Ensure the power cord is securely plugged into a working electrical outlet.
- Check if the remote control cable is firmly connected to the chair and not damaged.
- Verify that the wall outlet is receiving power by testing it with another appliance. - Chair Moves Slowly or Unevenly:
- This could indicate a power issue. Ensure the chair is receiving adequate power.
- Check for any obstructions under or around the chair mechanism. - Emergency Battery Backup Not Working:
- Ensure the batteries (if replaceable) are correctly installed and not depleted. The emergency backup is for temporary use only. - Ongewone geluide:
- Inspect the chair for any loose components or foreign objects that might be causing the noise. If the noise persists and seems to originate from the mechanism, discontinue use and contact support.
Indien hierdie stappe nie die probleem oplos nie, kontak asseblief kliëntediens.
7. Spesifikasies
| Kenmerk | Spesifikasie |
|---|---|
| Modelnommer | MM-7305-MN TRIO TENACITY |
| Gewig kapasiteit | 500 pond (227 kg) |
| Ligposisie Tel | 3 |
| Suggested User Height | 5'8" To 6' (173 cm to 183 cm) |
| Materiaal | Darby Fabrics, 100% Polyester-W |
| Raammateriaal | Furniture grade hardwood/plywood construction |
| Hysmeganisme | Heavy-duty steel, Exclusive Two Motor Lift design |
| Seat-To-Floor Height | 19.5" (49.5 cm) |
| Sitplek diepte | 22" (55.9 cm) |
| Sitplek breedte | 27" (68.6 cm) |
| Totale breedte | 39.5" (100.3 cm) |
| Total Depth (Upright) | 39" (99.1 cm) |
| Total Recline Depth | 67" (170.2 cm) |
| Overall Lifted Chair Height | 62" (157.5 cm) |
| Afstand vanaf muur | 18.5" (47 cm) |
| Ingesluit komponente | Chair, Wired Remote Control |
| Vereiste samestelling | Nee |
8. Waarborg en Ondersteuning
Vir waarborginligting of tegniese ondersteuning, verwys asseblief na die dokumentasie wat tydens aankoop verskaf is of kontak u kleinhandelaar. Bewaar u aankoopbewys as bewys van aankoop.
If you require assistance with troubleshooting or have questions not covered in this manual, please reach out to the manufacturer's customer service department or the seller from whom you purchased the chair.
