Happybuy VV-JH-6P 6-inch Lapidary Cabbing Machine User Manual

1. Inleiding

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Happybuy VV-JH-6P 6-inch Lapidary Cabbing Machine. This machine is designed for grinding and polishing various hard, brittle materials such as gemstones, jade, artificial crystals, and metal pendants. Please read this manual thoroughly before using the machine to ensure proper function and safety.

2. Veiligheidsinstruksies

Always prioritize safety when operating any machinery. Failure to follow these instructions may result in injury or damage to the machine.

• Oogbeskerming: Always wear appropriate eye protection, such as safety glasses or a face shield, to protect against flying debris and splashes.
• Elektriese veiligheid: Ensure the machine is connected to a properly grounded 120V AC, 60Hz power outlet. Do not operate with wet hands or in wet conditions. Inspect the power cord for damage before each use.
• Waterbestuur: The machine uses water for cooling. Ensure the water pump is correctly installed and the drainage system is clear to prevent water buildup and electrical hazards. Do not immerse the motor or electrical components in water.
• Stabiele werkoppervlak: Place the machine on a stable, level, and non-slip surface to prevent tipping or movement during operation.
• Hou duidelik: Keep hands, hair, loose clothing, and jewelry away from rotating wheels and moving parts.
• Ventilasie: Operate the machine in a well-ventilated area to dissipate any dust or fumes generated during grinding.
• Noodstop: Familiarize yourself with the location of the electromagnetic switch for quick power shut-off in an emergency.
• Materiaalhantering: Use light, consistent pressure when grinding or polishing. Avoid excessive force, which can damage the material or the machine.
• Ontkoppel wanneer dit nie gebruik word nie: Always unplug the machine from the power source before performing any maintenance, cleaning, or when changing wheels.

3. Produk verbyview

The Happybuy VV-JH-6P Lapidary Cabbing Machine is a versatile tool for precision grinding and polishing. It features a robust motor, a comprehensive set of diamond wheels, and an integrated water cooling system.

Sleutel kenmerke:

• Flexible Diamond Wheels: Includes six 6-inch diamond wheels with various grit levels (80#, 220#, 600#, 1200#, 3000#) for a complete grinding and polishing process.
• Doeltreffende motor: Equipped with a 1/4HP, 1800 RPM motor for smooth and quiet operation.
• Ruimtebesparende ontwerp: Durable 304 stainless steel body with a fingerprint-proof finish and an ABS plastic base for residue collection.
• Adjustable LED Lamp: An integrated, adjustable lamp illuminates the workspace for improved visibility.
• Independent Water Flow Control: Customizable water system allows individual adjustment of water flow to each wheel, ensuring optimal cooling and preventing cross-contamination.
• Omvattende bykomstighedestel: Includes a cutting module, water pump, and water pipes for efficient operation.

Produk komponente:

Figuur 3.1: oorview of the Happybuy VV-JH-6P Lapidary Cabbing Machine, showing its main components including the motor, grinding wheels, and integrated lamp.

Figuur 3.2: Gedetailleerd view of the grinding and polishing wheels, numbered 1 to 6, illustrating the progression of grit sizes from coarse to fine.

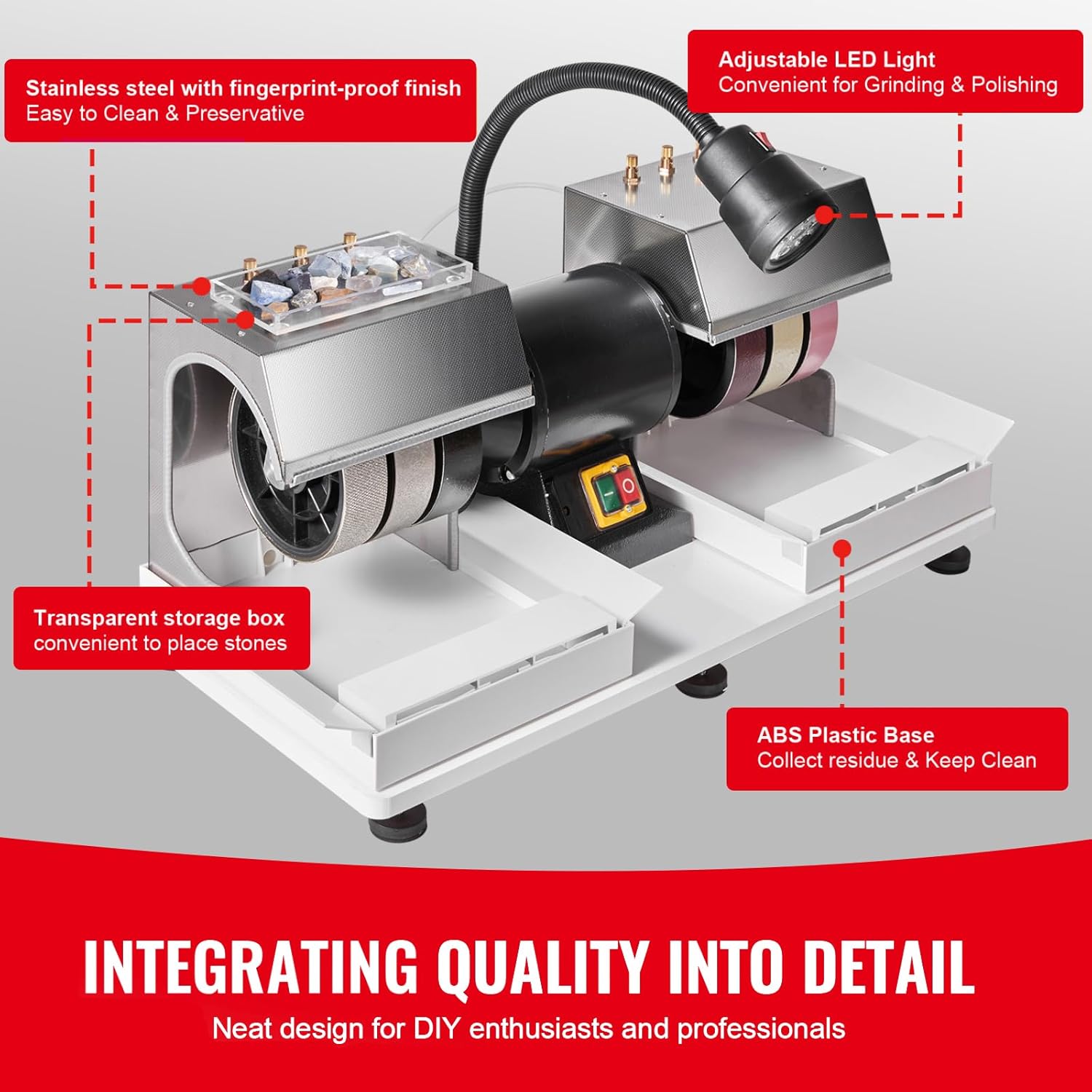

Figure 3.3: Design features of the machine, including the stainless steel finish, adjustable LED light, transparent storage for stones, and the ABS plastic base for collecting residue.

4. Opstelling

Follow these steps to set up your lapidary cabbing machine before initial use.

1. Uitpak: Verwyder alle komponente versigtig uit die verpakking. Inspekteer vir enige versendingskade. Bewaar verpakking vir toekomstige vervoer of berging.
2. Plasing: Position the machine on a sturdy, level workbench capable of supporting its weight (approximately 25.9 kg / 57 lbs). Ensure adequate space around the machine for safe operation and maintenance. The location should have access to a power outlet and a drainage system for wastewater.
3. Water System Connection:
   • Connect the provided water pump to the water inlet hose.
   • Place the water pump in a clean water reservoir (e.g., a bucket of distilled water).
   • Connect the water outlet hoses to the individual water flow control valves located above each grinding wheel.
   • Ensure the drainage pipes from the ABS plastic base are directed into a suitable waste container or drainage system.


   Figure 4.1: Illustration of the water system setup, including the water pump and individual water flow adjustment points.

4. Lamp Installasie: Securely attach the adjustable LED lamp to its designated mounting point on the machine. Adjust its position to illuminate your primary working area.
5. Kragverbinding: Plug the machine's power cord into a grounded 120V AC, 60Hz electrical outlet.

5. Bedryfsinstruksies

This section details the steps for operating your Happybuy cabbing machine.

1. Prepare Water System: Ensure the water pump is submerged in clean water and all water lines are connected.
2. Krag aan: Turn on the main power switch (electromagnetic switch) located on the front of the machine. The motor will start, and the wheels will begin to rotate.
3. Pas watervloei aan: Individually adjust the water flow to each wheel using the control valves. A steady drip or light stream is usually sufficient to keep the wheel and workpiece cool and to flush away abrasive particles.
4. Select Wheel: Begin with a coarser grit wheel (e.g., 80# or 220#) for initial shaping and material removal. Progress to finer grit wheels (e.g., 600#, 1200#, 3000#) for smoothing and polishing.
5. Grinding/Polishing:
   • Hold the workpiece firmly and gently bring it into contact with the rotating wheel.
   • Apply light, consistent pressure. Avoid pressing too hard, as this can overheat the material, damage the wheel, or cause the motor to strain.
   • Move the workpiece evenly across the surface of the wheel to ensure uniform grinding and prevent grooves.
   • Continuously observe the water flow to ensure adequate cooling.
   • After achieving the desired shape and smoothness with one grit, thoroughly rinse the workpiece and your hands to prevent grit cross-contamination before moving to the next finer wheel.


   Figuur 5.1: Example of material being ground on the machine. The machine is suitable for various materials including gemstones, artificial crystals, metal pendants, and wood products.
6. Die gebruik van die Lamp: Adjust the flexible LED lamp as needed to provide optimal illumination of your work area.
7. Skakel af: Once finished, turn off the main power switch. Allow the wheels to come to a complete stop before performing any cleaning or maintenance.

6. Onderhoud

Regular maintenance ensures the longevity and optimal performance of your machine.

• Daaglikse skoonmaak: After each use, unplug the machine. Clean the stainless steel body and ABS plastic base to remove any accumulated grit and residue. Use a damp cloth. The fingerprint-proof finish simplifies cleaning.
• Water System Maintenance: Regularly clean the water reservoir and flush the water lines to prevent algae growth or blockages. Inspect the water pump for debris.
• Wiel inspeksie: Periodically inspect the diamond wheels for wear or damage. Replace worn wheels to maintain grinding efficiency and quality. Ensure wheels are securely fastened.
• Motorarea: Keep the motor area clean and free of dust and debris. Do not allow water to enter the motor housing.
• Berging: When not in use for extended periods, ensure the machine is clean and dry. Store it in a dry, dust-free environment.

7. Probleemoplossing

Verwys na hierdie afdeling vir oplossings vir algemene probleme.

8. Spesifikasies

Detailed technical specifications for the Happybuy VV-JH-6P Lapidary Cabbing Machine.

Figure 8.1: Visual representation of the machine's dimensions and key specifications.

9. Waarborg en Ondersteuning

For warranty information, technical support, or to inquire about replacement parts, please contact Happybuy customer service. Refer to the product packaging or the Happybuy official webwebwerf vir die mees onlangse kontakbesonderhede.

Vervaardiger: Gelukkige koop

Eerste datum beskikbaar: 21 Desember 2024
