1. Inleiding
Thank you for choosing the PRPYVPEY CH2810A Intelligent Battery Charger. This device is designed to provide efficient and reliable charging for 12V and 24V batteries commonly used in diesel generator sets. This manual provides essential information for the safe and effective operation, installation, and maintenance of your battery charger.
2. Veiligheidsinligting
Please read all safety instructions carefully before operating the charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Elektriese veiligheid: Ensure the charger is connected to a grounded power outlet. Do not operate the charger with damaged cords or plugs.
- Ventilasie: Operate the charger in a well-ventilated area. Do not cover the charger during operation.
- Battery tipe: This charger is designed for 12V and 24V lead-acid batteries. Do not attempt to charge other battery types.
- Vlambare materiale: Keep the charger away from flammable liquids, gases, or materials. Batteries can produce explosive gases.
- Kinders en Troeteldiere: Hou die laaier buite bereik van kinders en troeteldiere.
- Ontkoppeling: Always disconnect the AC power before connecting or disconnecting battery terminals.
3. Produk verbyview
The PRPYVPEY CH2810A is an intelligent battery charger featuring automatic voltage detection (12V/24V) and a 10A charging current. It is housed in a durable metal casing with clearly labeled input and output terminals.

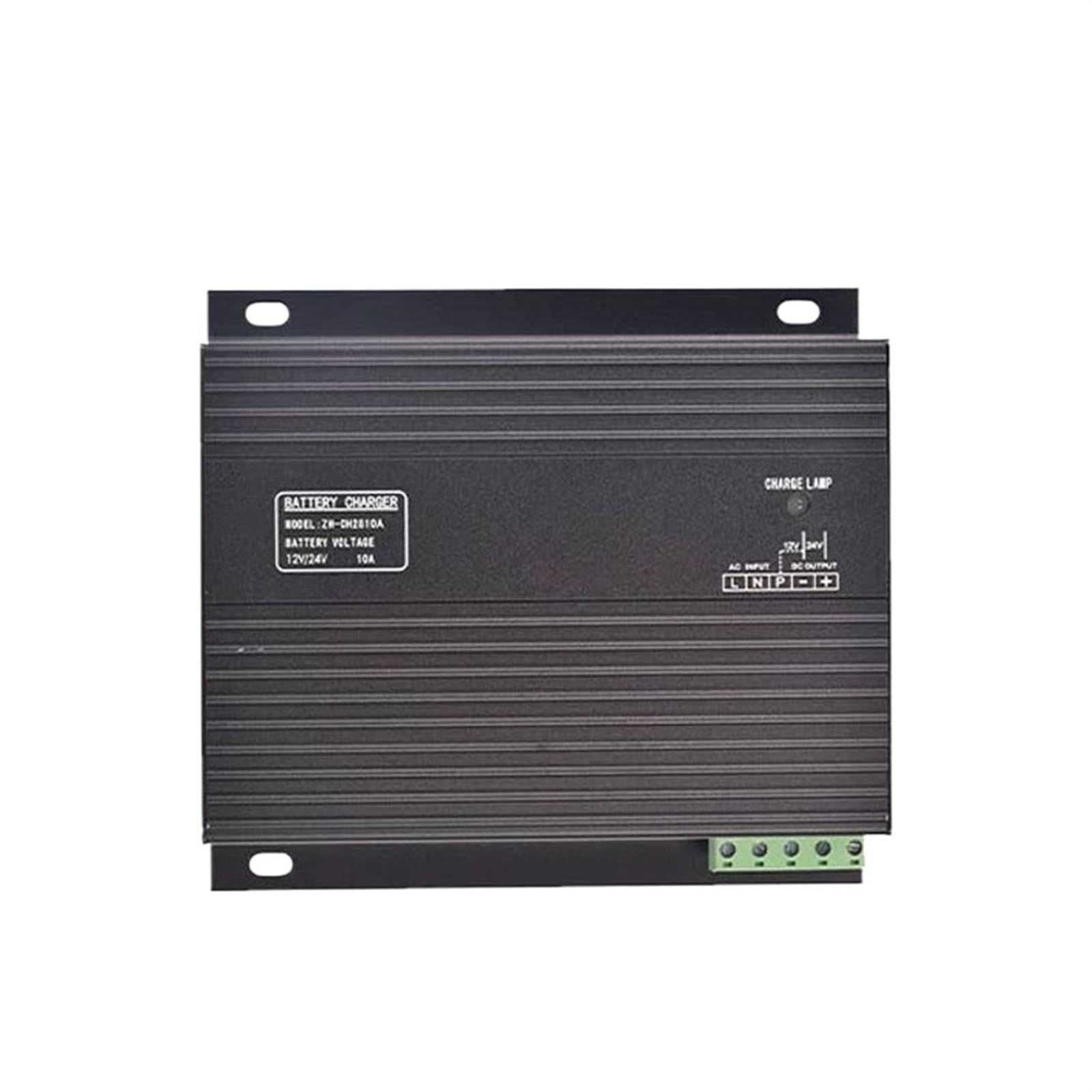

Figure 3.1: PRPYVPEY CH2810A Intelligent Battery Charger. This image shows the overall design of the charger, including the cooling fins and the terminal block for connections.

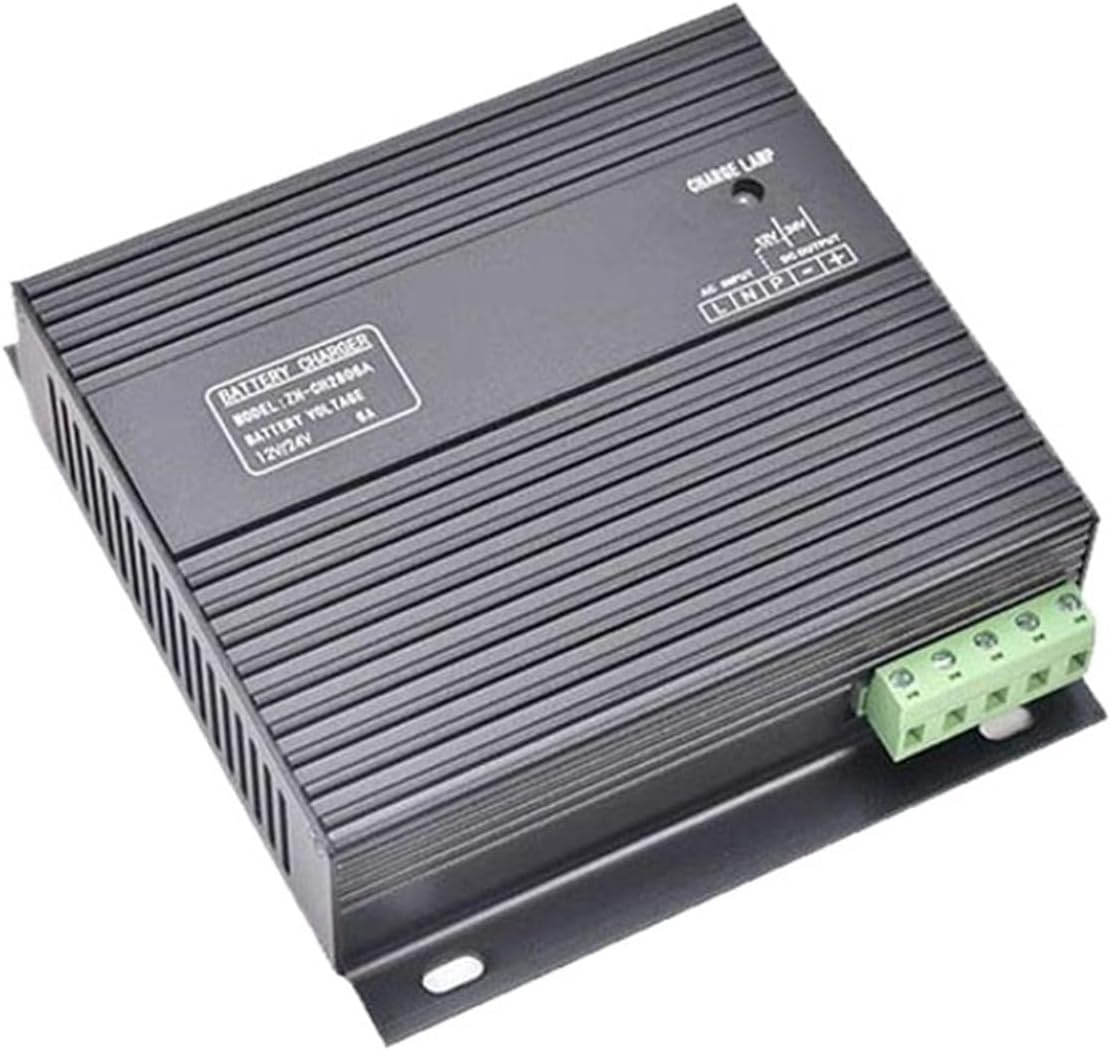

Figure 3.2: Charger Control Panel and Terminals. This view highlights the 'CHARGE LAMP' indicator, 'AC INPUT' terminals (L, N), and 'DC OUTPUT' terminals (+, -) for battery connection.
Sleutel kenmerke:
- Automatic 12V/24V voltage opsporing.
- 10A charging current (for CH2810A model).
- Kompakte en duursame ontwerp.
- LED-laai-aanwyser.
4. Opstelling en installering
Follow these steps for proper installation of the battery charger:
- Montering: Securely mount the charger in a dry, well-ventilated area, away from direct sunlight, heat sources, and moisture. Use appropriate screws for the mounting holes provided on the charger's base.
- Batteryverbinding:
- Ensure the AC power is disconnected from the charger.
- Connect the positive (+) terminal of the battery to the '+' terminal on the charger's DC OUTPUT.
- Connect the negative (-) terminal of the battery to the '-' terminal on the charger's DC OUTPUT.
- Maak seker dat alle verbindings styf en veilig is.
- AC-kragverbinding:
- Connect the Live (L) wire from your AC power source to the 'L' terminal on the charger's AC INPUT.
- Connect the Neutral (N) wire from your AC power source to the 'N' terminal on the charger's AC INPUT.
- Connect the Ground (PE) wire to the designated ground terminal if available, or ensure the charger's casing is properly grounded.
- Ensure all AC connections are secure and comply with local electrical codes.
Figure 4.1: Wiring Terminals. This image provides a clear view of the screw terminals for connecting AC power (L, N) and battery (DC OUTPUT +, -).
5. Bedryfsinstruksies
Once the charger is properly installed and connected, follow these steps to begin charging:
- Verifieer verbindings: Double-check all battery and AC power connections to ensure they are correct and secure.
- Apply AC Power: Connect the charger's AC input to a suitable power source. The charger will automatically detect the battery voltage (12V of 24V).
- Laai aanwyser: The 'CHARGE LAMP' LED indicator on the charger will illuminate to show that charging is in progress.
- Laai voltooiing: The charger will automatically stop charging when the battery reaches full capacity. The 'CHARGE LAMP' may change color or turn off depending on the specific model's indicator design (refer to product label for details).
- Ontkoppel tans: To disconnect, first remove the AC power, then disconnect the battery terminals.
6. Onderhoud
Regular maintenance ensures optimal performance and longevity of your battery charger.
- Skoonmaak: Hou die laaier skoon en vry van stof en puin. Gebruik 'n droë, sagte lap vir skoonmaak. Moenie vloeibare skoonmaakmiddels gebruik nie.
- Ventilasie: Maak seker dat die ventilasie-openinge nie geblokkeer is nie om oorverhitting te voorkom.
- Kabel inspeksie: Inspekteer gereeld alle kabels en verbindings vir tekens van slytasie, skade of korrosie. Vervang enige beskadigde komponente onmiddellik.
- Berging: Bêre die laaier in 'n koel, droë plek wanneer dit nie gebruik word nie.
7. Probleemoplossing
If you encounter issues with your charger, refer to the following troubleshooting guide:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Charger not turning on / No 'CHARGE LAMP' | No AC power; Loose connections; Faulty power outlet. | Check AC power supply; Ensure all connections are secure; Test power outlet with another device. |
| Battery laai nie | Incorrect battery connection; Battery deeply discharged or faulty; Charger fault. | Verify battery polarity (+ to +, - to -); Check battery voltage (if too low, charger may not initiate); Consult a professional if battery or charger is suspected faulty. |
| Lader oorverhit | Poor ventilation; Overload. | Ensure charger is in a well-ventilated area; Clear any obstructions from vents; Ensure battery capacity is within charger's limits. |
Indien die probleem voortduur nadat u hierdie stappe gevolg het, kontak asseblief kliëntediens.
8. Spesifikasies
| Kenmerk | Spesifikasie |
|---|---|
| Model | ZH-CH2810A |
| Invoer Voltage | AC (Not specified, typical 110-240V) |
| Uitset Voltage | 12V / 24V (Outomatiese Opsporing) |
| Laaistroom | 10A |
| Pakket afmetings | 1.18 x 0.79 x 0.39 duim |
| Item gewig | 1.76 onse |
| Vervaardiger | PRPYVPEY |
9. Waarborg en Ondersteuning
For warranty information and technical support, please refer to the documentation provided with your purchase or contact PRPYVPEY customer service through the retailer where the product was purchased. Keep your purchase receipt as proof of purchase.
