Comfytemp Air Compression Therapy Device K1006 User Manual

Belangrike veiligheidsinstruksies

Please read all instructions carefully before using this product and retain for future reference.

• Consult a physician before use if you have pre-existing medical conditions, are pregnant, have pacemakers, or any other health concerns.
• Do not use on swollen, inflamed, or injured areas of the skin.
• Discontinue use immediately if you experience discomfort, pain, or adverse reactions.
• Hou die toestel buite bereik van kinders en troeteldiere.
• Moenie die toestel in water dompel of dit in oormatig vogtige omgewings gebruik nie.
• Use only the provided Type-C charging cable and a compatible 5V/2A adapter.
• This device is intended for temporary relief of minor muscle aches and to temporarily increase circulation to treated areas. It is not intended to diagnose, treat, cure, or prevent any disease or health condition.

Produk verbyview

The Comfytemp Air Compression Therapy Device K1006 is a cordless knee massager designed to provide soothing relief and improve circulation. It combines advanced air compression with heat therapy in a comfortable, ergonomic design.

Sleutel kenmerke:

• Advanced Air Compression Massage: Utilizes rhythmic inflation and deflation to gently apply pressure around the knee.
• Comprehensive Knee Therapy: Features 3 independent airbags targeting 7 specific massage zones for precise relief, combined with a soothing heat function.
• Koordloos en herlaaibaar: Equipped with a built-in 2500mAh rechargeable battery, offering 90 to 150 minutes of use per charge. Charges via Type-C (5V/2A adapter).
• Adjustable for Perfect Fit: Dual adjustable straps ensure a snug, personalized fit for various knee sizes (upper circumference up to 24.4", lower up to 20.5").
• Ergonomic 3D Fit: The curved shape conforms to the knee's natural bend, optimizing contact and pressure distribution.
• Dubbele beheerstelsel: Operate using the intuitive buttons on the device or through a dedicated mobile application for more customized settings.

Image: The Comfytemp K1006 Air Compression Therapy Device, showcasing sy ontwerp en beheerpaneel.

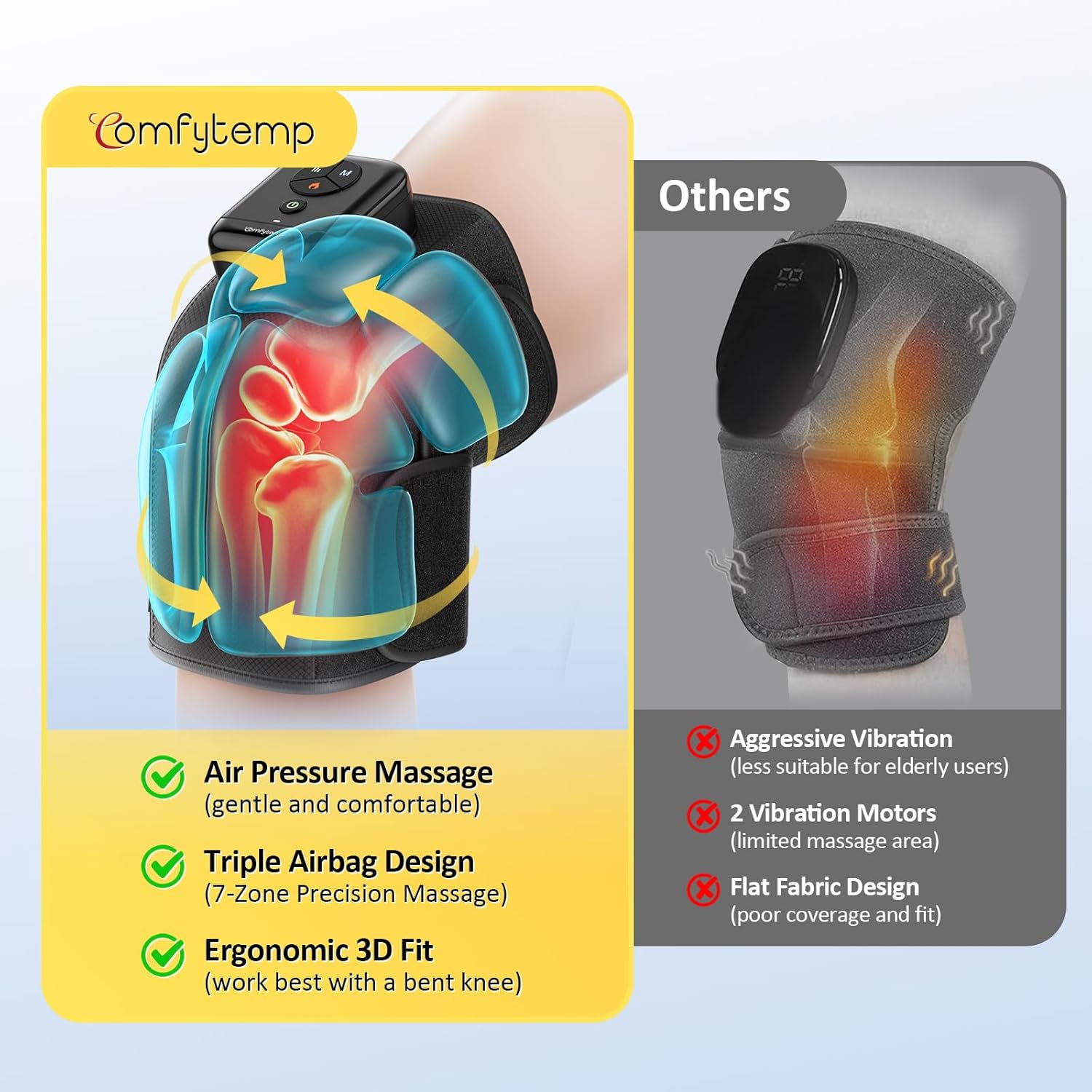

Beeld: Oorview of the device's advanced features including cordless design, ergonomic fit, soothing heat, app control, 3-zone airbags, and extended use time.

Opstelling

1. Laai die toestel: Before first use, fully charge the device. Connect the provided Type-C charging cable to the device's charging port and plug the other end into a 5V/2A power adapter (not included). The charging indicator light will show charging status. A full charge typically takes about 2 hours.
2. Posisioneer die Masseerder: Place the massager around your knee, ensuring the main control unit is positioned comfortably on top of your knee.
3. Maak die bande vas:
   • First, secure the upper strap around your thigh for a stable fit. Ensure the strap fabric is smooth and flat against your leg.
   • Next, secure the lower strap around your calf, overlapping it on the upper strap for a firm hold.
   • Adjust the dual straps to achieve a comfortable yet snug fit. If the pressure feels too strong during massage, slightly loosen the straps. If the pressure feels too weak, tighten the straps slightly for a better fit.
4. Optimal Position for Use: For best results and enhanced effectiveness, use the massager while seated or reclining with your knee gently bent. A 90-degree bend is recommended, especially when using the heat function.

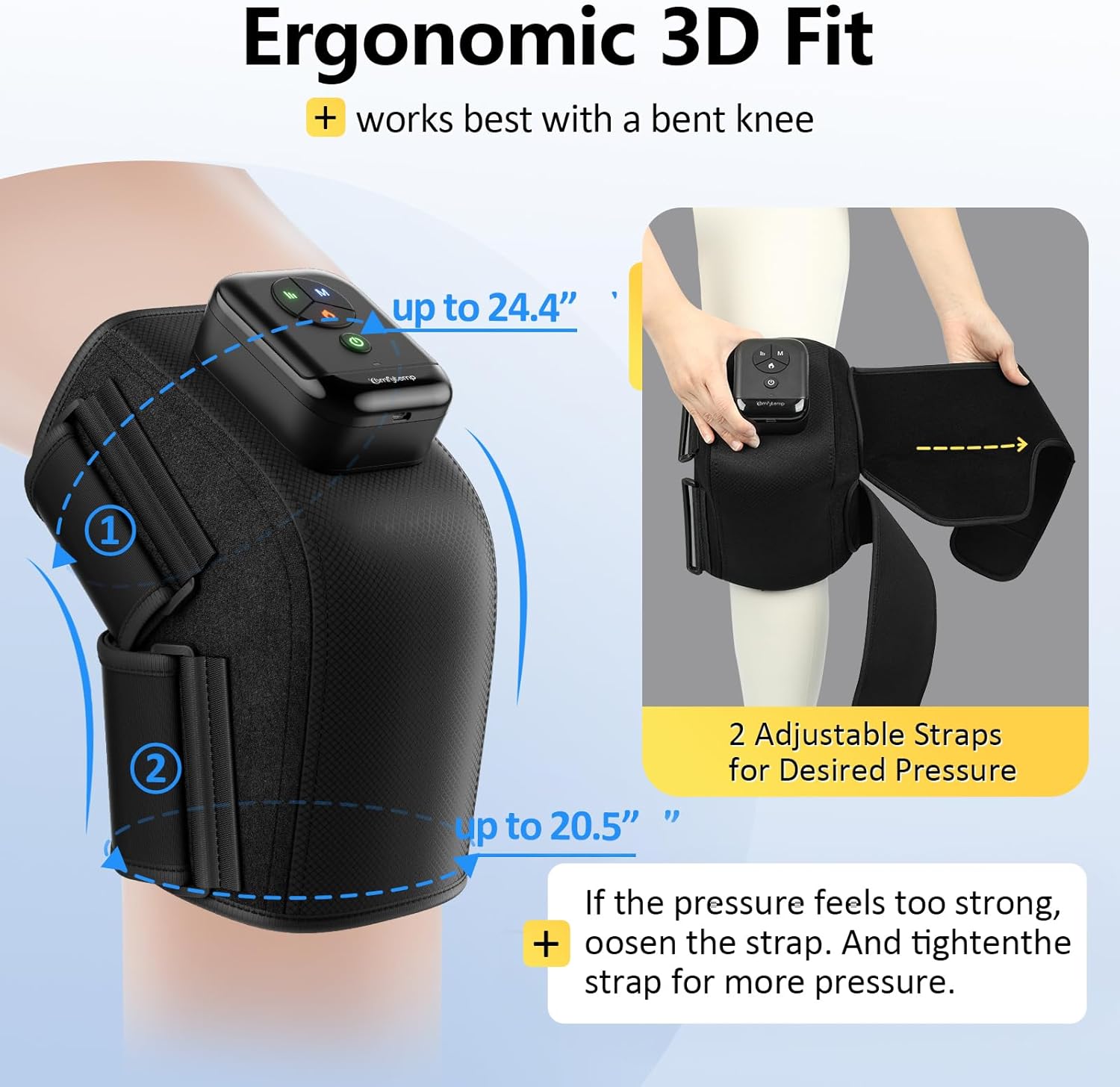

Image: The device demonstrating its ergonomic 3D fit and adjustable straps for a personalized and secure application on the knee.

Bedryfsinstruksies

The Comfytemp K1006 offers both on-device button control and optional app control for a tailored massage experience.

Using On-Device Buttons:

1. Krag aan/af: Druk en hou die Kragknoppie (green circle icon) for 2-3 seconds to turn the device on or off. The indicator lights will illuminate when powered on.
2. Kies masseermodus: Druk die 'M' Button to cycle through the 3 available massage modes (e.g., Intensive, Relax, Comfort). Each mode offers a different compression pattern.
3. Pas intensiteitsvlak aan: Druk die Intensiteitsknoppie (three vertical lines icon) to select from 3 intensity levels (low, medium, high) for the air compression.
4. Aktiveer hitte-funksie: Druk die Verhit knoppie (flame icon) to turn on the soothing heat therapy. The heat indicator light will turn red. For a better heat experience, ensure your knee is bent to approximately 90 degrees.

Using App Control (Optional):

For advanced customization, including various DIY modes and additional timer settings, you can connect your device to the Comfytemp mobile application. Refer to the app's instructions for pairing and detailed usage. Please note that some users have reported initial challenges with app connectivity; ensure your device's Bluetooth is active and follow the app's pairing guide carefully.

Image: The dual control system, illustrating both the physical buttons on the device and the interface for app control.

Onderhoud

Skoonmaak:

• Maak seker die toestel is afgeskakel en ontkoppel voordat dit skoongemaak word.
• Wipe the surface of the massager with a soft, slightly damp lap.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the device.
• Moenie die toestel of enige van sy komponente in water dompel nie.

Berging:

• Berg die toestel op 'n koel, droë plek wanneer dit nie gebruik word nie.
• Vermy berging in direkte sonlig of areas met uiterste temperature.
• Keep the device away from sharp objects to prevent damage to the fabric or internal components.

Probleemoplossing

If you encounter any issues with your Comfytemp K1006 device, please refer to the following common troubleshooting steps:

• Toestel skakel nie aan nie: Ensure the device is fully charged. Connect it to the charger and allow sufficient time for charging.
• Geen kompressie of swak kompressie: Check that the straps are securely fastened and adjusted correctly around your knee. Ensure there are no kinks in the air tubes or any signs of air leakage.
• No heat or weak heat: Verify that the heat function is activated (red flame icon). For optimal heat sensation, ensure your knee is bent to approximately 90 degrees during use.
• Probleme met programverbinding: Ensure Bluetooth is enabled on your mobile device. Try restarting both the device and the app. If issues persist, consult the app's specific troubleshooting guide or reinstall the app.
• Ongemaklike druk: Adjust the tightness of the straps. The device is designed to be used with a gently bent knee; using it on a straight leg may cause discomfort.

If these steps do not resolve the issue, please contact Comfytemp customer support for further assistance.

Spesifikasies

Waarborg en Ondersteuning

The Comfytemp Air Compression Therapy Device K1006 comes with a standard manufacturer's warranty. For detailed information regarding warranty coverage, terms, and conditions, please refer to the warranty card included in your product packaging or visit the official Comfytemp webwebwerf.

For any product-related inquiries, technical support, or assistance with troubleshooting, please contact Comfytemp customer service. Contact details can typically be found on the product packaging, the official webwebwerf, of binne die mobiele toepassing.
