1. Inleiding en oorview
Thank you for choosing the Hagibis 380W USB C Charger 8-Port GaN PD 3.1 Charging Station. This device is designed to provide efficient and fast charging for multiple electronic devices simultaneously. Featuring advanced GaN (Gallium Nitride) technology and PD 3.1 support, it offers high power output in a compact form factor. This manual provides essential information for safe and optimal use of your charging station.
2. Produkkenmerke
- 8-Port Charging Station: Supports charging up to 8 devices concurrently, including 6 USB-C ports and 2 USB-A ports.
- Hoë kraguitset: Delivers a total of 380W. Single USB-C ports (C1/C2) can provide up to 140W, suitable for high-power laptops.
- GaN Tegnologie: Utilizes 3rd generation Gallium Nitride materials for efficient power delivery, reduced heat, and a compact design.
- Gevorderde verkoelingstelsel: Features a built-in AI chip for intelligent temperature control and a cooling fan, along with bottom and side cooling holes, to ensure safe operation.
- Verskeie vinnige laaiprotokolle: Compatible with PD3.1, PPS, QC4+, QC3.0, FCP, SCP, AFC, and more, ensuring broad compatibility with various devices.
- Omvattende beskerming: Equipped with temperature protection, over-current protection, over-voltage protection, overcharge protection, overload protection, overheat protection, and short circuit protection.
- Wye verenigbaarheid: Supports a vast range of devices including MacBook Pro/Air, iPad Pro, iPhone 15/16 series, Dell XPS, Samsung Galaxy devices, and other USB-C and USB-A powered electronics.
3. Pakketinhoud
Verifieer asseblief dat alle items in u pakket teenwoordig is:
Image: Contents of the Hagibis 380W GaN Charger package, showing the charger, power cable, and manual.
- Hagibis 380W GaN Charger Unit
- Instruksie Handleiding
- Power Cable (Type A - 2 pin, North American)
- Kleinhandel boks
4. Opstelinstruksies
- Pak die laaier uit: Carefully remove the Hagibis 380W USB C Charger and all accessories from the packaging.
- Koppel die kragkabel: Insert the included power cable into the AC input port on the back of the charging station. Ensure it is firmly seated.
- Koppel aan kraguitlaat: Plug the other end of the power cable into a standard 110V AC wall outlet. The charging station is now ready for use.
- Plaas die laaier: Place the charging station on a stable, flat surface with adequate ventilation to allow for proper heat dissipation.
5. Bedryfsinstruksies
The Hagibis 380W charging station is designed for ease of use. Follow these steps to charge your devices:
- Identifiseer poorte: The charging station features 6 USB-C ports (C1-C6) and 2 USB-A ports (A1-A2). Refer to the port labels on the device.
- Koppel jou toestelle: Use appropriate charging cables (not included) to connect your devices to the desired ports on the charging station. For optimal fast charging, use high-quality USB-C to USB-C cables for USB-C devices and USB-A to device-specific cables for USB-A devices.
- Automatic Power Distribution: The charging station intelligently detects the connected devices and automatically adjusts the power output to provide the fastest and safest charge.
- Monitor laai: The LED indicators on the charger will illuminate to show active charging.
Image: The Hagibis 380W charger simultaneously charging a laptop, smartphone, and wireless earbuds.
Image: The Hagibis 380W charger providing simultaneous fast charging to four laptops.
6. Power Output Configurations
The Hagibis 380W charging station dynamically allocates power based on the number and type of connected devices. Below are common output configurations:

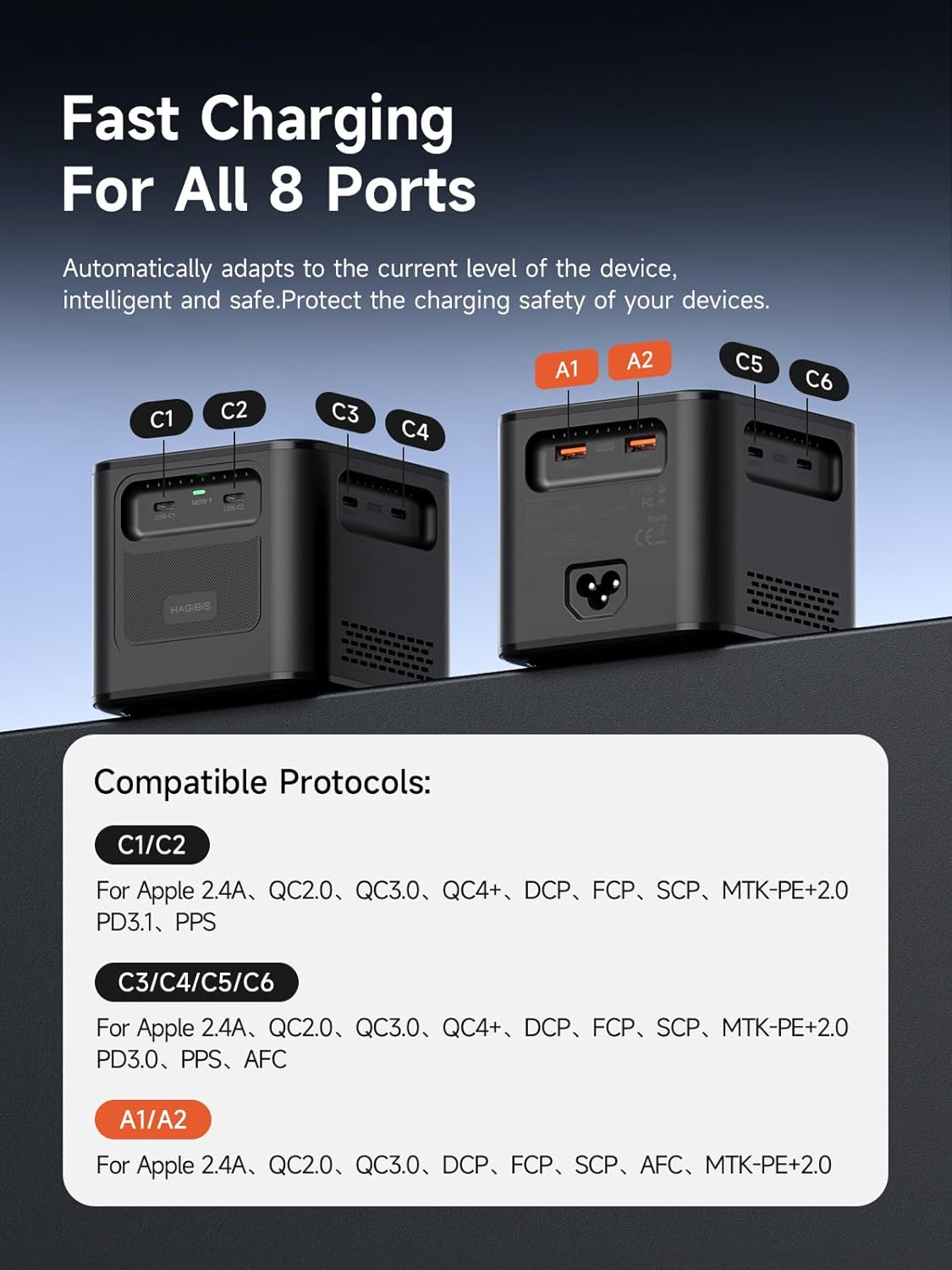

Image: Port identification and compatible charging protocols for C1/C2, C3/C4/C5/C6, and A1/A2 ports.
Compatible Protocols:
- C1/C2 Ports: Apple 2.4A, QC2.0, QC3.0, QC4+, DCP, FCP, SCP, MTK+PE+2.0, PD3.1, PPS
- C3/C4/C5/C6 Ports: Apple 2.4A, QC2.0, QC3.0, QC4+, DCP, FCP, SCP, MTK+PE+2.0, PD3.1, PPS, PD3.0, AFC
- A1/A2 Ports: Apple 2.4A, QC2.0, QC3.0, DCP, FCP, SCP, AFC, MTK+PE+2.0
Uitset kombinasies:

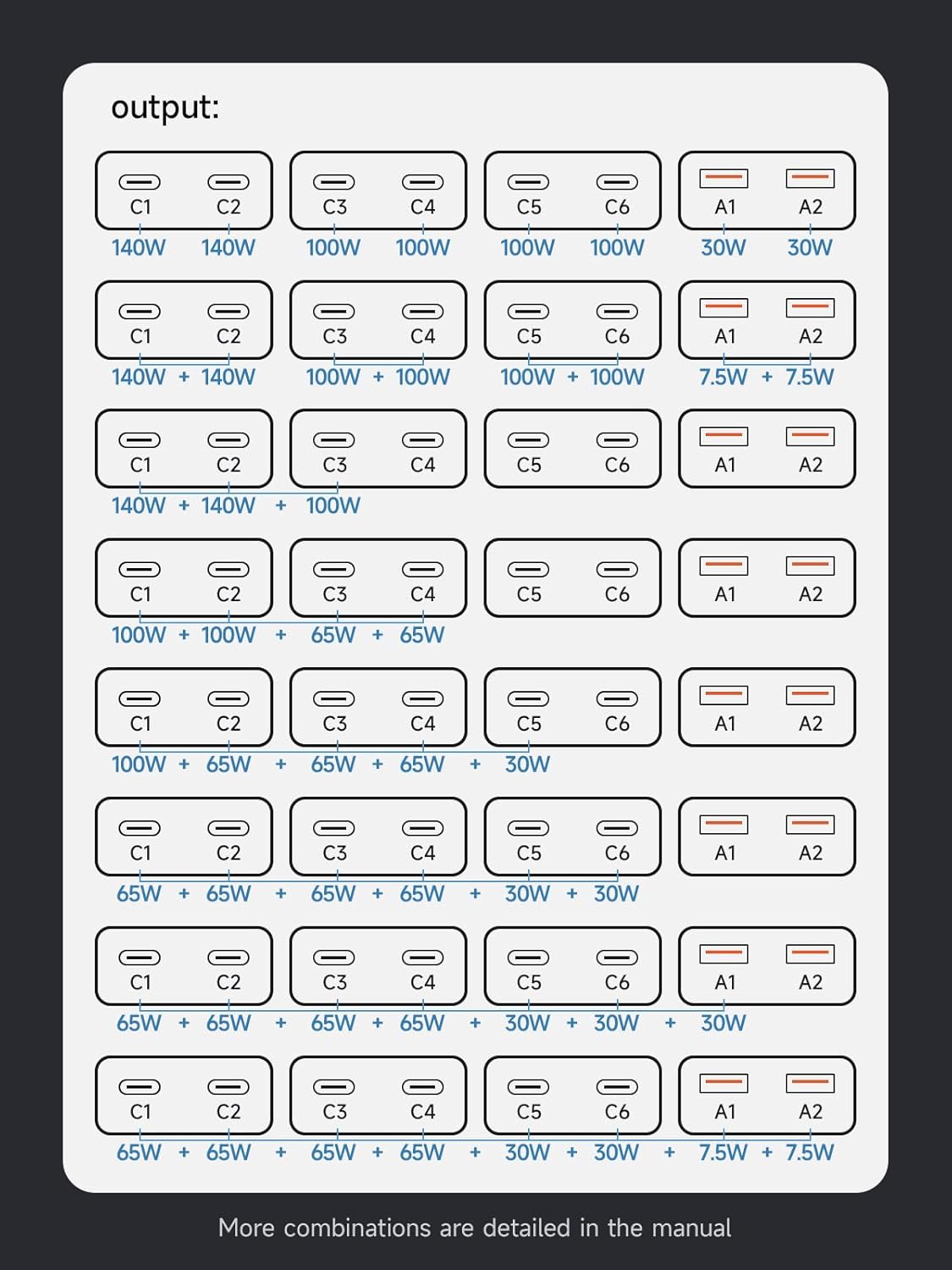

Image: Visual representation of power distribution across multiple ports.
- Single Port Max Output: C1/C2 up to 140W (28V/5A); C3/C4/C5/C6 up to 100W (20V/5A); A1/A2 up to 7.5W.
- Dubbele poortuitvoer:
- C1+C2 = 140W+140W
- C3+C4 = 100W+100W
- C5+C6 = 100W+100W
- A1+A2 = 7.5W+7.5W
- Multiple Port Output Examples:
- C1+C2+C3 = 140W+140W+100W
- C1+C2+C3+C4 = 100W+100W+65W+65W
- C1+C2+C3+C4+C5 = 100W+65W+65W+65W+30W
- C1+C2+C3+C4+C5+C6 = 65W+65W+65W+65W+30W+30W
- C1+C2+C3+C4+C5+C6+A1 = 65W+65W+65W+65W+30W+30W+30W
- C1+C2+C3+C4+C5+C6+A1+A2 = 65W+65W+65W+65W+30W+30W+7.5W+7.5W
7. Onderhoud
Proper maintenance ensures the longevity and optimal performance of your charging station.
- Skoonmaak: Ontkoppel die laaier van die kragtoevoer voordat u dit skoonmaak. Gebruik 'n sagte, droë lap om die buitekant af te vee. Moenie vloeibare skoonmaakmiddels of spuitbussen gebruik nie.
- Berging: Wanneer dit nie vir lang tye gebruik word nie, bêre die laaier op 'n koel, droë plek weg van direkte sonlig en uiterste temperature.
- Ventilasie: Ensure the cooling vents are not obstructed during operation to prevent overheating.
- Kabelversorging: Avoid bending or crimping charging cables excessively, as this can damage them and affect charging performance.
8. Probleemoplossing
If you encounter issues with your Hagibis charging station, please refer to the following common problems and solutions:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Toestel laai nie | Loose connection, faulty cable, power outlet issue, device compatibility. | Ensure power cable is securely plugged in. Try a different charging cable. Test the power outlet with another device. Verify device compatibility with the charger's output specifications. |
| Stadige laai | Cable not supporting fast charging, too many devices connected, device not supporting fast charging protocol. | Use a high-quality cable that supports fast charging. Refer to the 'Power Output Configurations' section to ensure sufficient wattage for your device. Check if your device supports the charger's fast charging protocols. |
| Charger feels hot | Heavy load, obstructed ventilation. | This is normal under heavy load due to high power output. Ensure the charger is placed in a well-ventilated area and vents are not blocked. The built-in cooling system will manage temperature. If it becomes excessively hot or shuts down, disconnect devices and power, then allow it to cool. |
| Laaier word nie aangeskakel nie | No power from outlet, faulty power cable. | Check if the power outlet is functional. Ensure the power cable is fully inserted into both the charger and the wall outlet. |
9. Spesifikasies
Detailed technical specifications for the Hagibis 380W USB C Charger:
Image: Product dimensions and key technical parameters.
| Handelsmerk | Hagibis |
| Modelnommer | PD380 |
| Totale USB-poorte | 8 (6x USB-C, 2x USB-A) |
| Totale wattage | 380 W |
| Invoer Voltage | 110-120V~50/60Hz 5.0A Max (US) |
| Output (C1/C2) | 3.3V~21V=5A, 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A (100W Max), 28V=5A (140W Max), PPS: 3.3-21V=5A (105W Max) |
| Output (C3/C4/C5/C6) | 3.3V~21V=5A, 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A (100W Max), PPS: 3.3-21V=5A (105W Max) |
| Output (A1/A2) | 4.5V=5A, 5V=4.5A, 9V=3A, 12V=2.5A, 20V=1.5A (30W Maks) |
| Connector Tipe | USB Tipe A, USB Tipe C |
| Materiaal | Polikarbonaat |
| Kleur | Swart |
| Item gewig | 23 onse (ongeveer 650 g) |
| Afmetings | Ongeveer. 95 mm x 88 mm x 95 mm |
| Kragbron | Elektries met koord |
| Veiligheid Sertifisering | UL-voldoenbaar |
10. Veiligheidsinligting
Om veilige werking te verseker en skade aan die toestel of beserings te voorkom, volg asseblief die volgende veiligheidsriglyne:
- Moenie die laaier aan water, vog of uiterste temperature blootstel nie.
- Vermy om die laaier te laat val of aan ernstige impakte bloot te stel.
- Do not disassemble, modify, or attempt to repair the charger. This will void the warranty and may cause hazards.
- Hou die laaier weg van vlambare materiale.
- Ensure proper ventilation around the charger during use. Do not cover it with cloths or other materials.
- Use only the provided power cable or a certified replacement.
- Disconnect the charger from the power outlet when not in use or during electrical storms.
- This device is equipped with multiple protection functions including temperature, over-current, over-voltage, overcharge, overload, overheat, and short circuit protection to ensure safe charging.
11. Waarborg en Ondersteuning
The Hagibis 380W USB C Charger (Model PD380) comes with a 1 jaar waarborg vanaf die aankoopdatum, wat vervaardigingsfoute dek.
For technical support, warranty claims, or any questions regarding your product, please contact the retailer where you purchased the item or visit the official Hagibis webwebwerf vir kliëntediensinligting.
Vervaardiger: Sjanghai Xinxie Industrial Co., Ltd.
