1. Produk verbyview
This manual provides instructions for the installation, operation, and maintenance of your Beliani Tela Shower Cabin. This shower cabin features tempered safety glass and double sliding doors, designed for modern bathrooms.
Produk Tipe: Shower Cabin
Hoofmateriaal: Gehard veiligheidsglas
Secondary Material: Aluminium
Vorm: Vierkantig
Deur opening: Gly
Voltooi: Glans

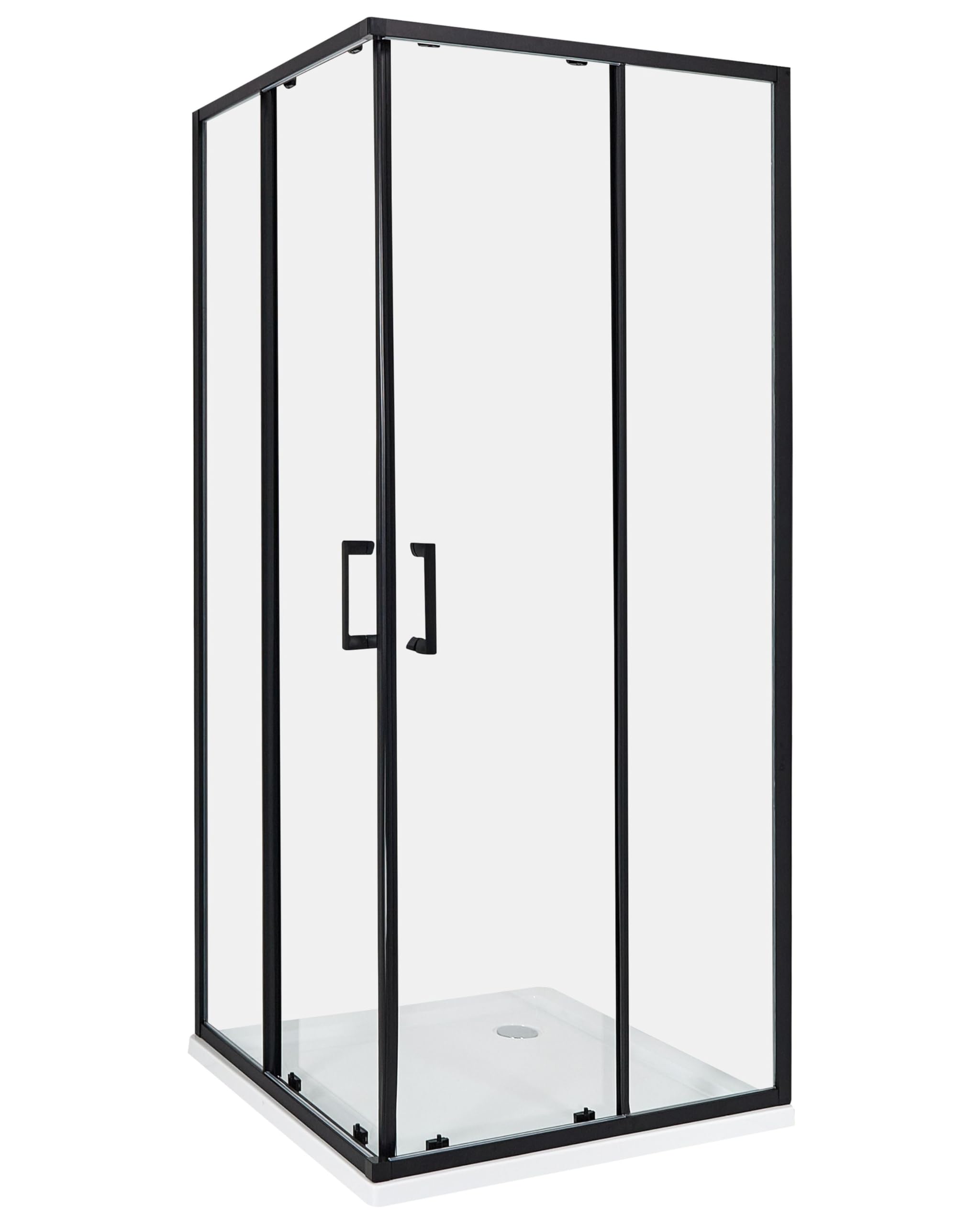

Image 1: The Beliani Tela Shower Cabin, featuring clear tempered glass and black aluminum frames, installed in a contemporary bathroom setting.
2. Veiligheidsinligting
Lees asseblief alle instruksies sorgvuldig deur voor installasie en gebruik. Versuim om hierdie instruksies te volg, kan lei tot besering of skade aan die produk.
- Dra altyd gepaste persoonlike beskermende toerusting (PPE) tydens installasie, insluitend veiligheidsbril en handskoene.
- Ensure the installation area is level and structurally sound to support the weight of the shower cabin (approximately 42 kg).
- Handle glass panels with extreme care. Tempered glass is strong but can shatter if struck at the edges.
- Do not overtighten screws or fittings, as this can damage components.
- Hou kinders en troeteldiere weg van die installasiearea.
- Indien u onseker is oor enige deel van die installasieproses, raadpleeg 'n gekwalifiseerde professionele persoon.
3. Pakketinhoud
Die pakket sluit in:
- 1 x Shower Cabin (glass panels, aluminum profiles, hardware)
Let wel: The shower tray and bath accessories are nie ingesluit en moet apart gekoop word.
4. Opstelling en installering
Installation and assembly are required for this product. The estimated assembly time is 90-120 minutes for two people.
4.1 Voor-installasie tjeks
- Verifieer dat alle komponente teenwoordig en onbeskadig is.
- Ensure the floor and walls where the cabin will be installed are clean, dry, and level.
- Confirm that the dimensions of your bathroom space accommodate the shower cabin (80 cm x 80 cm x 185 cm).
Image 2: Dimensional drawing of the shower cabin, indicating a width of 80 cm, a length of 80 cm, and a height of 185 cm.
4.2 Monteringsstappe (Algemene Riglyne)
- Berei die basis voor: Install your shower tray (not included) according to its manufacturer's instructions, ensuring it is level and properly sealed.
- Stel raam bymekaar: Connect the aluminum profiles to form the frame of the shower cabin. Refer to the detailed assembly diagram provided in your physical manual for specific connections.
- Install Fixed Glass Panels: Carefully insert the fixed glass panels into the designated channels of the aluminum frame. Secure them with the provided fasteners.
- Install Sliding Doors: Mount the sliding door mechanisms and attach the sliding glass doors. Ensure they glide smoothly and align correctly.
- Heg handvatsels aan: Secure the door handles to the sliding doors.
- Seal Joints: Apply silicone sealant to all exterior joints between the shower cabin and the wall/shower tray to ensure a watertight seal. Allow adequate drying time before use.

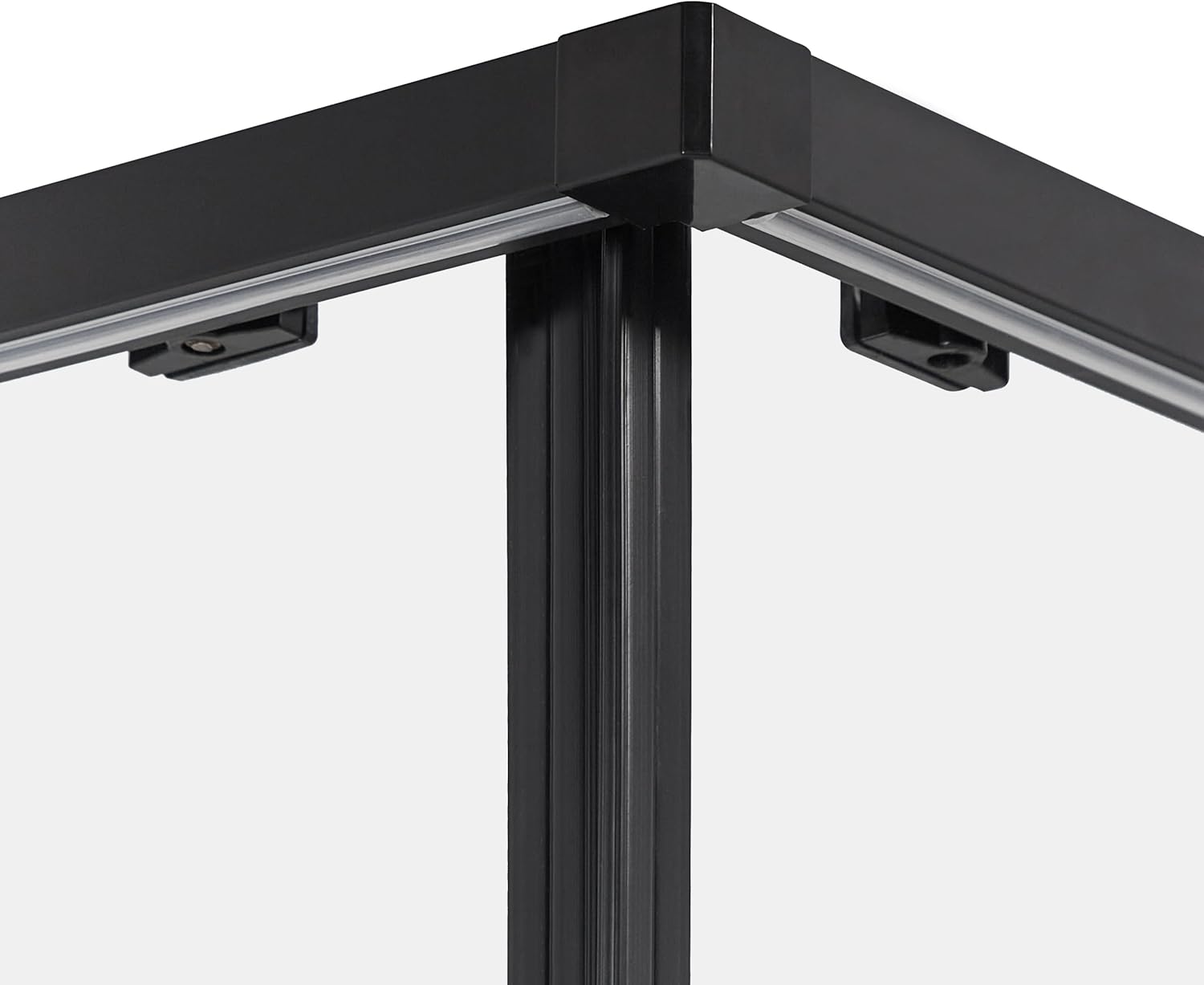

Image 3: Detail of the top corner connection of the aluminum frame, showing the secure fitting.
Image 4: Detail of the vertical aluminum profile, illustrating how the glass panel is secured within the frame.

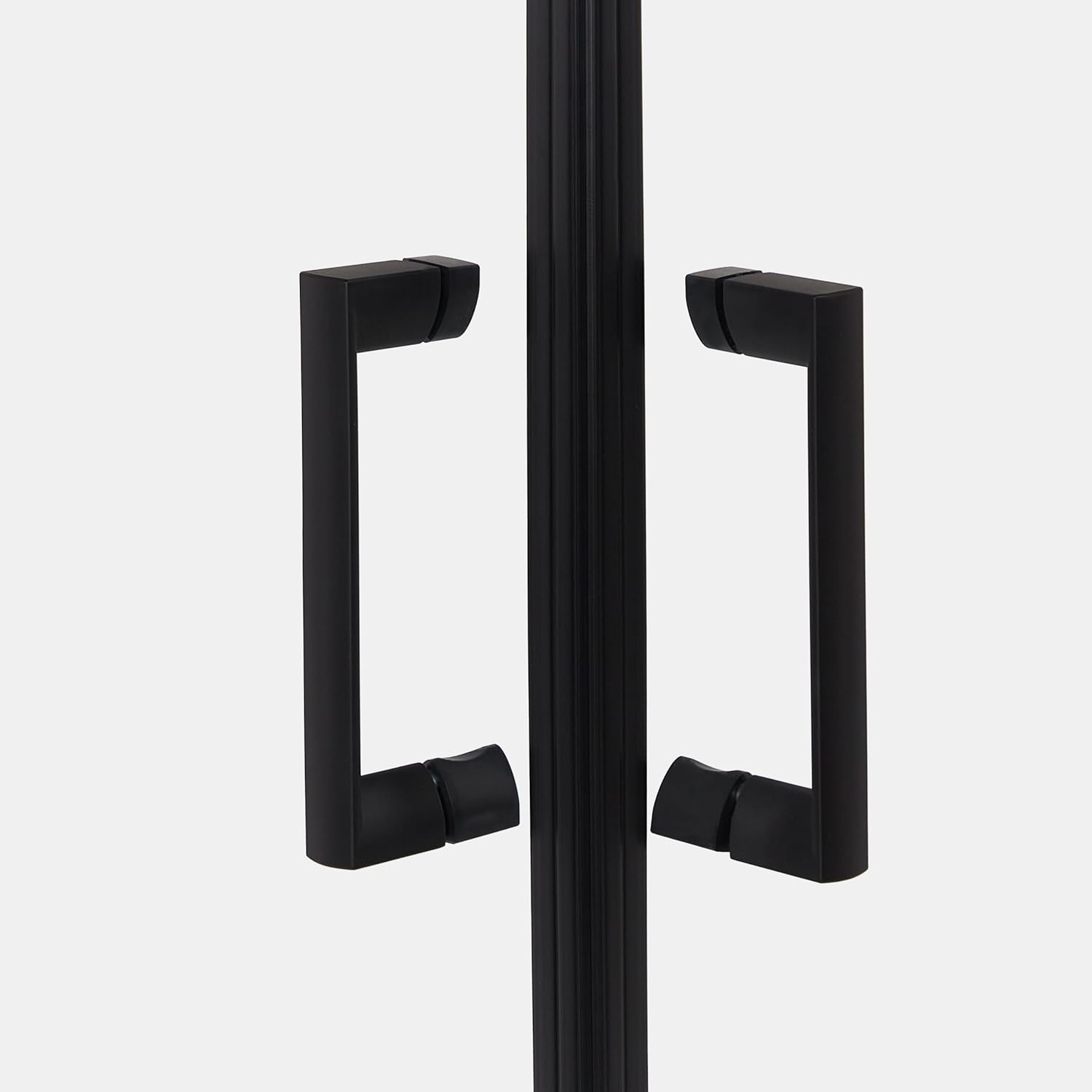

Image 5: Close-up of the black, square-shaped handles on the sliding doors, designed for easy grip.

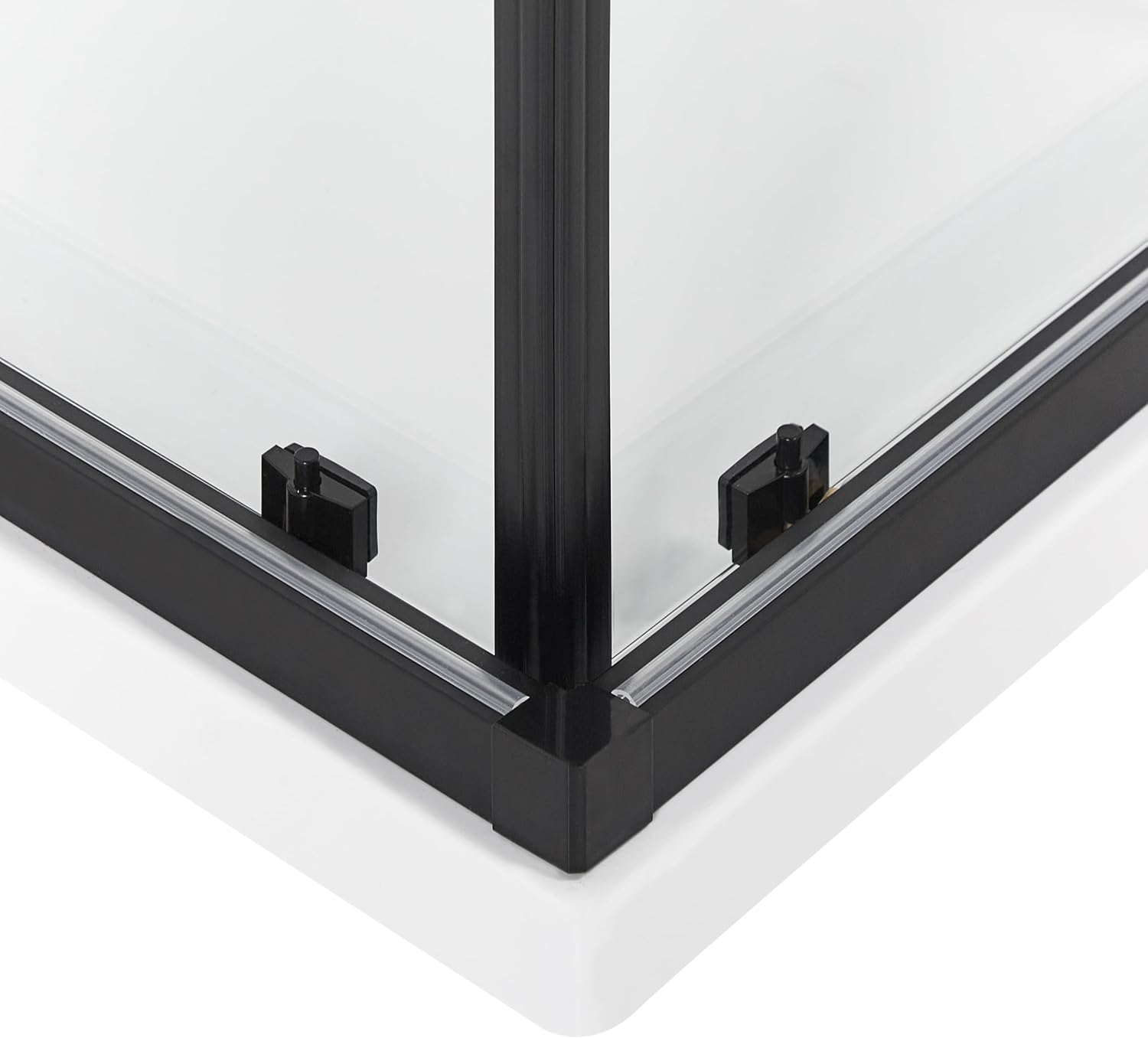

Image 6: Detail of the bottom corner connection, showing the secure fit of the glass panel into the frame.
5. Bedryfsinstruksies
The Beliani Tela Shower Cabin features double sliding doors for convenient access and to keep your bathroom dry.
- To open the doors, gently slide them along their tracks using the handles.
- To close the doors, slide them back until the magnetic strip engages, ensuring a secure and watertight seal.
- Avoid forcing the doors if they encounter resistance. Check for any obstructions in the tracks.
6. Onderhoud
Regular cleaning and maintenance will ensure the longevity and appearance of your shower cabin.
6.1 Tempered Safety Glass
- Clean with a soft cloth and a mild glass cleaner or glass conditioner.
- Wipe immediately after cleaning to prevent water spots.
- To avoid scratches, do not use abrasive cream cleaners or harsh scrubbing pads.
6.2 Aluminium Profiles
- Maak skoon met 'n sagte lap en 'n sagte skoonmaakmiddel.
- Wipe thoroughly dry afterward to prevent water marks.
- To avoid scratches, do not use abrasive cleaners.
- For copper or chrome-plated elements (if applicable), use a specialized polishing product.
6.3 Algemene wenke
- Regularly check the silicone seals for any signs of wear or damage and re-seal if necessary to prevent leaks.
- Hou die skuifdeur se spore skoon en vry van puin om gladde werking te verseker.
7. Probleemoplossing
This section addresses common issues you might encounter with your shower cabin.
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Water leakage from the cabin. | Damaged or improperly applied sealant; loose connections; worn door seals. | Inspect all silicone seals and reapply if necessary. Check that all frame connections are tight. Ensure door seals are clean and intact. |
| Sliding doors are stiff or do not move smoothly. | Debris in the tracks; misaligned rollers; damaged rollers. | Clean the door tracks thoroughly. Check rollers for alignment and adjust if needed. Replace any damaged rollers. |
| Doors do not close completely or seal properly. | Misaligned doors; magnetic strip issues; obstructions. | Adjust door alignment. Clean the magnetic strip and ensure it is free from obstructions. |
Indien u probleme ondervind wat nie hier gelys word nie, of indien die voorgestelde oplossings nie die probleem oplos nie, kontak asseblief kliëntediens.
8. Spesifikasies
| Kenmerk | Detail |
|---|---|
| Handelsmerk | Beliani |
| Modelnommer | 567871 |
| Deelnommer | 567875 |
| ASIN | B0DMYJLS7K |
| Afmetings (Breedte x Lengte x Hoogte) | 80 cm x 80 cm x 185 cm |
| Gewig | 42 kilogram |
| Materiaal | Tempered Safety Glass, Aluminum |
| Deurstyl | Sliding (Double Door) |
| Voltooi Tipe | Glans |
| Installasie tipe | Freestanding (requires assembly) |
| Vergadering benodig | Yes (Estimated 90-120 min) |
| Land van oorsprong | China |
9. Waarborg en Ondersteuning
Your Beliani Tela Shower Cabin comes with legal guarantees and a 30-day return policy.
For any questions, assistance with assembly, or to report a defect, please contact Beliani customer support. Please have your model number (567871) and ASIN (B0DMYJLS7K) ready when contacting support.
Beliani France Customer Support: Kontak verkoper
