1. Inleiding
The YONGNUO BR-G1 is a versatile Bluetooth remote controller designed for use with various cameras and camcorders. It provides wireless control over essential functions such as shutter release, video recording, and zoom, enhancing your photography and videography experience. This manual will guide you through the setup, operation, and maintenance of your BR-G1 remote controller.
2. Produkkenmerke
The BR-G1 remote controller offers a range of features for convenient camera operation:
- Multi-handelsmerk-versoenbaarheid: Supports four major camera brands (Canon, Nikon, Sony, Fujifilm).
- Dual Camera Control: Capable of controlling two cameras simultaneously.
- Zoemaanpassing: Provides support for zoom functions on compatible lenses.
- Uitgebreide reeks: Offers a remote control distance of over 10 meters.
- Photo & Video Functions: Supports both still photography and video recording.
- Twee-Stage Shutter: Features a two-stage shutter button for focus and capture, with one-click video shooting.
- Lang batterylewe: Approximately one year of battery life.
- Gevorderde skietmodusse: Supports Bulb shooting and continuous shooting.
Beeld: Oorview of the YONGNUO BR-G1's key features, including multi-brand support, dual camera control, zoom, and extended range.
3. Pakketinhoud
Kontroleer asseblief die inhoud van die pakkie na opening om seker te maak dat alle items teenwoordig is:
- YONGNUO BR-G1 Bluetooth Remote Controller
- Gebruikershandleiding
- Waarborgkaart
- Produk kwalifikasiesertifikaat

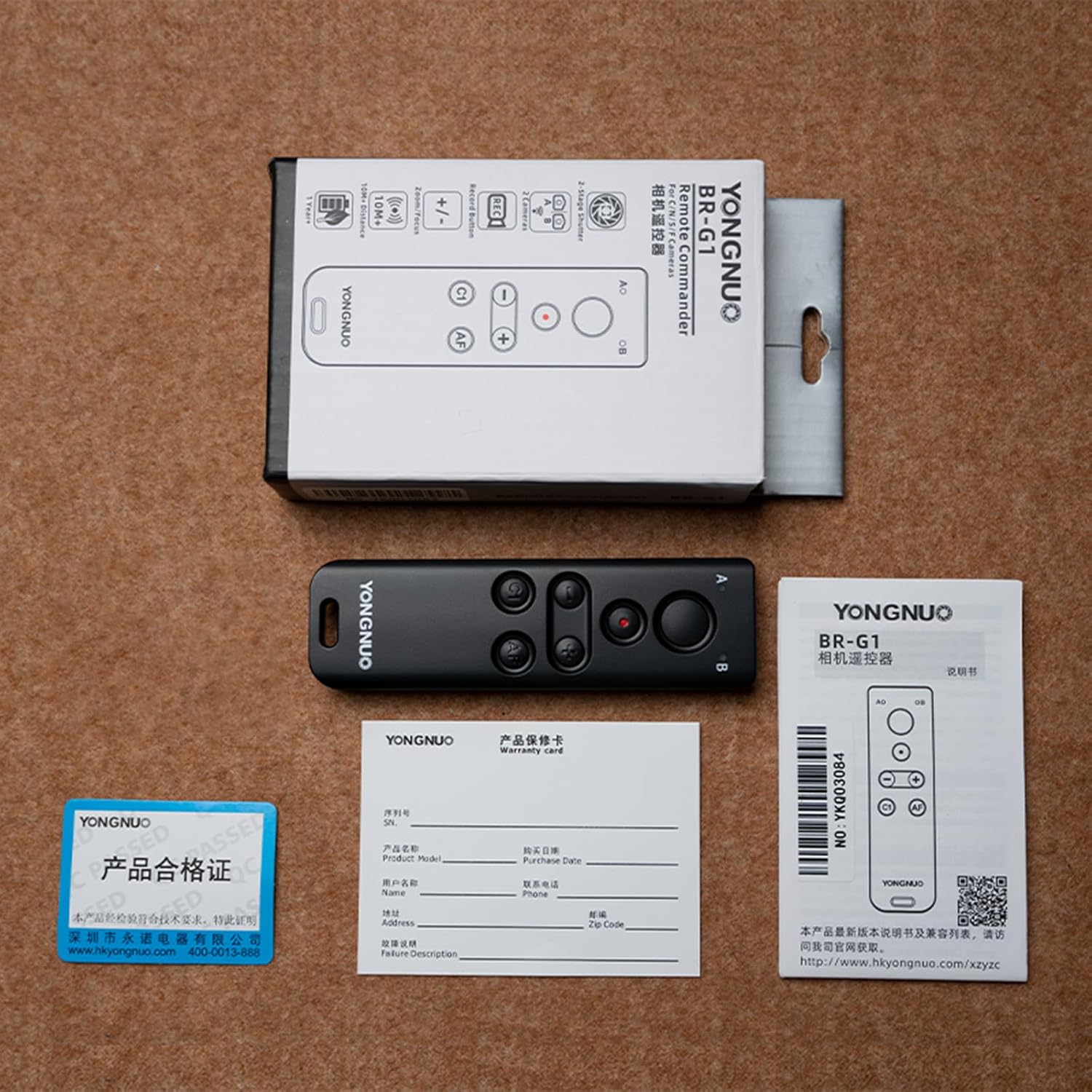

Image: The YONGNUO BR-G1 remote controller, its packaging, user manual, warranty card, and qualification certificate.
4. Komponentidentifikasie
Beeld: Voorkant view of the BR-G1 remote, showing the main shutter button, zoom controls, C1, AF, and A/B selection buttons.
Beeld: Sykant view of the BR-G1 remote, highlighting the A/B channel selection switch and the ON/OFF power switch.
Beeld: Agterkant view of the BR-G1 remote, showing the battery compartment cover and product information label.
5. Opstelling
5.1. Battery Installasie
- Vind die batteryklepdeksel aan die agterkant van die afstandbeheerder.
- Rotate the cover counter-clockwise to open it.
- Insert a CR2032 battery, ensuring the positive (+) side faces upwards.
- Replace the cover and rotate it clockwise to secure.
5.2. Skakel aan/af
Slide the ON/OFF switch located on the side of the remote to the "ON" position to power on the device. Slide it to "OFF" to power off.
5.3. Bluetooth-koppeling
To connect the BR-G1 to your camera:
- Ensure the BR-G1 is powered on.
- On your camera, navigate to the Bluetooth settings menu.
- Select "Pairing" or "Add Device" and choose the BR-G1 from the list of available devices.
- Confirm the pairing on both the camera and the remote if prompted.
- Once paired, the remote is ready for use.
Note: Refer to your camera's instruction manual for specific Bluetooth pairing procedures.
6. Bedryfsinstruksies
6.1. Knoppie Funksies
The BR-G1 features several buttons with functions that may vary slightly depending on your camera brand. Below is a general guide:

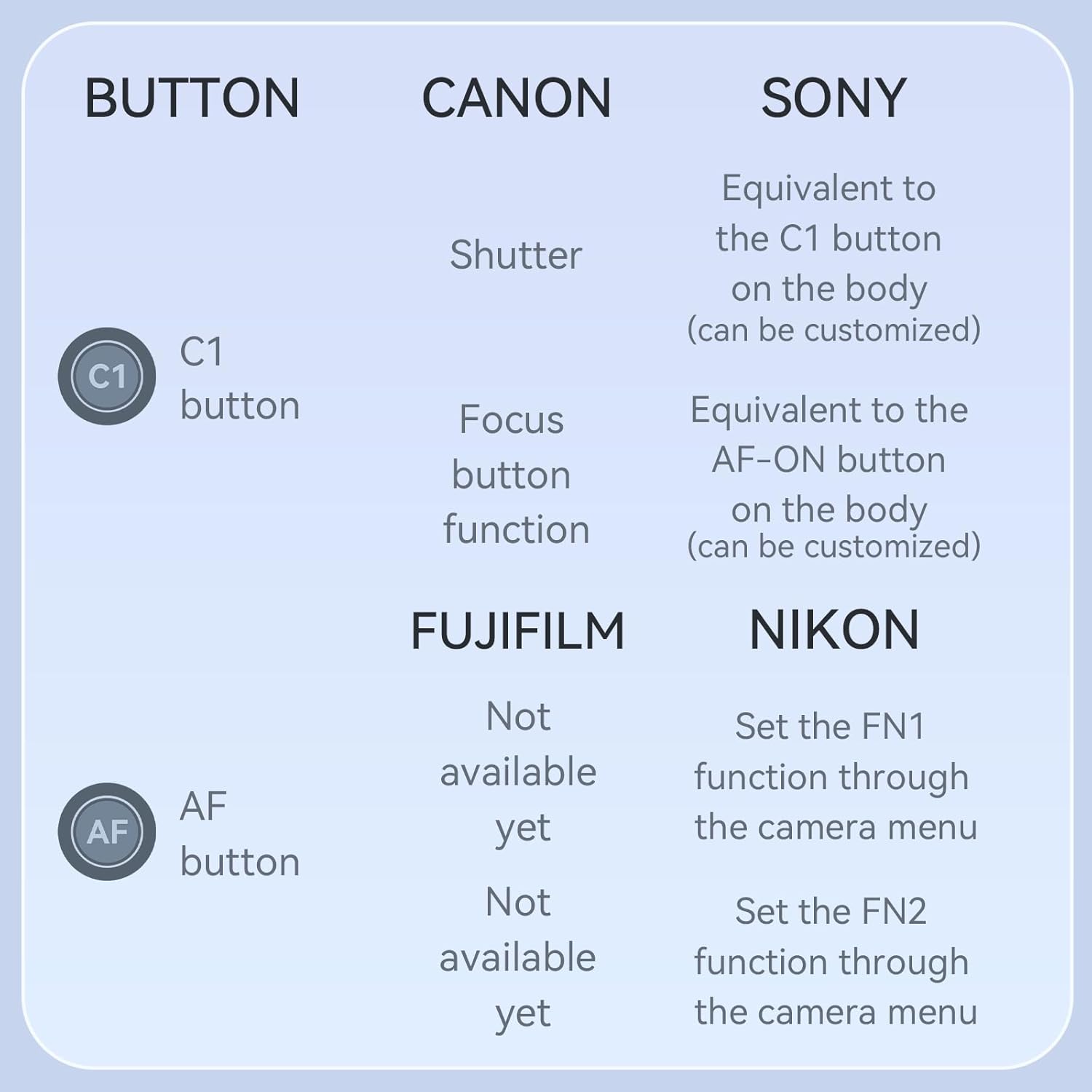

Image: A table illustrating the functions of the C1 and AF buttons across different camera brands: Canon, Sony, Fujifilm, and Nikon.
- Main Shutter Button: Press halfway to focus, fully press to take a photo. In video mode, press to start/stop recording.
- Zoom Buttons (+/-): Controls the zoom function on compatible power zoom lenses.
- C1-knoppie:
- Kanon: Sluiter
- Sony: Equivalent to the C1 button on the camera body (customizable).
- Fujifilm: Focus button function.
- Nikon: Not available yet.
- AF Button:
- Kanon: Focus button function.
- Sony: Equivalent to the AF-ON button on the camera body (customizable).
- Fujifilm: Not available yet.
- Nikon: Set the FN1 function through the camera menu.
- A/B-skakelaar: Selects between two paired cameras (Channel A or Channel B) for controlling multiple devices.
6.2. Controlling Multiple Cameras
The BR-G1 can control two cameras simultaneously. Pair each camera to a different channel (A or B) following the Bluetooth pairing instructions. Use the A/B switch on the side of the remote to select which camera you wish to control.
7. Onderhoud
- Keep the remote controller dry. Do not expose it to moisture or rain.
- Clean the remote with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Avoid extreme temperatures. Store the device in a cool, dry place.
- If not using the remote for an extended period, remove the battery to prevent leakage.
8. Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Remote not powering on. | Die battery is pap of verkeerd geïnstalleer. | Check battery orientation, replace battery if necessary. Ensure ON/OFF switch is in "ON" position. |
| Cannot pair with camera. | Bluetooth is off on camera, remote is too far, or already paired to another device. | Ensure camera Bluetooth is enabled. Move remote closer to camera. Unpair from other devices if applicable. Restart both devices and try pairing again. |
| Afstandsfunksies werk nie. | Incorrect camera settings, remote not properly paired, or camera not compatible. | Verify camera settings for remote control. Re-pair the remote. Check camera compatibility with BR-G1. Ensure correct A/B channel is selected. |
| Zoom function not working. | Lens does not support power zoom, or camera settings prevent remote zoom. | Ensure you are using a power zoom lens. Check camera menu for remote zoom settings. |
9. Spesifikasies
| Model Naam | BR-G1 |
| Handelsmerk | YONGNUO |
| Verbindingstegnologie | Bluetooth |
| Maksimum reeks | 10 meter |
| Versoenbare toestelle | Camcorder, Camera (Canon, Nikon, Sony, Fujifilm) |
| Maksimum aantal ondersteunde toestelle | 2 |
| Tipe beheerder | Knoppie beheer |
| Knoppie Hoeveelheid | 6 |
| Kleur | Swart |
| Produk afmetings | 7.87 x 2.54 x 10.41 cm |
| Item gewig | 60 g (0.06 kilogram) |
| Kragbron | CR2032 Battery (approx. 1 year life) |
10. Waarborg en Ondersteuning
The YONGNUO BR-G1 Bluetooth Remote Controller comes with a standard manufacturer's warranty. Please refer to the included warranty card for specific terms and conditions, including warranty period and coverage details.
For technical support, troubleshooting assistance, or warranty claims, please contact YONGNUO customer service through their official webwebwerf of die kontakinligting wat op u waarborgkaart verskaf word.
