Seesii Cordless Impact Wrench and Electric Car Jack Kit

Inleiding

Thank you for choosing the Seesii Cordless Impact Wrench and Electric Car Jack Kit. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before use and retain it for future reference.

This kit includes a powerful cordless impact wrench (WH760) with 1000N.m (738ft-lbs) max breakaway torque and a 5-ton electric car jack with an integrated tire inflate pump, designed to assist with vehicle maintenance tasks such as tire changes.

Belangrike veiligheidsinligting

WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool and car jack. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

• Dra altyd gepaste persoonlike beskermende toerusting, insluitend veiligheidsbril, handskoene en gehoorbeskerming.
• Maak seker dat die werkarea goed belig is en vry van obstruksies.
• Hou kinders en omstanders weg terwyl die werktuig gebruik word.
• Moenie elektriese gereedskap in plofbare atmosfeer gebruik nie, soos in die teenwoordigheid van vlambare vloeistowwe, gasse of stof.
• Always disconnect the battery pack from the impact wrench before making any adjustments, changing accessories, or storing the tool.
• For the electric car jack, ensure the vehicle is on a firm, level surface. Use wheel chocks to prevent the vehicle from moving.
• Never work under a vehicle supported only by a jack. Always use appropriate jack stands.
• Do not overload the car jack beyond its rated capacity of 5 tons.
• Avoid direct contact with the car jack's lifting mechanism during operation.
• Keep all electrical connections dry and away from water. The car jack and power cord connector are waterproof, but extreme conditions should be avoided.

Pakketinhoud

Verify that all items listed below are present and undamaged upon opening the package. If any items are missing or damaged, please contact Seesii customer support.

• Seesii Cordless Impact Wrench (WH760)
• Electric Car Jack (5 Ton capacity)
• 2 x 4.0Ah Litium-ioon batterye
• Vinnige laaier
• Impact Wrench Sockets (17mm, 19mm, 21mm, 23mm)
• Tire Inflate Pump Nozzles (3 types)
• Power Cable for Car Jack
• Rugged Storage Toolbox
• Gebruikershandleiding (hierdie dokument)

Produk verbyview

Cordless Impact Wrench (WH760)

The WH760 impact wrench features a powerful brushless motor, offering high torque and efficiency for various fastening and loosening tasks. It includes multiple speed settings and a forward/reverse switch for versatile operation.

Prent: Intern view of the Seesii impact wrench's upgraded brushless motor, highlighting benefits like increased running time, lifetime, power, efficiency, and reduced sparks and noise.

Prent: Seesii Cordless Impact Wrench demonstrating stepless speed control with three speed modes (0-2500RPM, 0-2900RPM, 0-3300RPM) indicated by LED battery level.

Prent: Seesii Cordless Impact Wrench showing forward and reverse modes, with directional arrows indicating tightening and loosening actions.

Elektriese motor Jack

The electric car jack is designed for quick and effortless vehicle lifting, featuring a 5-ton capacity and an integrated tire inflate pump. It is equipped with LED lights for visibility in low-light conditions.

Prent: Seesii Electric Car Jack lifting a vehicle, illustrating its suitability for sedans, MPVs, vans, and SUVs, with a maximum lift height of 17.7 inches in two minutes.

Prent: Seesii Electric Car Jack with integrated tire inflate pump, showing a 35L/min inflating speed, tire pressure monitoring gauge, and three inflatable nozzles.

Opstelling

1. Battery laai

1. Connect the fast charger to a standard power outlet.
2. Slide the 4.0Ah Lithium-Ion battery into the charger. Ensure it clicks into place.
3. Allow approximately 3 hours for a full charge. The charger indicator light will change to confirm charging status.
4. Sodra dit gelaai is, verwyder die battery uit die laaier.

2. Attaching Sockets to Impact Wrench

1. Ensure the impact wrench is off and the battery is removed.
2. Select the appropriate socket size (17mm, 19mm, 21mm, or 23mm) for your application.
3. Align the square drive of the socket with the anvil of the impact wrench.
4. Push the socket firmly onto the anvil until it locks securely.
5. To remove, pull the socket off the anvil while pressing the release button (if present).

Prent: Seesii Portable Impact Wrench being used to remove a car tire, with an inset showing the wrench's maximum torque of 420 N.M and included 17/19 mm and 21/23 mm sockets.

Bedryfsinstruksies

1. Cordless Impact Wrench Operation

1. Installeer die battery: Slide a charged battery pack into the base of the impact wrench until it locks.
2. Select Direction (Forward/Reverse): Use the forward/reverse switch located near the trigger to select the desired rotation direction.
   • For tightening (clockwise), push the switch to the 'F' position.
   • For loosening (counter-clockwise), push the switch to the 'R' position.
3. Pas spoed aan: The impact wrench features stepless speed control. The further you press the trigger, the higher the speed. It also has three-speed modes (Low, Medium, High) for precise control. Select the appropriate mode based on the task.
4. Operasie:
   • Place the socket firmly onto the fastener (nut or bolt).
   • Press the trigger to start the tool. Apply steady pressure.
   • For loosening stubborn fasteners, the tool's high breakaway torque (up to 1000N.m) will be effective.
   • For tightening, ensure not to overtighten. Use a torque wrench for final tightening to vehicle manufacturer specifications.
5. Na gebruik: Release the trigger, remove the battery, and store the tool safely.

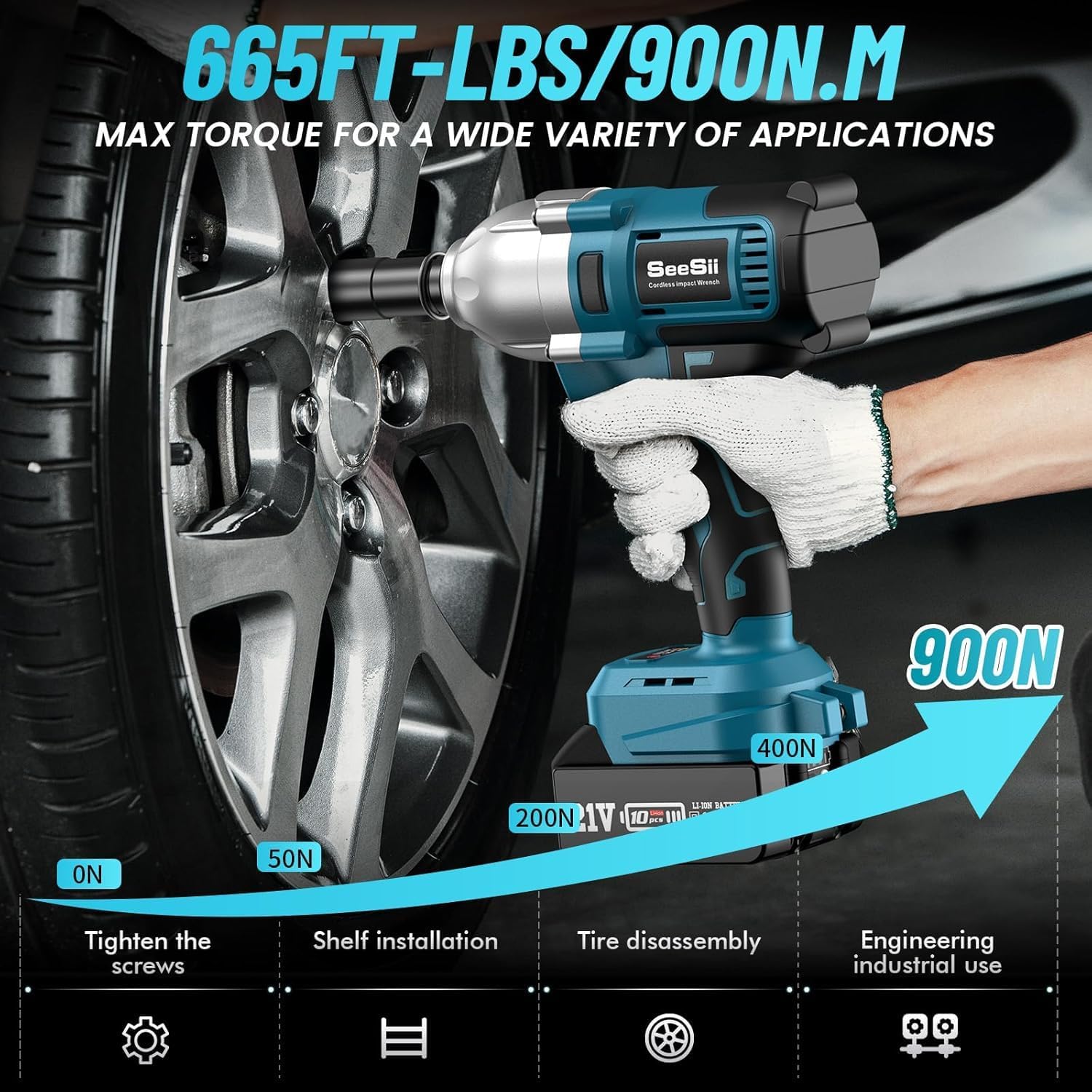

Prent: Seesii Cordless Impact Wrench in use, demonstrating 900N.m max torque for various applications like tightening screws, shelf installation, tire disassembly, and industrial use.

2. Electric Car Jack Operation

1. Voorbereiding:
   • Park the vehicle on a firm, level surface.
   • Engage the parking brake and place wheel chocks on the wheels that will remain on the ground.
   • Locate the vehicle's designated jacking points (refer to your vehicle's owner's manual).
2. Koppel krag:
   • Connect the car jack's power cable to your vehicle's 12V power outlet (cigarette lighter socket) or directly to the car battery terminals using the provided adapter. Ensure the car is started for optimal power supply.
3. Position Jack:
   • Position the car jack directly under the designated jacking point.
   • Use the integrated LED lights for better visibility in dark conditions.
4. Hysvoertuig:
   • Press the "UP" button on the jack's control panel to raise the vehicle.
   • Monitor the lifting process. The jack can lift up to 5 tons and has a lifting height range of 6.1 to 17.7 inches.
   • Once the desired height is reached, release the button.
   • WARNING: Always place jack stands under the vehicle before performing any work. Never rely solely on the car jack for support.
5. Onderste Voertuig:
   • After completing work and removing jack stands, press the "DOWN" button on the control panel to slowly lower the vehicle.
   • Ensure no obstructions are under the vehicle as it lowers.
6. Na gebruik: Disconnect the power cable and store the jack in its toolbox.

3. Tire Inflate Pump Operation

1. Koppel krag: Ensure the car jack is connected to the vehicle's 12V power source (car started).
2. Heg slang aan: Screw the inflate pump hose onto the tire valve stem.
3. Select Nozzle (if applicable): For other inflatables (balls, air mattresses), attach the appropriate nozzle from the three provided types to the hose.
4. Stel druk: The integrated gauge displays current tire pressure. Refer to your vehicle's recommended tire pressure.
5. Begin inflasie: Turn on the inflate pump switch. The pump will start inflating at a speed of 35L/min.
6. Monitor druk: Continuously monitor the pressure gauge. Stop inflation once the desired pressure is reached.
7. Ontkoppel: Turn off the pump, unscrew the hose from the valve stem, and store the components.

Onderhoud

Algemene Sorg

• Keep the tools clean and free from dirt, dust, oil, and grease. Use a soft, damp lap vir skoonmaak. Moenie harde chemikalieë of skuurmiddels gebruik nie.
• Regularly inspect all components for signs of wear or damage. Replace worn parts immediately.
• Maak seker dat alle skroewe en bevestigingsmiddels styf vas is.

Battery sorg

• Berg batterye in 'n koel, droë plek weg van direkte sonlig en uiterste temperature.
• Moenie batterye vir lang tye in 'n ontlaaide toestand bêre nie. Laai hulle gereeld op as hulle nie gebruik word nie.
• Moenie batterye aan water of vog blootstel nie.

Berging

• Store the impact wrench, car jack, and all accessories in the provided rugged toolbox when not in use.
• Bêre op 'n droë, veilige plek buite bereik van kinders.

Probleemoplossing

Spesifikasies

Waarborg en Ondersteuning

Seesii products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your purchase or visit the official Seesii webwebwerf.

For direct assistance, you may contact Seesii customer service through the contact information provided on their official webwebwerf of deur jou aankoopplatform.
